$16.95
$4.99
Availability: 22 In Stock
Sku: GTP-MC-S1

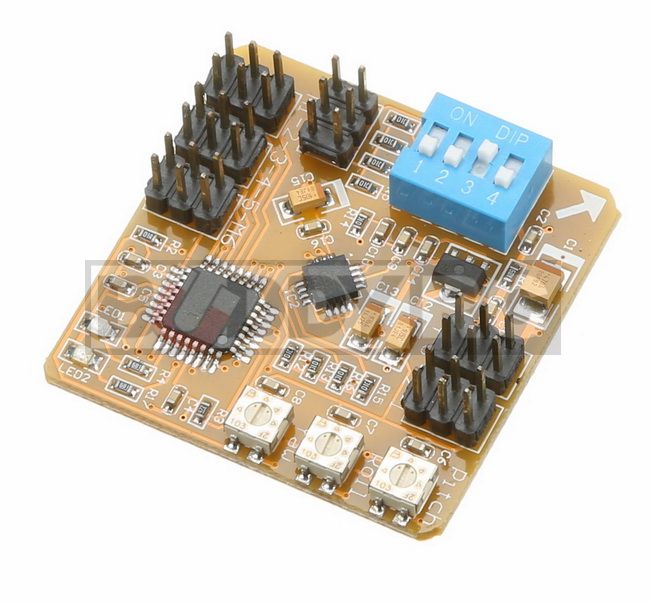

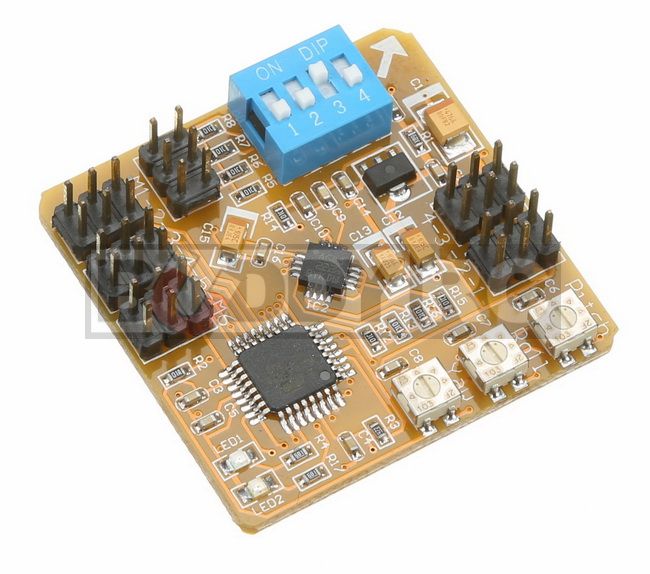

The S1 Multicopter Control Board is based on KK's popular multicopter firmware, but features on-board switches for selecting desired multicopter configurations and flight modes. Now you can make all adjustments with a screw driver. Connecting to a computer is not necessary. Controlled by an Atmel Mega168PA 8-Bit RISC based micro controller and utilizing a single 3-axis MEMS gyro the S1 is capable of 8 Multicopter types and 2 flight modes (normal and sport), all without the need to flash the ROM. The S1 is lighter weight and more compact than most KK or MWC boards, and can fit in almost any size multicopters. The GT Power S1 Multicopter Control Board supports these multicopter types: Aero (fixed wing) Dual copter Tri copter Quad copter X Quad copter + Hex copter H6 copter Y6 copter All of the multicopter types can be set to "Normal" or "Sport" mode (default normal).

Specifications: Input Voltage: 4-6V Input signal: 50hz standard PPM PWM Frequency: 400hz for ESC, 50hz for servos Gyro scale: +/- 500dps, ODR: 800hz Operating temp: -40° C to 85° C Size: 40mm x 40mm Board Weight: 8g

Orders are shipped from Columbus, the capital city of Ohio, USA.

An order placed before 2:00pm Eastern Standard Time will be shipped the same working day.

We ship on Monday-Friday by US postal service (USPS) and UPS, and Saturday morning by USPS if a local post office is open. Any order placed on Saturday morning may or may not be shipped the same day. Orders placed on Sunday and US holidays will be shipped the next working day.

Domestic:

Retail orders above $80 may be eligible for free shipping, including contiguous United States, Alaska, Guam, Hawaii, Puerto Rico, and APO addresses. We will use either USPS or UPS that most packages can be delivered in 3-5 working days, but not guaranteed. However, for packages contain large and heavy items, such as power supply, we may use parcel post service or UPS Surepost that may take up to 7 working days to be delivered.

USPS First Class Mail and Priority Mail, Express Mail, and UPS services can be used for domestic addresses. Tracking number and delivery confirmation will be provided to the customer when they are available. If you have not received a tracking information E-mail, please log into your account and click the "view order" link, then click "Track your order" link to find out the tracking number and ship method.

USPS Priority Mail is typically delivered in 3 working days. But very occasionally a priority mail package may be delayed for several days in the mailing system. If delivery time is extremely critical to your order, we would recommend Priority Mail Express or other couriers.

Domestic First Class Mail is only 1-2 days slower than Priority Mail in delivery. We suggest domestic customers choose First Class Mail for an order under 15 oz to save shipping cost.

Real shipping cost is calculated according to package weight and distance, and can be found in the checkout page after delivery address is specified in the fields.

Any order of $200 and above requires addressee's signature confirmation upon receipt of the package. Please contact us in advance or leave a comment in the message box if you want to waive signature confirmation.

We always check the legality of potential fraudulent orders. This procedure may lead to 1-2 working days delay in shipping in some rare cases.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

International:

DHL, DHL Express, US Postal Service (USPS) First Class Mail, Priority Mail, and Express Mail (EMS), and UPS services can be selected for international addresses. Shipping cost is calculated according to package weight and distance, and can be found in the check out process. A package usually takes around 7-10 days to be delivered, or occasionally up to 45 days depending on the processing speed in your country, especially in some countries such as Brazil and Russia.

USPS First Class Mail is a budget shipping method. As soon as a First Class Mail package left USPS Chicago hub there will be no tracking information available. If you need detailed tracking information and timely delivery please do not use this shipping method.

Presently we cannot ship lithium batteries internationally by US Post Service or any other air shipping method. Please select UPS Ground if your order contains LiPo or LiFe battery.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

GT Power S1 Multirotor Controller
