Description

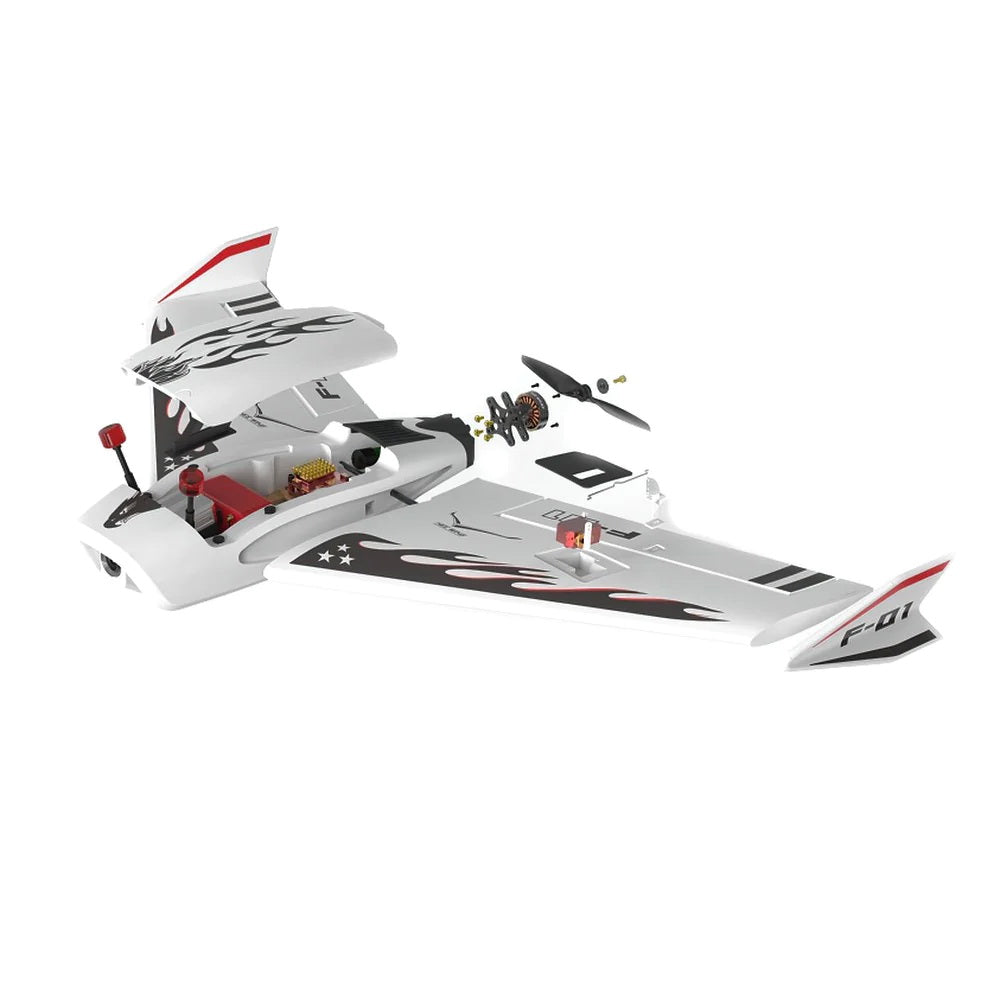

HEE WING RC F-01 Ultra Delta Wing PNP Pro 690MM EPP RC Airplane
Features
- Independent detachable lens plug for both FPV and visual observation flights
- Wings have embedded carbon fiber rods with different angles
- Small wingspan with large space for electronics electronics
- Four magnets are applied to the hatch for better fastening
- The new wingtip design supports vertical take-off mode
- Supports horizontal and vertical battery mounting
- Tailored lens ring for better protection
- All new propeller locking method
- Tailored for DJI Digital Air unit
Specifications
- Airplane Dimension: Wingspan 690mm, Height: 88mm, Length: 415mm
- Fuselage space: Battery compartment: 175mm*175mm*55mm
- VTX fixed seat: compatible with digital VTX and analog VTX
- KIT Weight: 150g (epp-30)/190g (epp-20)
- ESC compartment: 70mm*38mm*20mm
- Material : EPP/ABS/Carbon Fiber
- Max Flight speed: ≥220+km/h
- Max Endurance: >70 minutes
- Take off weight: 350g~850g
- Min Flight speed: <27km/h
- Thrust: ≥920g(6*4E prop)
- Propeller: 5x5E/6x4E
- Max Mileage: >45km
- Battery: 2S~4
- Note: when speed is≥100km/h, should install lens cover to prevent excessive inflow air from blowing away from the hatch.
PNP PRO:
Motor： FX-2205/2350 kv brushless*1
ESC： FX-35A brushless *1
UBEC: Diatone 5V 2A*1
Propeller： 5*5E/6*4e
Servo: GDW 12g digital metal gear servo*2
XT60+3.5 banana plug
