Himax 40A ESC for Aircraft with Deans Connector

HimaxSKU: HMX-ESC-40A-T

Price:
Sale price$29.99

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Richard O.

Works Great Thanks

C
Charles C.
Good product, good price.

Exactly what I expected from the info on the site. Arrived quickly, in good condition. A friend ordered one at the same time from somewhere else and it didn't come with ANY connectors on it for the same price.

Download Manual

Description

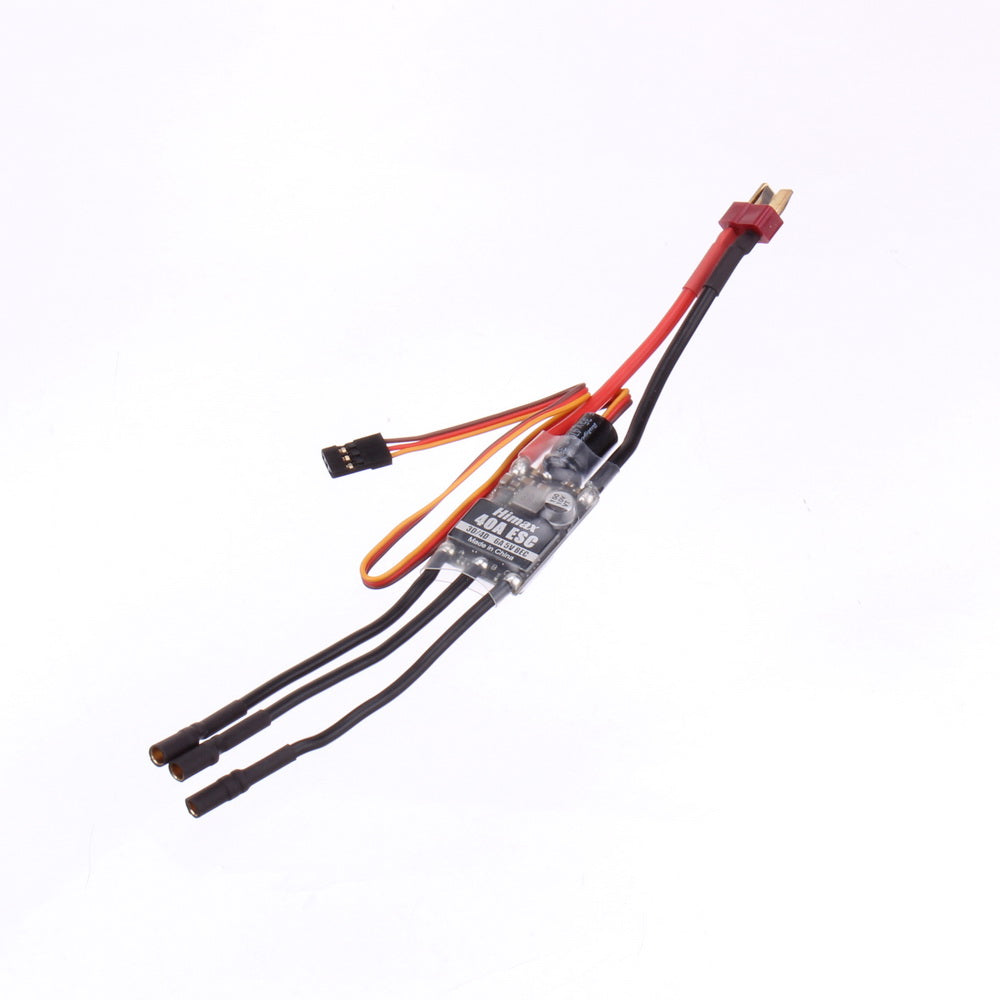

Himax 40A ESC for Aircraft with Deans Connector

This is a great compact, light weight and smooth throttle ESC. With it's compact size it will fit in the smallest of aircraft. The light weight will not affect the C.G. The linear throttle assures great control through many 3D and 4D aerobatics and yes it is 4D compatible with forward and reverse. Thanks to the built in button on the back of the ESC. BEC power is rated at a consist and clean 5v at 5A even under load.

Features:

  • Throttle calibration function, the throttle range can be calibrated to be compatible with different transmitters.
  • 40A constant current
  • 3s and 4s capable
  • Deans battery Connector
  • 3.5mm bullets pre soldered
  • 5A/5V BEC
  • Over temperature protection ,low voltage cut off protection ,signal loss protection and so on.
  • BLHeli_S Firmware (Programmable)

Dimensions: 32x21x10mm

Max Cell Count: 4s

Can be set to reverse below mid throttle stick with a button on the ESC
