Description

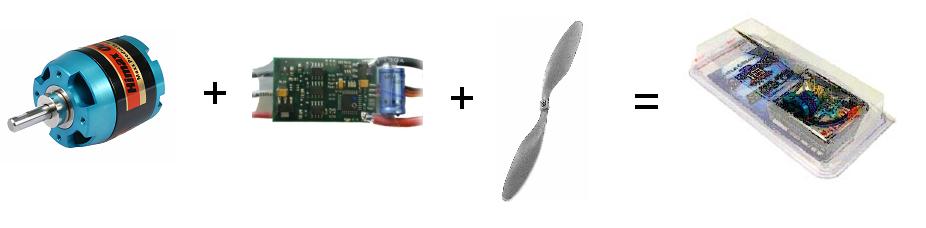

Introducing Himax Electric Power Combos. This takes the guessing out of purchasing electric motors. One package contains the motor, ESC, and prop, along with a recommendation for a battery pack. The packs are designed for popular applications. Performance of the system can be changed by altering the prop to suit the model if necessary. Click the item number for more information.
| Item No. | Glow Equiv. | Motor Included |
Prop Included | ESC Included | Model Weight (oz) | # of Lipo | Power (watts) | Thrust (oz) | Weight (oz) | |||
|
3D |
Aerobatic | Leisure | ||||||||||
| Combo 020 | 0.020 | HC2208-1260 | 8x3.8SF | 15A | na | 6 | 8 | 2 | 28 | 6.5 | 1.4 | |
| Applications: GWS Lite Stick, Small Indoor Electric | ||||||||||||
| Combo 040 | 0.040 | HC2212-1180 | 9x4.7SF | 15A | na | 9 | 11 | 2 | 44 | 9 | 1.7 | |
| Applications: Sig Lil Rascal, Pico Cub, Pico Tiger Moth | ||||||||||||
| Combo 049 | 0.049 | HG2015-4166 | 12x6E | 15A | 14 | 20 | 25 | 3 | 100 | 22 | 3.6 | |
| Applications: Tribute, GWS Warbirds | ||||||||||||
| Combo 070 | 0.070 | HG2025-4266 | 12x8E | 15A | 20 | 30 | 38 | 3 | 155 | 35 | 4.3 | |
| Applications: Mini Funtana, Mini Edge, Hyperion Cap 232, Su-31, Extra 300, GWS Warbirds | ||||||||||||
| Combo 061 | 0.061 | HC2808-0980 | 9x4.7SF | 15A | 12 | 18 | 24 | 3 | 90 | 17 | 2.4 | |
| Applications: Shock Flyers, GP Flatout series, Hyperion Flying Boat, SIG Kadet EP | ||||||||||||
| Combo 10 | 0.10 | HC2812-0850 | 10x7E | 15A | 16 | 24 | 30 | 3 | 120 | 25 | 3.4 | |
| Applications: E-Flite, Cessna 182 | ||||||||||||
| Combo 15A | 0.15 | HC2816-0890 | 10x7E | 25A | 20 | 30 | 36 | 3 | 150 | 30 | 3.9 | |
| Applications: E-Flite, P-47, Hyperion Extra 300, Su-31, Cap 232, Mini Funtana | ||||||||||||
| Combo 19A | 0.19 | HC3510-1100 | 9x6E | 35A | 24 | 40 | 50 | 3 | 200 | 36 | 4.3 | |
| Applications: E-Flite, Brio-10, E-Flite Mini Ultra Stick, Ultimate 3-D, Hyperion Yak-55 | ||||||||||||
| Combo 25A | 0.25 | HC3516-1130 | 10x7E | 35A | 32 | 56 | 70 | 3 | 300 | 48 | 6.3 | |
| Applications: Extreme Flight Extra 300 | ||||||||||||
| Combo 30A | 0.30 | HC3522-0990 | 11x7E | 60A | 40 | 64 | 80 | 3 | 400 | 59 | 7.5 | |
| Applications: Hyperion P-51 with retracts | ||||||||||||
| Combo 40A | 0.40 | HC3528-1000 | 12x6E | 60A | 43 | 72 | 90 | 3 | 500 | 65 | 10 | |
| Applications: Twist 40, E-Flite J3 Cub 25 ARF, Pulse XT40 aerobatic, Hobby Lobby 72" Telemaster, SIG 40 size planes | ||||||||||||
| Combo 40-4 | 0.40 | HC3528-0800 | 12x6E | 60A | 43 | 72 | 90 | 4 | 550 | 85 | 11 | |
| Applications: Most 40 size planes including SIG's that can not use 12" prop. SIG Kadet Sr, Kougar, MidStar 40 | ||||||||||||
| Combo 40-Pro | 0.40 | HC4220-770 | 12x8E | 60A | 50 | 84 | 105 | 4 | 720 | 110 | 14 | |
| Applications: This is the most powerful 40 size combo. It will lift any old 40 size gas plane. | ||||||||||||
| Combo 46B | 0.46 | HC5018-530 | 12x6E | 60A | 6lbs | 8lbs | 10lbs | 6 | 850 | 9lbs | 17.5 | |
| Applications: Hanger 9 Twist | ||||||||||||
| Combo 60A | 0.60 | HC5030-390 | 13x8E | 75A | 9lbs | 15lbs | 20lbs | 8 | 1200 | 10lbs | 21.5 | |
| Applications: SIG Something Extra, FourStar 40, Pulse XT40 3-D, Funtana 40 (6S, 16x8E) | ||||||||||||
| Combo 90A | 0.90 | HC6320-250 | 17x10E | 80A HV | 10lbs | 17lbs | 22lbs | 10 | 1500 | 14lbs | 23 | |
| Applications: Funtana 90 (9S pack) | ||||||||||||
| Combo 120 | 1.20 | HC6332-230 | 19x10E | 80A HV | 12lbs | 22lbs | 30lbs | 10 | 2200 | 21lbs | 34 | |
| Applications: 3-D planes, or 20% planes (10S) | ||||||||||||
| Combo 2815A | na | HB2815-1400 | 7x5E | 25A | na | 28 | na | 3 | 180 | 25 | 3.7 | |
| Applications: Speed 400/480 Flying wings, Park Zone Stryker, Multiplex Easy Star, Twin Star II | ||||||||||||
| Combo 2815E | na | HB2815-2000 | 6x4E | 35A | na | 28 | na | 3 | 180 | 25 | 3.7 | |
| Applications: Speed 400/480 Flying wings, Park Zone Stryker, Multiplex Easy Star, Twin Star II | ||||||||||||
| Combo 2815F | na | HB2815-3000 | 4.75X4.75E | 35A | na | 32 | na | 3 | 270 | 30 | 4.3 | |
