Description

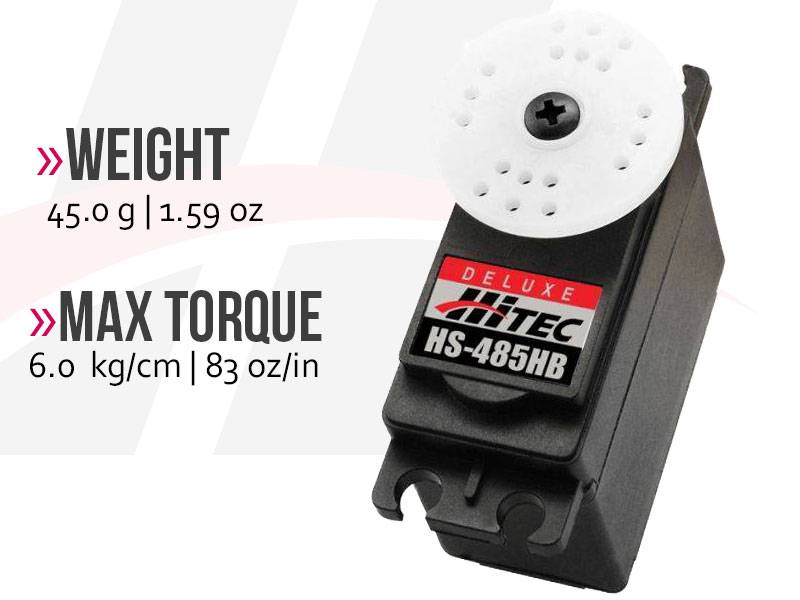

Product Description: The HS-485HB is an upgraded version of the popular HS-475HB, offering increased torque and speed. Featuring top ball bearings, high-impact Karbonite™ gears, and high-performance circuitry, this servo provides reliable torque, excellent centering, and precise resolution.
Applications: This servo is suitable for helis and aircraft up to 72" or up to 12lbs when using just one servo per control surface. However, please note that high-vibration gas engines (not glow) combined with large control surfaces and large throws (3D models) can cause undue strain on the gears. We recommend using metal-geared servos for these applications, even if under 12lbs. Please also be aware that using thread lockers on Karbonite geared servos will cause the output shaft to fail.
Features:
- Heavy-duty standard servo
- High-impact Karbonite gears
- Top ball bearings
- Excellent centering and resolution
Accessories:
- Nylon gear set
- Plastic case set
- Applicable horns
HS-485HB Servo Specifications: Performance Specifications:
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
- Speed (Second @ 60°): 0.22 ~ 0.18
- Maximum Torque Range oz./in.: 67 ~ 83
- Maximum Torque Range kg./cm.: 4.8 ~ 6.0
- Current Draw at Idle: 10 mA
- No Load Operating Current Draw: 200 mA
- Stall Current Draw: 1,200 mA
- Dead Band Width: 3 µs
Physical Specifications:
- Dimensions (Inches): 1.57 x 0.78 x 1.49
- Dimensions (Metric): 39.8 x 19.8 x 38.0
- Weight (Ounces): 1.59
- Weight (Gram): 45.0
- Circuit Type: HT7003 Analog SMT
- Motor Type: 3 Pole Metal Brush Ferrite
- Gear Material: Karbonite
- Bearing Type: Top Ball Bearing
- Output Shaft (type / Ømm): Standard 24
- Case Material: Plastic
- Dust / Water Resistance: N / A
- Connector Gauge (AWG) / Strand Count: 25 / 40
Radio Control Applications:
- Parkflyer: N / A
- Sport Plane: 50 - 64 oz.
- Sailplane: 2 meters and up
- 3D Performance: N / A
- Scale: 50 - 64 oz.
- Electric Helicopter: N / A
- Gas Helicopter: N / A
- On Road: N / A
- Monster Truck: N / A
- Buggies: N / A
- Truggies: N / A
- Short Course / Truck: N / A
- Crawlers: N / A
- Sail Boat: < 1 meter
- Power Boat: 1/10th
