Description

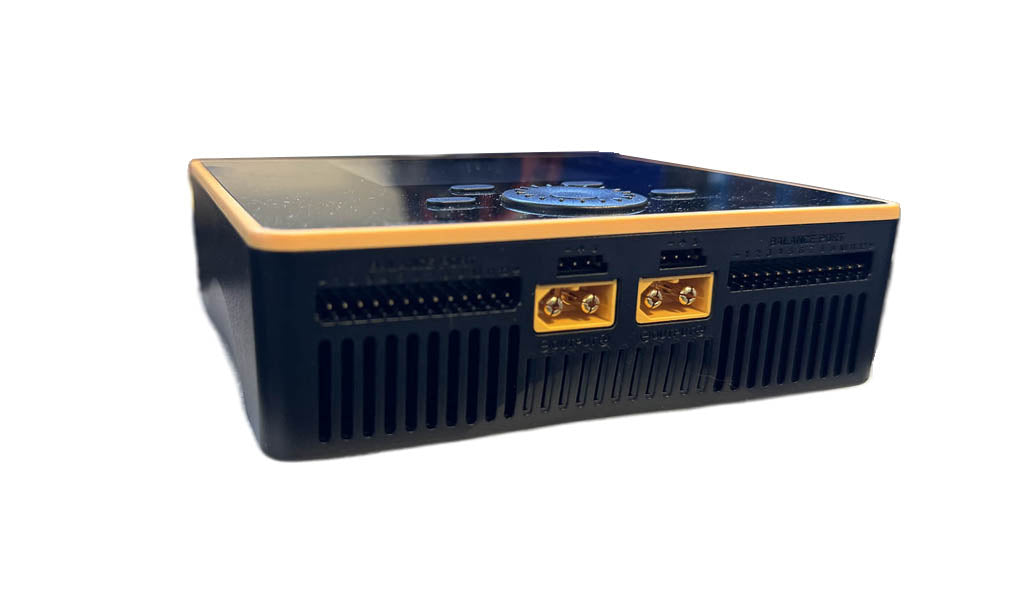

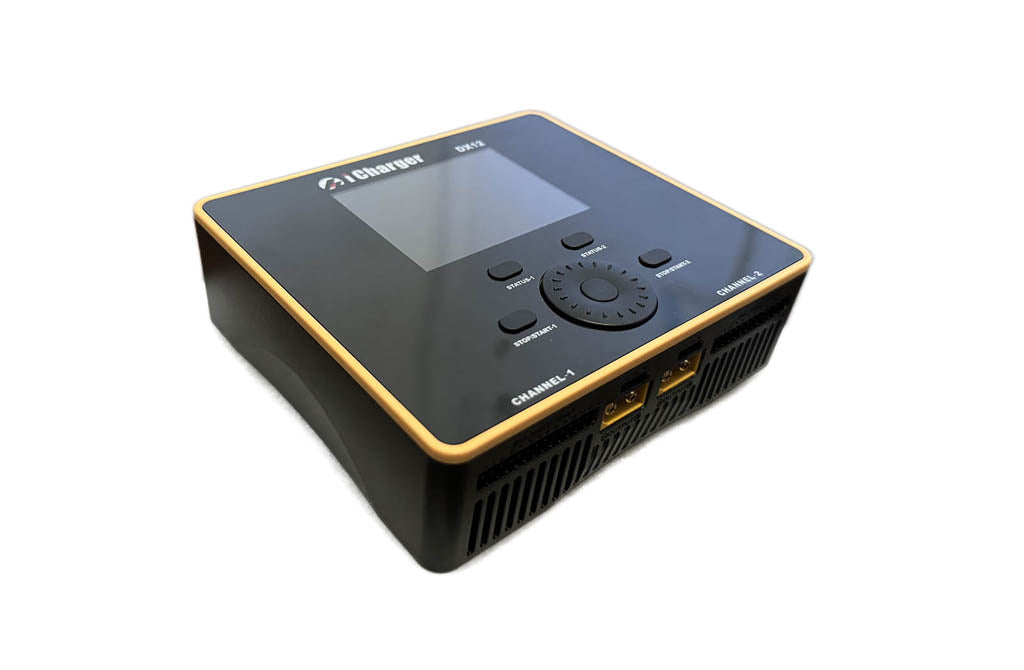

Introducing the iCharger DX12 - a compact, dual channel charger with a maximum output of 1700W. Charge LiPo batteries up to 12S at 30A per channel with a balance current of 2A. The full color IPS display and perfected operating system make charging faster and easier. Plus, with its regenerative discharge capabilities, the DX12 stands out from similar sized chargers.
Charge Power (Max) 1700W (max 1200W per channel)
Charge Current Range 0.05-30A
Current Drain (Balancing) 2A
Balance Accuracy 10mV
Internal Discharge (Max) 80W (50W max per channel)
External Discharge (Max) 3000W (max 1500W per channel)
Regenerative Discharge (Max) 1700W (max 1200W per channel)
Discharge Current Range 0.05-30A
LiPo/LiIo/LiFe 1-12S per channel
NiCd/NiMh Cell Count 1-20S per channel
Pb Battery Cell Count 1-12S per channel
Temperature Control (Intel.) Yes
PC Connectivity USB-C
USB Charge Type-C PD 5V/3A, 9V/2A, 12V/1.5A
Warranty 1 year
Input Voltage 11-53V DC
Input Current Limit 65A
Dimensions 112x129x40mm
Weight 500g
