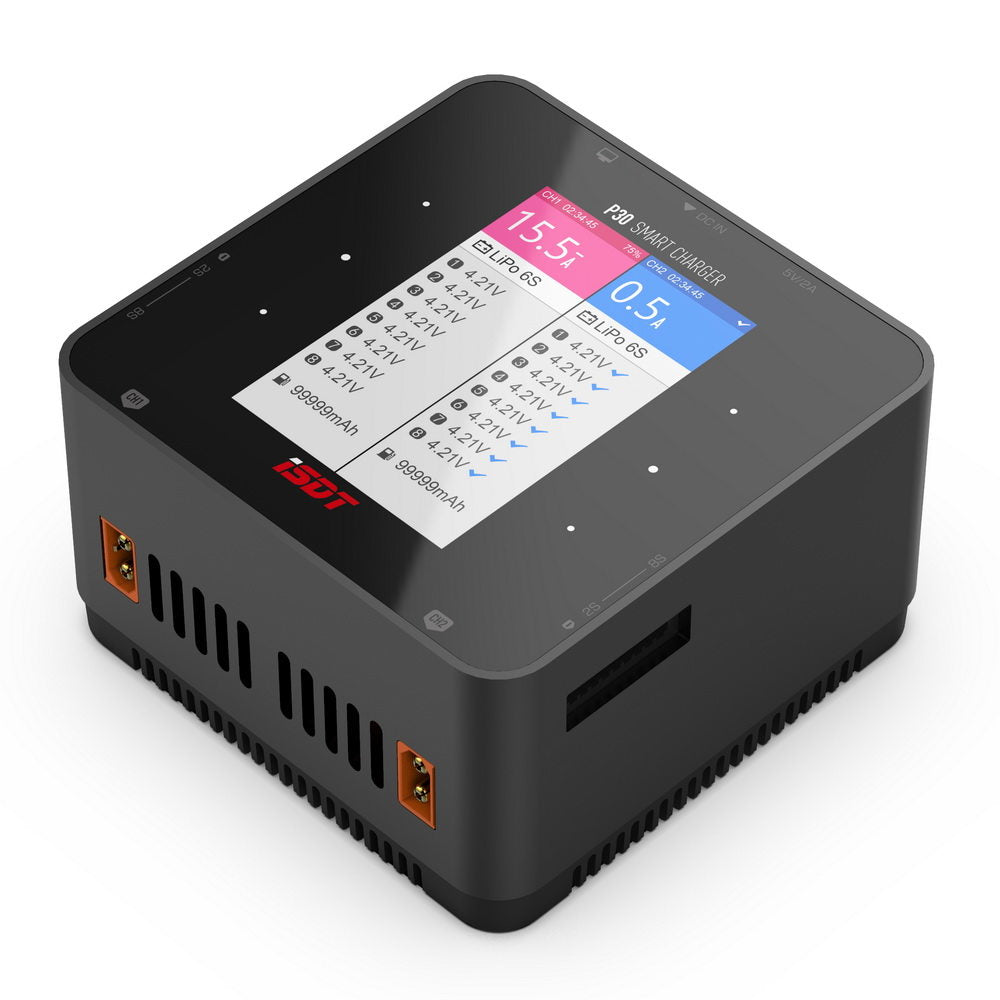

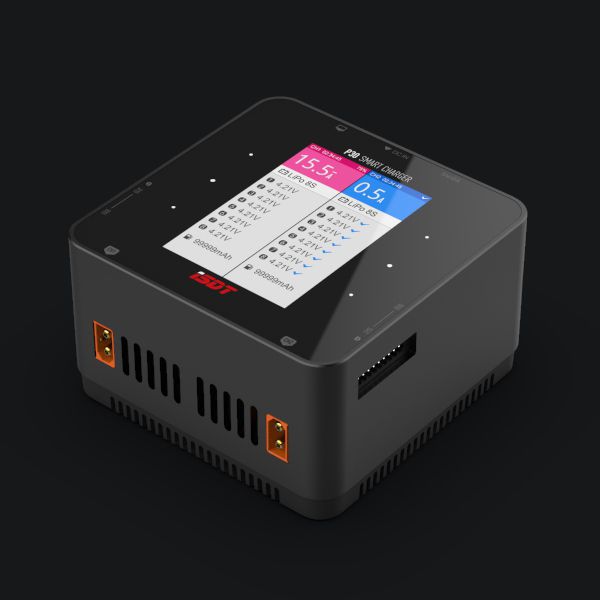

Introducing the iSDT P30 Dual Port 1500W 8S 50A Charger - a high-powered charging solution that's packed with innovative features. With a maximum output of 1000W and 30A in single channel charging mode, the P30 is capable of delivering hassle-free charging power to each port.
Thanks to its synchronous parallel charging capability, the P30 can deliver a maximum charging power of up to 1500W and 50A. This charger is housed in a sturdy aluminum casing and features a 3.5-inch high resolution IPS screen with a sample touch swipe interface. It also comes with OTA software upgrades, ensuring that the charger is always up-to-date.
The P30 boasts a smart high-speed processor that delivers parameter interference to each port, making charging more efficient and reliable. The built-in high-speed processor also enables synchronous balance two channel charging. The magnesium alloy shell of the P30 is lightweight and durable, with an anodized finish and high gloss thin lines finishing by edge’s chamfering process. The charger's unique appearance is complemented by its high-efficiency heat dissipation design, which keeps the charger cool during use.
The 3.5-inch high-resolution IPS screen provides detailed information on charging status, including current, capacity, internal resistance, and more. The P30 also comes with a new air convection design for effective cooling, with an internal structure that improves heat dissipation channel rate.
The P30 supports Bluetooth connectivity and mobile operations, with wireless OTA upgrades and APP support. The charger is compatible with BattGO, which allows for battery voltage monitoring, internal resistance monitoring, firmware upgrades, and more. Preset charging tasks are also available, making one-button charging a breeze.
With a compact size and powerful performance, the P30 delivers the ultimate power ratio with perfect balance. Its constant pursuit of perfection with innovation inspires customers to choose the iSDT P30.
- Input voltage: DC 10~34V
- Output voltage: DC 1~34V
- Max. input current: 60A
- Charging current: 0.2~30A x2
- Discharging current: 0.2~3.0A x2
- Balance current: 1.5A/Cell Max
- Max. discharging power: Single channel Max. 1000W; Whole model Max. 1500W
- Abnormal voltage alarm: support
- Incorrect cell count setting alarm: support
- Supported battery types and cell count: LiFe, Lilon, LiPo 1~8S, LiHv 1-7S, Pb 1-12S, NiMH, Cd 1-16S
- Output interface: XT60i（XT60 compatible）
- Input interface: XT90i（XT90 compatible）
- Display: 3.5’’ 320×480 IPS LCD
- Working temperature: 0~40℃
- Storage temperature: -20℃~60℃
- Dimension: 110x110x65mm
- Weight: 730g
