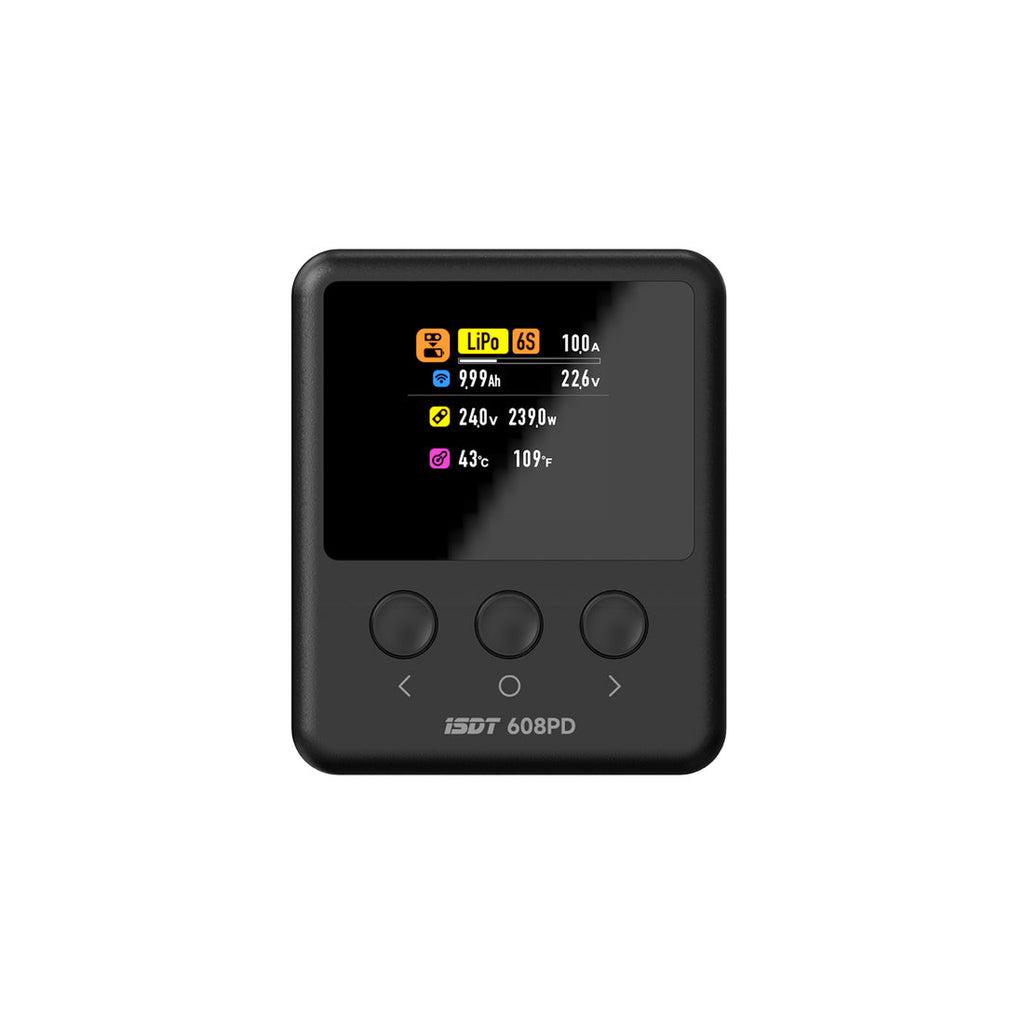

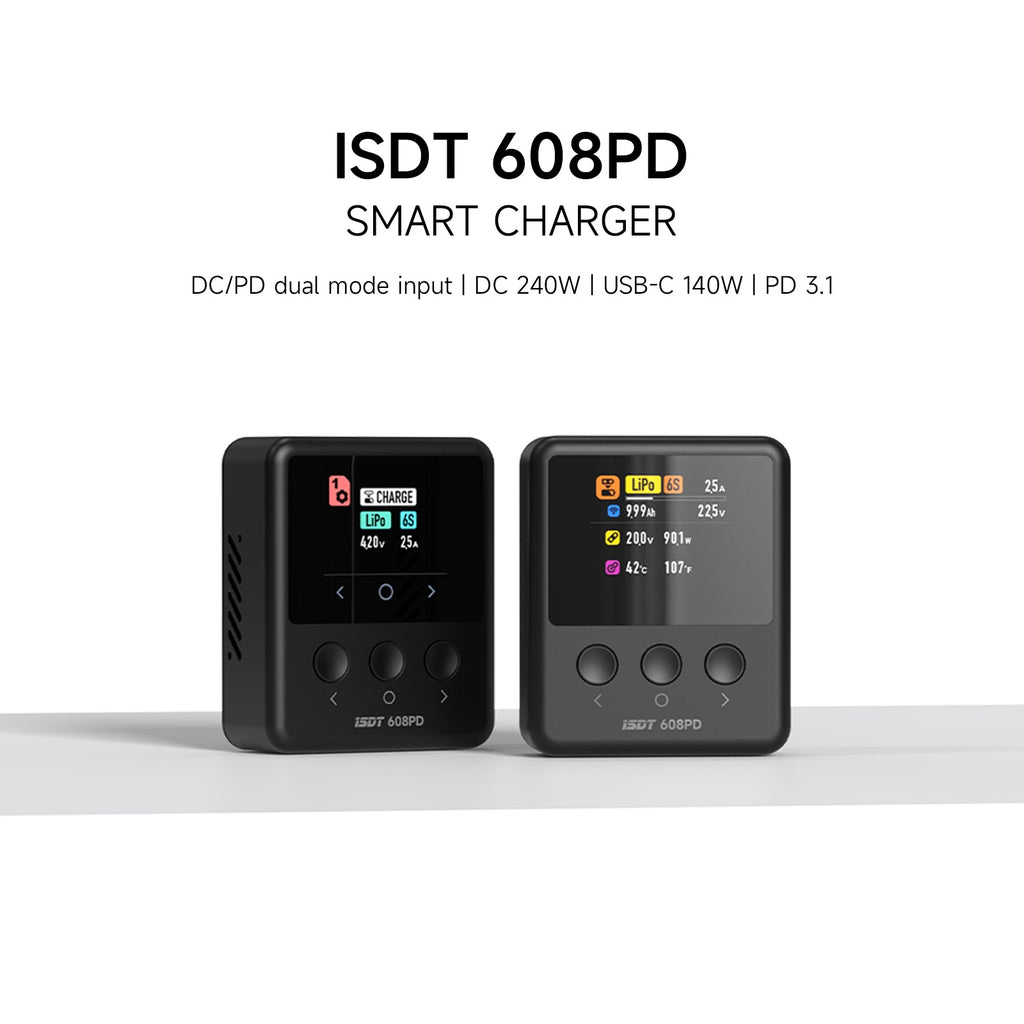

ISDT 608PD DC 240W 10A USB C 140W 5A Smart Digital Charger


Sale price$29.99

Customer Reviews

Be the first to write a review
Download Manual


ISDT 608PD DC 240W 10A USB C 140W 5A Smart Digital Charger

New generation of pocket chargers: DC 240W high power / max 10A output with USB C 140W/5A max output, meet your multi-scenario high power for Lipo battery charger needs.

Truly intelligent charger: Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.

IPS screen: Low power consumption, 2.4 inch IPS screen, automatic brightness adjustment, viewing angle 178°, clear and clear display, even in difficult environments or angles, even in strong sunlight.

Powerful cooling system: Advanced artistic cooling air duct, active design of the cross flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminum alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.

Universal charger: Supports charging and discharging for most batteries, including: LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.

Maximum Input Current: DC 10A,USB-C 5A
Input voltage range: DC 5-30V, USB-C 5-28V
Output Voltage Range: DC 3.0~30V
Charging Current: 0.5~10.0A
Maximum charging power: 240W/10A,140W/5A
Maximum Discharge Power: USB-C 100W/5A
Support battery type and series: LiFe,LiPo,LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S
Balance Current: 0.8A/Cell Max
Operating Temperature: 0~40℃ Storage Temperature: -20~60
Abnormal battery voltage alarm: Support
Alarm for string number setting error: Support
Dimension: 72.5×60×26.6mm
Weight: 85g
