Description
Smart Interconnection
Fully compatible with BattGO® innovative
information interconnection technology,
automatically identify battery information,
automatically match safe working parameters.
Simple but not simplistic
Bluetooth wireless connection, App control all.

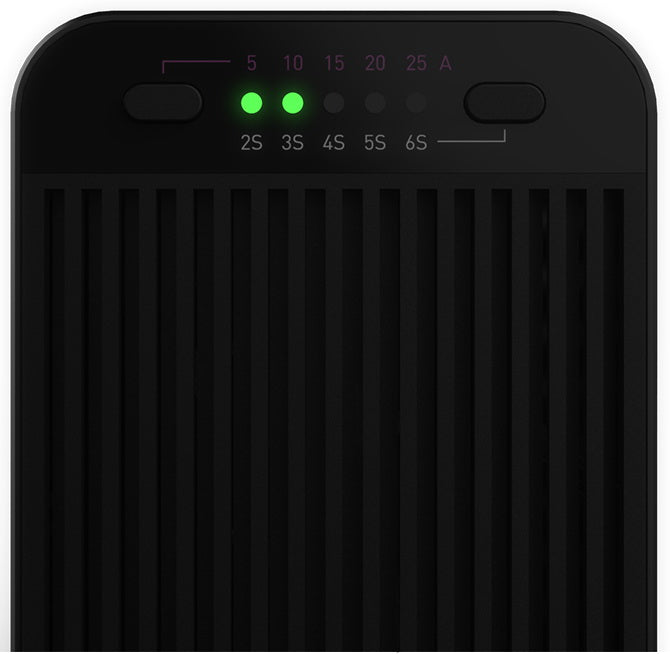

LED indicator
Colorful LED indicator, visual current cell value account. Progress of discharging, current state is clean.

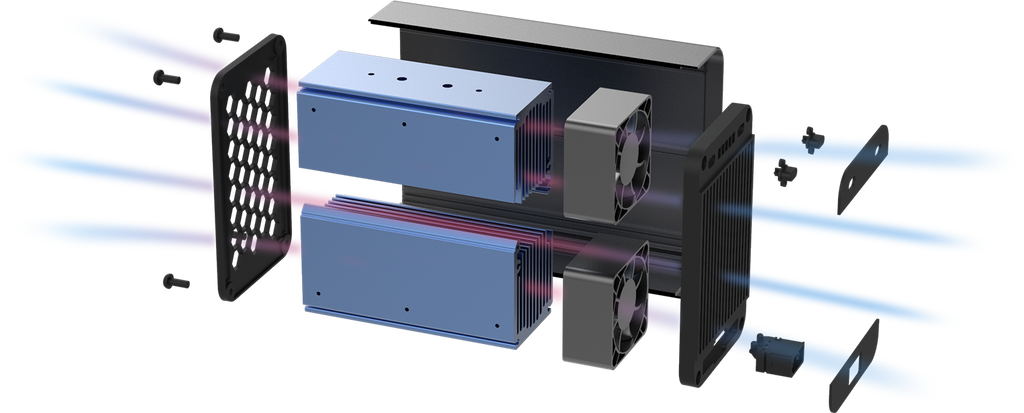

High cooling efficiency
Pure aluminum passive heat sink + aluminum alloy housing + high speed ball shaft fan,
the passive heat dissipation module of pure aluminum closely fits with the heat source, greatly improved the heat conduction efficiency.
Specifications
| Size: | 140×60×100mm |
| Weight: | 790g |
| Max discharge power: | 200W |
| Input voltage: | 7~35V |
| Discharge current: | 5/10/15/20/25A（APP adjustable 0.5~5A current） |
| Support cells: | 2~8S |
| Complete automatic power off: | Support |
| Cell number setting error alarm: | Support |
| Abnormal battery voltage alarm: | Support |
| System support: | Android 5.0/IOS 10.3 above |
| Bluetooth support: | BLE4.0 above |
