Description

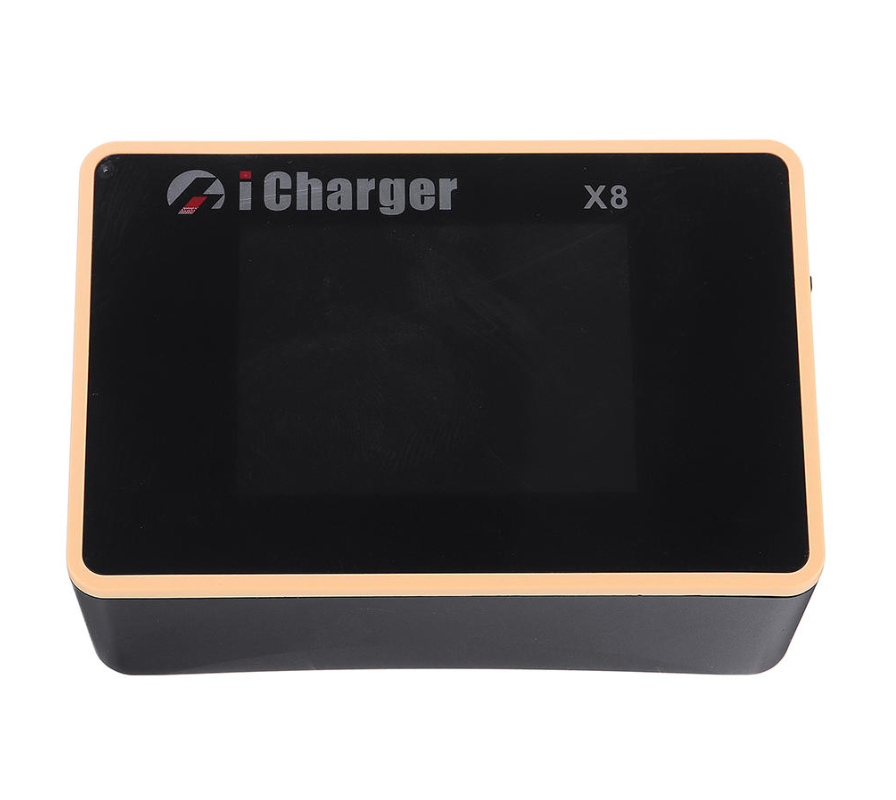

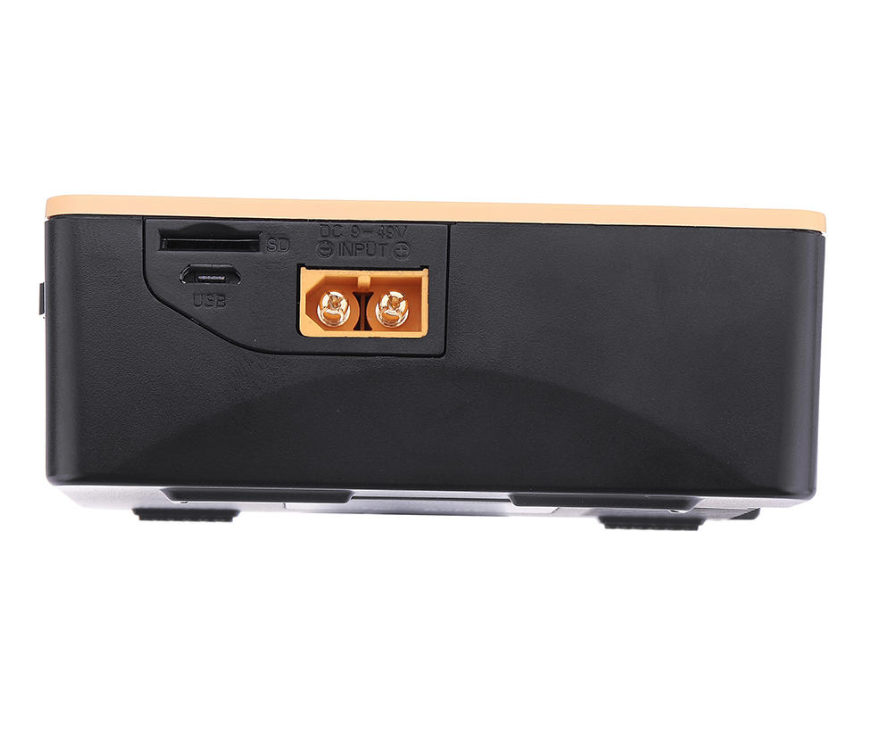

The iCharger X8 DC Battery Charger is a powerful and versatile device that supports a range of battery types and features advanced technology for efficient and safe charging. Here are some of the key features and specifications:
Features:
-
Utilizes advanced synchronous buck-boost DC/DC converter technology with high power, high current, and high-performance power conversion circuit. Supports up to 1100W of maximum charge power capacity and up to 30A of maximum charge/discharge current of a channel.
-
Supports 8s LiPo, Lilo, LiFe, LiHV, LTO, and NiZn batteries with a maximum 2A balance current. Utilizes unique balance calculation of internal resistance correction. Also supports 1-25s NiMH/NiCd batteries and 1-15s Pb batteries.
-
Includes digital-power mode with several protection features such as over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, etc.
-

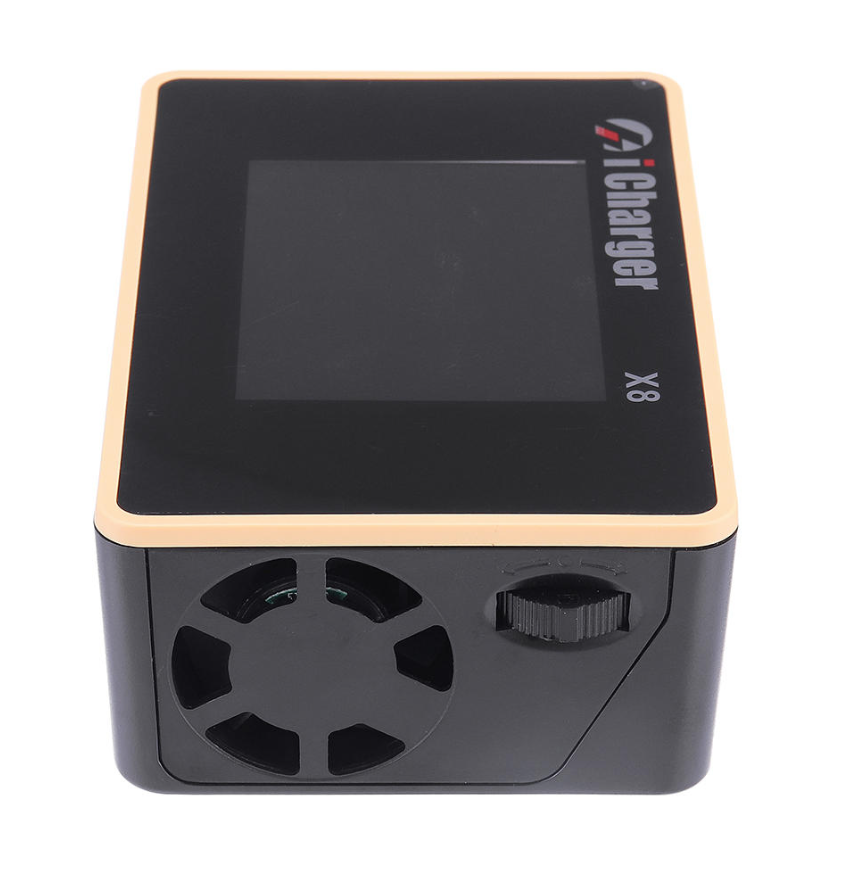

Equipped with intelligent fan control that adjusts the fan speed based on the internal temperature of the charger.
-
Features internal temperature protection that automatically reduces the output power when the internal temperature exceeds the power reduce temperature. The charger shuts down when the temperature exceeds the shut-down temperature.
-
Can save up to 32 parameter sets and supports data import/export to SD cards.
-
Comes with a 2.4" IPS LCD screen that displays detailed information such as current, voltage, power, capacity, internal resistance, control status, time consumption, temperature, etc.
-
Offers multi-discharge features including self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.
-
Supports offline and online measurement for internal resistance of batteries. Can measure the internal resistance of the entire battery pack as well as each cell within the lithium battery.
-
Has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time, maximum power, etc.
-
Supports software updates via USB port or SD card. Also supports the “Junsi Console” software that displays, plots, and analyzes the charge and discharge data.
Comes with a one-year manufacturer warranty handled by Buddy RC, a major iCharger distributor since 2009.
Specifications:
- Display: 2.4" IPS LCD (320×240)
- Net weight: 200g
- Dimension: 97.5×64.5×37 ±0.5mm
- Input voltage range: 9—49VDC
- Maximum input current limit: <35A
- Maximum charge/discharge current: 30A
- Maximum charge power capacity: 1100W
- Maximum discharge power capacity: 50W
- Maximum regenerative discharge power capacity: 1100W
- Maximum extra discharge power capacity: 1000W @33.5V/30A
- Maximum current drain for balancing: >2.0A
Contents: 1x iCharger X8
