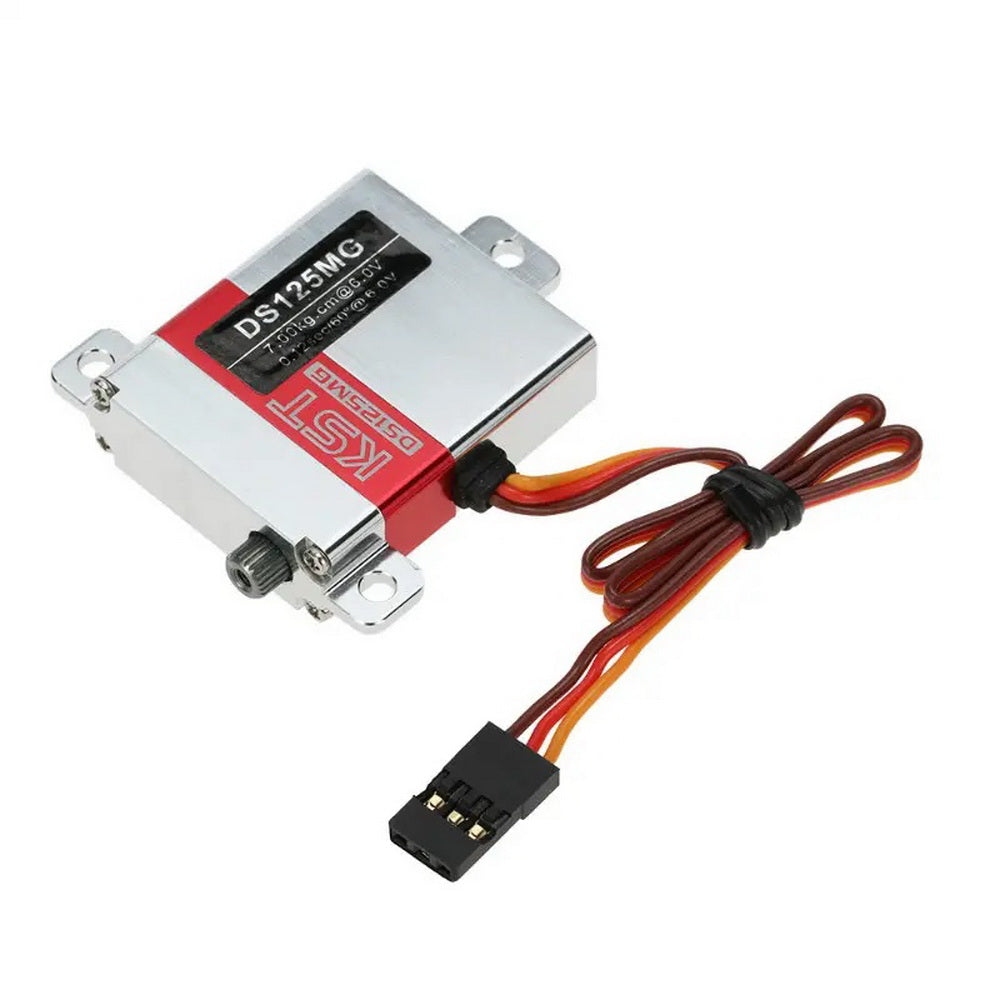

KST DS125MG Digital Servo 6.0V 0.12s 97oz

KSTSKU: KST-DS125MG

Price:
Sale price$35.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description


The KST DS125MG servo is a top-notch digital servo equipped with metal gears that provide durability and dependability. It is specifically designed for RC gliders and boasts impressive specifications, including high torque and excellent speed.

The servo features an all-metal case that is CNC-machined, and is fitted with dual ball bearings. It has a large stall torque of 7.0Kg, thanks to its high-precision metal gear. Despite its powerful performance, it is compact and lightweight, making it an ideal choice for RC glider enthusiasts.

Here are the specifications of the KST DS125MG servo:

  • Dimensions: 30 mm wide x 10 mm thick x 35.5 mm high
  • Stall torque (4.8V): 6.0 Kg.cm / 83 oz in
  • Stall torque (6V): 7.0 Kg.cm / 97 oz in
  • Operating speed (4.8V): 0.15 sec/60°
  • Operating speed (6V): 0.12 sec/60°
  • Operating voltage: 4.5V to 6.0V
  • Lead length: 16 cm / 6.3 in
  • Weight: 27.5 g / 0.97 oz
  • Bearings: Dual ball bearings
  • Gear material: Bronze
  • Motor type: DC motor
  • Driver type: FET
  • Programmable: No
  • Supplied accessories: 1 metal output arm, 3 substantial plastic output arms, 2 output arm retaining screws, 3 mounting screws
