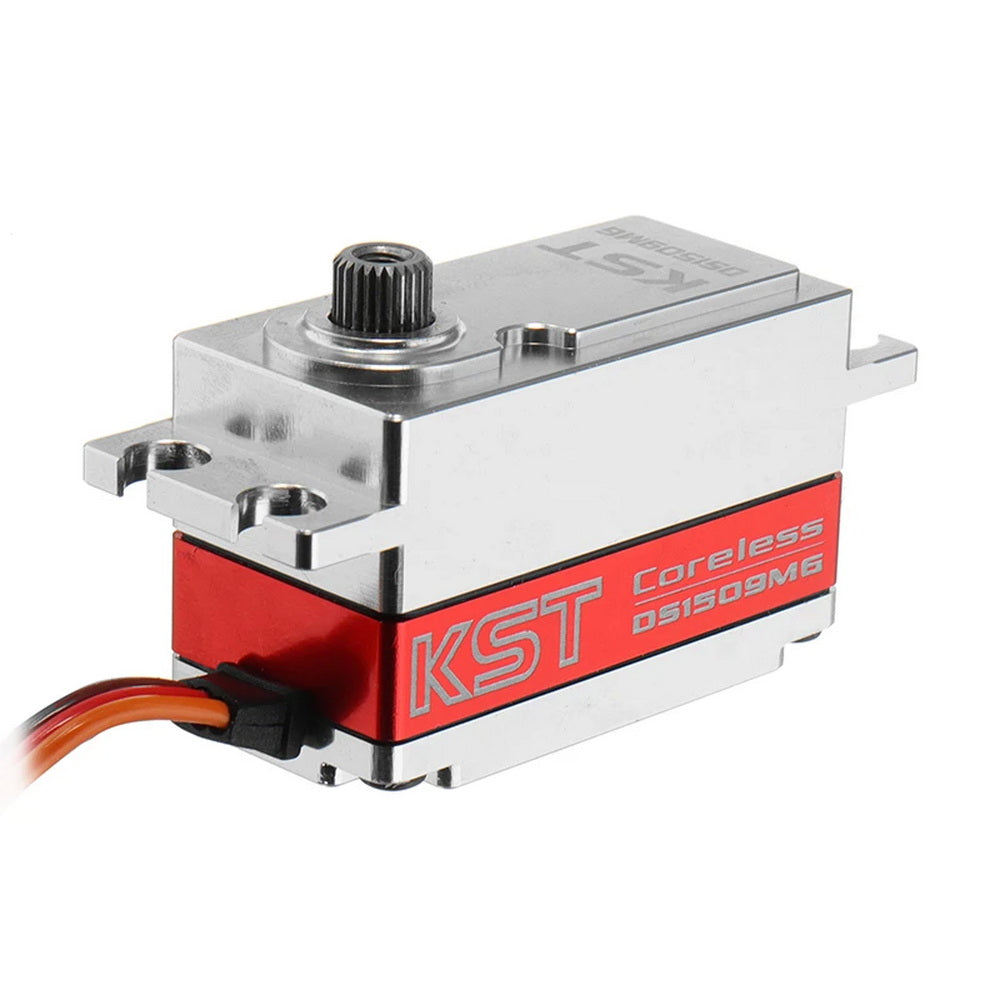

KST DS1509MG High Speed High Torque Low Profile Digital Servo 7.4V 0.07s 177oz


Sale price$65.00

Customer Reviews

Based on 1 review
simon s.

for now i cannot say nothing because from 8 servos ordered KST DS1509MG nothing received still waiting

Download Manual


The KST DS1509MG is a versatile and reliable steering servo option for RC cars, offering high speed, high torque, and a low profile design. With a wide voltage range of 4.8-7.4 volts, this servo can be used in a variety of models.

Thanks to its metal construction and digital signal, the KST DS1509MG provides precise and powerful performance. It boasts an impressive operating speed of 0.07 seconds per 60 degrees at 7.4 volts, and a stall torque of 12.8kg.cm at the same voltage.

This servo also features a programmable function and 2BB bearing type, making it a great choice for those seeking customization and long-lasting use. The package includes the KST DS1509MG servo, as well as three servo horns and fittings for added convenience.


  • Brand: KST
  • Model: DS1509MG
  • Material: Metal
  • Signal: Digital
  • Operating voltage: 4.8-7.4V DC
  • Connector wire length: Approximately 205mm
  • Operating speed: 0.07 sec/60° @ 7.4V; 0.08 sec/60° @ 6.0V; 0.10 sec/60° @ 4.8V
  • Stall torque: 12.8kg.cm @ 7.4V; 10.7kg.cm @ 6.0V; 8.5kg.cm @ 4.8V
  • Working frequency: 1520us/333Hz, 900us-2100us
  • Motor type: Coreless motor
  • Bearing type: 2BB
  • Programmable: Yes
  • Item size: 40.5 x 20 x 25.4mm
  • Item weight: 55g (including wires)

Package Includes:

  • 1 x KST DS1509MG servo
  • 3 x servo horns and fittings
