Description

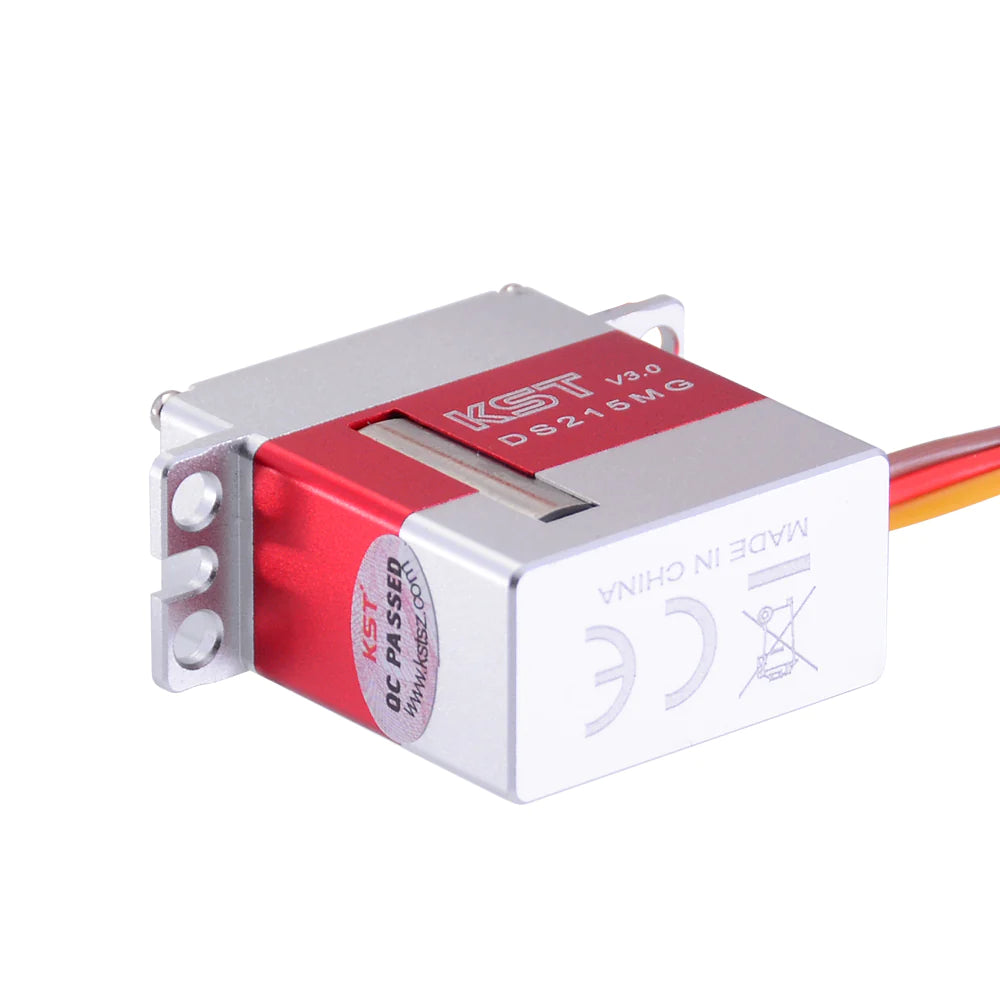

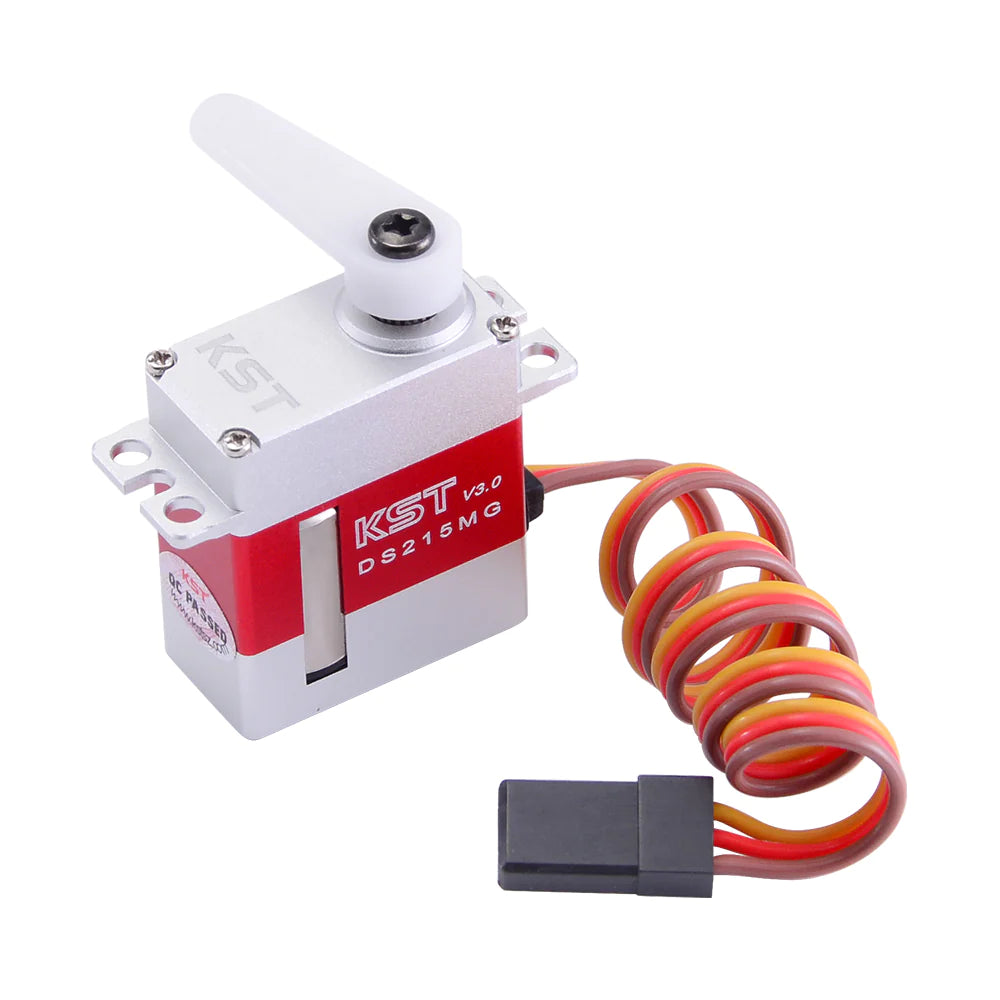

KST DS215MG V8.0 Metal Gear Digital Servo For RC Helicopter
DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque, and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and market leading speed.
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high-performance RC Gliders
- Excellent heat dissipation
- Programmable with KST-Tool 1
Specifications
- Item: DS215MG V 8.0 Micro Servo
- Operating Voltage: DC6.0V-7.4V

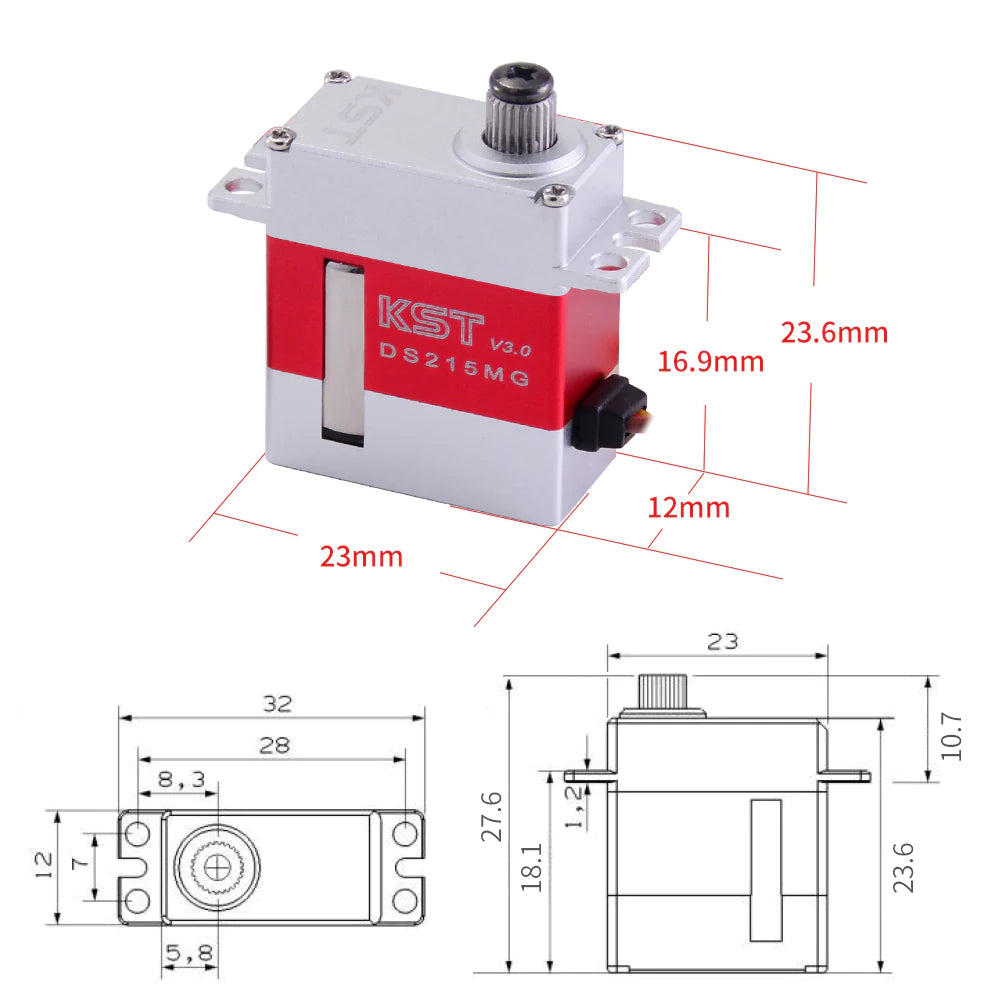

- Size: 23*12*27.50mm
- Torque: 3.70Kg.cm@7.4V / 3.10Kg.cm@6.0V
- Speed: 0.05sec/60°@7.4V / 0.06sec/60°@6.0V
- Weight: 20g
- Working Frequency: 1520us/333Hz, 800us-2200us
- Motor: Φ12mm Coreless
- Ball Bearing: 2BB
- Accessories: Metal Gear Set
Package Including
- 1 * DS215MG V3.0 Digital Metal Gear Mini Servo Motor
- 1 * Accessories
