Description

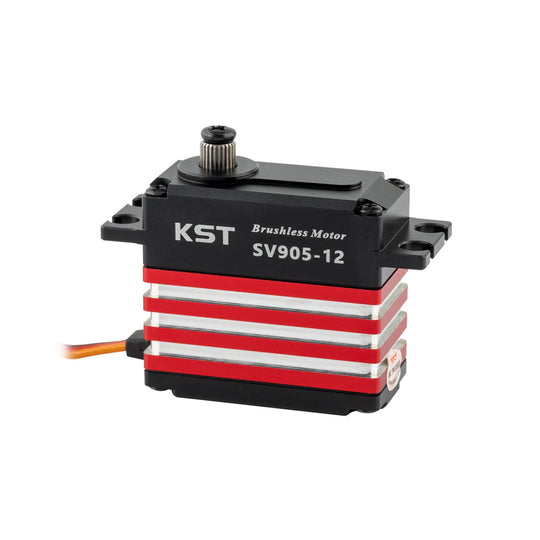

Presenting the outstanding value SV905-12 HV brushless tail servo, crafted specifically for enthusiasts of 550-700 class RC helicopters who demand top-tier performance and unwavering reliability. The SV905-12 HV tail servos excel in power delivery, driving an impressive 17Kgf.cm of torque at 13V while maintaining an exceptional 0.04-second speed for lightning-fast responsiveness.
Engineered with an emphasis on 12V LiPo Battery Direct Drive, these servos guarantee steadfast stability and dependable performance under any circumstances. Featuring dual ball bearings, our servos establish a rock-solid gear-train, ensuring seamless and pinpoint-accurate operation.
This high-voltage servo is set to leave a lasting impression, elevating your experience with unprecedented levels of power and precision.
Features
- DC 12V Rated Voltage
- Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive
- High Frequency & Fast Response
- Ultra High Torque & Excellent Speed
- Dual Ball Bearings
- Brushless DC Motor
- Hardened Steel Gear
- CNC Aluminum Case
- Programmable (Please refer to the programming tool manual for correct voltage)
- Ideal for 550-700 Class RC Helicopters Tail
Specification
- Item: SV905-12 Tail Servo
- Rated Voltage: DC12V
- Voltage Range: DC8.0V-13V
- Torque: 13Kgf.cm@8.4V / 16Kgf.cm@12V / 17Kgf.cm@13V
- Speed: 0.06sec/60°@8.4V / 0.045sec/60°@12V / 0.040sec/60°@13V
- Working Frequency: 760μs/560Hz
- Temperature Range: -10℃.......+65℃
- Programmable: Yes (Please refer to the Programming tool manual for correct voltage)
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 40.5mm*20mm*38mm±0.2mm
- Weight: 70g±10%
- Ball Bearing: 2BB
