Description

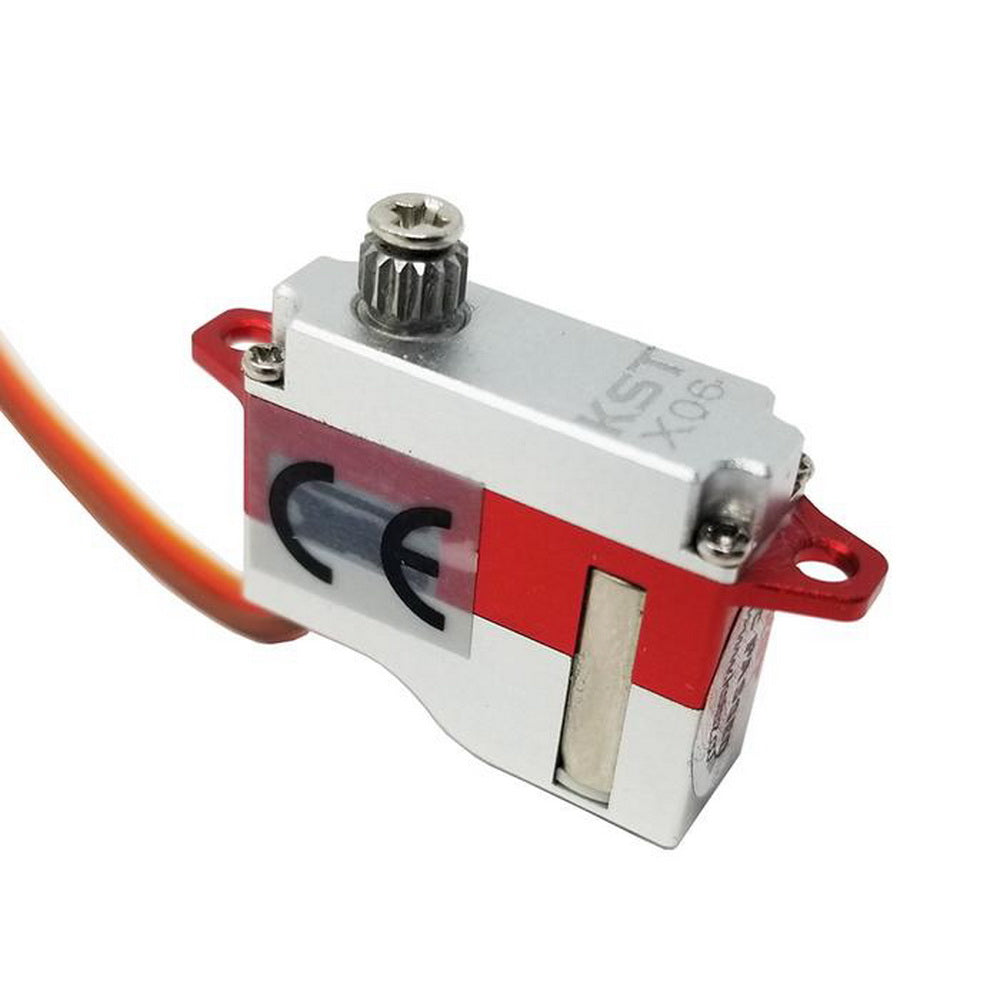

KST X06 digital servo, designed to meet the demands of DLG and micro RC models. This nano servo boasts a powerful coreless motor, a sturdy steel gear train, and high-quality ball bearings that support its output spline. With a voltage range from 3.8v to 8.4v, it can be powered by either a 1s or 2s Lipo battery.
The KST X06 is a thin, lightweight servo with exceptional torque and speed, making it a popular choice for small model aircraft. Its centering is among the best in its class, and it holds its position with remarkable accuracy.
Included Accessories:
-
2x Single output arm
-
1x Double output arm
-
1x Low Profile double output arm
-
Mounting Hardware
Specifications:
- Servo Type: Digital
- Gear Type: Metal (Hardened Steel)
- Motor Type: Coreless
- Stall Torque: 0.8Kg-cm (11.10 oz-in) @3.8V, 1.5Kg-cm (20.83 oz-in) @6.0V, 1.8Kg-cm (24.99 oz-in) @8.4V
- Speed: 0.12sec/60° @3.8V, 0.08sec/60° @6.0V, 0.07sec/60° @8.4V
- Deadband: 0.002ms (2us)
- Voltage Range: 3.8 - 8.4V (1s-2s LiPo)
- Weight: 6g
- Dimensions: 20 x 7 x 16.6mm
