Description
The KST X15-1809 Mini Digital Metal Gear High Voltage Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.
Features
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
- Support High Voltage 8.4V
- Programmable Via Programming Card
Specification
- Item: X15-1809 Digital Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 1.8N.m@6.0V, 2.2N.m@7.4V, 2.4N.m@8.4V
- Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
- Working Frequency: 1520us/333Hz (Default), 760us/560Hz (Programming Tool Required)
- Default Travel Angle: ±50° = 100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2 Ball Bearings

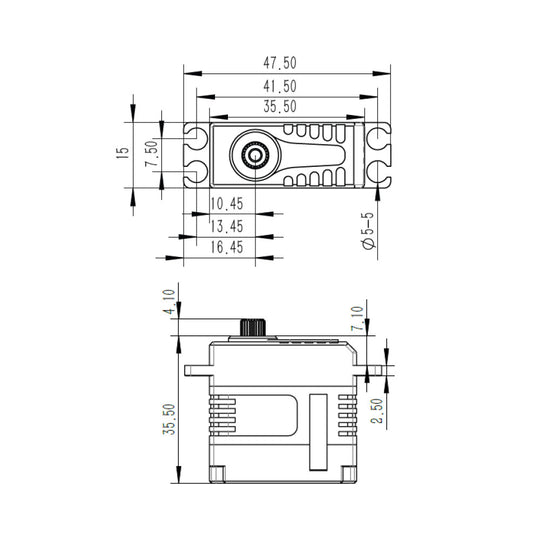

- Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
- Weight: 45g±10%
Size

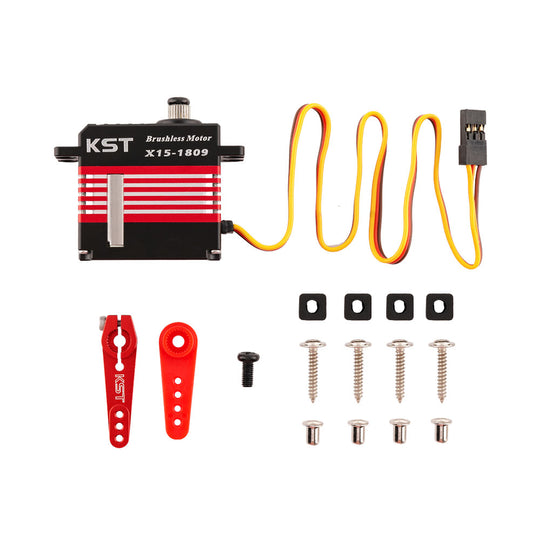

Package Including
- 1 * X15-1809 Servo For Helicopters Fuselage
- 1 Pack of Accessories
