Description

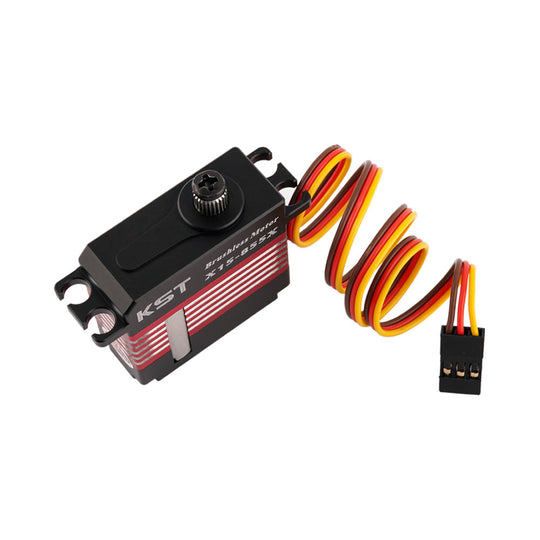

The KST X15-855X Mini Tail Digital Metal Gear High Voltage Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini tail servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.
Features
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
- Support High Voltage 8.4V
- Programmable via Programming Card
Specification
- Item: X15-855X Tail Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Working Frequency: 760us/560Hz
- Temperature Range: -10℃……+65℃
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2 Ball Bearings
- Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
- Torque: 1.0N.m@6.0V, 1.3N.m@7.4V, 1.5N.m@8.4V
- Speed: 0.07sec/60°@6.0V, 0.06sec/60°@7.4V, 0.05sec/60°@8.4V
- PWM Command Interface
- Weight: 45g±10%
Size
Package Including
- 1 * X15-855X 8.4V for Helicopters Tail
- 1 * Accessories
