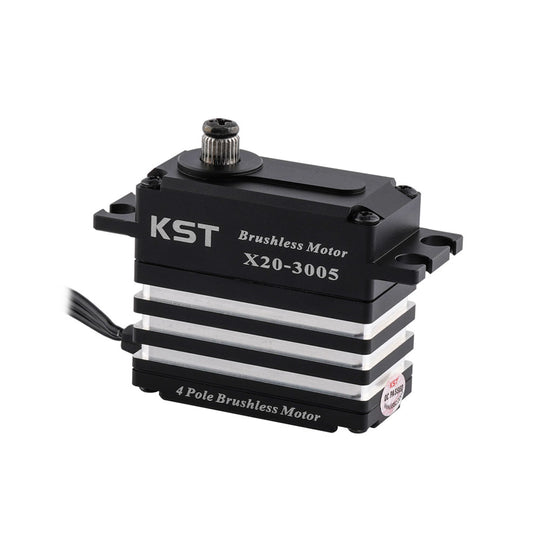

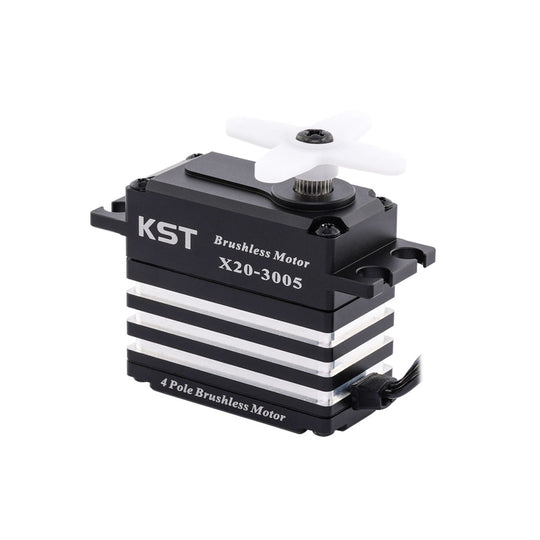

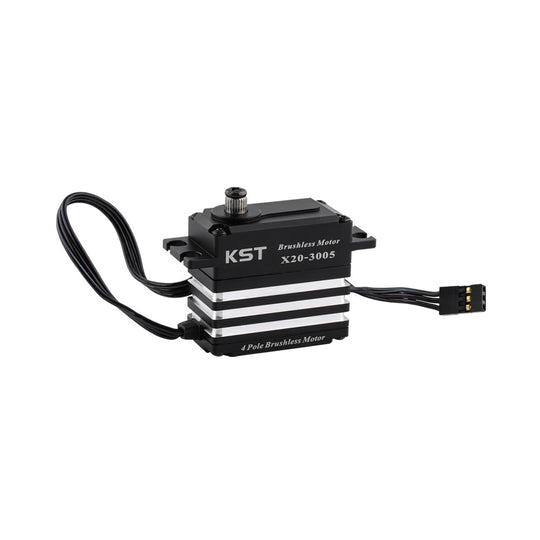

KST X20-3005 Brushless Standard Servo 32Kgf.cm 0.047sec

X20-3005 Brushless Standard Servo 32Kgf.cm 0.047sec for 1:8 & 1:10 Scale On-road or Off-road RC Race Cars, Aerobatic Airplanes and Jets
New to the range of performance servos from KST, the X20-3005 Track Series has arrived! Due to high demand, we have developed a series of servos specifically with racers in mind, the all-new KST X20-3005 Track Series. The ultimate servo for us in 1/10th scale up to 1/8th scale race cars. The first races have already been contested with this servo. So keep your eyes open on the track. We are very excited to develop more track series servos soon!

Features

• 4 Pole Brushless DC Motor, with fast response and high efficiency
• Extreme torque & speed
• CNC aluminium case
• IP65 splash-proof
• Working Frequency is up to 1520us/333Hz
• Programing box/USB link compatible
• Designed for 1:8 & 1:10 scale on-road or off-road RC Car Racing (racing, buggy, truggy). Also suitable for high performance aerobatic airplanes, jets, scale models and more.

*Please note never plug the servo into a live system

Specification

• Item: X20-3005 Brushless Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque: 24Kgf.cm@6.0V, 30Kgf.cm@7.4V, 32Kgf.cm@8.4V
• Speed: 0.067sec/60°@6.0V, 0.052sec/60°@7.4V, 0.047sec/60°@8.4V
• Stalling Current: 8.80A@6.0V, 10.8A@7.4V, 12.3A@8.4V
• Working Frequency: 1520us/333Hz
• Default Travel Angle: ±50° =100°Total
• Total Temperature Range: -20℃……+65℃
• Soft start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: 4 Pole Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 40.5mm*20mm*38mm±0.2mm
• Waterproof: IP65
• Weight: 70g±10%

Packing Including
