KST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07sec
KST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07sec
KST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07sec
KST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07sec
Roll over image to zoom in Click on image to zoom
KST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07secKST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07secKST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07secKST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07sec

KST X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07sec

KSTSKU: X20-4208
Price:
$159.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

X20-4208 Brushless 6BB HLS Standard Servo 46Kgf.cm 0.07sec for 1:7 & 1:8 Scale On-road or Off-road RC Race Cars, Aerobatic Airplanes and Jets
X20-4208 brushless servo is the first servo with a 4 pole brushless DC motor, high life span gear set and 6 ball bearing. The X20-4208 is a high torque and super fast servo for all uses such as 1:7 & 1:8 scale on-road or off-road class RC car racing.

Features

  • 4 Pole Brushless DC Motor, with fast response and high efficiency
  • Extreme torque & Excellent speed
  • Hardened steel gear & CNC aluminum case
  • 6 Ball Bearings
  • IP65 splash-proof
  • Working Frequency is up to 1520us/333Hz
  • Programing box/USB link compatible
  • Designed for 1:7 & 1:8 scale on-road or off-road RC Race cars (racing, buggy, truggy). Also suitable for high performance aerobatic airplanes, jets, scale models and more.

*Please note never plug the servo into a live system

Specification

  • Item: X20-4208 Brushless Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 38Kgf.cm@6.0V, 42Kgf.cm@7.4V, 46Kgf.cm@8.4V
  • Speed: 0.10sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
  • Stalling Current: 8.80A@6.0V, 10.8A@7.4V, 12.3A@8.4V
  • Working Frequency: 1520us/333Hz

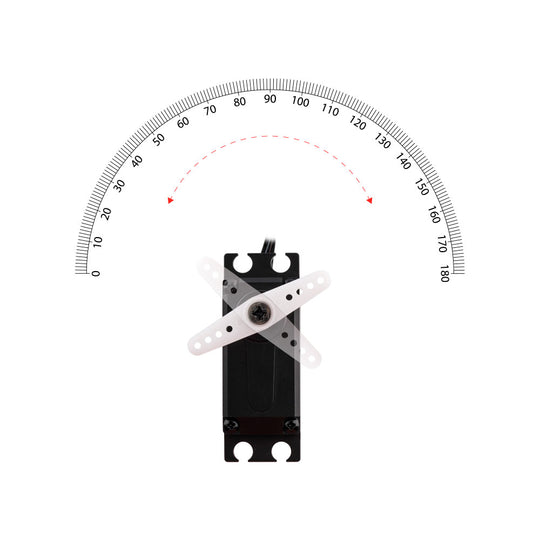

  • Default Travel Angle: ±100° =200° Total
  • Total Temperature Range: -20℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: 4 Pole Brushless DC Motor
  • Gear Set Material: Hardened Steel/ HLS
  • Position Sensor: Potentiometer
  • Ball Bearing: 6BB
  • Waterproof: IP65
  • Case Dimensions: 40mm*20mm*40mm±0.2mm
  • Weight: 80g±10%

Packing Including

  • 1 * X20-4208 Brushless Servo
  • 1 Pack of Accessories
