Description

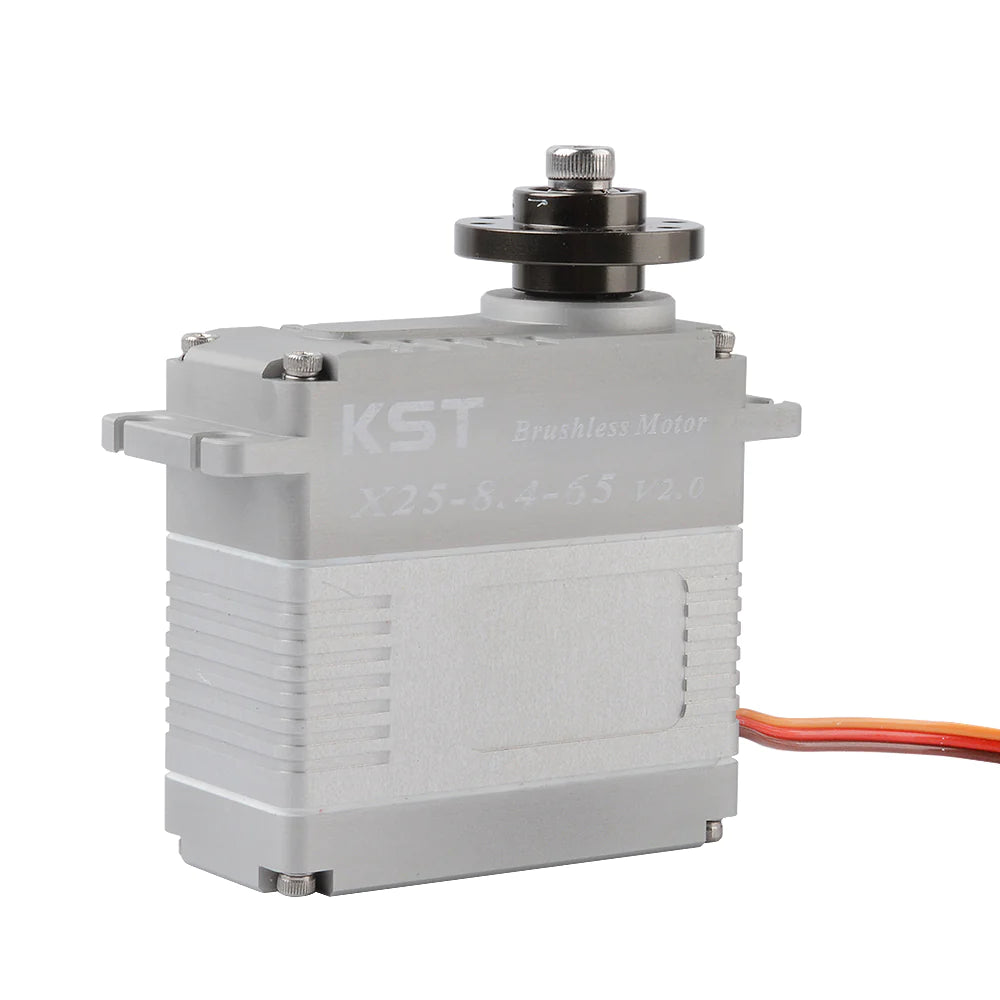

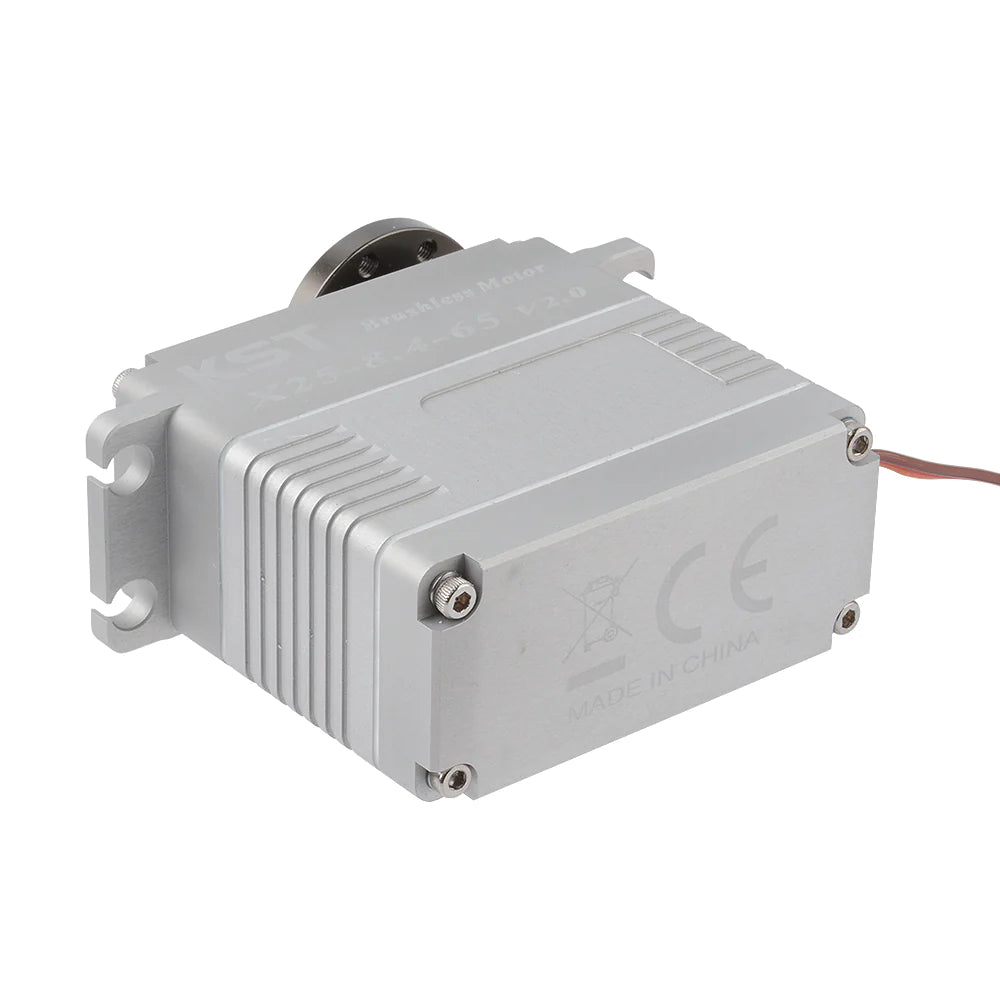

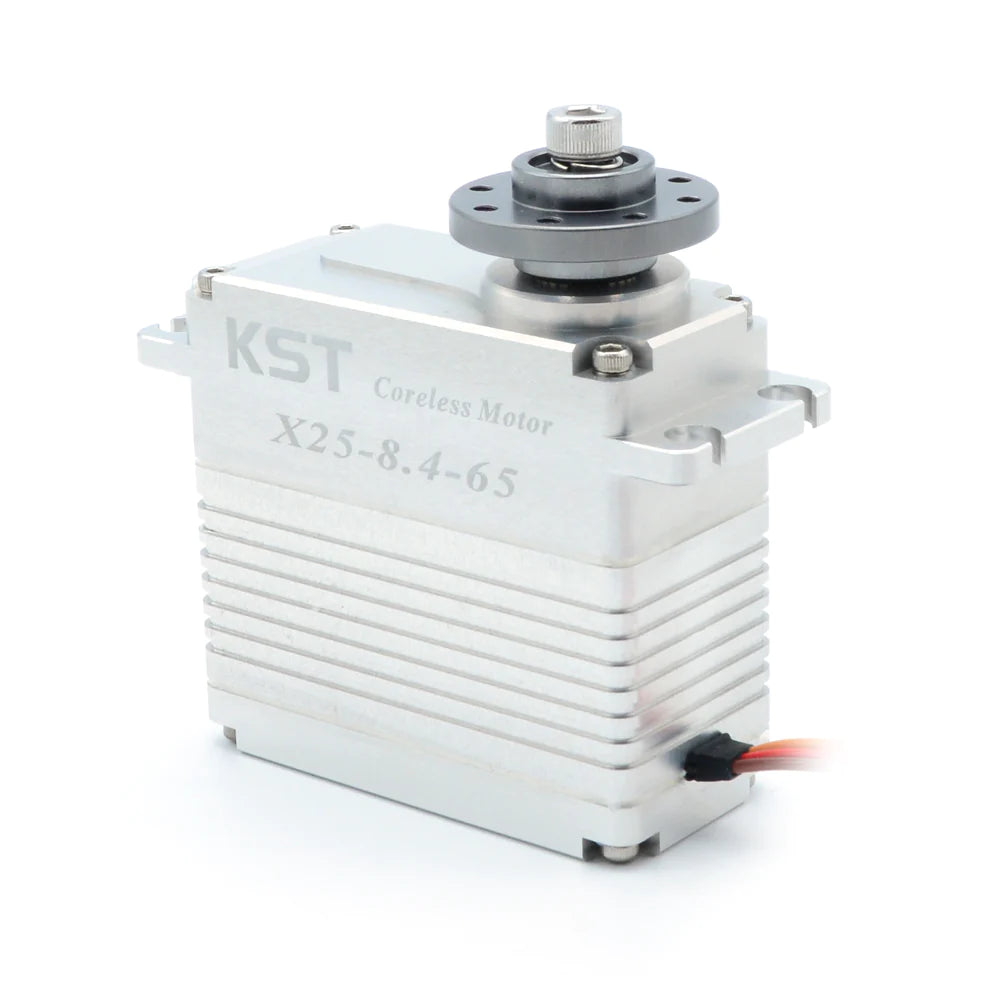

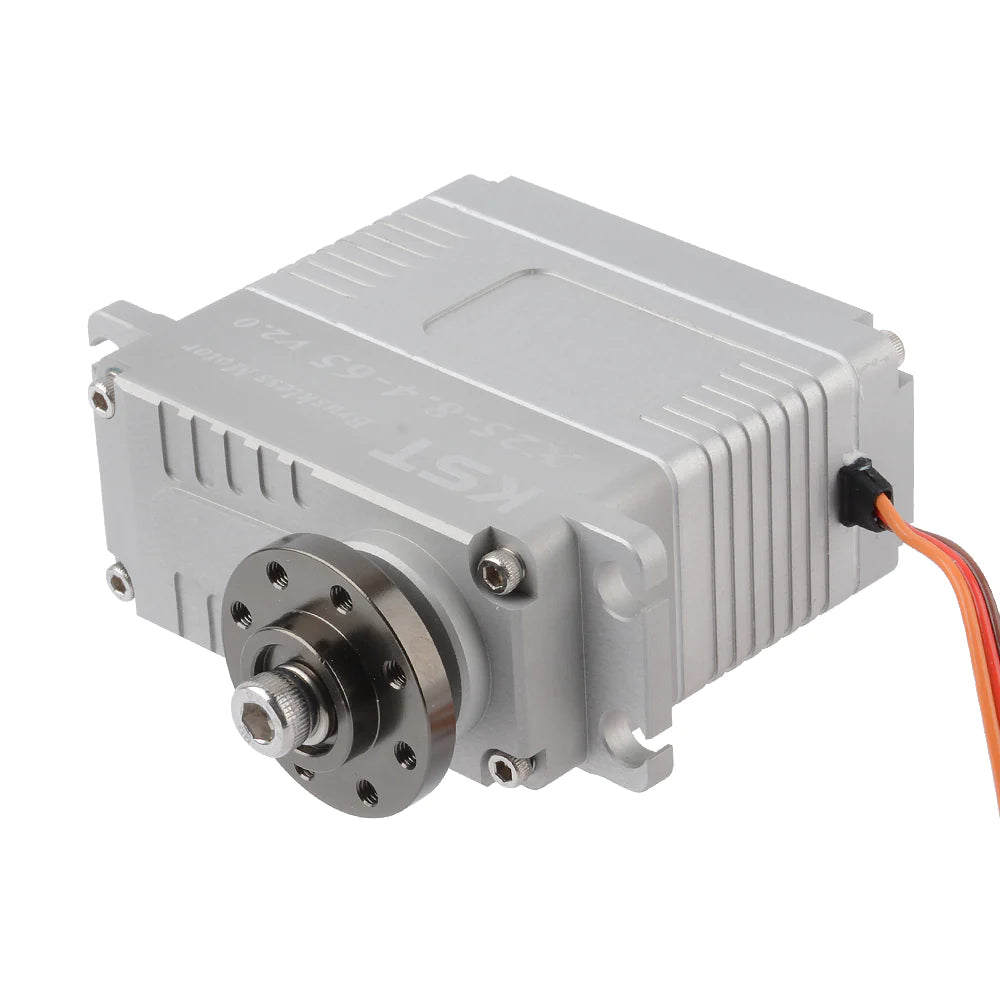

KST X25-8.4-65 V2.0 UAV Sero
Powerful digital servo X25-8.4-65 is suitable for 1/5 scale cars, large size model aircraft and industrial applications. Featuring ultra-high torque 78Kgfcm, excellent speed 0.18sec/60°. It is one of the highest performances servos in its application.
Features
- Extreme Torque and Excellent Speed
- Brushless DC Motor
- Hardened Steel Gears
- CNC Aluminium Case
- Ideal for 1/5 Scale Cars, Large Size Model Aircraft and Industrial Applications

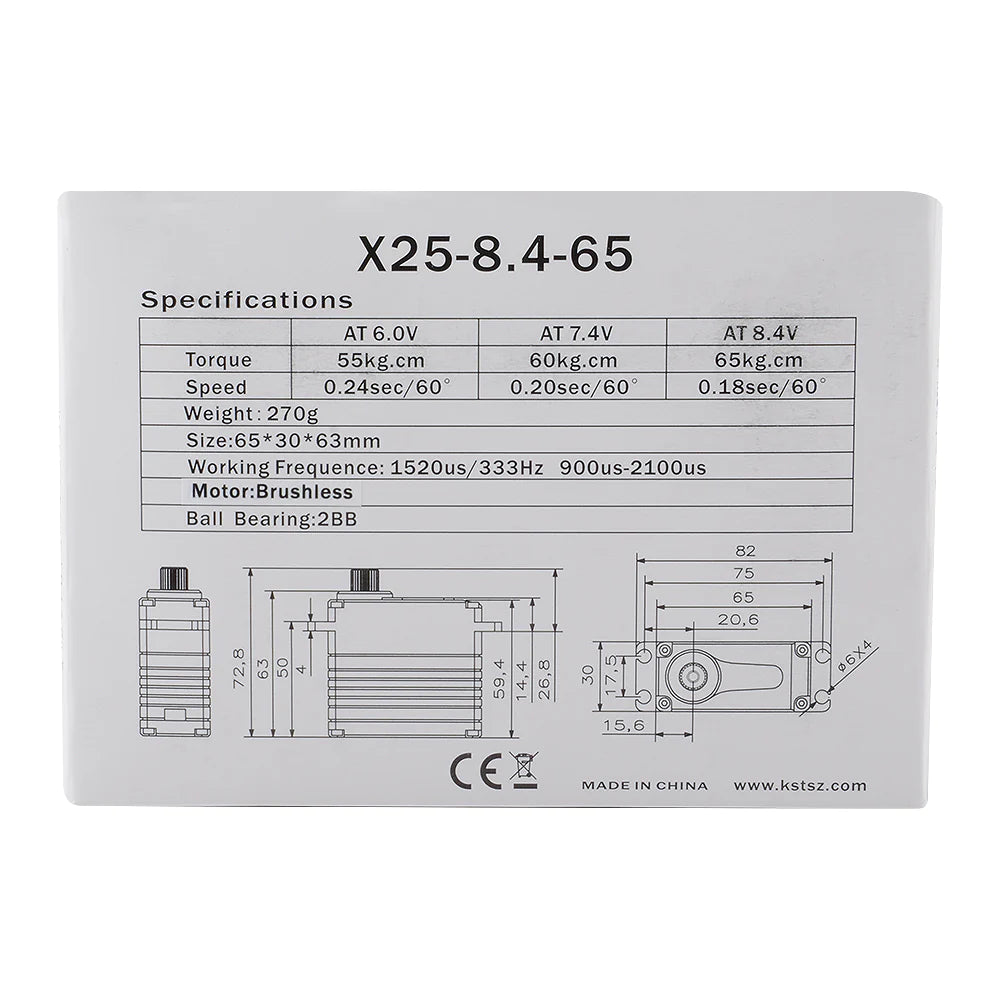

Specification
- Item: X25-8.4-65 Standard Servo
-
Operating Voltage(rated): DC7.4V
-
Operation Voltage Range: DC6.0~8.4V
-
Torque: 60Kg.cm@6.0V, 70kg.cm@7.4V, 78kg.cm@8.4V
- Speed: 0.24 sec/60°@6.0V, 0.20sec/60°@7.4V, 0.18sec/60°@8.4V
- Working Frequency: 1520 us/333HZ, 900us~2100us
- Default Travel Angle: ± 50°=100°Total
- Temperature Range: -10℃……+65℃
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Contactless
- Case Dimensions: 65mm*30mm*64.5mm±0.2mm
- Weight: 280g±10%

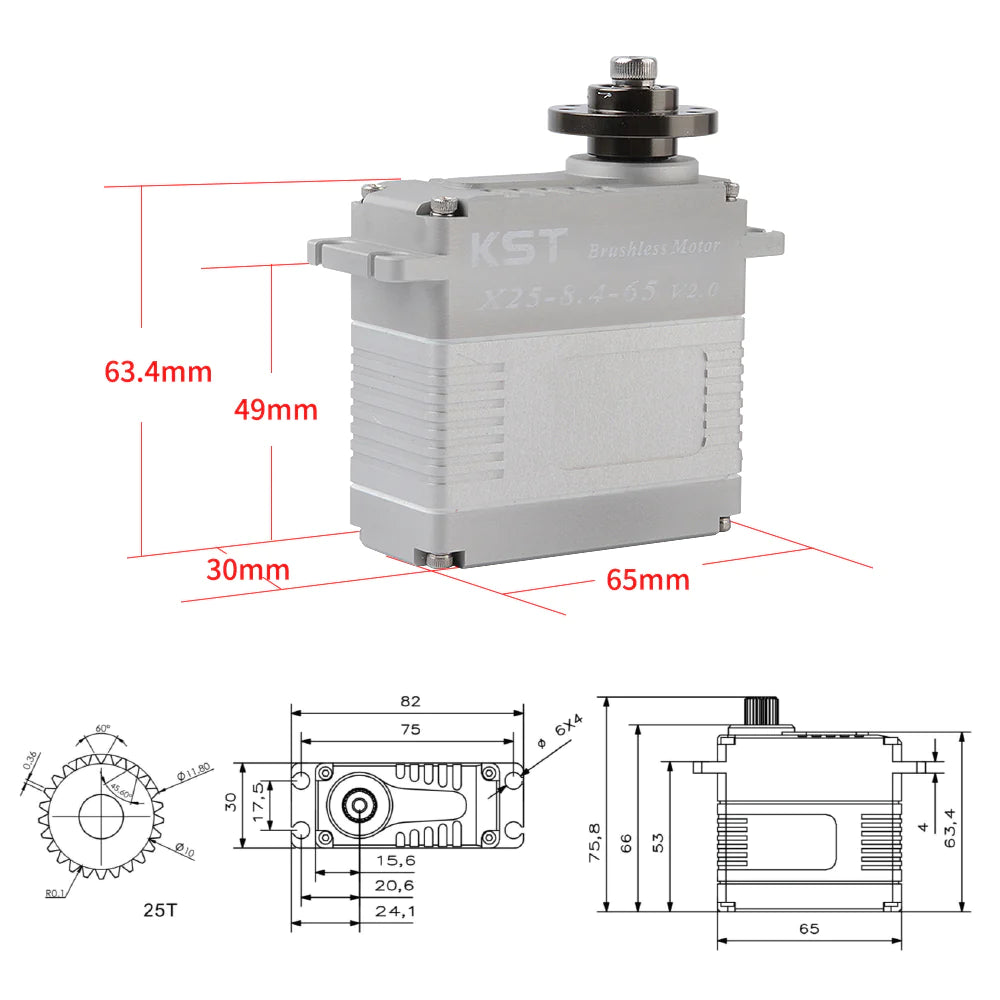

Size

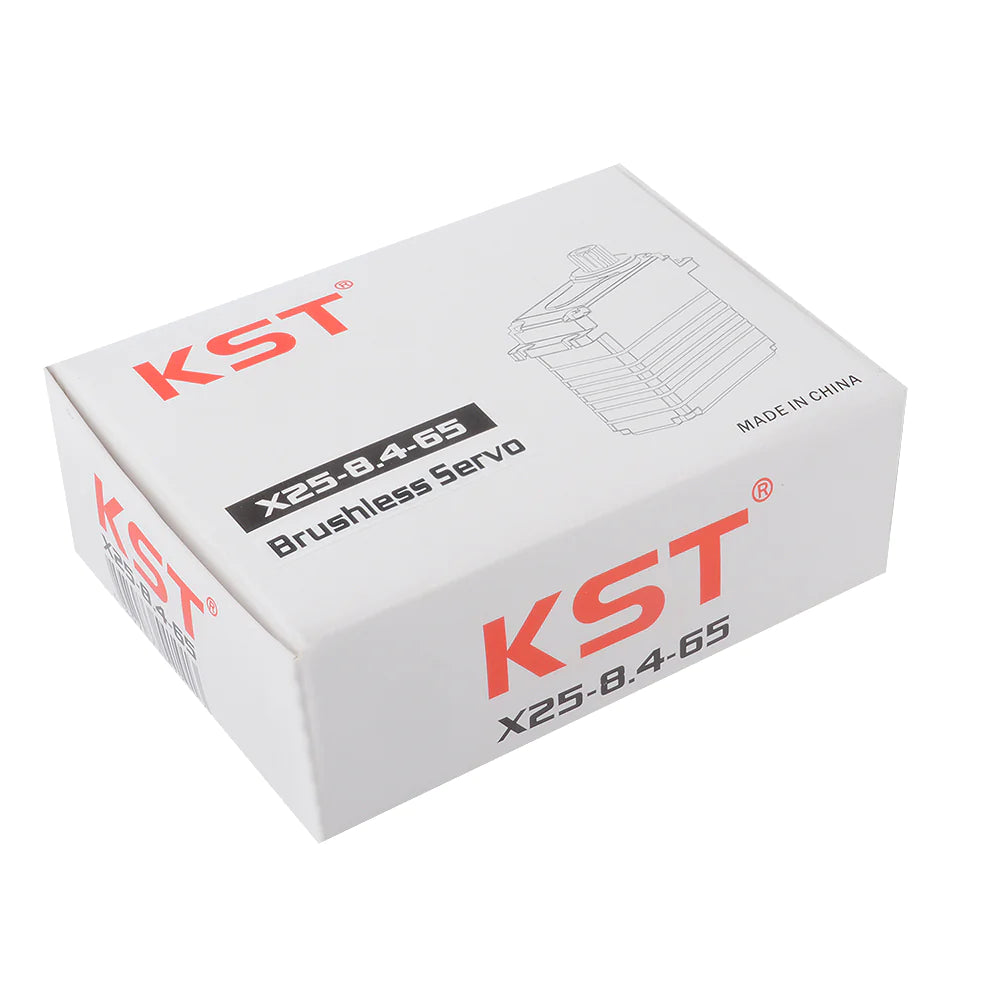

Package Including
- 1 * X25-8.4-65 V2.0 Brushless HV Servo
- 1 Pack of Accessories
