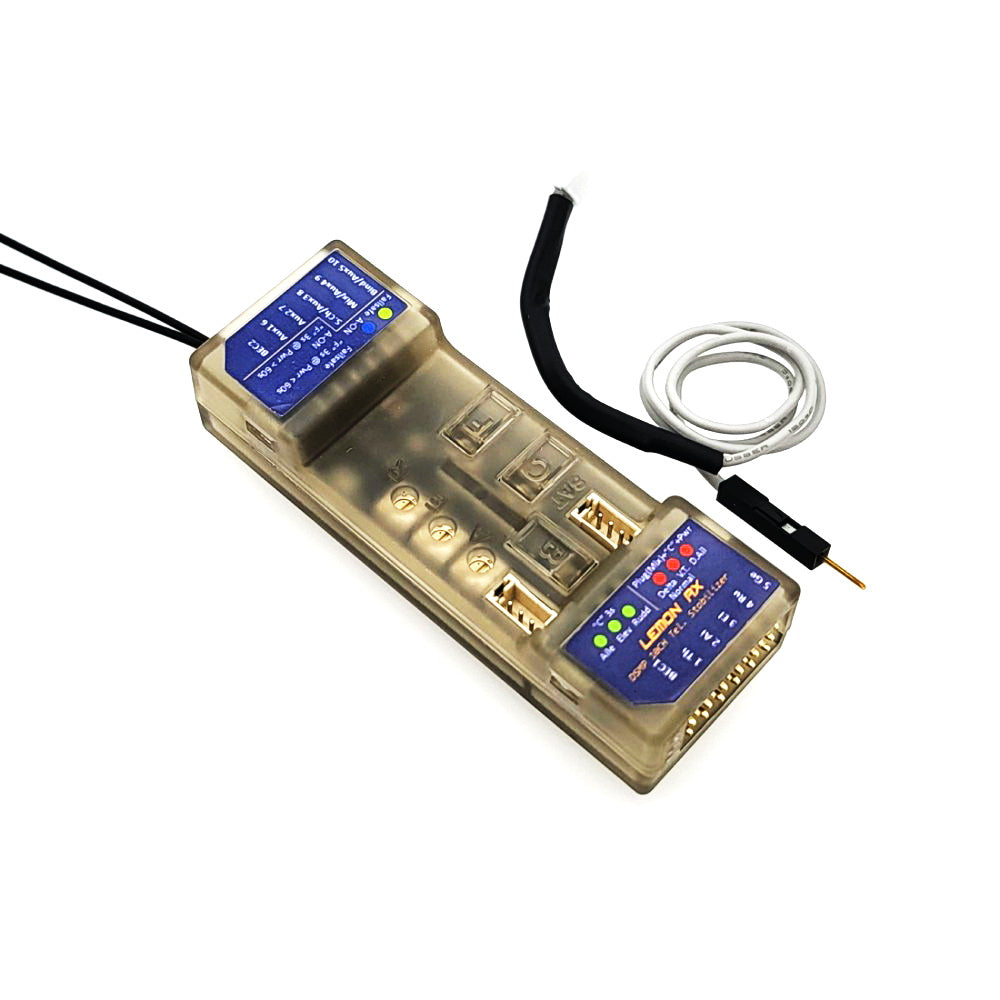

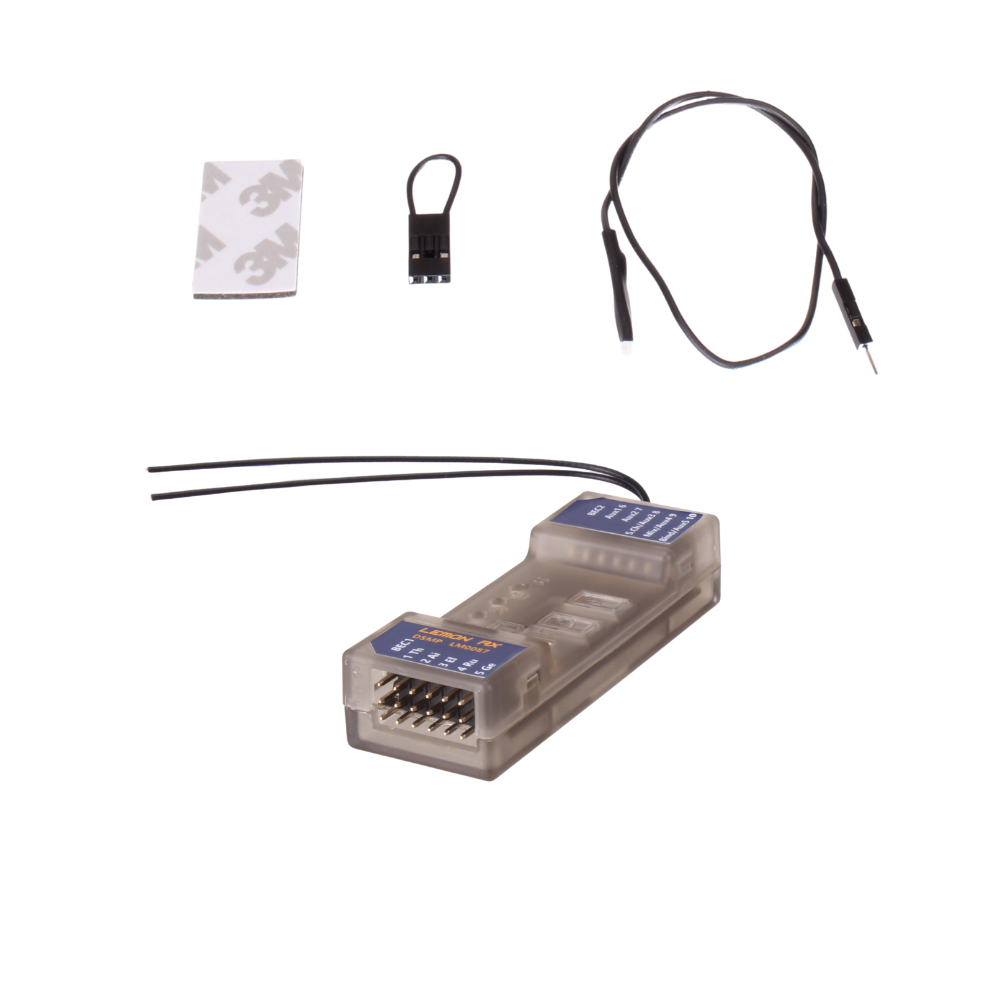

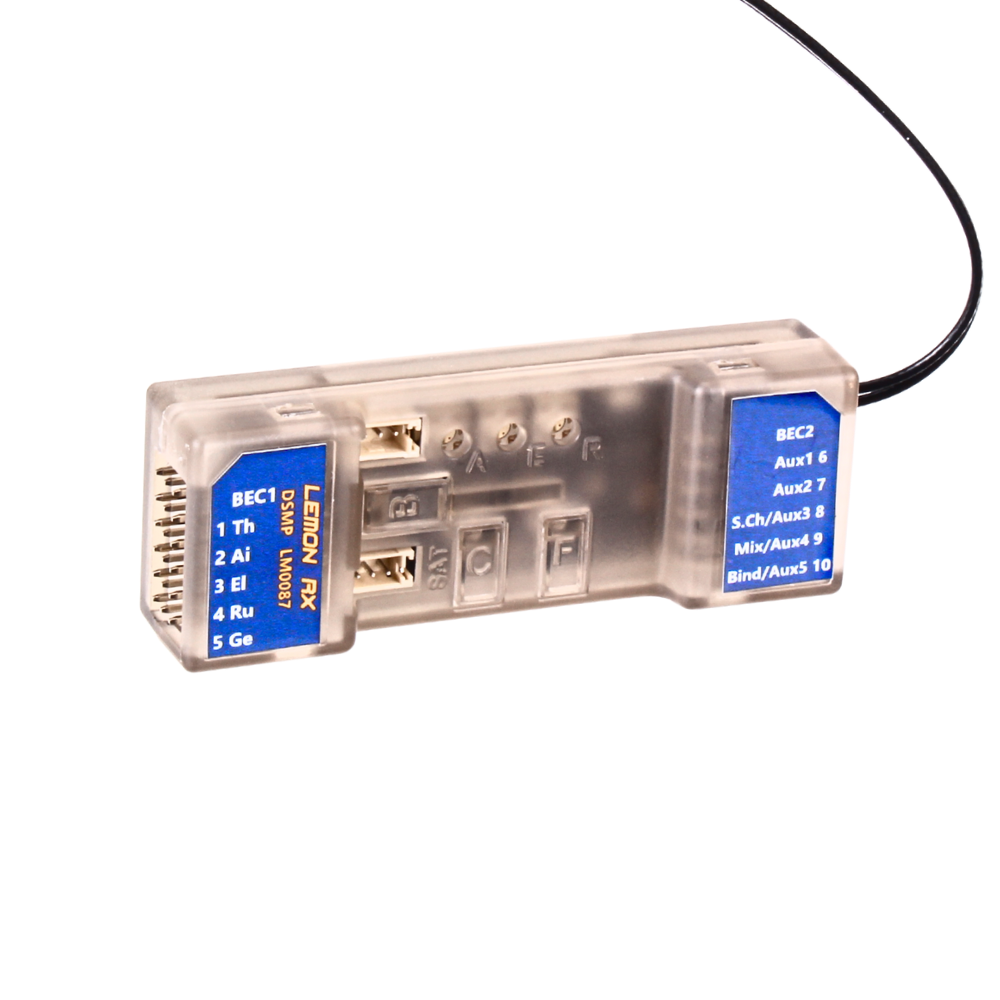

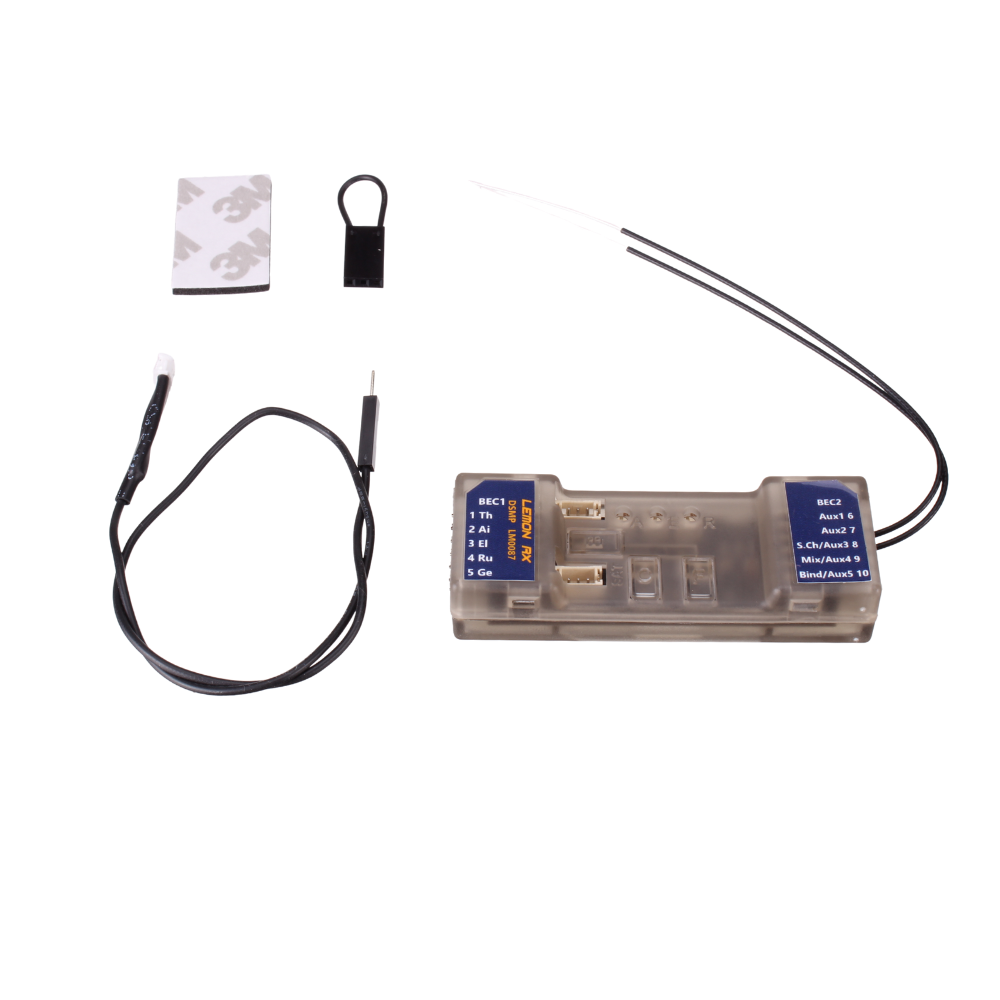

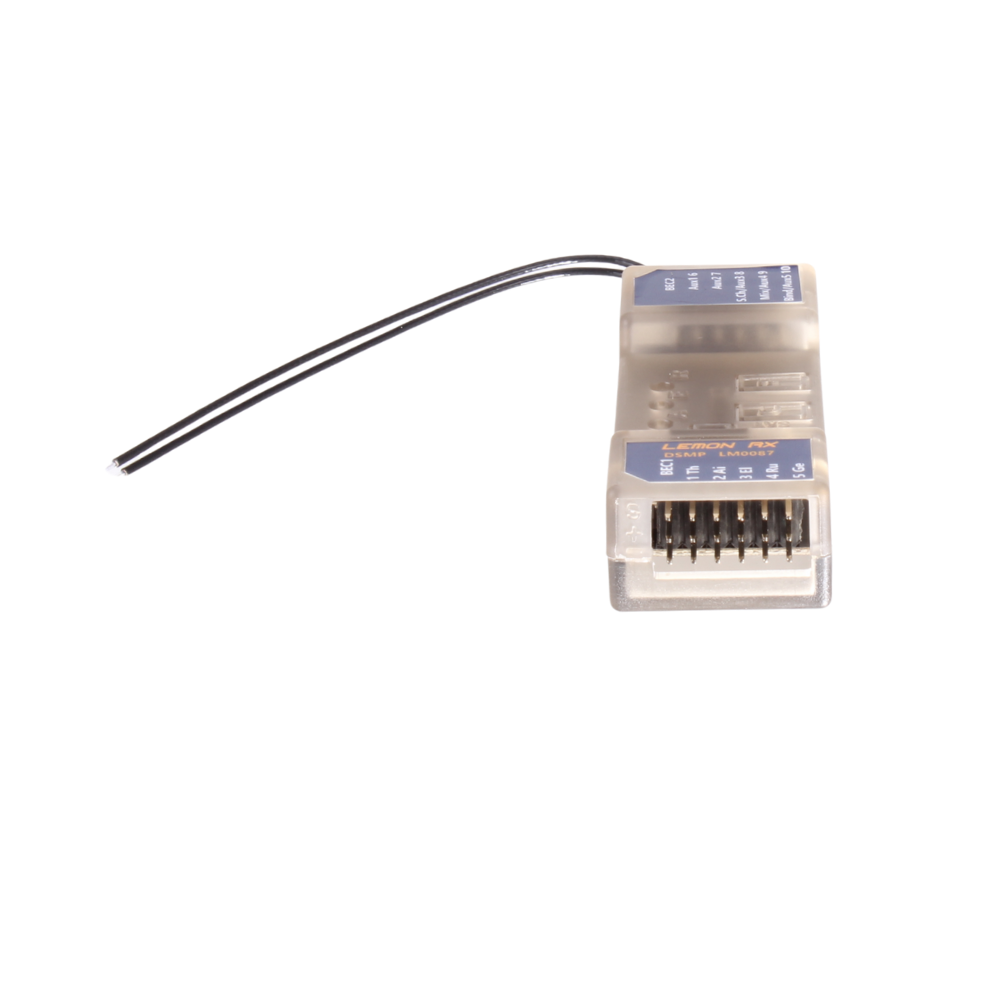

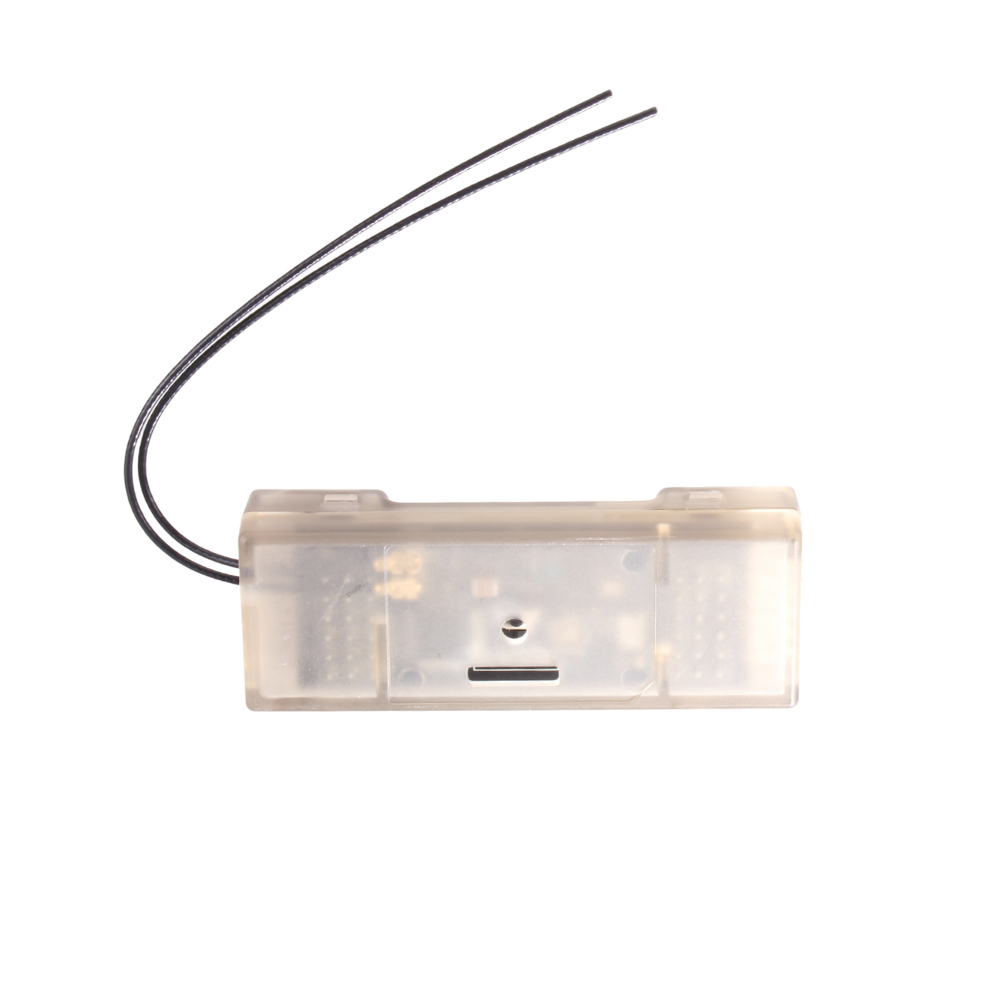

Lemon Rx DSMP 10-CH TELEMETRY STABILIZER & VOLTAGE PROBE (DSMX/DSM2 COMPATIBLE)

The DSMX/DSM2 compatible, 10-channel full-range telemetry stabilizer has been completely redesigned to provide the ultimate reliability, features, and performance. It includes a built-in barometer, altimeter, energy meter (Current, Voltage, mAh), and internal temperature sensor, offering full telemetry features. The high sensitivity gyro with proprietary stabilization algorithm ensures responsive airplane control for both electric and gasoline engine application.

The stabilizer supports stabilization with separated channel dual aileron operation, and the always-on feature allows nine usable channels on a 10-channel receiver. It also has a real-time variable stabilization gain control on channel 8, all-channel failsafe, and firmware health monitoring software stack. The ultra-low operational voltage of 3.6V ensures high operation reliability, and the generation 2 SDR stack ensures the fastest channel searching and advanced algorithm for signal recovery with ultra-low-latency experience. The antenna diversity and satellite port improve the reliability of the wireless link.

The stabilizer comes with a user manual, which can be accessed on www.lemon-rx.com/manual. The quick reference guide includes instructions for resetting the stabilizer, binding with a bind plug or without, failsafe settings, stabilization activation switch, wing mode and dual aileron configuration, gyro direction, V/I sensor and probe calibration, gain setting, and viewing setting LEDs with all on.

To reset the stabilizer, connect the power and hold the F and B buttons for approximately 5 seconds until all LEDs flash randomly. Then, press the C button, and multiple LEDs will flash a few times to complete the operation.

To bind with a bind plug, insert the bind plug on Channel 10 and connect power. To bind without a bind plug, connect power and hold the B button until the red LED flashes. To bind with a satellite without a bind plug, connect power, hold the B button until the red LED flashes, disconnect power, plug the satellite wire connector into the stabilizer, and connect power.

To set the failsafe, connect power to the receiver and ensure the servos are working with the transmitter. Press the F button for 3 seconds until green changes from off to on and vice versa to change the failsafe setting. The channel value is saved as failsafe default at the time the green LED turns on. Turn off the transmitter and wait 2 seconds to ensure the failsafe is activated accordingly by ensuring there is torque generated with finger-pushing the servo linkage if it was to be set. Vice versa.

To activate the stabilization switch, disconnect power, insert the bind plug to channel 8, hold the C button, and connect power. Wait for about 1 second until the 6 LEDs flash, then release the C button. Press C to make changes within 3 seconds. Green = CH7, Blue = CH5. Wait for 3 seconds and remove the bind plug.

For wing mode and dual aileron configuration, disconnect power, insert the bind plug to channel 9, hold the C button, and connect power. Wait for about 1 second until the 6 LEDs flash, then check the receiver label/user manual to understand the referred LEDs' operation. Release the C button and observe which red LED is flashing. Briefly press C to select the required mode, press C to toggle between settings. On means selected. Exit automatically in 5 seconds. Wait for 3 seconds and remove the bind plug. Ensure transmitter mixing is set accordingly for dual aileron if stabilized dual aileron is to be configured.

For gyro direction, check the receiver label/user manual to understand the referred LEDs' operation. Connect power and wait 1 second, then hold the C button and wait for about 1 second until the 6 LEDs flash. Release the C button and observe
