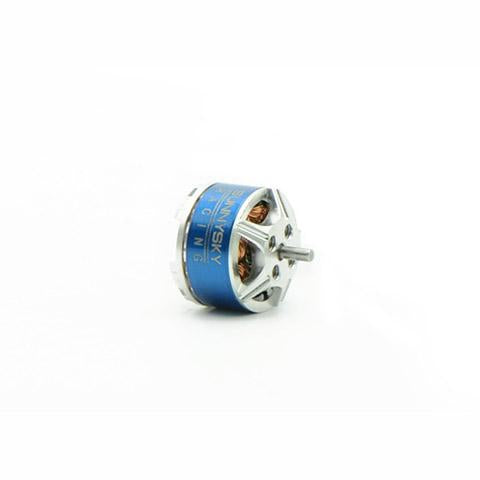

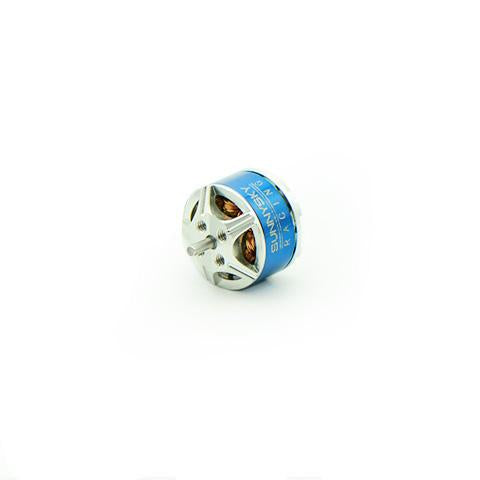

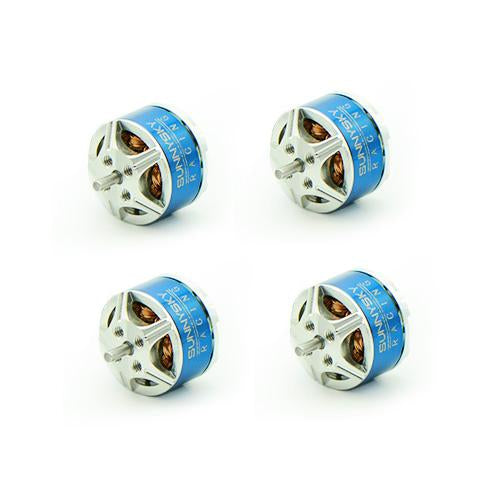

SunnySky R1104 Micro Drone FPV Brushless Motors

$12.99

Availability: 91 In Stock

Sku: SS-R1104-5500

Description
Shipping & Delivery

[TABS]OVERVIEW

KV5500

Stator Diameter	11mm	Weight	6g
Stator Thickness	4mm	Rotor Diameter	14.2mm
No.of Stator Slots	9	Body Length	11.6mm
No.of Rotor Poles	12	Max Lipo Cell	3-4S
Motor Kv	5500	ESC	10-15A
No-load current	0.4A/10V	Recommended Prop(inch)	20303/30202/2035*4
Motor Resistance	178mΩ
Max Continuous Current	14A/30s
Max Continuous Power	235W

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
DYS2030*3	11.1	0.6	20	7	3.00	45℃
		1.38	40	15	2.61
		2.1	60	23	2.57
		2.9	80	32	2.49
		3.7	100	41	2.43
		5.8	145	64	2.25
	12.5	0.6	20	8	2.67
		1.3	40	16	2.46
		2.07	60	26	2.32
		2.8	80	35	2.29
		3.55	100	44	2.25
		4.4	120	55	2.18
		5.2	140	65	2.15
		6.7	172	84	2.05
GF2035*4	11.1	0.6	20	7	3.00	48℃
		1.4	40	16	2.57
		2.2	60	24	2.46
		3.2	80	36	2.25
		4.2	100	47	2.15
		5.3	120	59	2.04
		6.4	140	71	1.97
		8.2	171	91	1.88
	12.5	0.5	20	6	3.20
		1.3	40	16	2.46
		2.1	60	26	2.29
		3	80	38	2.13
		3.9	100	49	2.05
		5	120	63	1.92
		6.1	140	76	1.84
		7.3	160	91	1.75
		8.6	180	108	1.67
		9.7	200	121	1.65
	14.8	0.5	20	6	3.13	60℃
		1.3	40	17	2.40
		2.1	60	27	2.23
		2.9	80	37	2.16
		3.8	100	49	2.06
		4.9	120	63	1.91
		6	140	77	1.82
		7.2	160	92	1.74
		9.8	207	125	1.65
	16.5	0.4	20	7	3.03
		1.1	40	18	2.20
		1.8	60	30	2.02
		2.6	80	43	1.86
		3.4	100	56	1.78
		4.4	120	73	1.65
		5.5	140	91	1.54
		6.6	160	109	1.47
		11.9	250	196	1.27
		13.2	275	218	1.26
3020*2	11.1	0.5	20	6	3.60	55℃
		1.05	40	12	3.43
		1.7	60	19	3.18
		2.37	80	26	3.04
		3	100	33	3.00
		3.8	120	42	2.84
		4.5	140	50	2.80
		5.4	160	60	2.67
		6.4	180	71	2.53
		7.4	200	82	2.43
		9.9	252	110	2.29
	12.5	0.4	20	5	4.00
		0.9	40	11	3.56
		1.5	60	19	3.20
		2.2	80	28	2.91
		2.22.8	100	35	2.86
		2.84.3	140	54	2.60
		4.35.9	180	74	2.44
		5.96.8	200	85	2.35
		6.89.4	250	118	2.13
		9.411.6	297	145	2.05

KV7500

Stator Diameter	11mm	Weight	6.5g
Stator Thickness	4mm	Rotor Diameter	14.2mm
No.of Stator Slots	9	Body Length	11.6mm
No.of Rotor Poles	12	Max Lipo Cell	2-3S
Motor Kv	7500	ESC	10-15A
No-load current	0.6A/10V	Recommended Prop(inch)	20303/30202/2035*4
Motor Resistance	115mΩ
Max Continuous Current	16A/30s
Max Continuous Power	200W

Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
DYS2030*3	7.4	0.9	20	7	3.00	61℃
		1.9	40	14	2.84
		2.9	60	21	2.80
		4	80	30	2.70
		5.1	100	38	2.65
		6.6	120	49	2.46
	8.4	0.85	20	7	2.80
		1.75	40	15	2.72
		2.8	60	24	2.55
		3.8	80	32	2.51
		4.9	100	41	2.43
		6	120	50	2.38
		7.7	144	65	2.23
	11.1	0.7	20	8	2.57
		1.5	40	17	2.40
		2.5	60	28	2.16
		3.5	80	39	2.06
		4.4	100	49	2.05
		5.3	120	59	2.04
		6.3	140	70	2.00
		7.3	160	81	1.97
		8.4	180	93	1.93
		10.6	215	118	1.83
	12.5	0.6	20	8	2.67
		1.4	40	18	2.29
		2.3	60	29	2.09
		3.2	80	40	2.00
		4.2	100	53	1.90
		5.2	120	65	1.85
		6.1	140	76	1.84
		7	160	88	1.83
		8	180	100	1.80
		9	200	113	1.78
		10.1	220	126	1.74
		12.1	256	151	1.69
3020*2	7.4	0.6	20	4	4.50	58℃
		1.3	40	10	4.16
		2.2	60	16	3.69
		3.1	80	23	3.49
		4	100	30	3.38
		5.1	120	38	3.18
		6.2	140	46	3.05
		7.5	160	56	2.88
		8.8	180	65	2.76
		11.2	215	83	2.59
	8.4	0.6	20	5	3.97
		1.3	40	11	3.66
		2	60	17	3.57
		2.9	80	24	3.28
		3.8	100	32	3.13
		4.8	120	40	2.98
		5.8	140	49	2.87
		7	160	59	2.72
		8.1	180	68	2.65
		9.4	200	79	2.53
		11	220	92	2.38
		12.7	247	107	2.32
GF2035*4	7.4	0.95	20	7	2.84	60℃
		2	40	15	2.70
		3.4	60	25	2.38
		4.7	80	35	2.30
		6.3	100	47	2.15
		8	120	59	2.03
		9.2	133	68	1.95
	8.4	0.87	20	7	2.74
		1.8	40	15	2.65
		3	60	25	2.38
		4.3	80	36	2.21
		5.6	100	47	2.13
		7.1	120	60	2.01
		9	140	76	1.85
		10.6	160	89	1.80
	11.1	0.6	20	7	3.00
		1.5	40	17	2.40
		2.6	60	29	2.08
		3.8	80	42	1.90
		4.9	100	54	1.84
		6.4	120	71	1.69
		7.7	140	85	1.64
		9.2	160	102	1.57
		10.9	180	121	1.49
		13.8	225	153	1.47
	12.5	0.5	20	6	3.20
		1.3	40	16	2.46
		2.3	60	29	2.09
		3.4	80	43	1.88
		4.5	100	56	1.78
		5.8	120	73	1.66
		7.1	140	89	1.58
		8.2	160	103	1.56
		9.8	180	123	1.47
		12.5	220	156	1.41
		15.7	266	196	1.36

[/TABS]
