Description
Features
- Made with billet CNC aviation grade aluminum for superior durability and outstanding looks
- Non contact hall sensors with precise centering for accurate control
- Quad precision bearings for unparalleled feel
- Adjustable vertical travel angle (Min. 38°, Max. 54°)
- AG01 NANO Gimbal is specifically designed for the smaller POCKET radio
Specifications

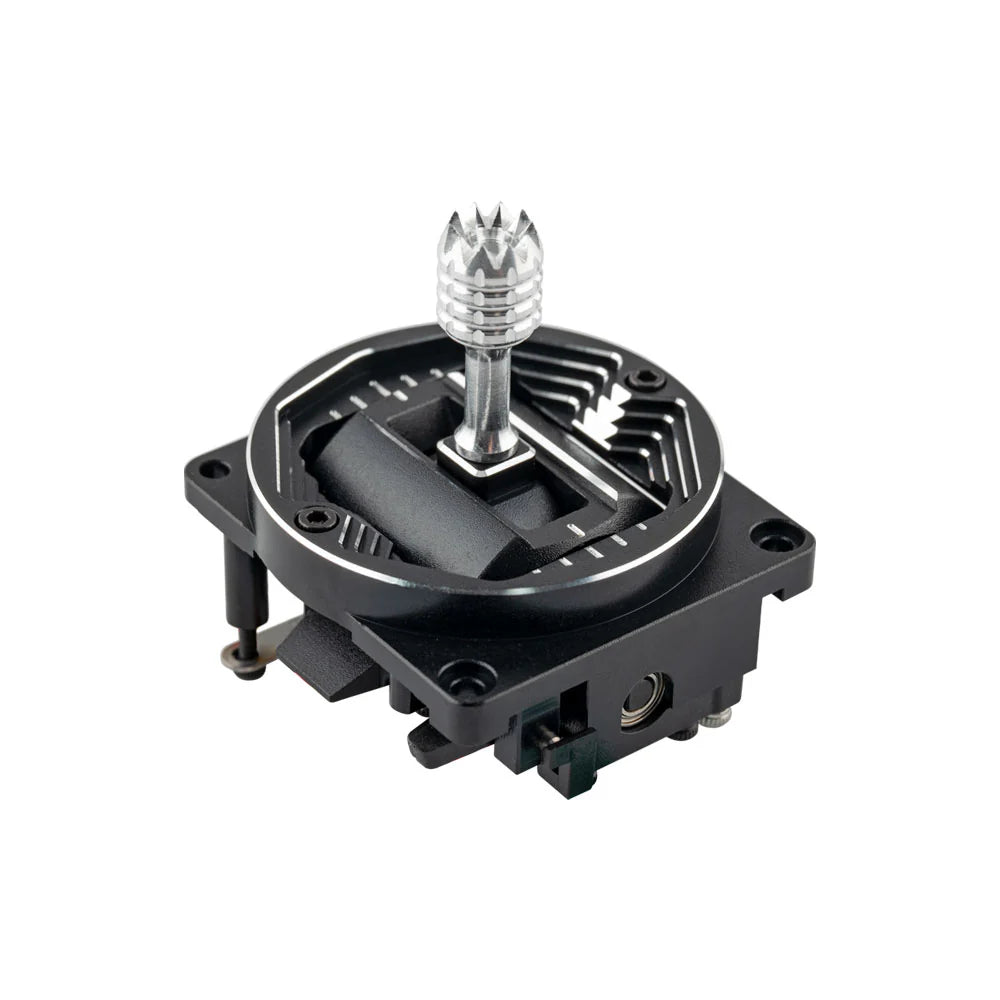

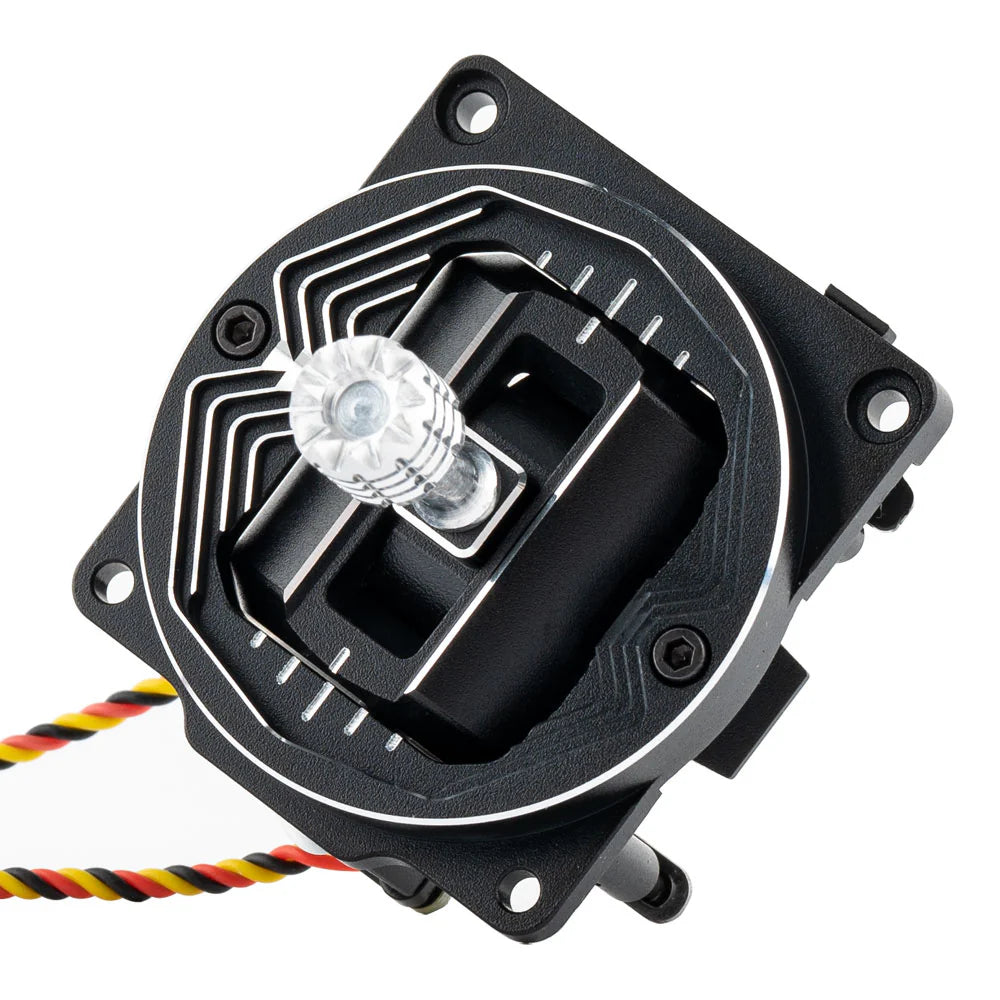

- Item: AG01 NANO CNC Hall Effect Gimbal
- Sensor type: Non-contact hall effect
- Working voltage: DC 3.3V
- Linearity: Real-time (No latency)
- Adjustable vertical travel range: 38°- 54°
- Self-centering adjustment: Yes
- Mode adjustment: Yes
- Adjustable tension: Yes
- Bearing: Quad precision bearings
- Temperature range: -20°C-85°C
- Size: 42*37*43mm
- Weight: 32g(±0.3g)
Package:

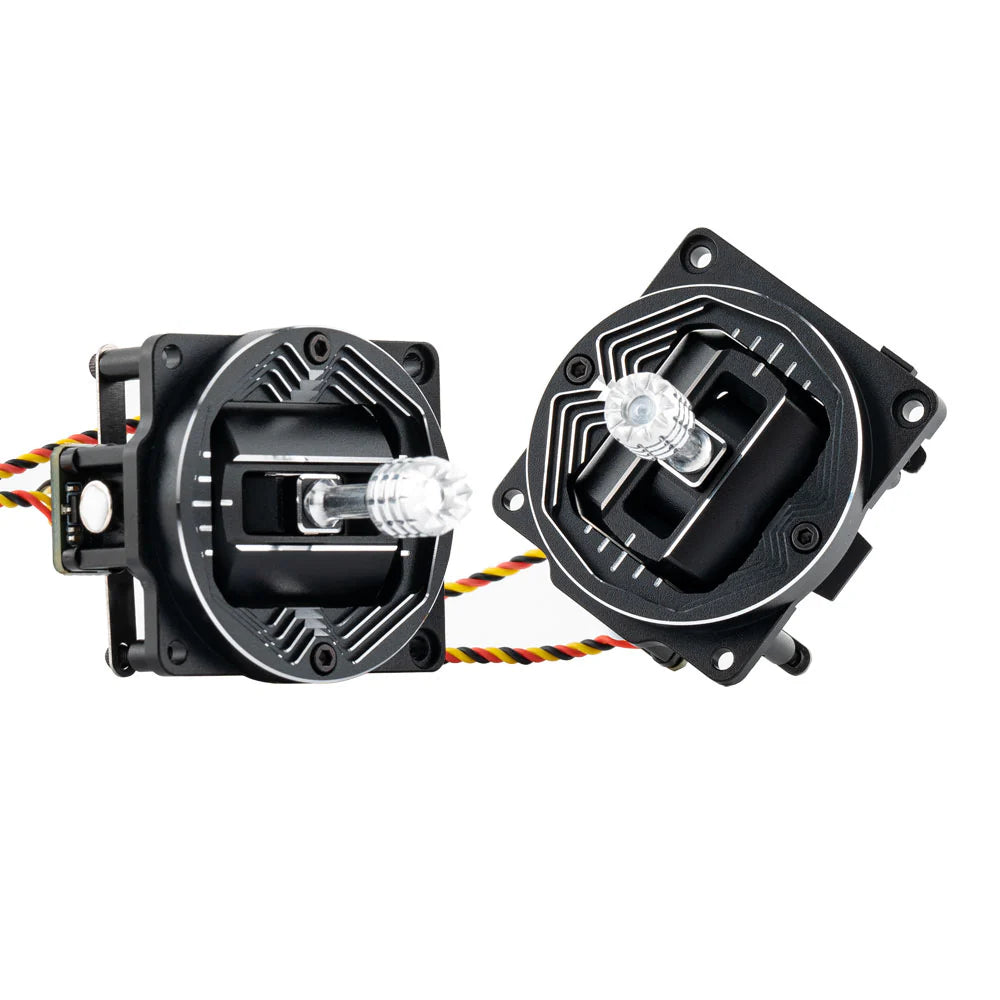

- 2 * AG01 NANO CNC Hall CNC Gimbal
- 2 * L-shaped Hexagon Socket Screwdriver
- 4 * Hard Tension Spring
- 8 * PB2*6 Screw
- 2 * CM1.6*3 screw
- 2 * Manual
