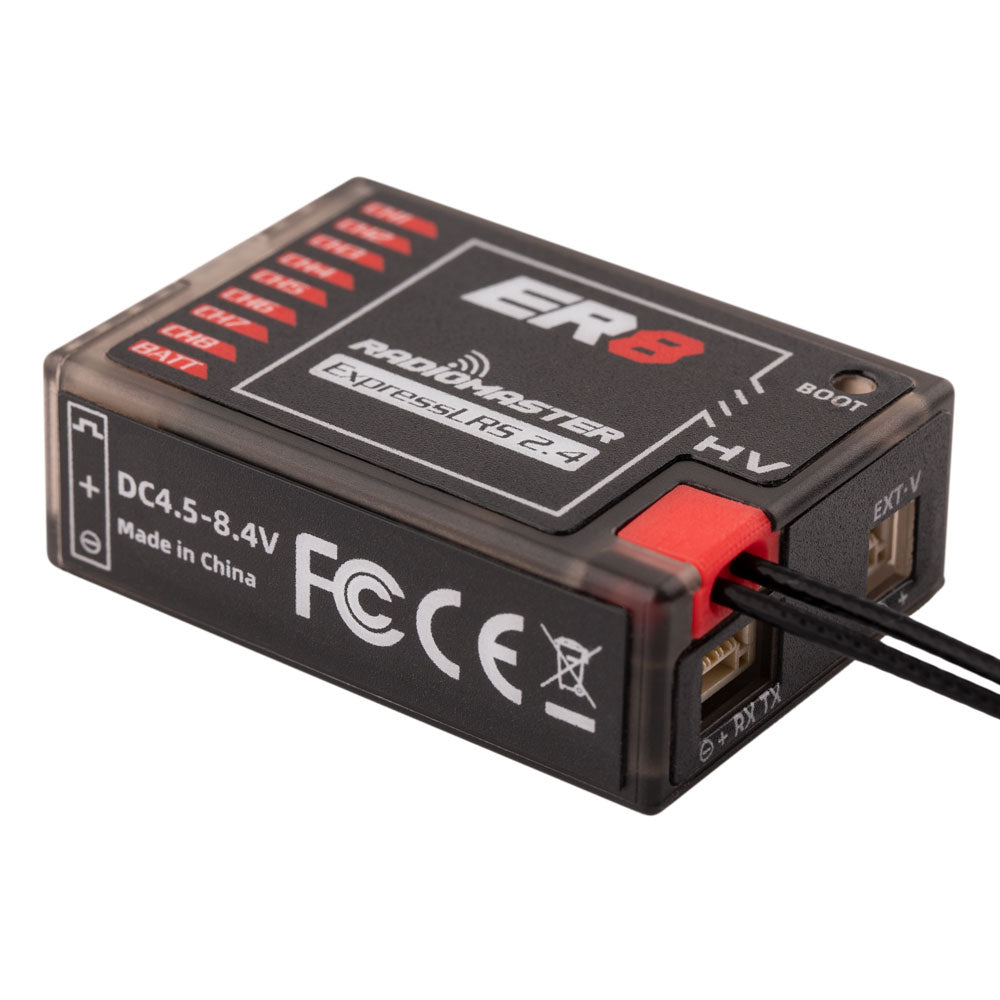

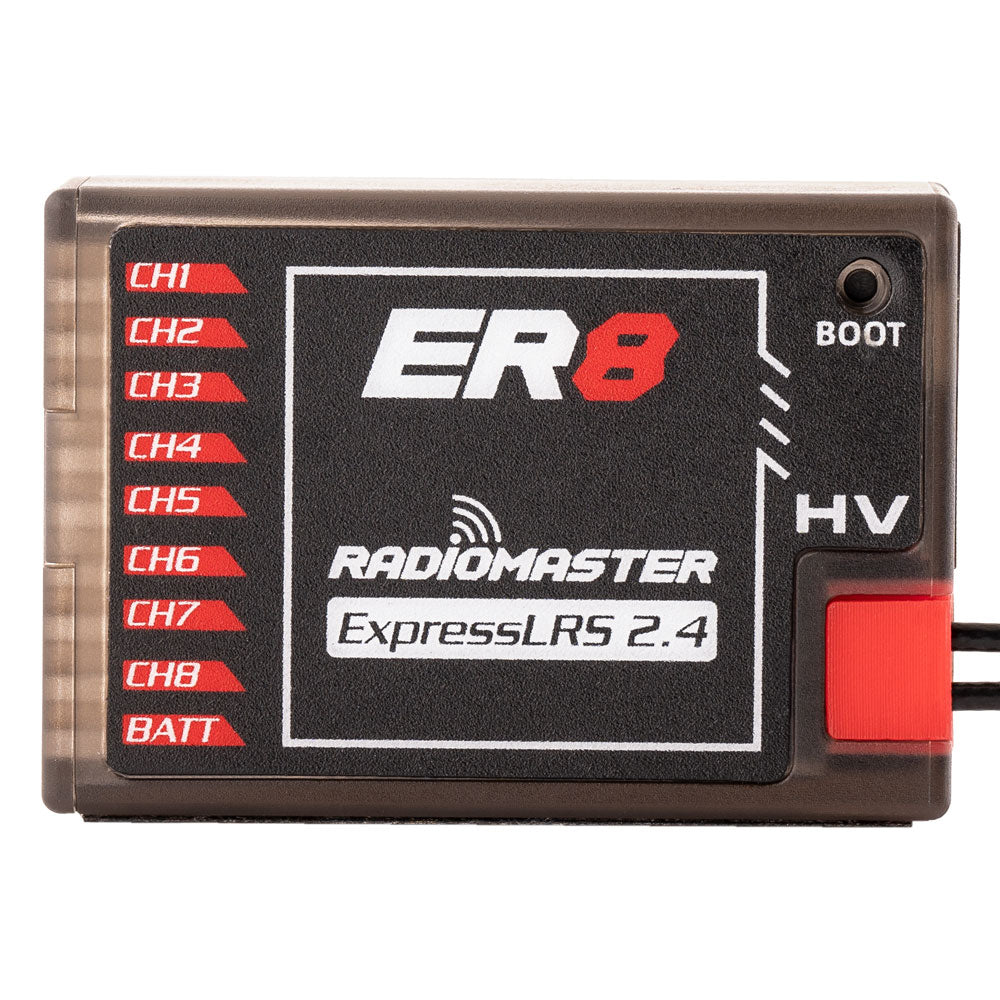

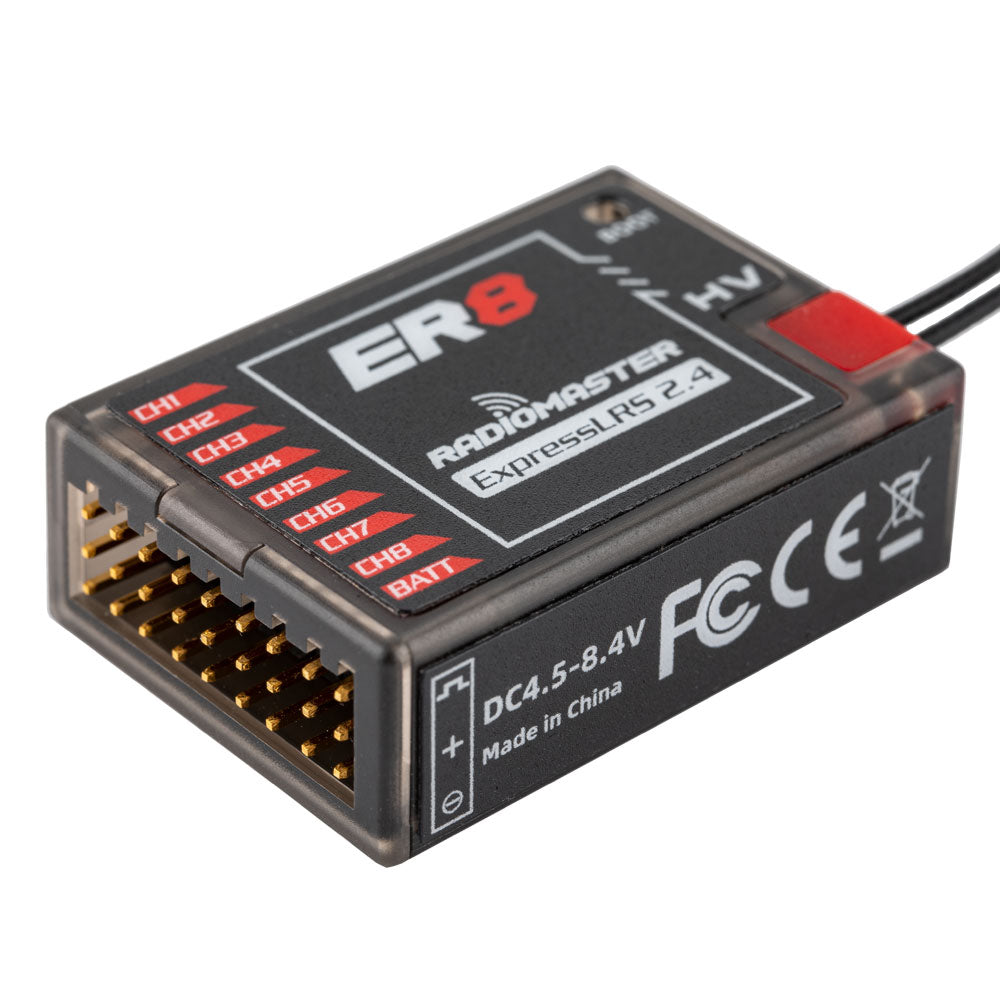

RadioMaster ER8 2.4GHz ELRS PWM Receiver
The RadioMaster ER series of PWM receivers operates on the cutting-edge ExpressLRS system, delivering superior performance, exceptional reliability, versatile configuration options, rapid response speeds, and an incredibly extensive range, elevating your hobby experience.
Tailored specifically for glider pilots seeking a compact, slender receiver, the ER8G & ER8GV receivers support up to 8 servos. They include integrated receiver voltage telemetry and flight battery telemetry, automatically selecting the appropriate voltage input (only one input at a time). Both models feature a dual-antenna setup with telemetry power up to 100mw, compatible with a 1S Lipo receiver battery.
While the ER8GV includes a built-in Vario, ideal for various scenarios, the ER8G omits this feature. This design variation caters to competitions that restrict Vario usage or users who simply don't require it on their receiver.
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 8 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- ER8GV receiver is built-in high-precision air pressure sensor (Vario)
- Supports Wi-Fi updates and WEBUI configuration

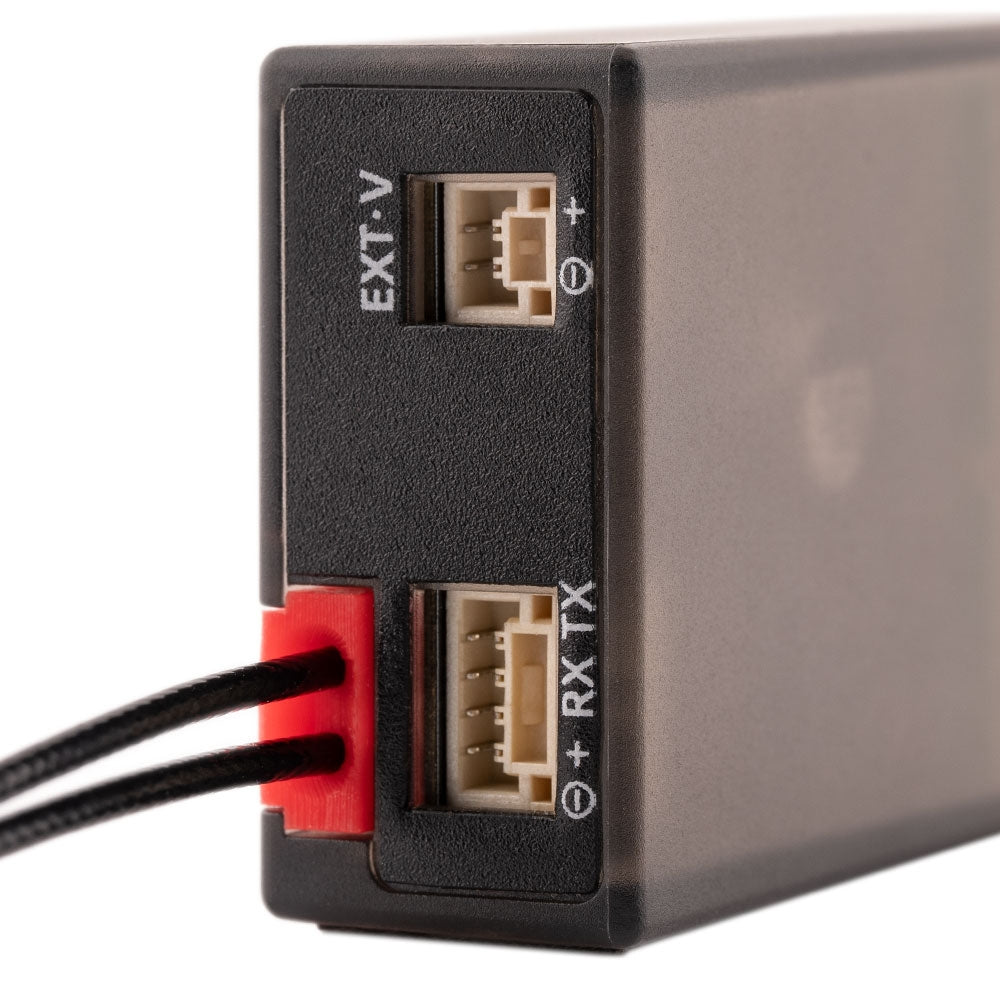

- Reserve 4pin CRSF input port
- High quality 2.54 mm connector
- Standard 20 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification (ER8G)
- Item: ER8G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 - 8.4V

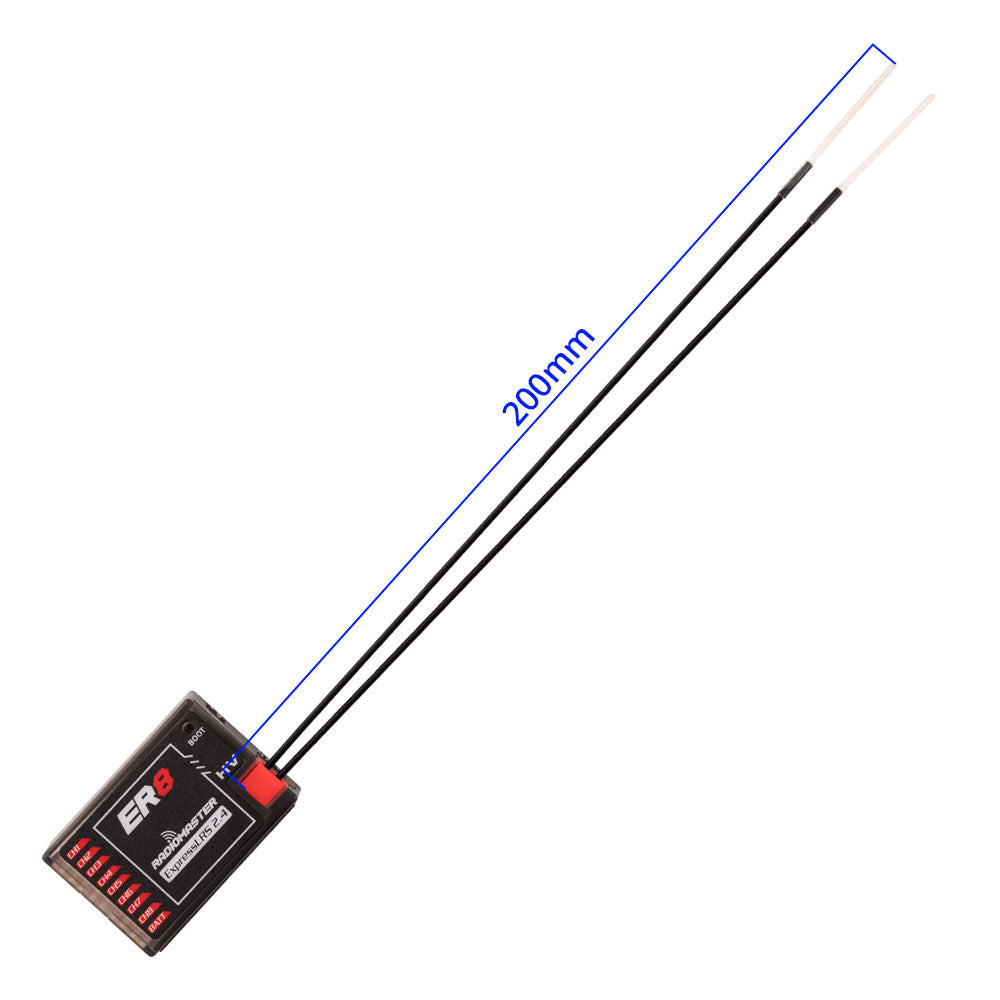

- Antenna type: 20cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 8CH PWM
- Telemetry power: maximum 100mw (LUA can be set)
- Battery voltage detection range: DC 4.0 - 35V
- Weight: 12 grams
- Dimensions: 60*13.5*13mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER8G
Package Includes
- 1 * ER8G or E8GV 2.4GHz ELRS PWM Receiver
- 2 * Heat-shrink tube
- 1 * Voltage telemetry wire (Type-A)
- 1 * CRSF wire
- 1 * ELRS- RX- SBUS wire
- 1 * User Card
