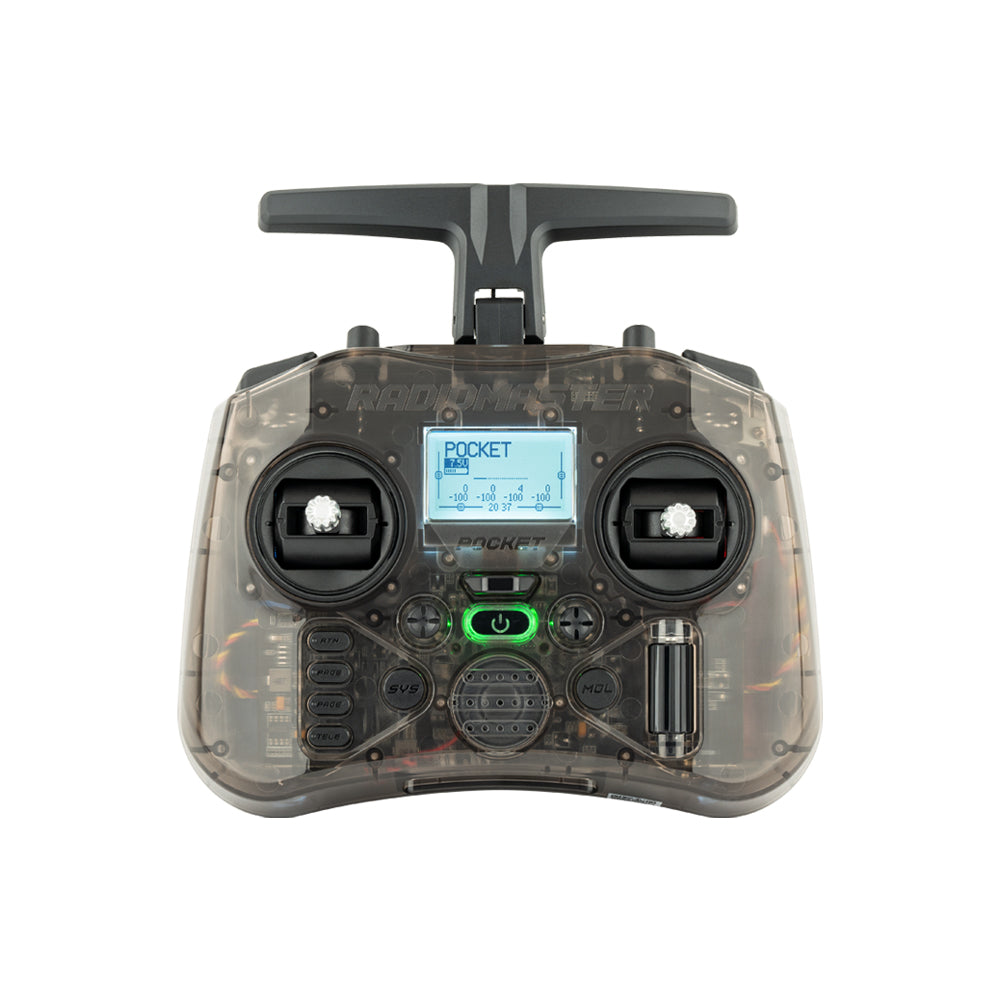

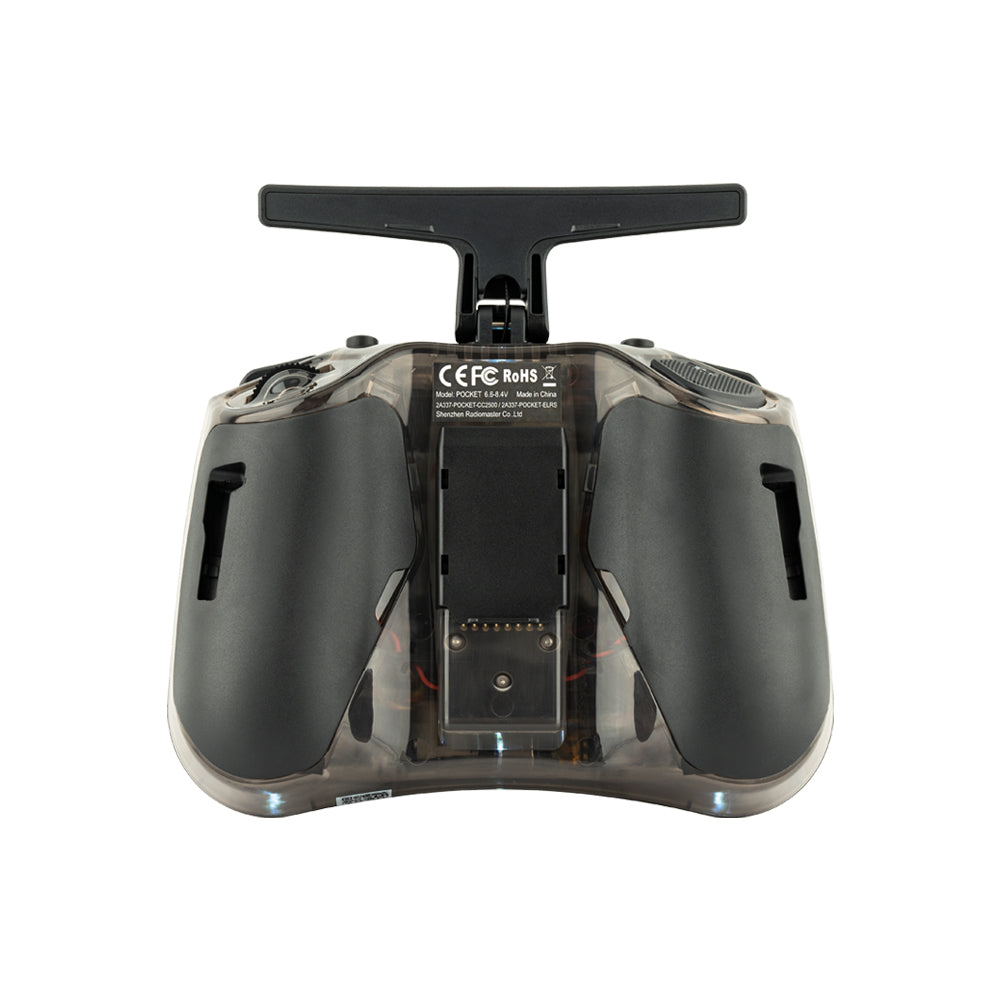

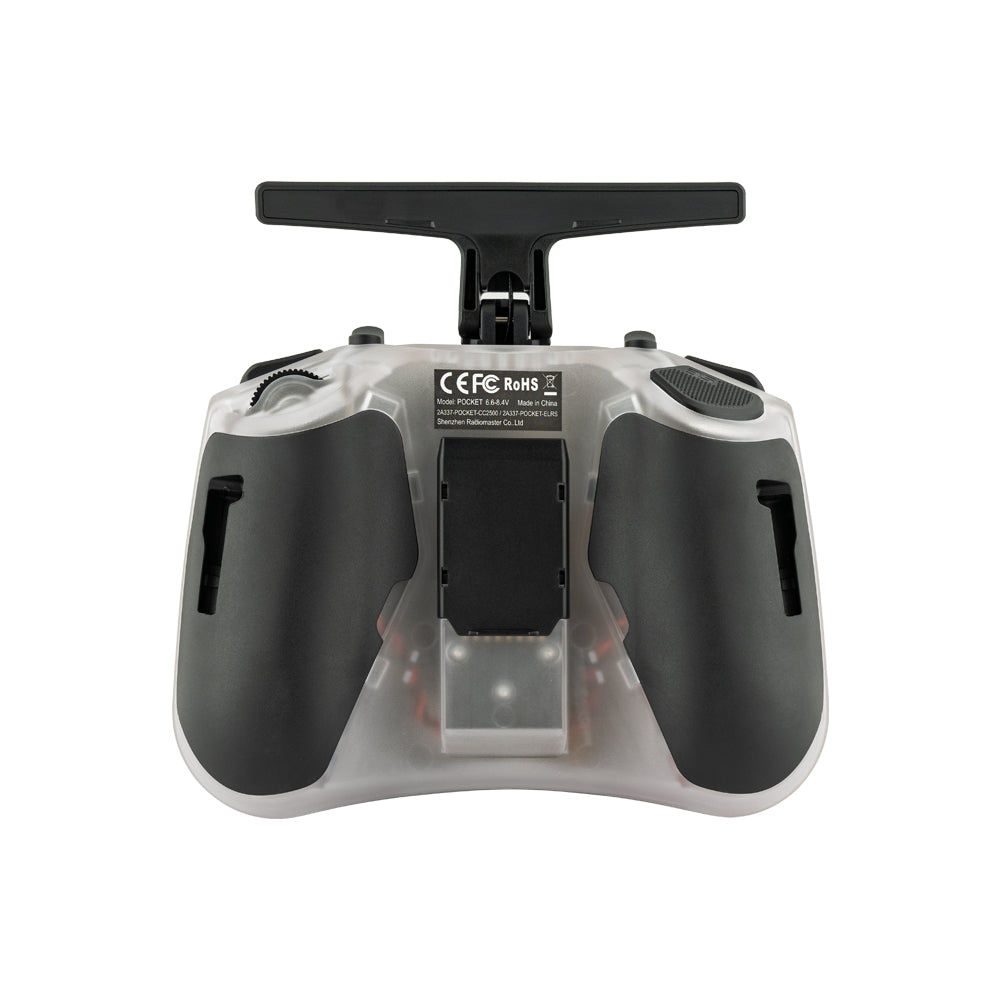

RadioMaster Pocket CC2500 Radio Controller

RadioMasterSKU: RMS-0052

Color: Charcoal
Price:
Sale price$54.99

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
0%
(0)
100%
(1)
0%
(0)
J
John K.
CC2500 RadioMaster pocket

So I generally always have great service and good things to say about a product. So I'll Begin with how much I like the size of this radio an all it's buttons switches but the cc2500 part is worthless I can't even get a R81v2 to pair to this thing only thing I can get to work is liftoff on my PC so this thing compared to my V1 jumper tlite 4 in 1 is garbage now if RadioMaster made a version of this pocket 4in1 that would be my hell yeah, but now I'm stuck with a radio I can't do nothing with other than sim. Boooooo

Download Manual

Description

The RadioMaster Pocket is a compact and lightweight radio device that delivers impressive performance. It is offered in two variants, namely ExpressLRS and MPM CC2500, both of which come with EdgeTX firmware preloaded. The Pocket is also designed with detachable stick ends and a foldable antenna, ensuring convenient portability and storage. It can be powered by 18650 batteries, providing extended usage for hours of enjoyment.

Apart from the traditional charcoal and transparent case options, we offer a variety of optional colored cases in vivid shades like blue, pink, green, and orange. This allows you to customize the radio to suit your unique style.

The RadioMaster Pocket is an excellent selection for pilots seeking a compact and lightweight radio that incorporates the robust features they've grown accustomed to.
Features:

Comes in ExpressLRS and MPM CC2500 variants
Comes with preloaded EdgeTX firmware
Powered by 18650 batteries for extended usage (Batteries not included)
Compact and lightweight design with detachable stick ends and a foldable antenna
Equipped with standard hall effect gimbals for smooth control and precision
Features built-in LED lights for visualizing switch inputs
Boasts a backlit LCD screen, striking a perfect balance between size and functionality
Trim buttons for effortless channel adjustment
External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
Available in two stylish colors: Charcoal and Transparent, with optional case colors in Blue, Pink, Green, and Orange to match your personal style
Specifications:

Product: Pocket Radio
Physical dimensions: 156.665.1125.3mm (Folded size) /156.673.1154.8mm (Unfold size)
Weight: 288 grams
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
Supported protocols: Dependent on the module
Operational voltage: 6.6-8.4v DC
Operating system: EdgeTX
Control channels: Up to 16 (Dependent on the receiver)
Display: 128*64 Monochrome LCD
Battery: Requires 2pcs 18650 batteries (Not included)
Charging: Built-in USB-C QC3 Charging
Firmware Upgradability: Via USB or the included SD card
Gimbal: Utilizes hall-effect technology
Module bay: Nano-sized (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer)
Available in both ExpressLRS and CC2500 Versions
CC2500 (standard) Version supports all CC2500 protocols
ELRS (standard) comes pre-installed with ExpressLRS ISM FW (Maximum power output depends on hardware)
About LBT version:

CC2500 LBT Version (Europe) adheres to LBT compliant protocols, including FrSKY X/X2 LBT & HoTT LBT
ELRS LBT (Europe) Version is pre-loaded with ExpressLRS CE EU domain LBT FW (Power output limited to 100mw)


Gimbal Adjustment

A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.
