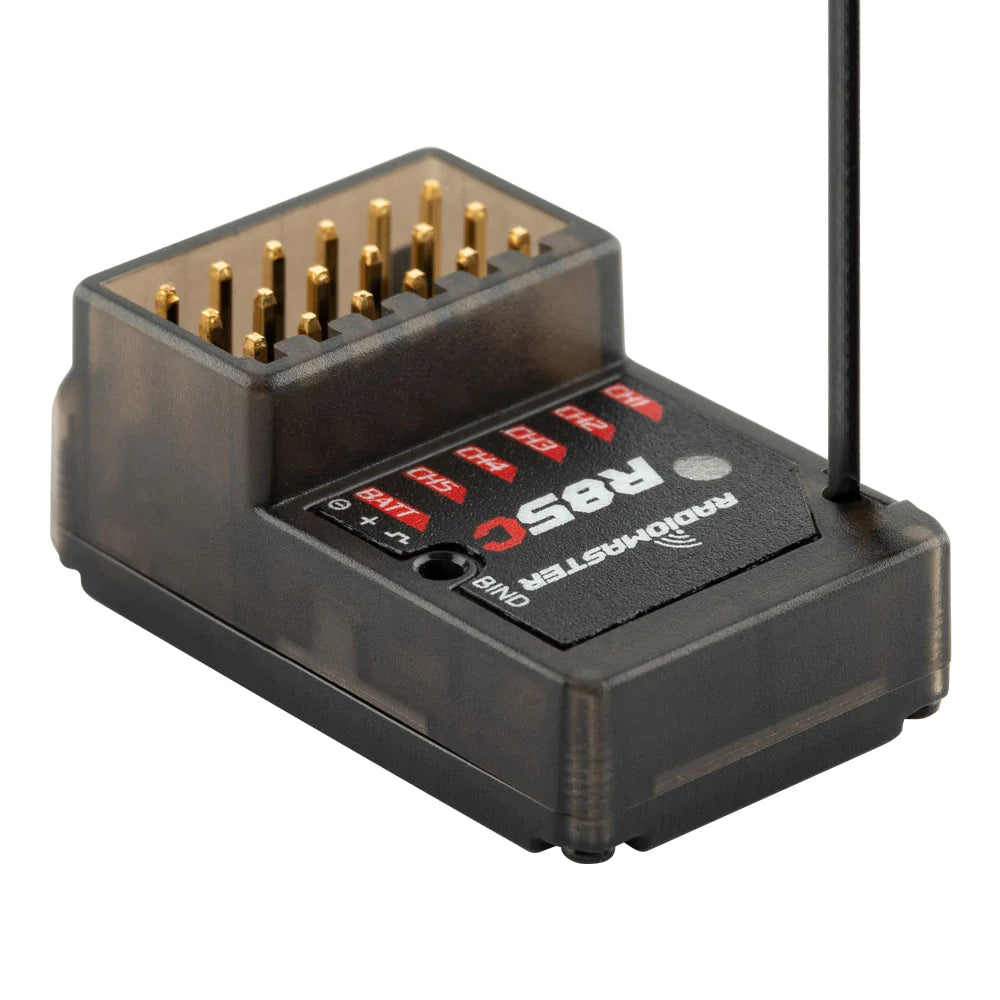

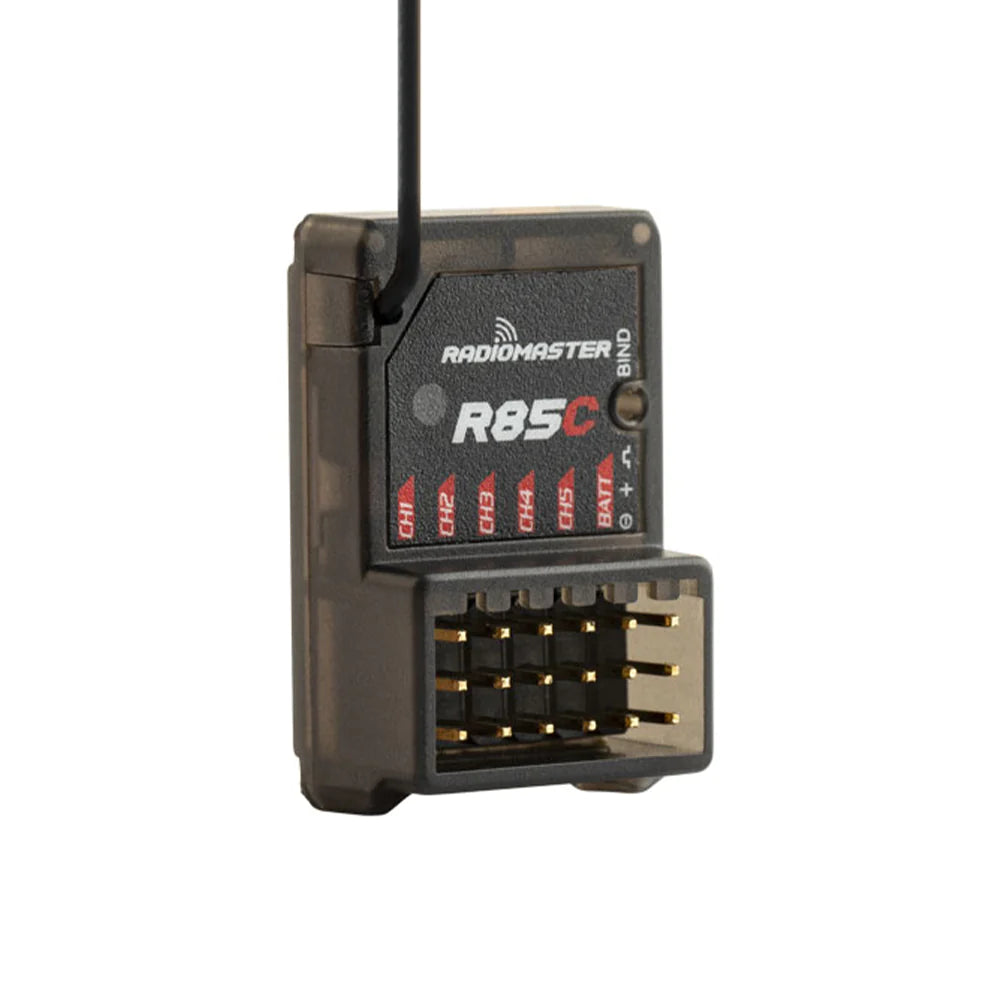

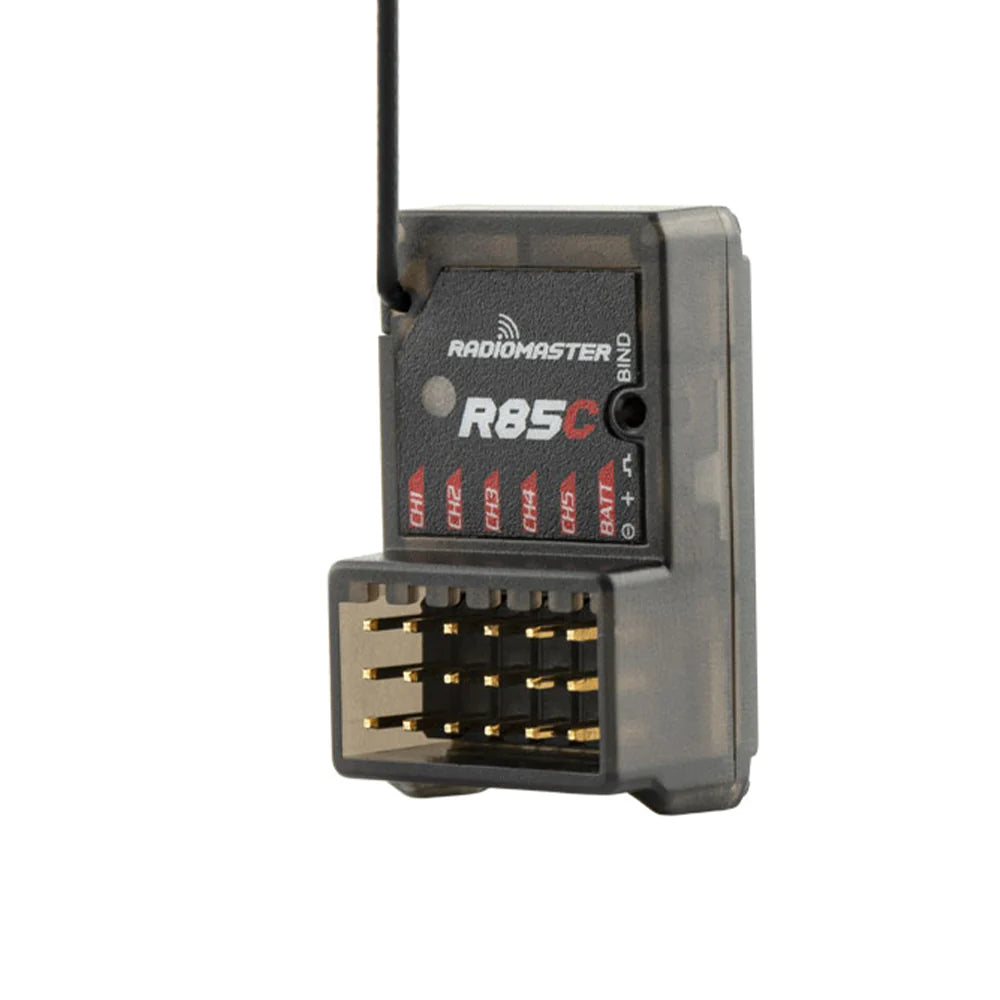

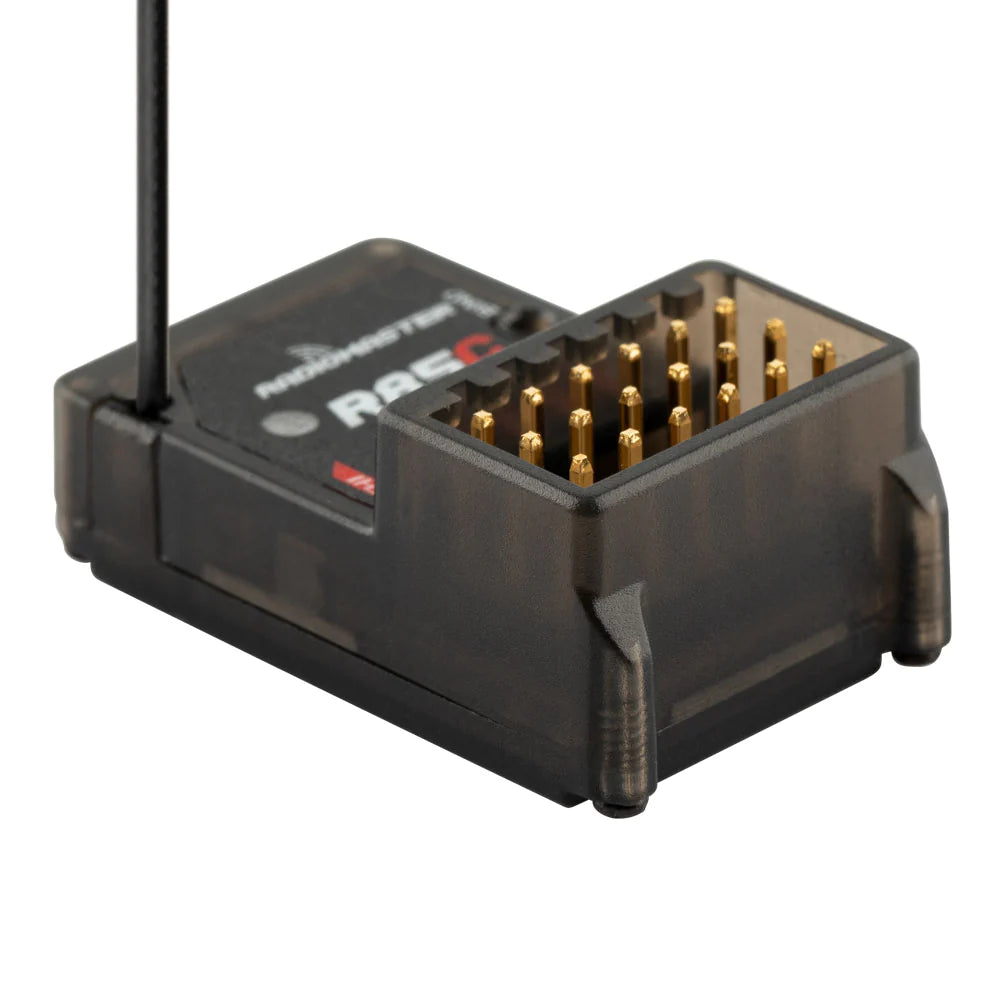

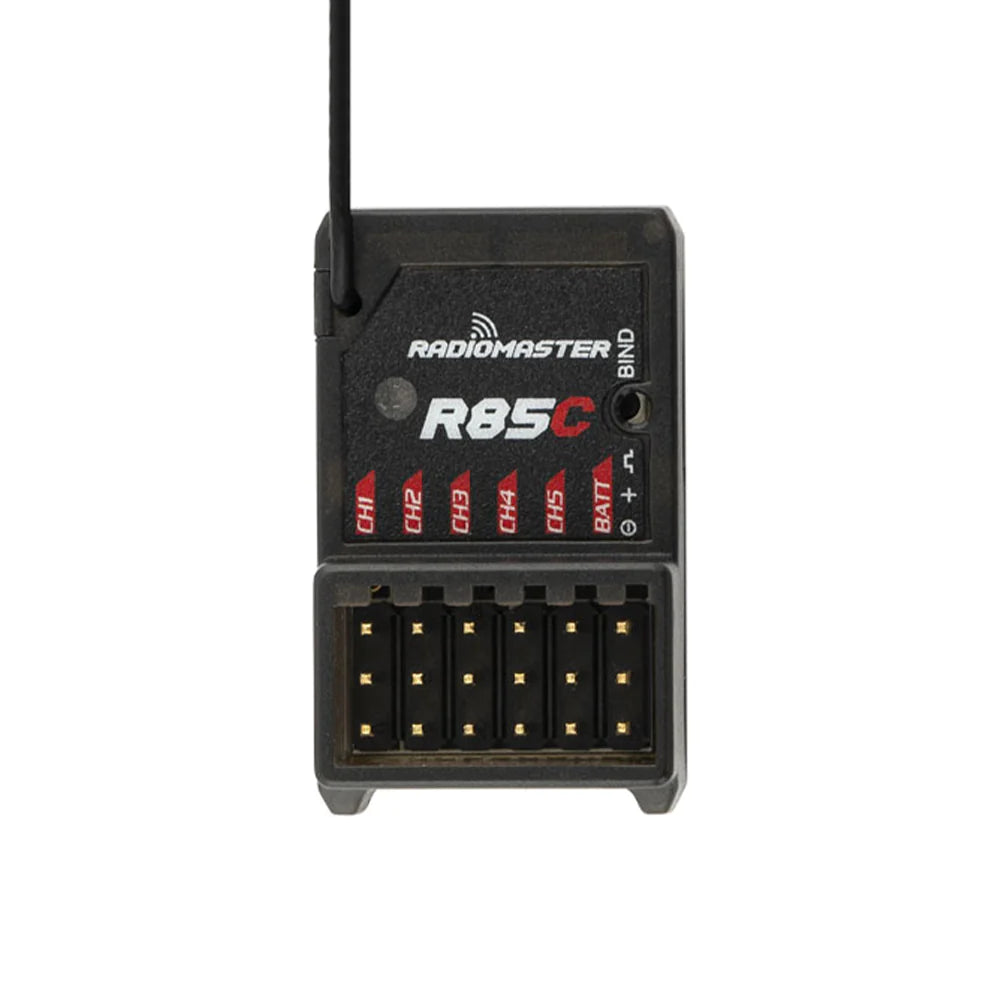

RadioMaster R85C D8 D16 SFHSS Compatible Receiver

RadioMasterSKU: RMS-RX-R85C

Price:
Sale price$14.99

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
W
William P.

RadioMaster R85C D8 D16 SFHSS Compatible Receiver

Download Manual

Description

The R85C receiver is Frsky D8 / D16 and Futaba SFHSS compatible and offers a range suitable to many RC modelers. Built-in a TCXO (temperature compensated crystal oscillator), ensures high stability and accuracy in frequency control, compensating for temperature variations.

* Suitable only for Radiommaster Multi-Protocal radios with ability to fine tune protocols. Not compatible with FrSky radios.

Specifications

  • Item: R85C Receiver
  • Power supply: DC 4.5 - 8.4V
  • Frequency range: 2400-2483.5Mhz
  • Support protocol: D8/D16/SFHSS
  • Output channel: 5CH PWM
  • Antenna type: high-sensitivity 2.4G antenna
  • Telemetry power: 100mW / 20dBm
  • Weight: 5.55 grams
  • Dimensions: 31.0*18.5*13.0 mm

TCXO

The TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation.

Package Includes

  • 1 * R85C Receiver
  • 1 * User Card
