Description

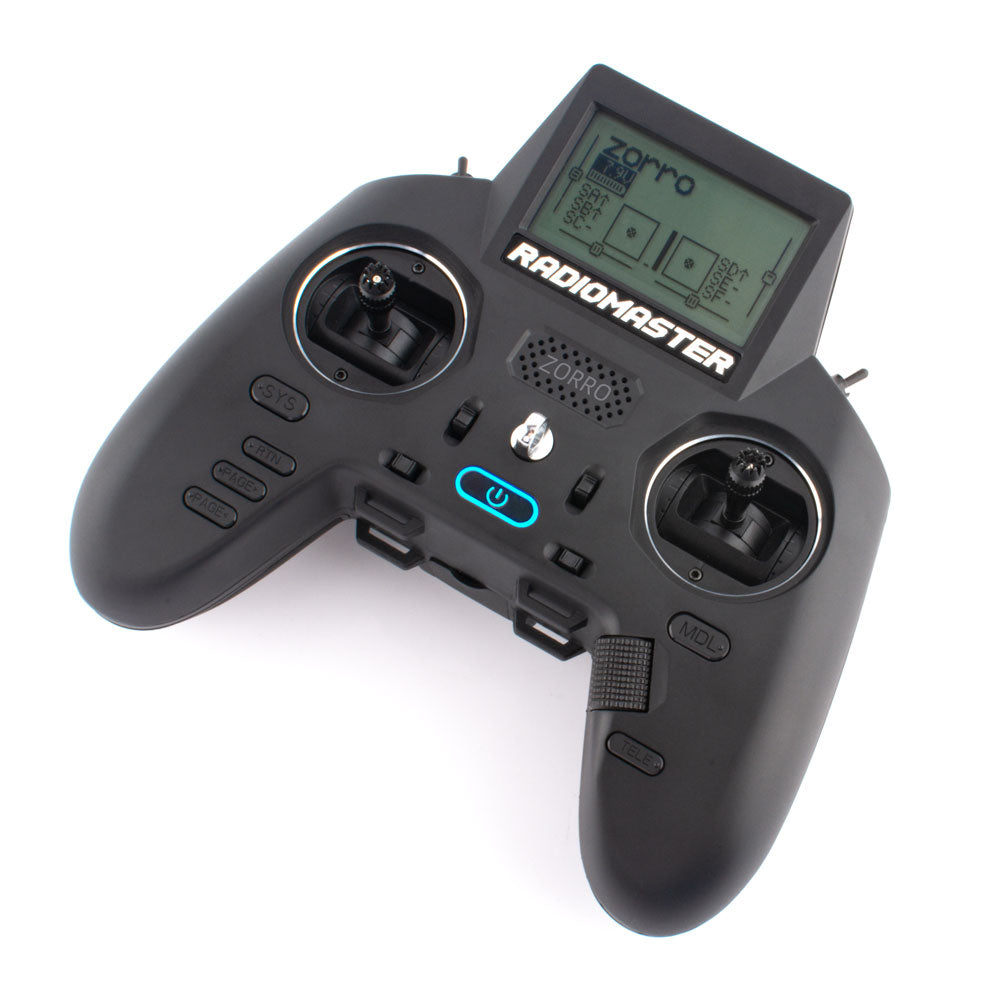

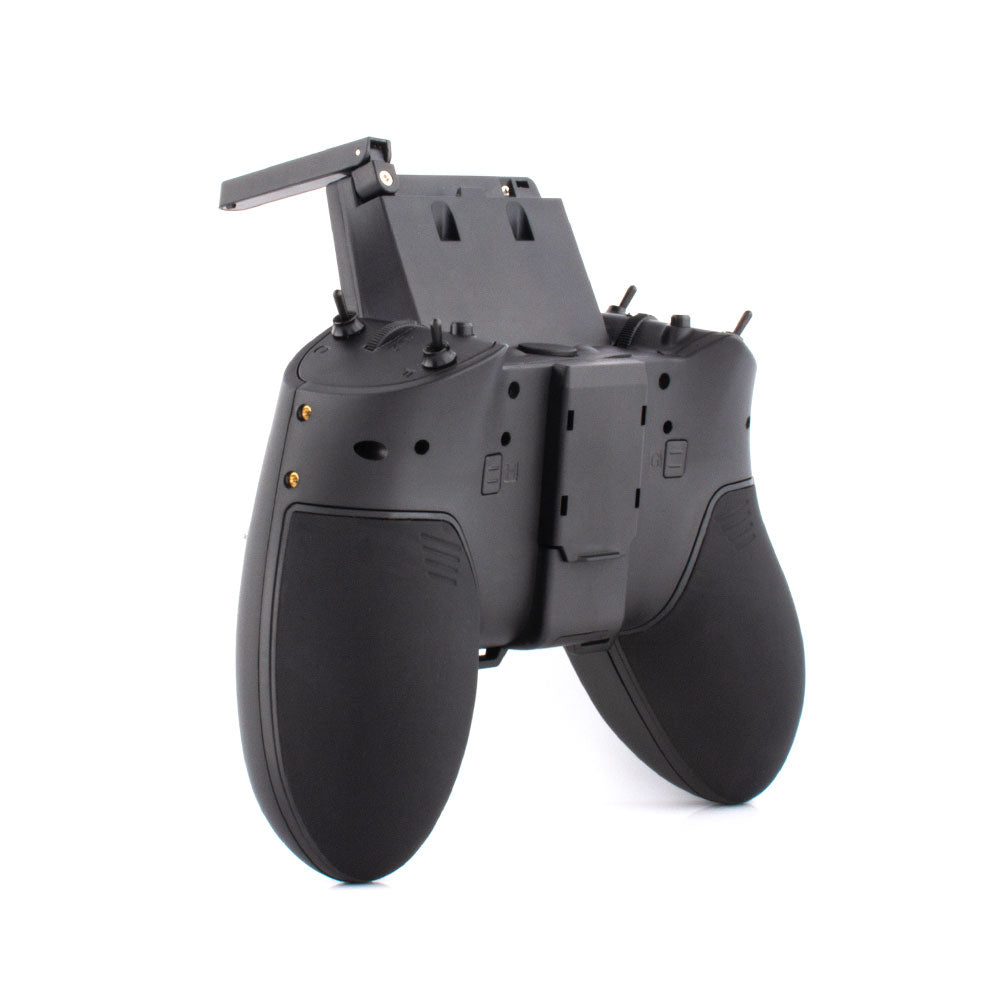

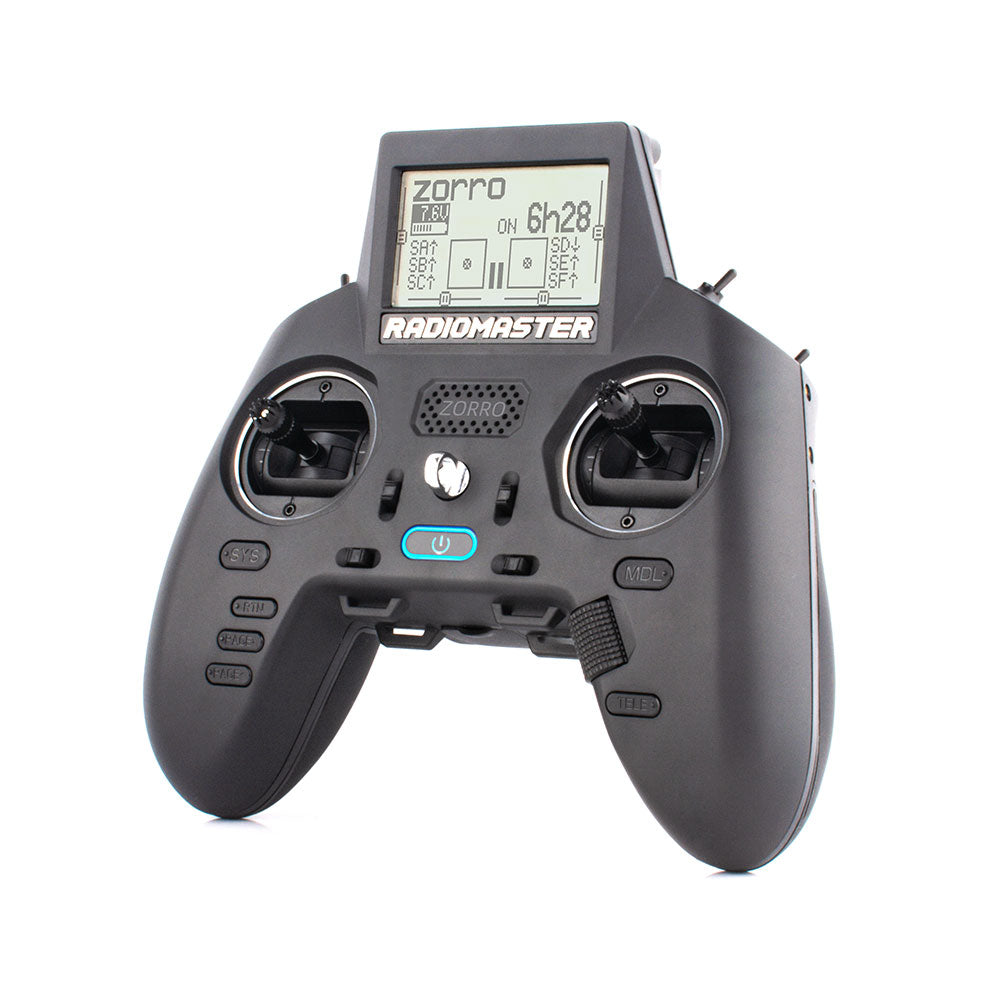

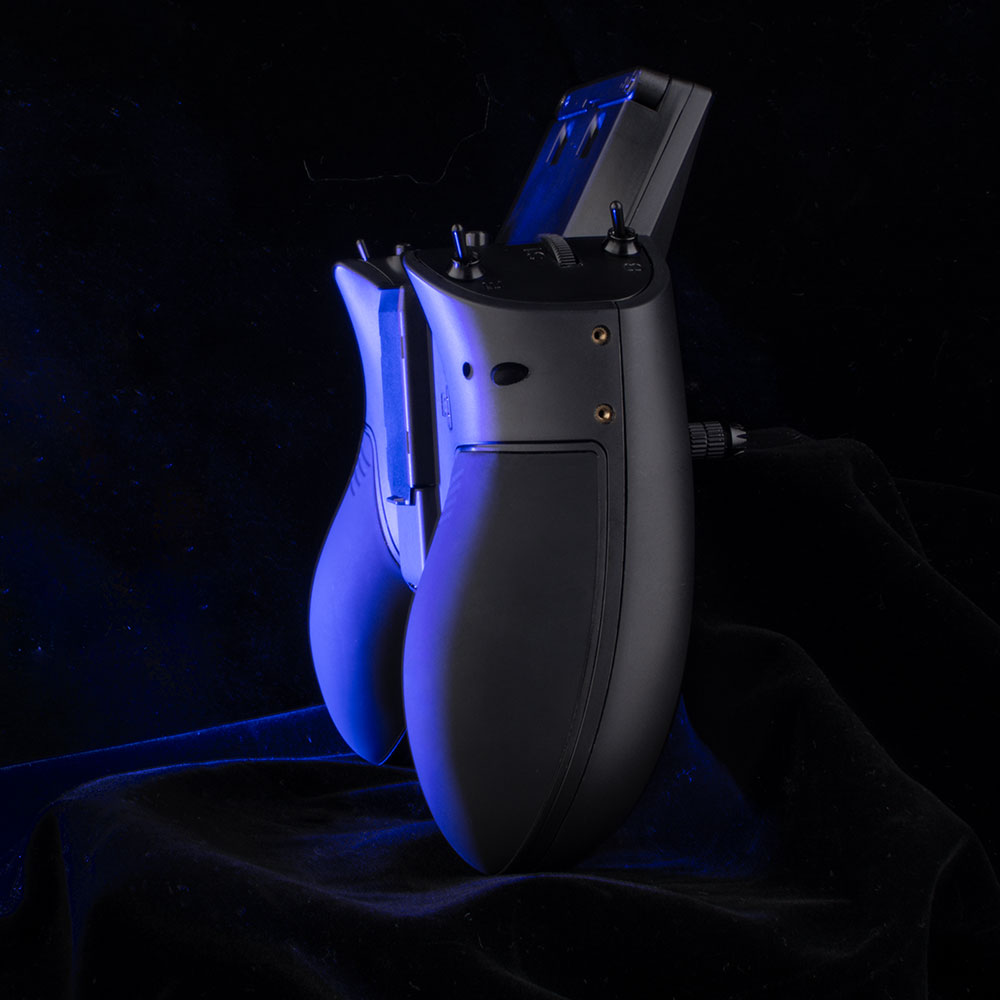

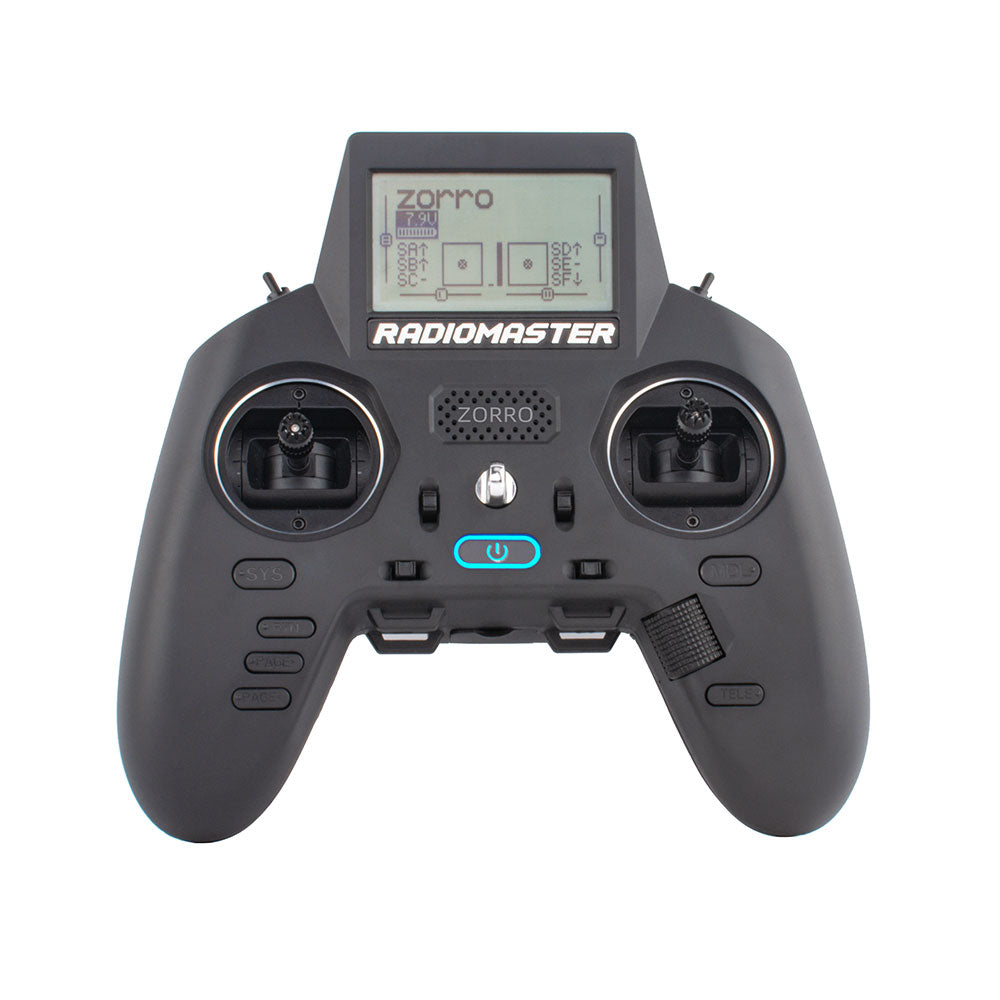

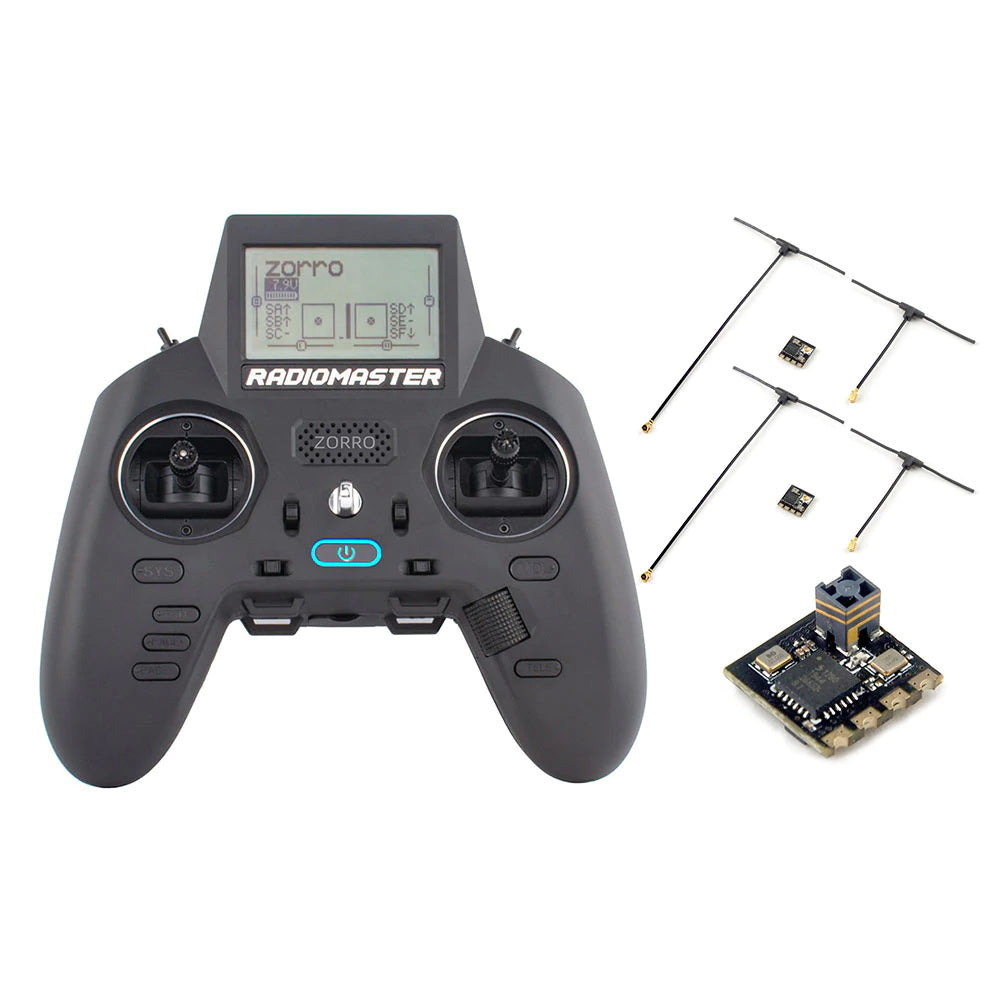

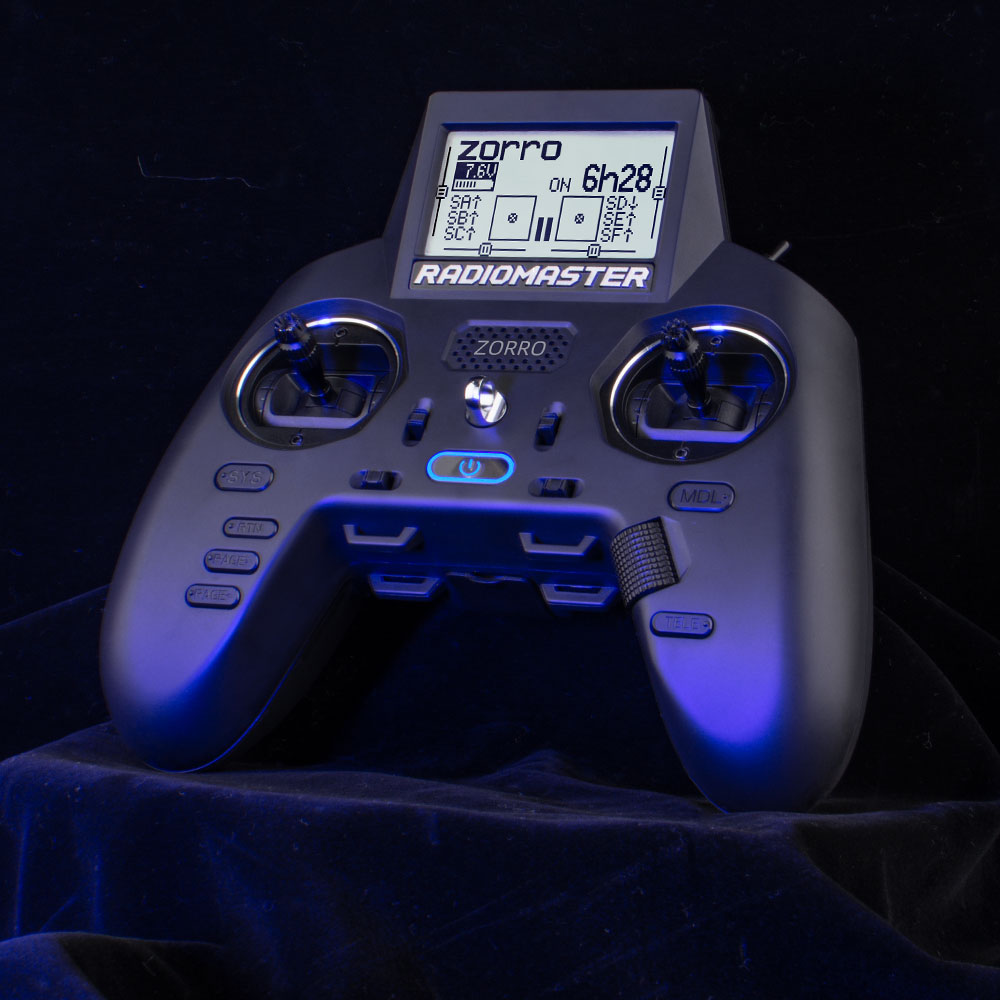

RadioMaster Zorro Transmitter
Physical dimensions:170*159*108mm
Weight:350 grams
Operating frequency:2.400GHz-2.480GHz
Internal RF Options:CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz
Supported protocols :Module dependent
RF power:CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

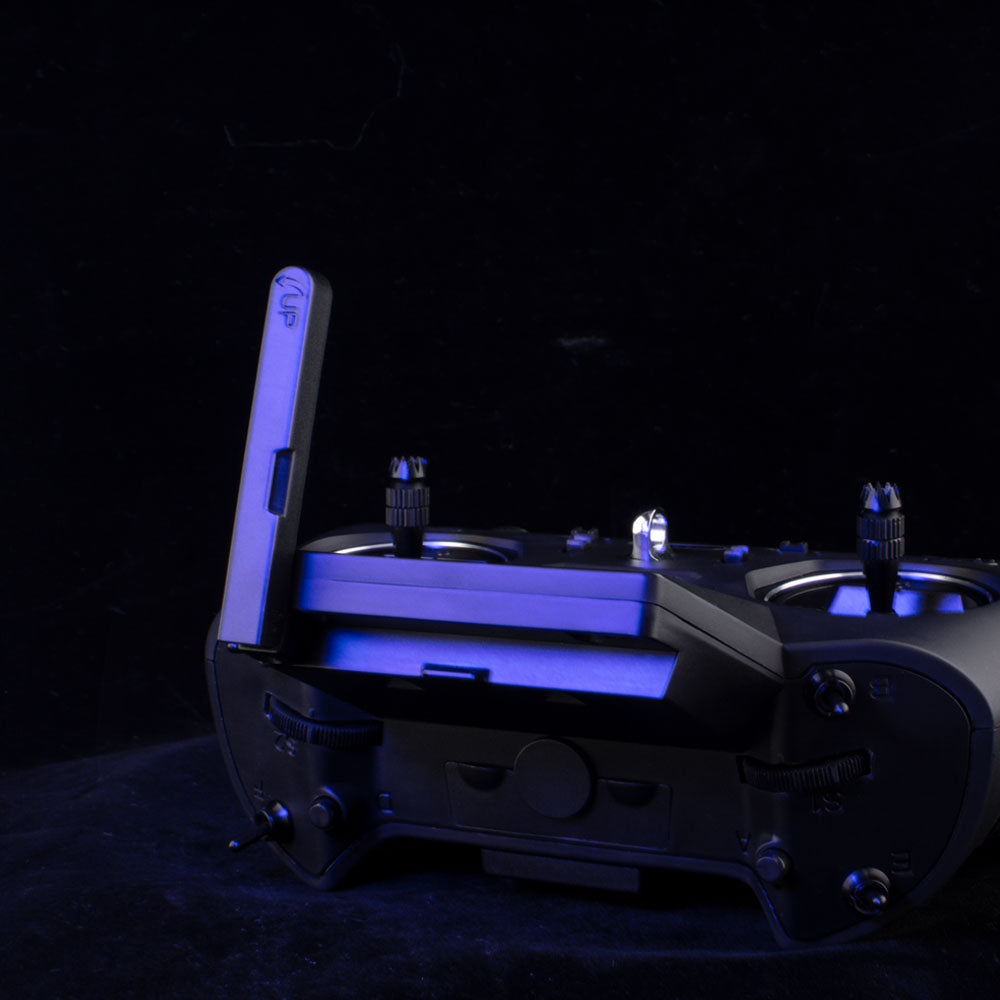

Antenna gain:Folding 2db
Operational current:160mA@8.4V
Operational voltage:6.6-8.4v DC
Control distance:> 2km @ 20dbm
Operating system:OpenTX / EdgeTX Compatible
Control channels:Maximum 16 (Rx dependent)

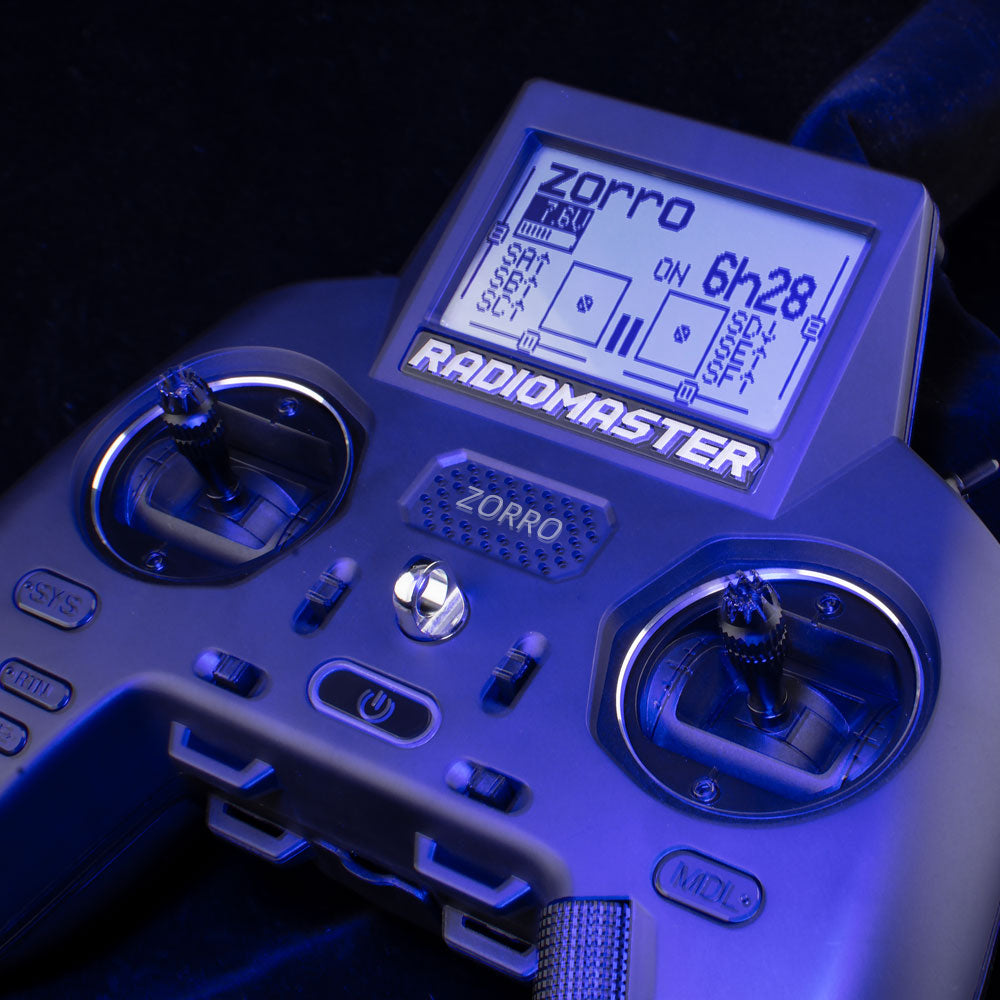

Display :128*64 Monochrome LCD

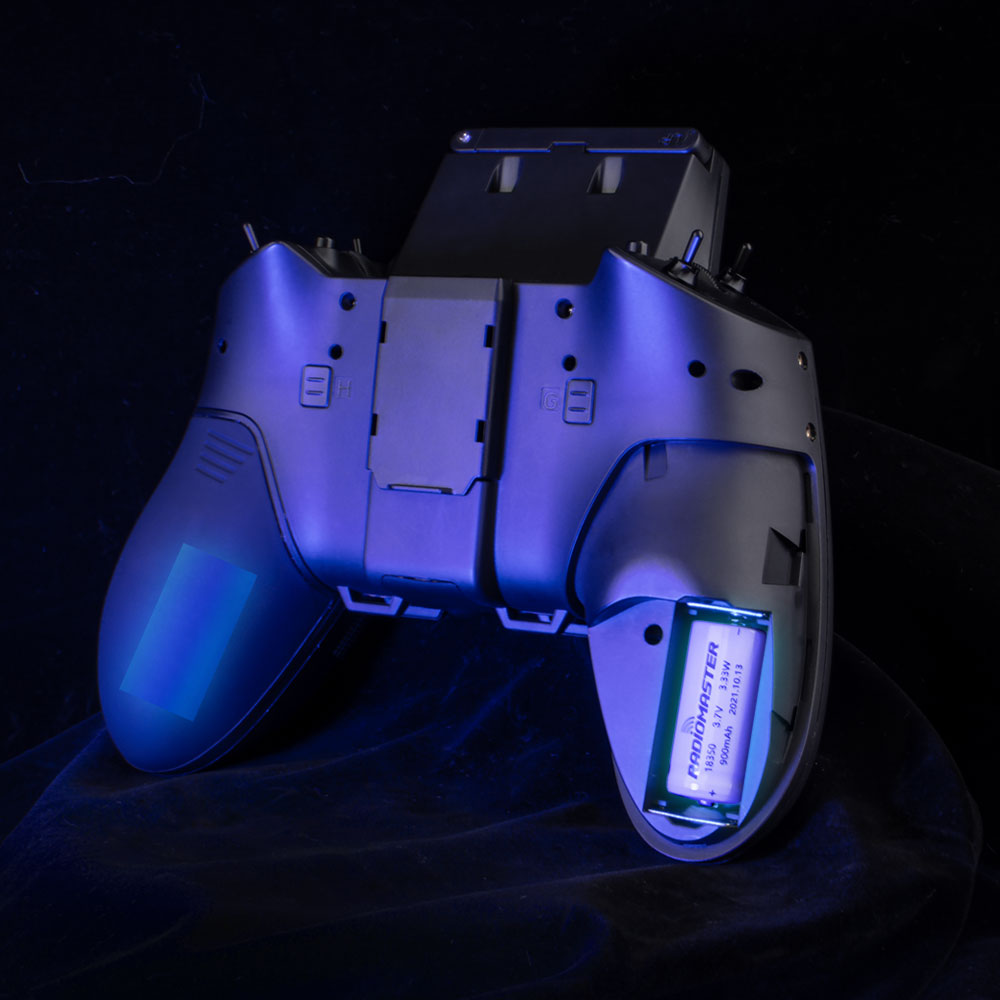

Battery :2 x 18350 (Not included)

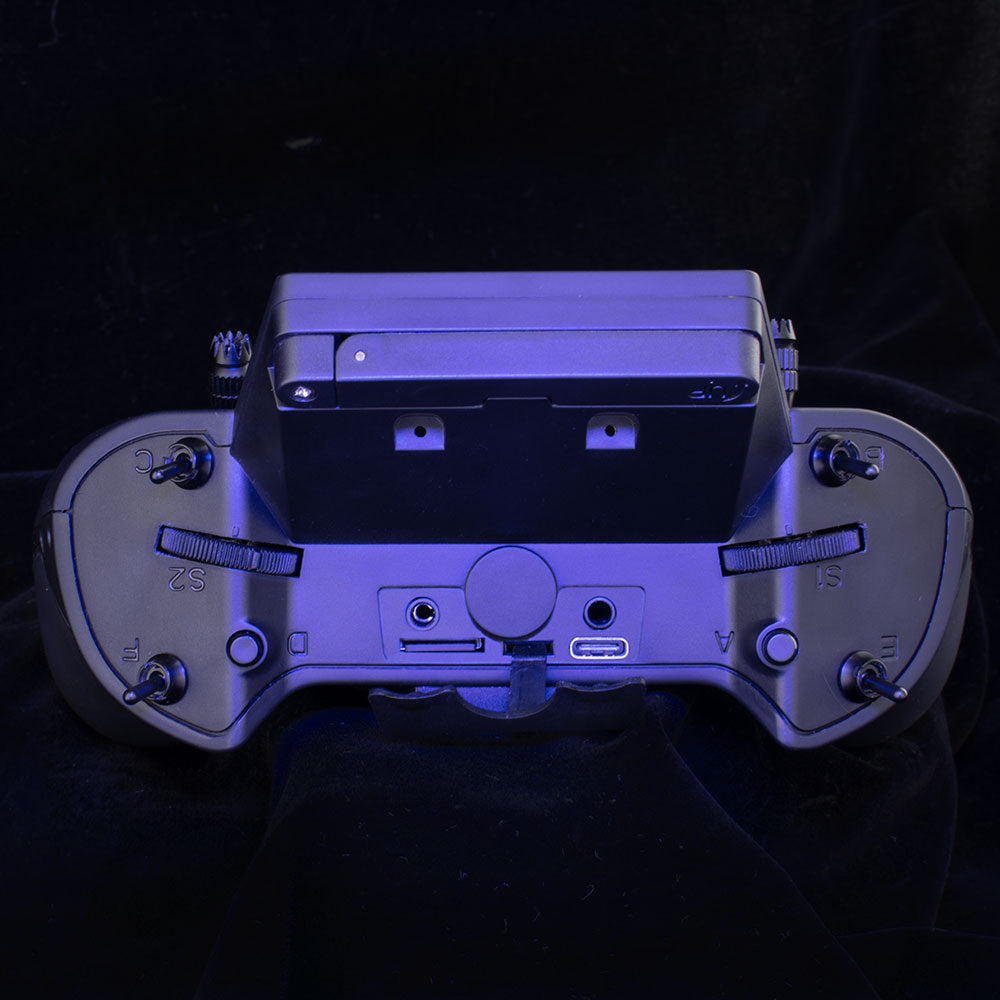

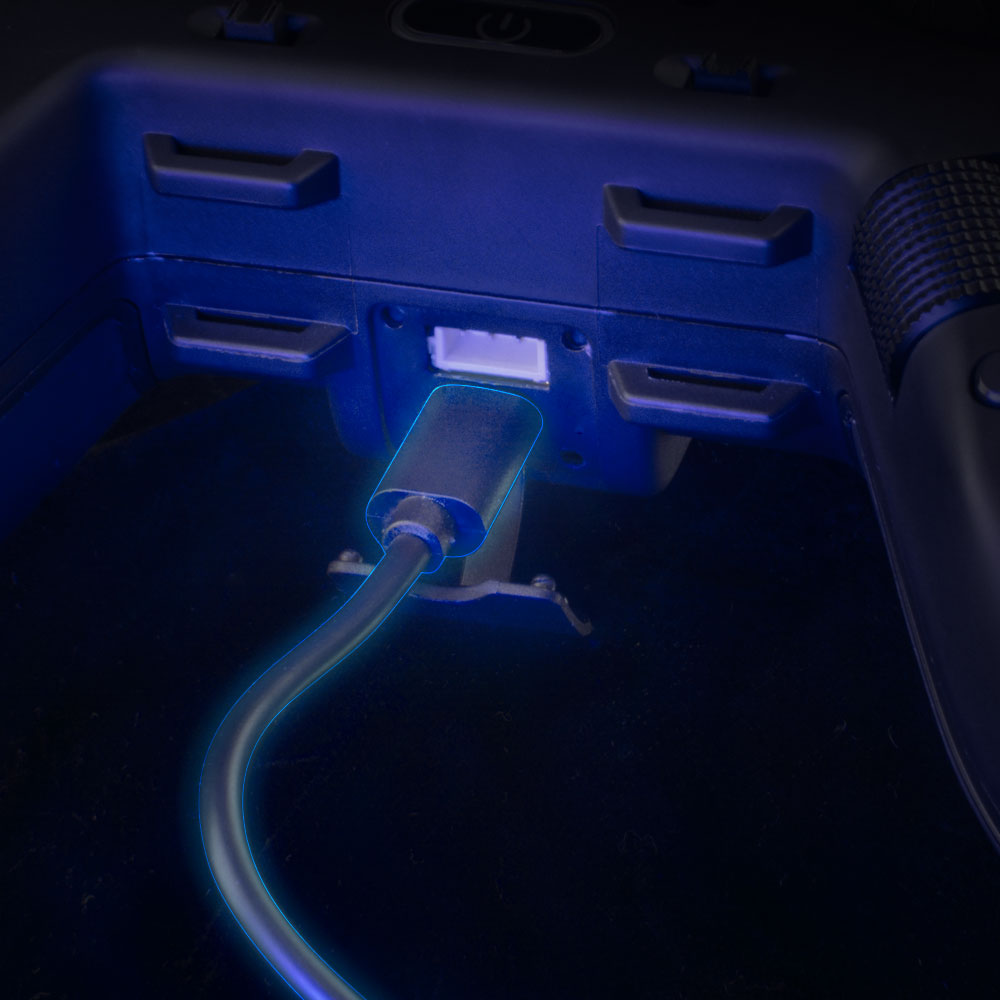

Charging :Built in USB-C Charging

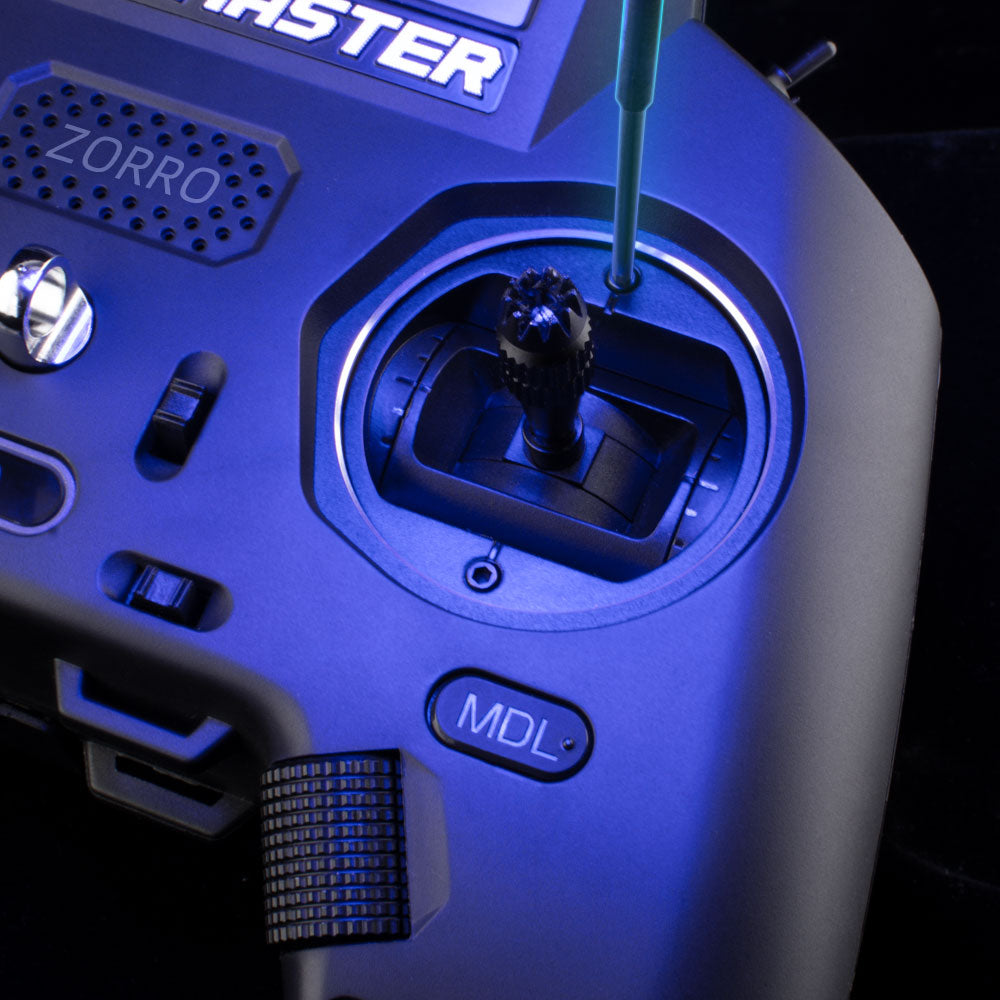

Gimbal:Hall-effect

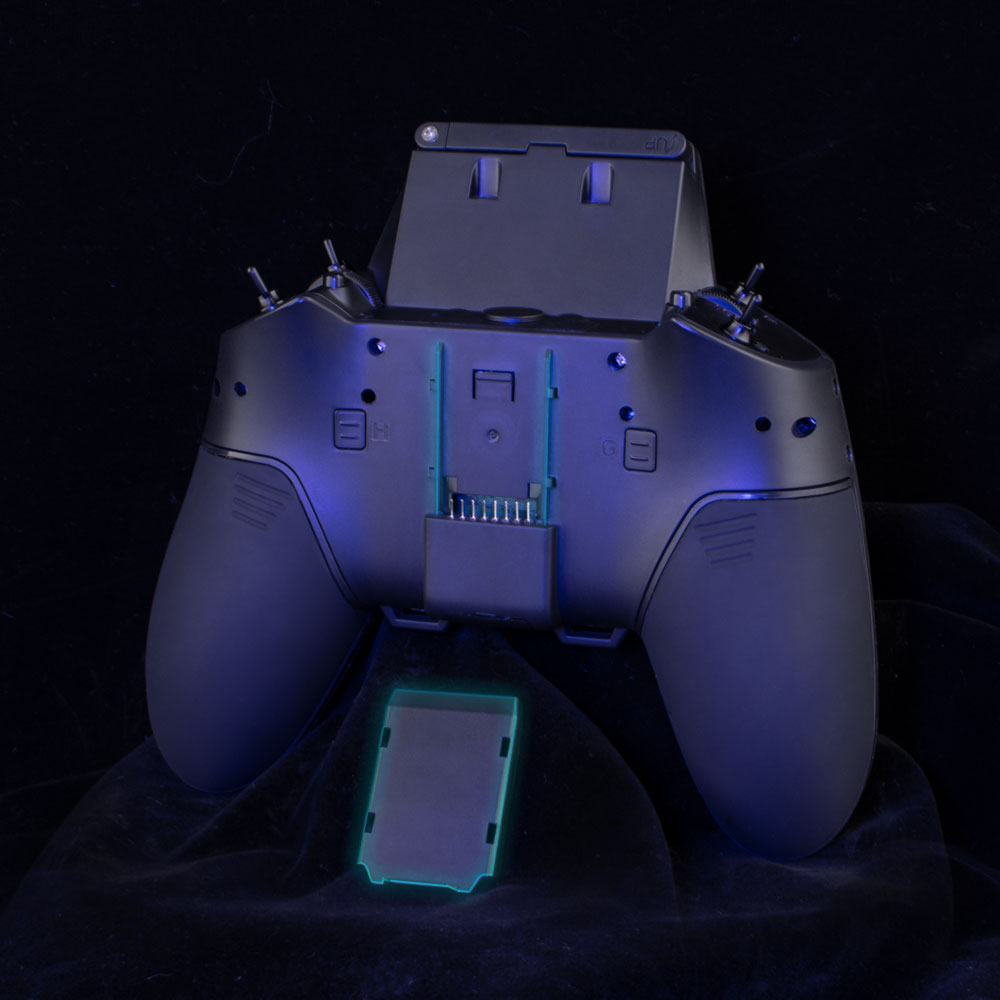

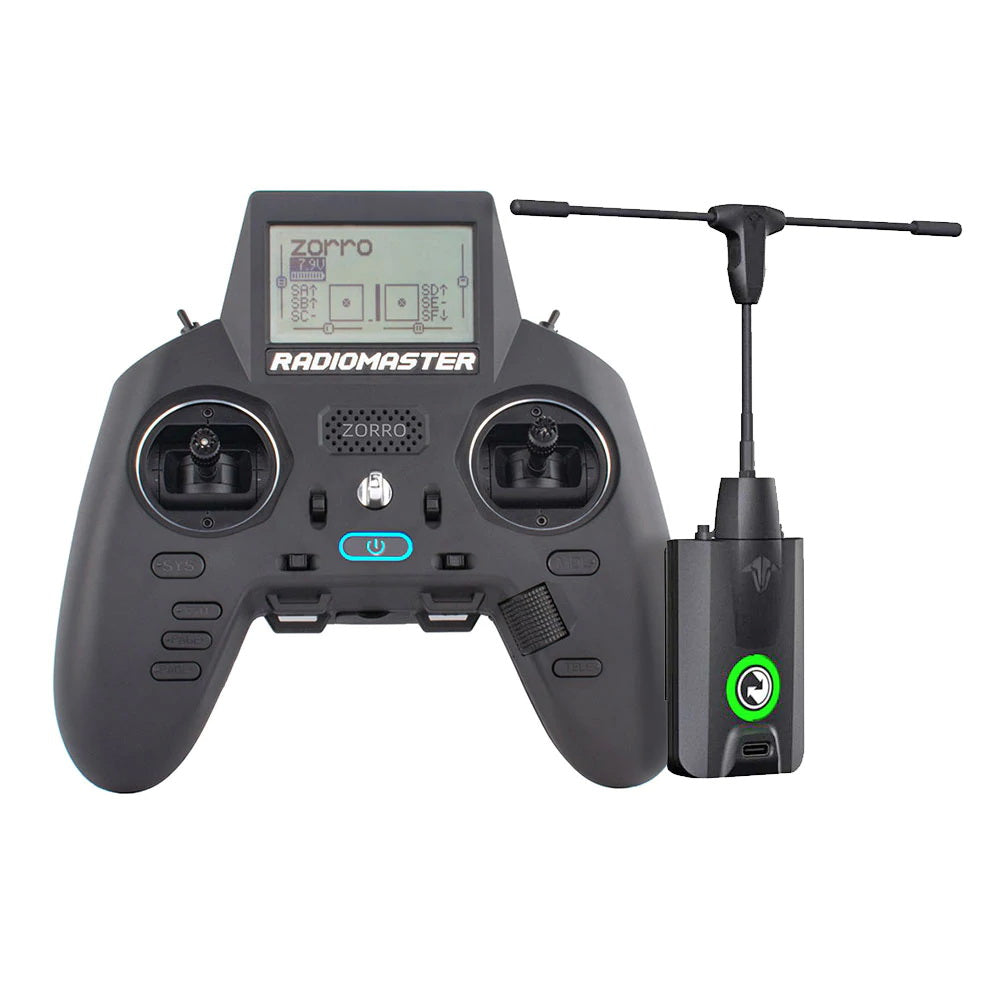

Module bay :Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method:Via USB or SD card (SD Not included)
Radio Firmware:
https://www.open-tx.org/
http://edgetx.org/
RF Firmware
CC2500 & 4-in-1 Multi-module https://www.multi-module.org/basics/supported-protocols
ELRS : –https://github.com/ExpressLRS/ExpressLRS
