Description
Download User XR1 Manual
Features
- Telemetry RF power: 100mW
- ExpressLRS 2.4GHz or Sub-G 900MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver

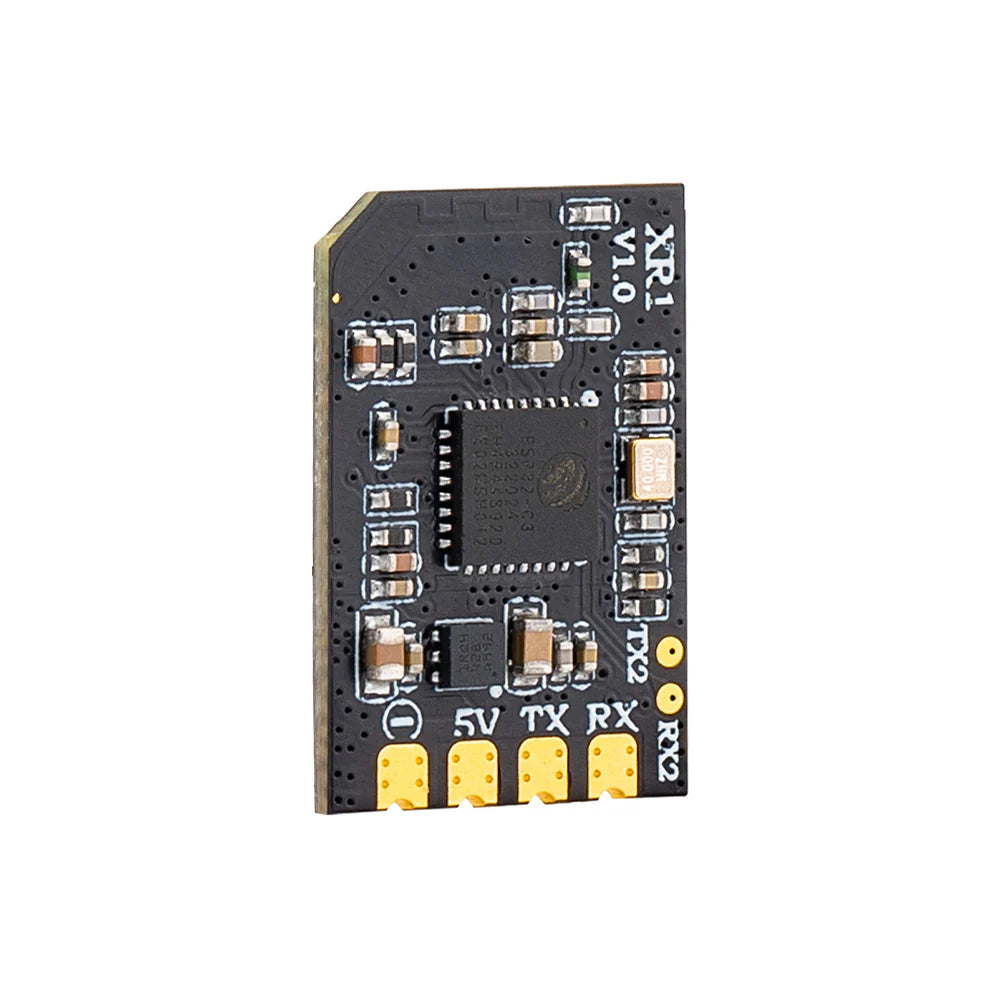

- Secondary UART port
- Castled pads for easy soldering
Specification

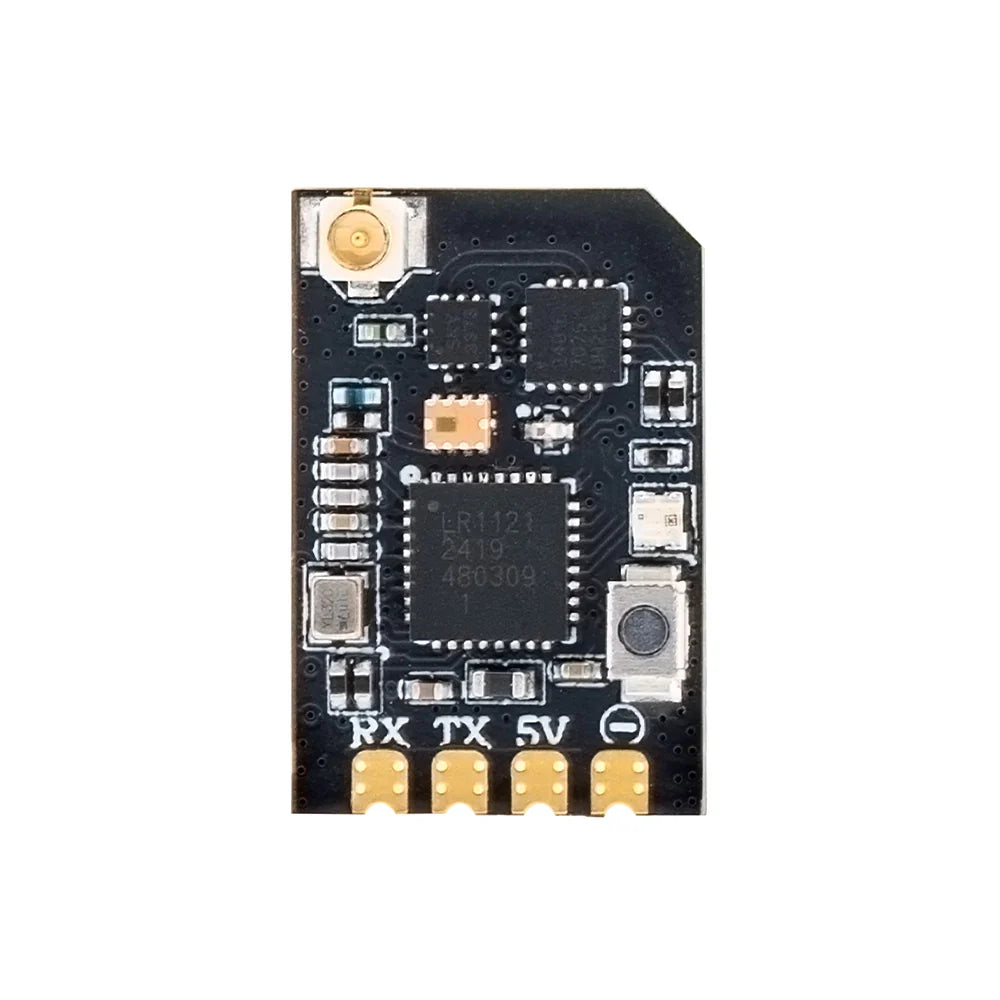

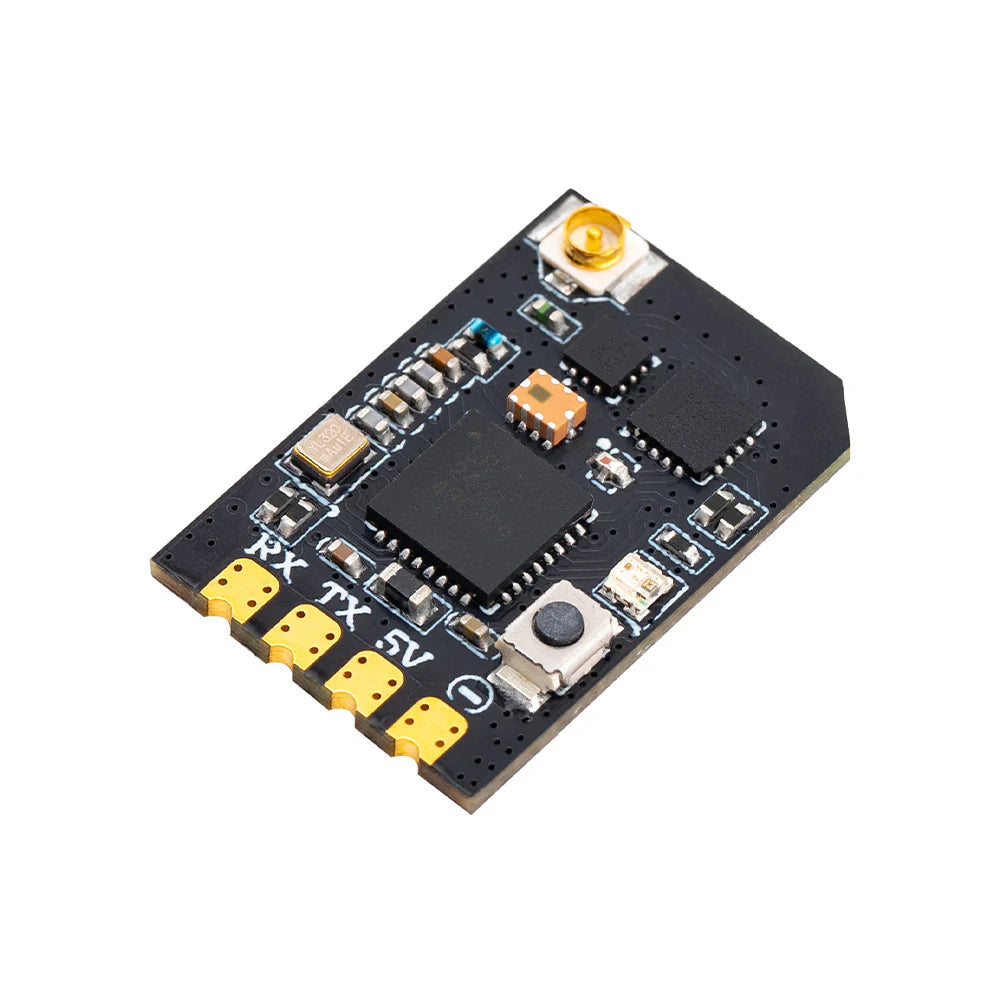

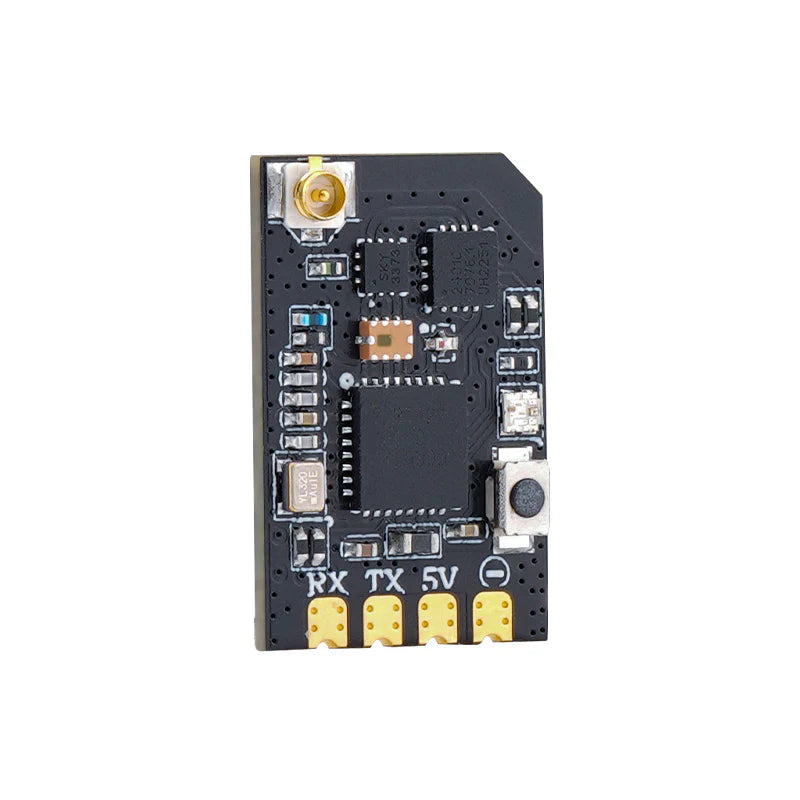

- Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
- Type: ISM2.4 or FCC915
- MCU: ESP32C3
- RF chip: Semtech LR1121
- RF connector: IPEX-1

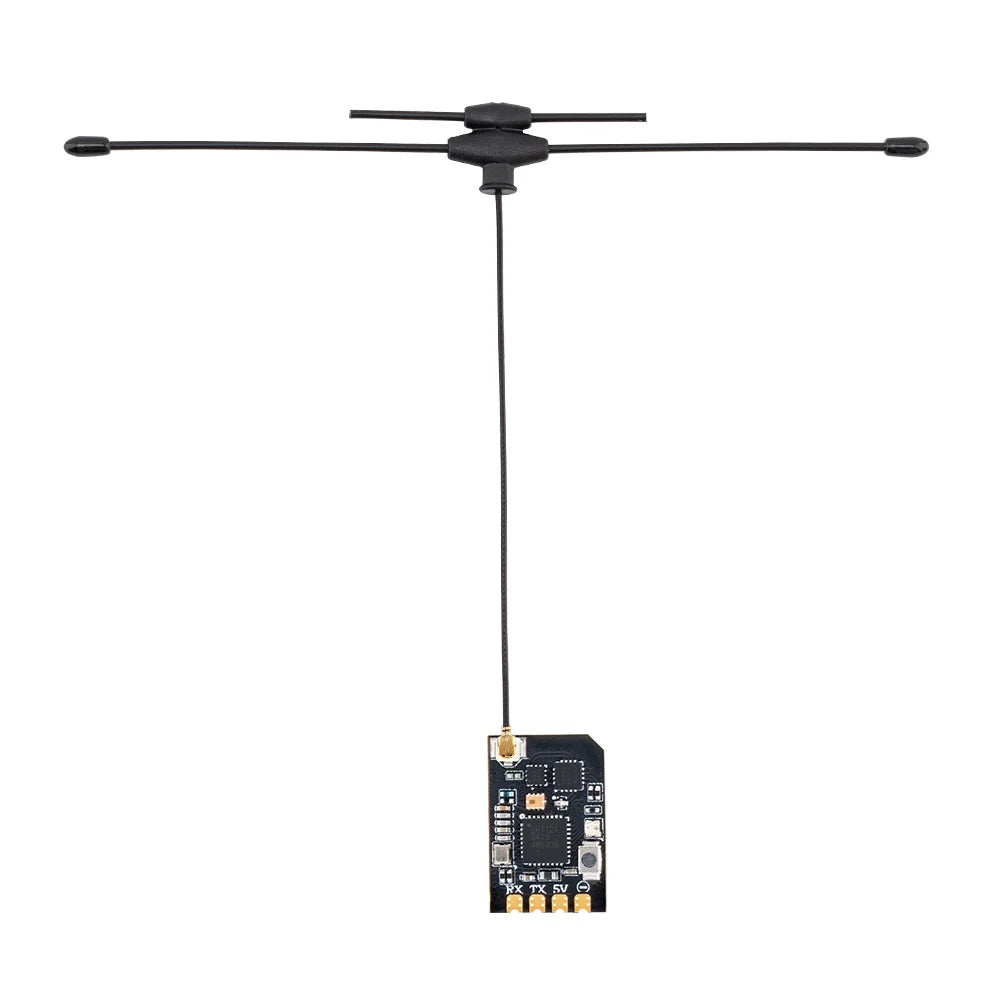

- Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- Frequency Range: 2.4GHz or Sub-G 900MHz
- Telemetry Power: 100mW
- Maximum Packet rate: DK500Hz / K1000Hz
- Minimum Packet refresh rate: 50Hz
- Working voltage: 5V
- Weight: 1.0g (without antenna)
- Dimension: 20mm * 13mm * 3mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR1 2.4/900 RX
- Bus interface 1: CRSF
- Bus interface 2: UART
Package:
- 1 * XR1 Nano Multi-Frequency ExpressLRS Receiver
- 1 * T Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- 1 * CRSF wire
- 3 * Heat-Shrinkable Tube
- 1 * Manual Card
