Description
Features
- Antenna Diversity for improved signal stability and range
- ExpressLRS 2.4GHz or Sub-G 900MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 Transceiver
- Additional UART port
- Secondary port for advanced functionality

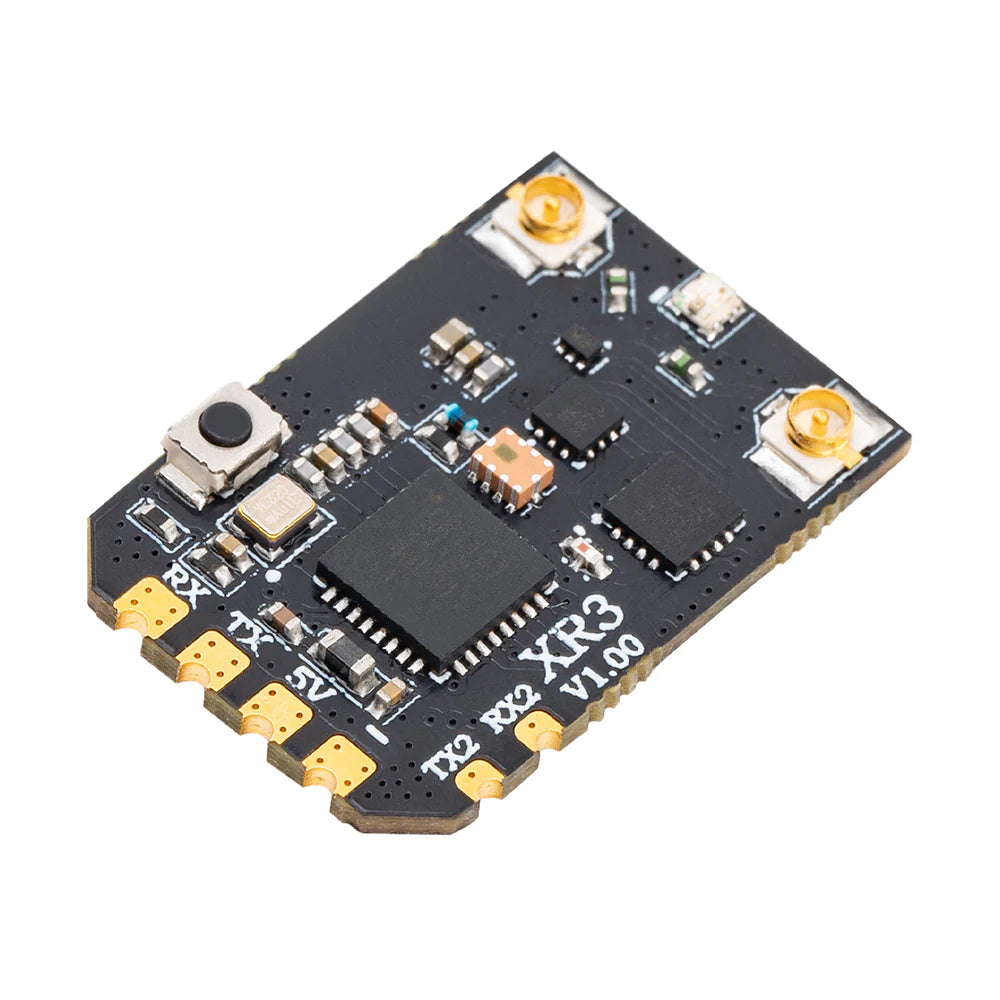

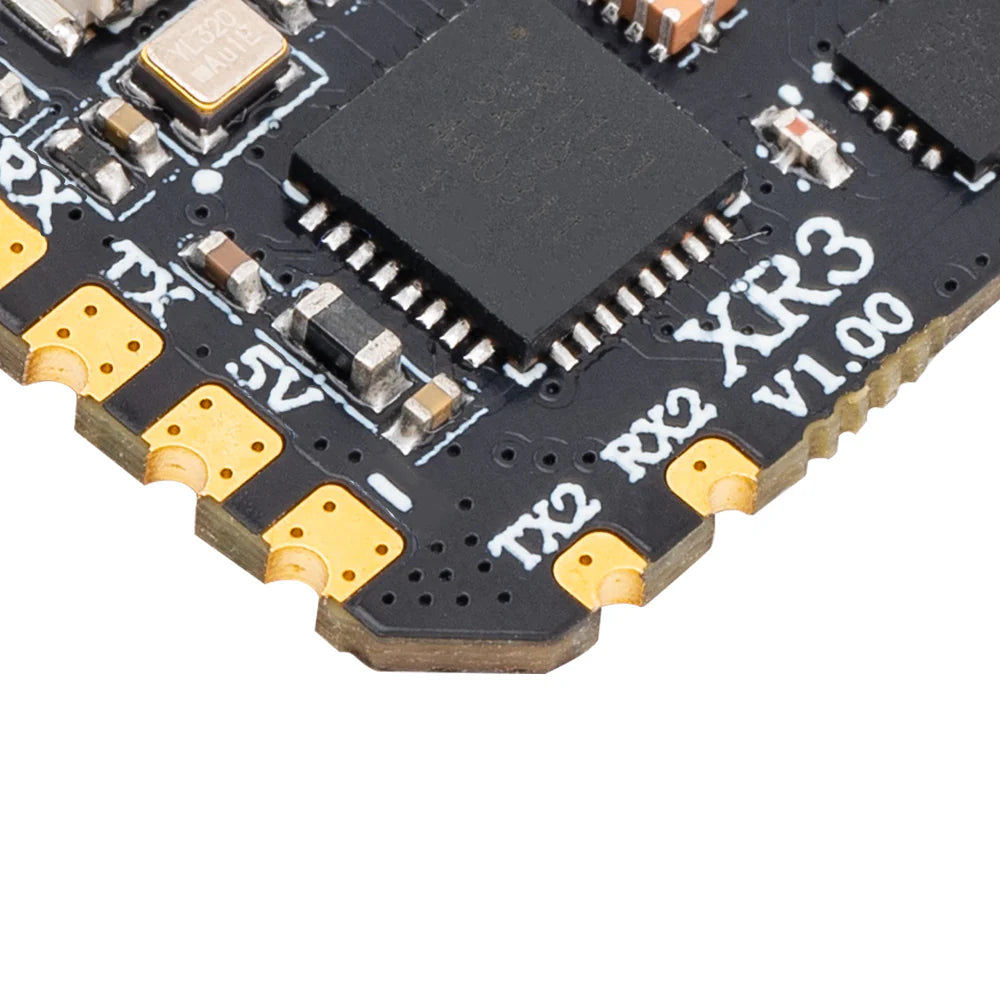

- Castled pads for easy soldering
Specification

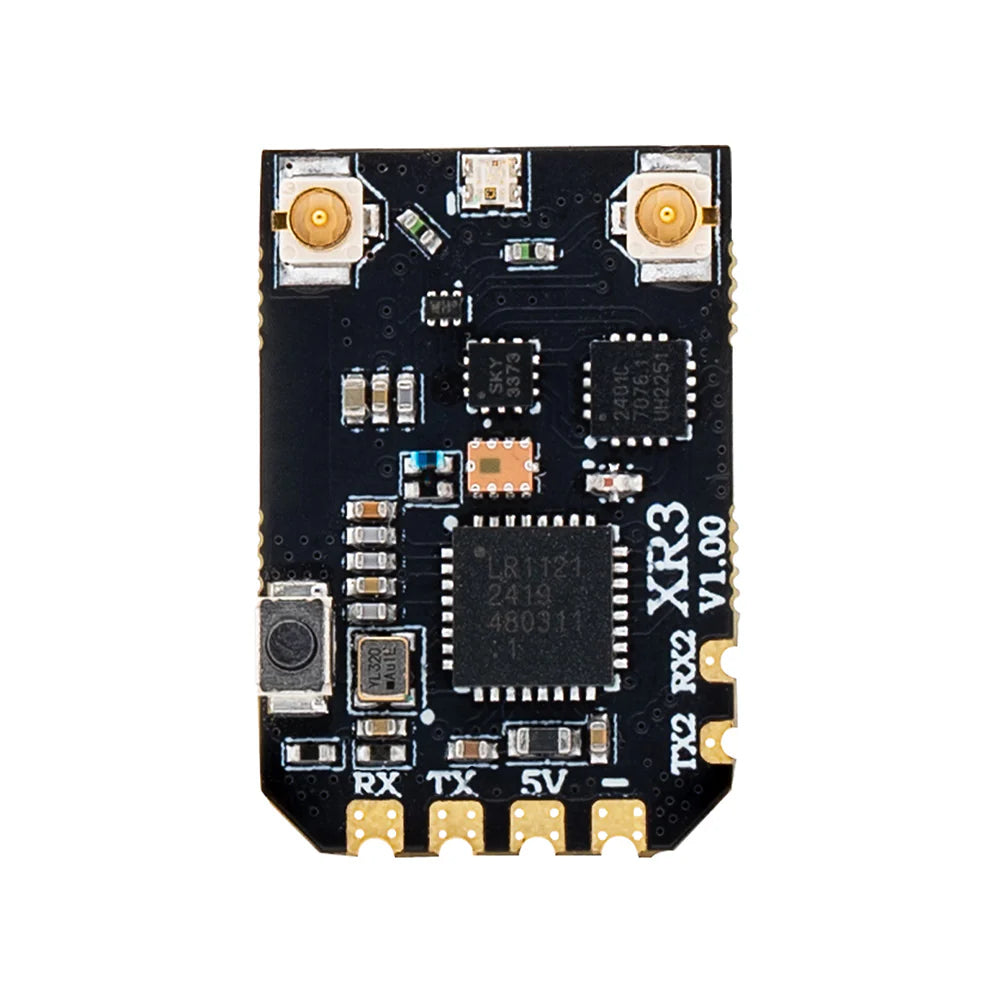

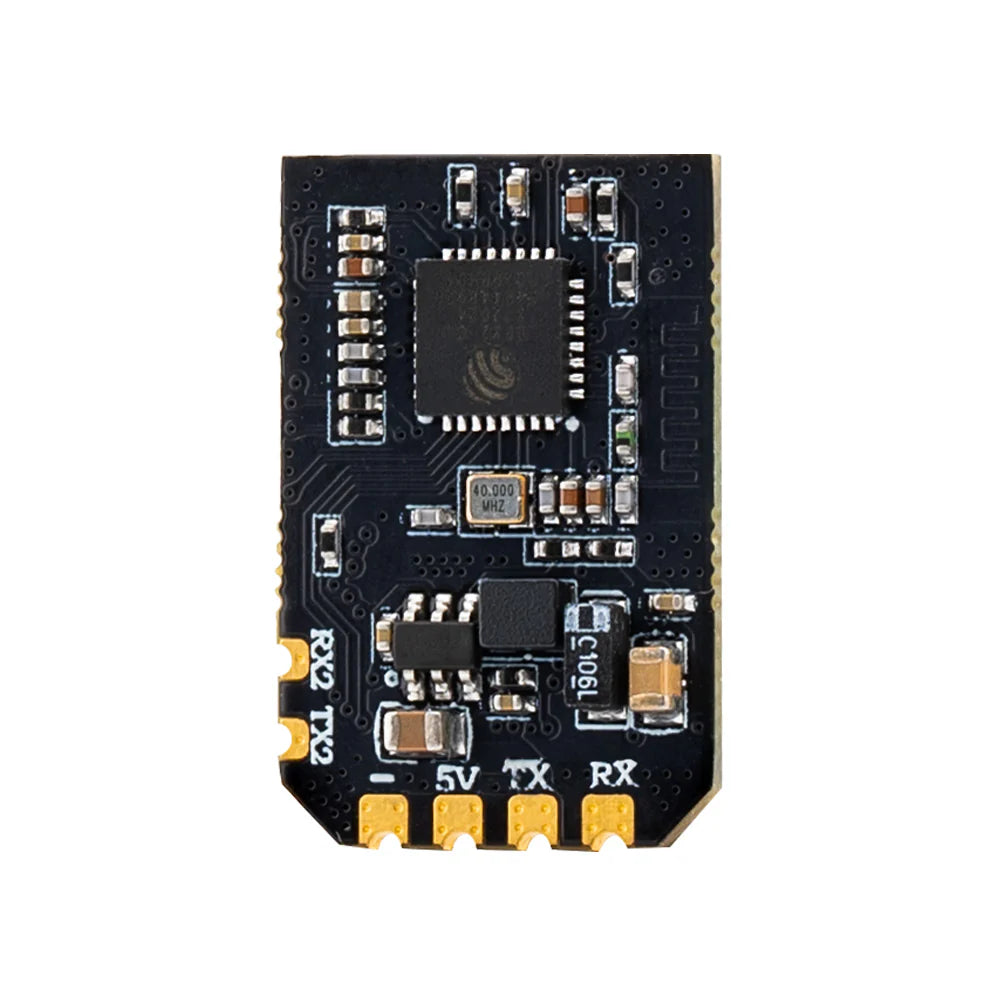

- Item: XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver
- Type: ISM2.4, FCC915
- MCU: ESP32C3
- RF Chip: LR1121
- RF connector: IPEX-1 X 2

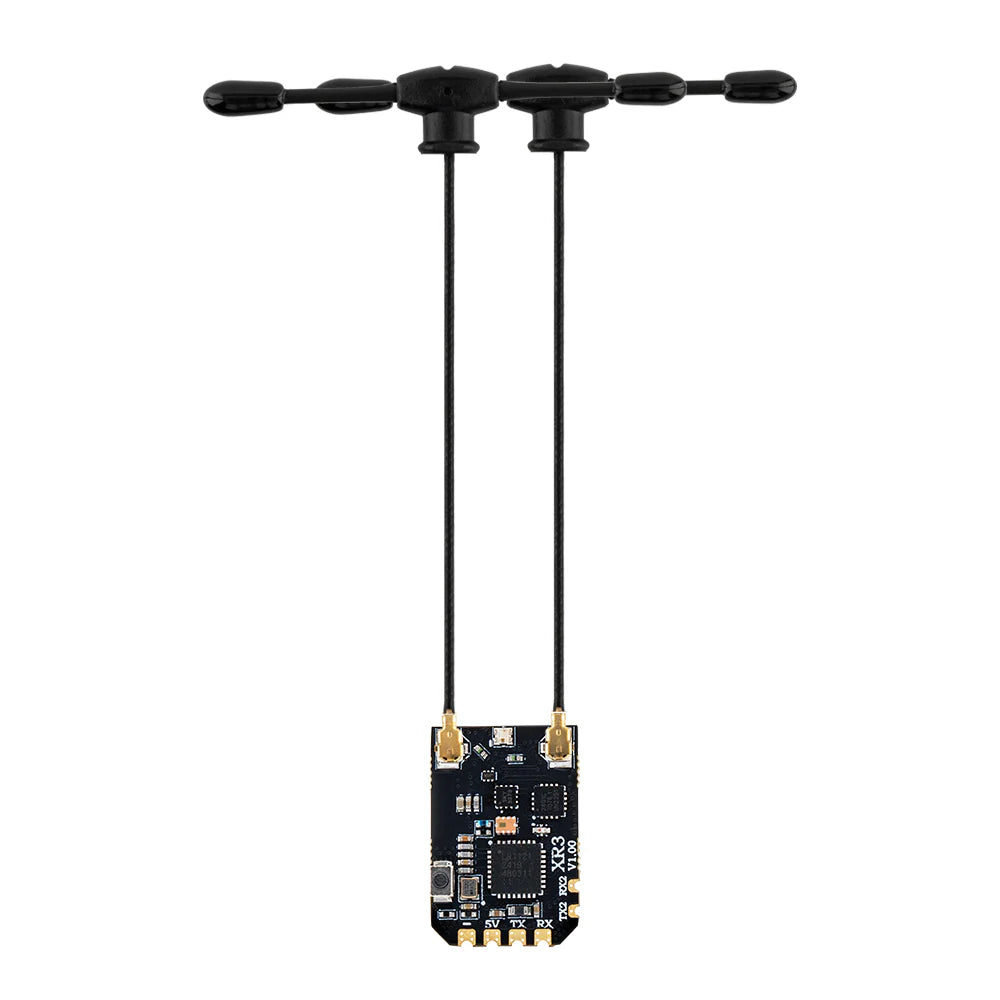

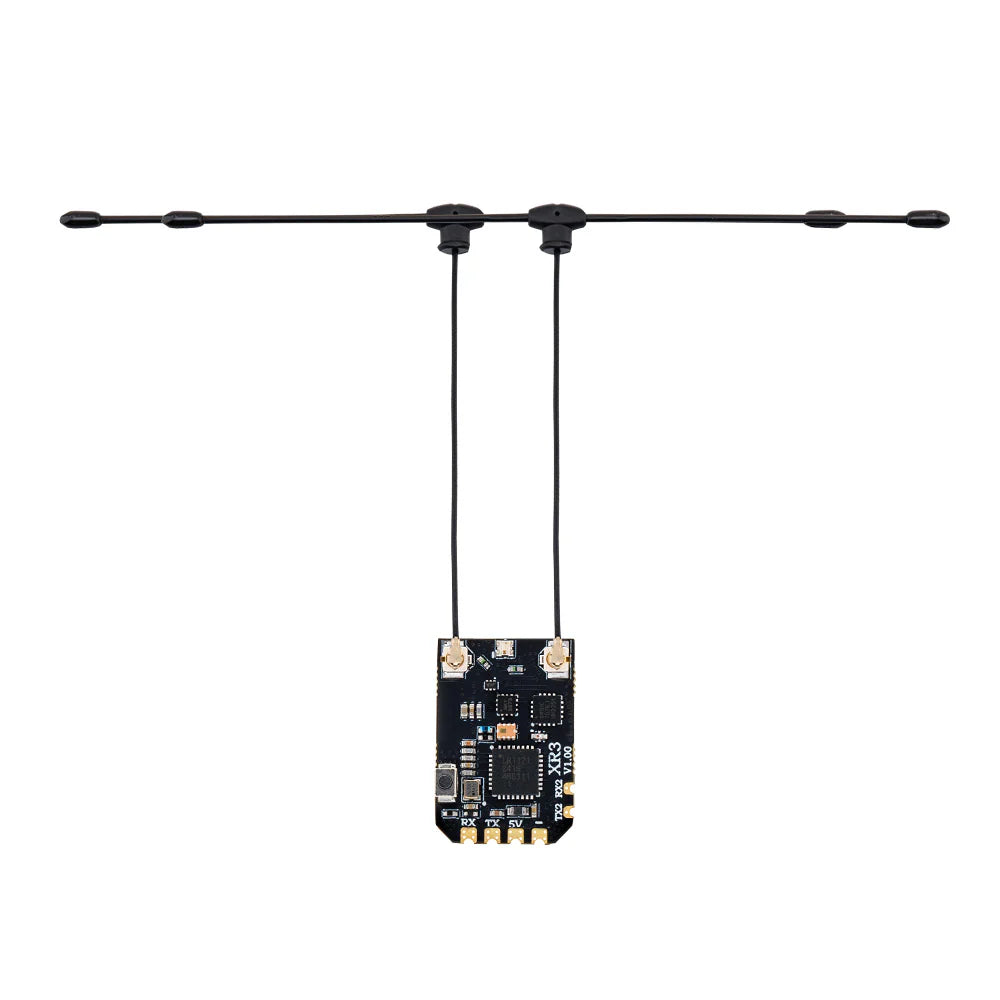

- Antenna: 2x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- Frequency Range: 2.4GHz / Sub-G 900MHz
- Telemetry Power: 100mw
- Maximum receive refresh rate: DK500Hz / K1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: DC 4.5 - 8.4V
- Weight: 1.3g (without antenna)
- Dimension: 22mm * 15mm * 4mm
- Firmware Version: ExpressLRS v3.5.1 pre-installed
- FW Target: RadioMaster XR3 2.4/900 Diversity RX
- Bus interface 1: CRSF
- Bus interface 2: UART
Packages:
- 1 * XR3 Nano Multi-Frequency Antenna Diversity ExpressLRS Receiver
- 2 * T Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
- 1 * CRSF Wire
- 3 * Heat-Shrinkable Tube
- 1 * Manual Card
