Description

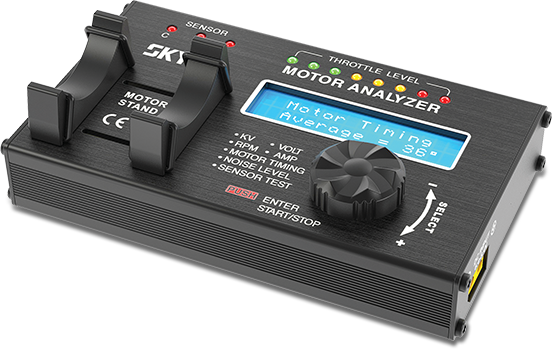

SkyRC Motor Analyzer
SKYRC motor analyzer is a precision electronic device that is Specially designed for measuring the KV value, RPM, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.
What’s in the Box
Blushless Motor Analyzer
3x Motor Cables
Motor Sensor Cable
DC Input Power Cable w/ Banana Connector
DC Input Power Cable w/ Tamiya Connector

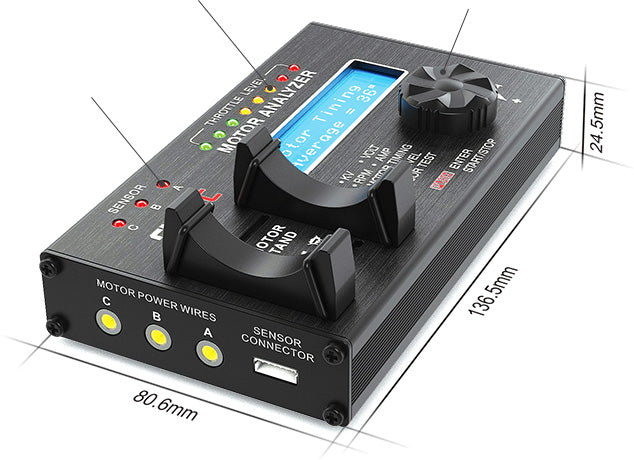

Specifications
Net Weight
282gram (Without Cabel)
Input Voltage
7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
LCD Display Screen
Blue Backlight Background,
White Text, 16 Characters X 2 Lines
White Text, 16 Characters X 2 Lines
KV Value Accuracy
+/- 3%
Motor Timing Accuracy
+/- 4%
Motor Timing Range
0-70°
Noise Level Measurement Range
60dB - 120dB
Supported Motor
