Spedix Round 12A SimonK Program ESC with Green LED

SpedixSKU: SPX-71003

Sale price$13.95
Download Manual

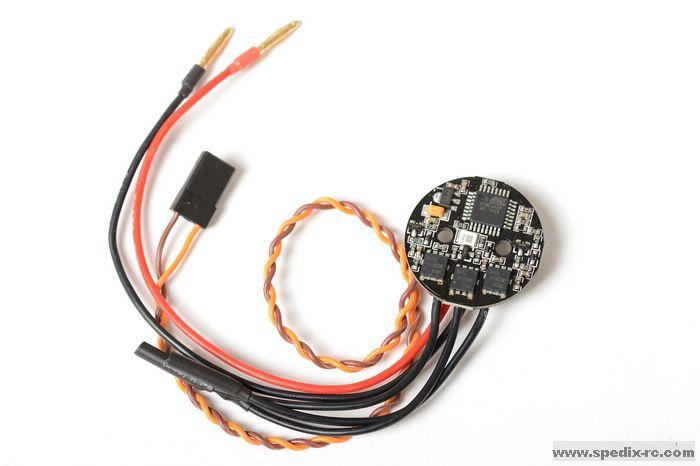

Spedix round 12A ESC flashed with SimonK program for 250-300 size multirotors. It is designed to fit and hide in the arms of Spedix S250 quadcopter and hexacopter.
This ESC has a bright green LED light. It can be used together with Spedix red LED ESC (SKU: SPX-2012) to indicate the orientation of a multirotor.
This product does not come with a BEC unit. We recommend to use the Spedix power distribution board to power up receiver and flight controller. Wires for motor and battery are pre-soldered with 2mm gold plated bullet connectors. The definition of radio signal wires is brown for ground (-), yellow for signal.
This ESC is manufactured by Velotech, and exhibits the same quick response, smooth throttle, low running temperature, and high reliability as Velotech Magic ESCs. Featured with high efficiency, all N-channel MOSFET design, jitter-free hardware PWM input, and the most popular SimonK program, Velotech Magic speed controllers are an ideal choice for multirotors.
Quality electronic parts are used to build Velotech Magic speed controllers, such as genuine Japanese Rubycon capacitor, IOR MOS tubes, heavy duty PCB. These parts cost much more than those cheaper counterparts that are frequently found in low price ESCs.
The manufacturing process was strictly controlled and monitored to ensure all electronic parts are properly soldered.
Every single ESC was examined in the factory with oscilloscope and other equipments, as well as burn-in test. This product is warranted for six month from the date of purchase to be free from manufacturing and component defects. Limited warranty is handled by Buddy RC at Columbus, Ohio.
Continuous Current: 12A Voltage Range: 2-4S LiPo BEC Output: None Refresh Rate: 600Hz Motor Wires: 20 gauge soft silicone wires Battery Wires: 20 gauge soft silicone wires Weight: 16g (approx. including wires) Diameter: 28mm (approx. including capacitor)
