Description
Specifications:
Brand Name: SUNNYSKY
Continuous Current: 80A
Burst Current: 100A (≤10s)
Input Voltage: 2-6S LiPo
BEC Output: 5V/6V/7.4V @5A
Motor Connector: 4.0mm Banana Plug
Battery Connector: XT60
Dimensions: 82×36×18mm (excluding wires)
Weight: 114g
Features:
- Adopt powerful C8051F850 MCU with 8-bit C8051 core. - Elaborate circuit design, super anti-interference. - Start-up mode can be set, fast throttle response and very smooth speed regulation linearity. - Low voltage protection threshold can be set. - A variety of protection functions: start-up protection, temperature protection, throttle signal loss protection, battery low voltage protection, etc.. - Good power-on safety: the motor will not be activated immediately when the power is turned on regardless of the position of the throttle lever of the remote control. - Setting alarm tone to judge the working condition after power on. - Users can set the function according to their own needs. Cyclic menu setting, easy to operate. - 60A, 80A built-in 5V/6V/7.4V, 5A adjustable BEC, you can switch the BEC through the switch according to your needs, the voltage is 6V by default, make sure the BEC voltage is correct before connecting it (40A is 5V by default, the BES voltage is not adjustable).
Note:
* Please ensure all solder joints are insulated with heat shrink where necessary.
* Default 5V BEC voltage. Make sure BEC voltage is correct before connection.
Package Included:

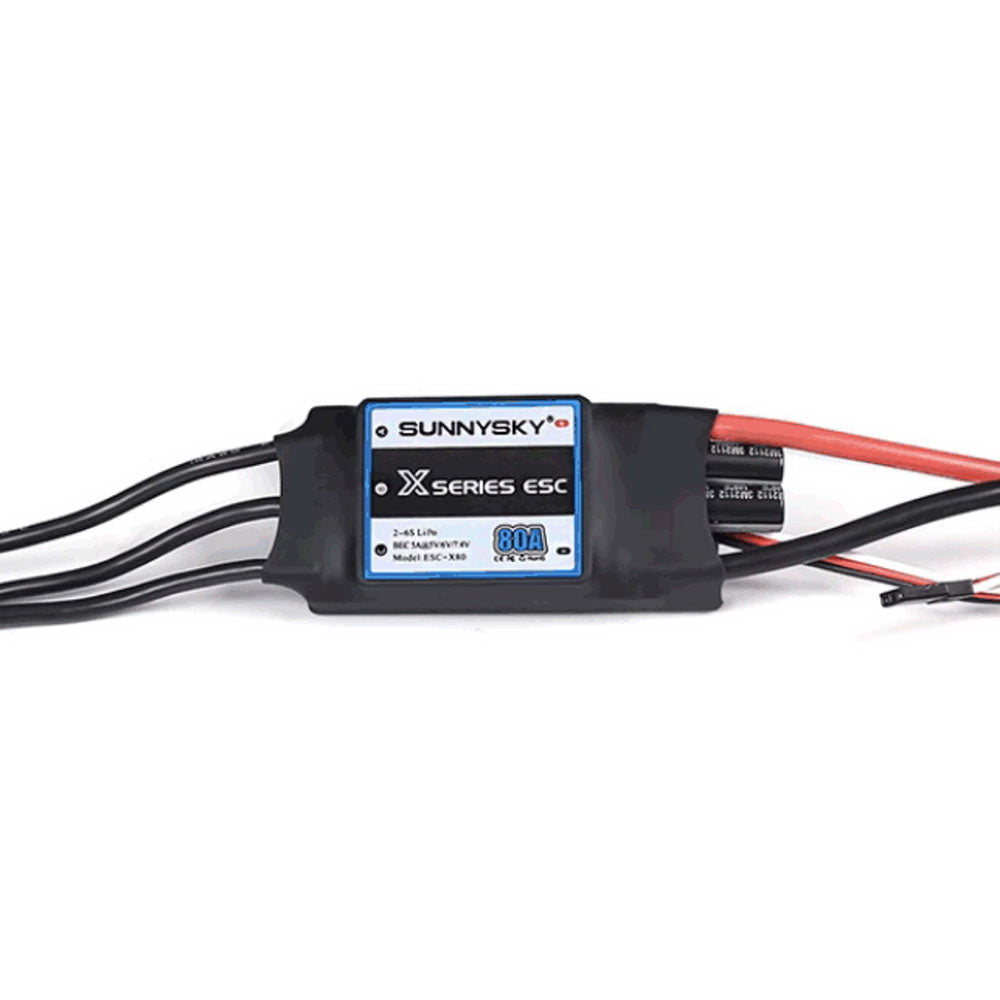

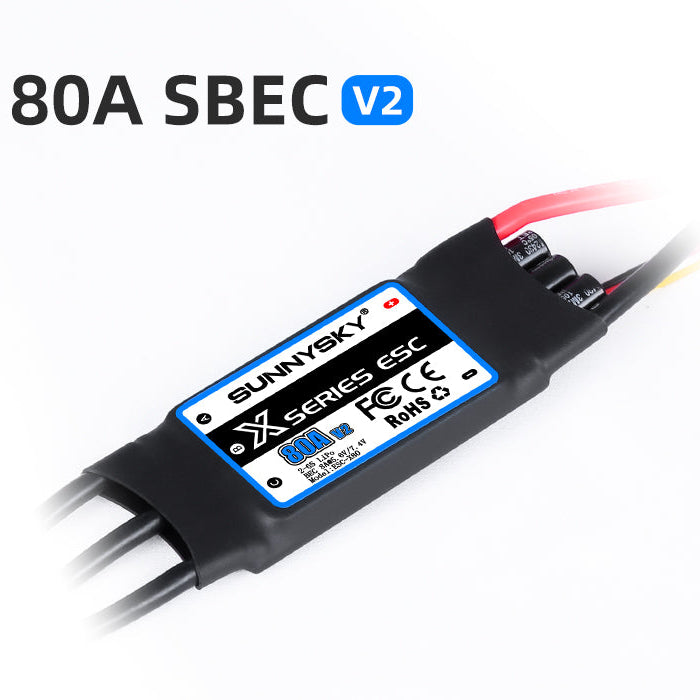

1x SUNNYSKY X Series 80A ESC
1x User Manual
