$12.90
Availability: 18 In Stock
Sku: SS-E-R2205-2300-BU-CCW
[TABS]OVERVIEW

KV2300
Stator Diameter 22mm Rotor Diameter 27.4mm
Stator Thickness 5mm Body Length 18mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 30-45A
Motor Kv 2300 Recommended Prop(inch) GF5040*3/GF5045*3
No-load current 1.2A/10V
Motor Resistance 51.9mΩ
No-load current 40A/10s
Max Continuous Power 705W
Weight

31g



Prop(inch) Voltage(V) Throttle(%) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
GF5040*3 14.8 1.2 100 18 5.63 8589 80℃ 60s
2.8 200 41 4.83 12405
4.8 300 71 4.22 15202
7.1 400 105 3.81 17717
9.7 500 144 3.48 19890
12.5 600 185 3.24 21649
15.4 700 228 3.07 23535
18.7 800 277 2.89 25050
22.5 900 333 2.70 26625
25.9 1002 383 2.61 28106
16.8 1.1 100 18 5.41 8707
2.5 200 42 4.76 12462
4.4 300 74 4.06 15265
6.5 400 109 3.66 17747
8.9 500 150 3.34 19896
11.4 600 192 3.13 21818
14.1 700 237 2.96 23505
16.9 800 284 2.82 24970
20.25 900 340 2.65 26687
23.6 1000 396 2.52 28240
30.8 1265 517 2.44 30813
GF5045*3 14.8 1.1 100 16 6.14 7741 89℃ HOT
2.7 200 40 5.01 10765
4.7 300 70 4.31 13151
7.1 400 105 3.81 15017
9.8 500 145 3.45 16793
12.8 600 189 3.17 18497
16.1 700 238 2.94 19974
19.5 800 289 2.77 21400
23.4 900 346 2.60 22734
28 1000 414 2.41 23901
33.5 1145 496 2.31 25404
16.8 1 100 17 5.95 7806
2.4 200 40 4.96 10704
4.3 300 72 4.15 13167
6.4 400 108 3.72 16818
8.8 500 148 3.38 16802
11.6 600 195 3.08 18492
14.7 700 247 2.83 1998
17.7 800 297 2.69 21395
21.1 900 354 2.54 22610
24.7 1000 415 2.41 23914
33.4 1200 561 2.14 26222
39.6 1386 665 2.08 27943



[/TABS]

Orders are shipped from Columbus, the capital city of Ohio, USA.

An order placed before 2:00pm Eastern Standard Time will be shipped the same working day.

We ship on Monday-Friday by US postal service (USPS) and UPS, and Saturday morning by USPS if a local post office is open. Any order placed on Saturday morning may or may not be shipped the same day. Orders placed on Sunday and US holidays will be shipped the next working day.

Domestic:

Retail orders above $80 may be eligible for free shipping, including contiguous United States, Alaska, Guam, Hawaii, Puerto Rico, and APO addresses. We will use either USPS or UPS that most packages can be delivered in 3-5 working days, but not guaranteed. However, for packages contain large and heavy items, such as power supply, we may use parcel post service or UPS Surepost that may take up to 7 working days to be delivered.

USPS First Class Mail and Priority Mail, Express Mail, and UPS services can be used for domestic addresses. Tracking number and delivery confirmation will be provided to the customer when they are available. If you have not received a tracking information E-mail, please log into your account and click the "view order" link, then click "Track your order" link to find out the tracking number and ship method.

USPS Priority Mail is typically delivered in 3 working days. But very occasionally a priority mail package may be delayed for several days in the mailing system. If delivery time is extremely critical to your order, we would recommend Priority Mail Express or other couriers.

Domestic First Class Mail is only 1-2 days slower than Priority Mail in delivery. We suggest domestic customers choose First Class Mail for an order under 15 oz to save shipping cost.

Real shipping cost is calculated according to package weight and distance, and can be found in the checkout page after delivery address is specified in the fields.

Any order of $200 and above requires addressee's signature confirmation upon receipt of the package. Please contact us in advance or leave a comment in the message box if you want to waive signature confirmation.

We always check the legality of potential fraudulent orders. This procedure may lead to 1-2 working days delay in shipping in some rare cases.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

International:

DHL, DHL Express, US Postal Service (USPS) First Class Mail, Priority Mail, and Express Mail (EMS), and UPS services can be selected for international addresses. Shipping cost is calculated according to package weight and distance, and can be found in the check out process. A package usually takes around 7-10 days to be delivered, or occasionally up to 45 days depending on the processing speed in your country, especially in some countries such as Brazil and Russia.

USPS First Class Mail is a budget shipping method. As soon as a First Class Mail package left USPS Chicago hub there will be no tracking information available. If you need detailed tracking information and timely delivery please do not use this shipping method.

Presently we cannot ship lithium batteries internationally by US Post Service or any other air shipping method. Please select UPS Ground if your order contains LiPo or LiFe battery.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

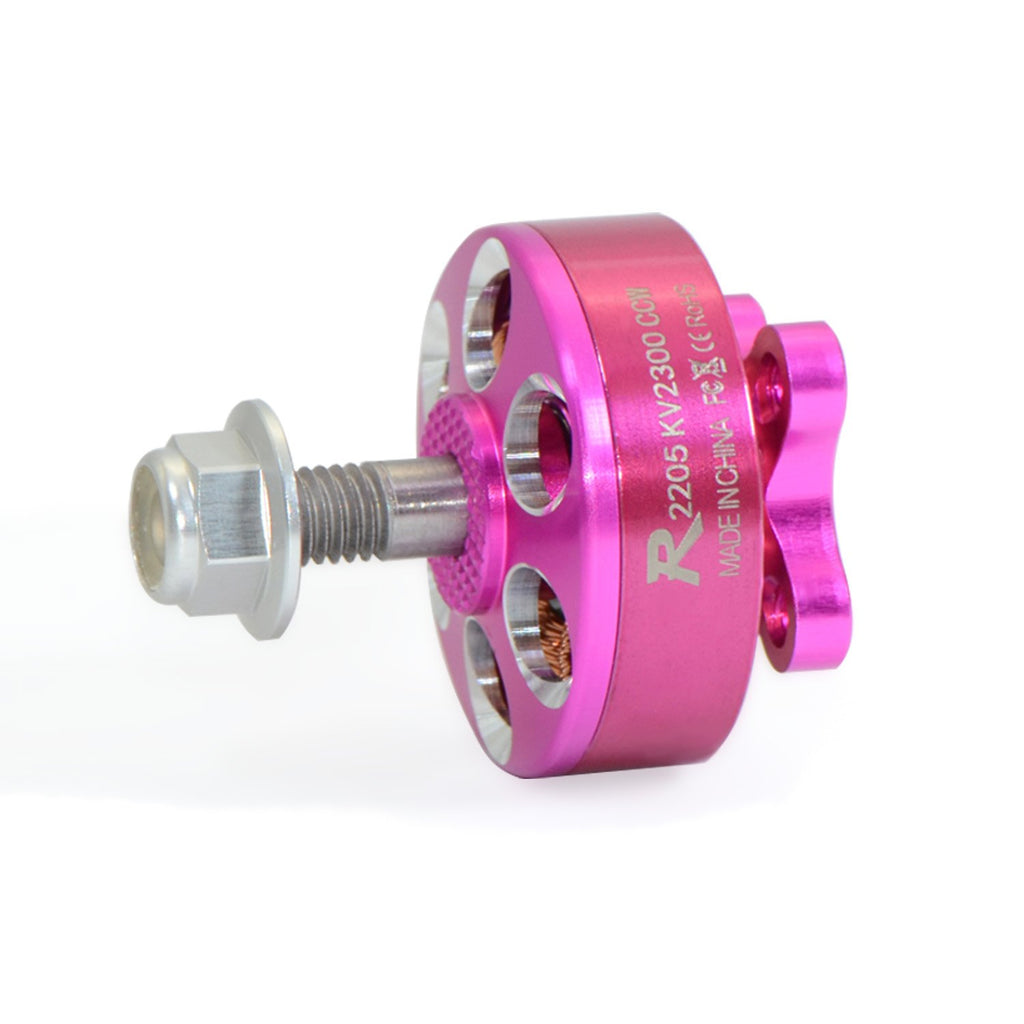

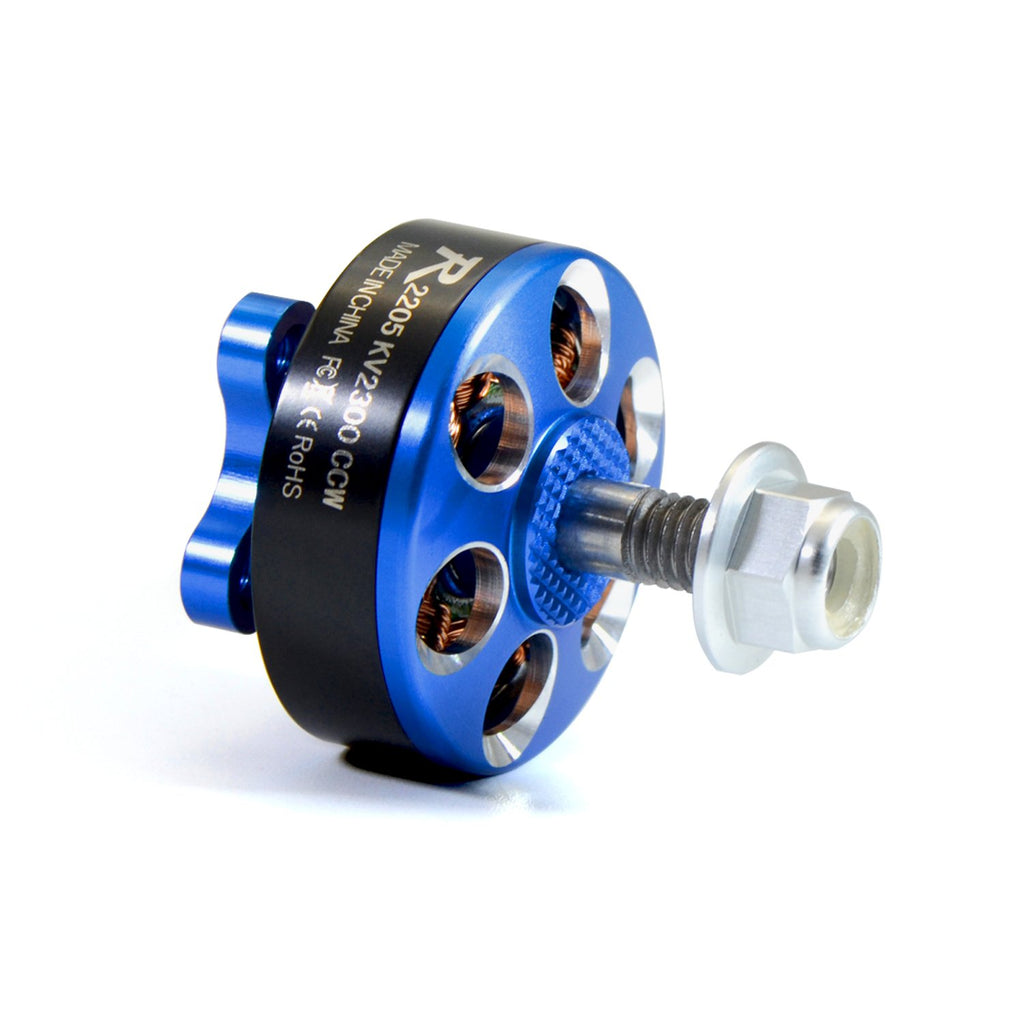

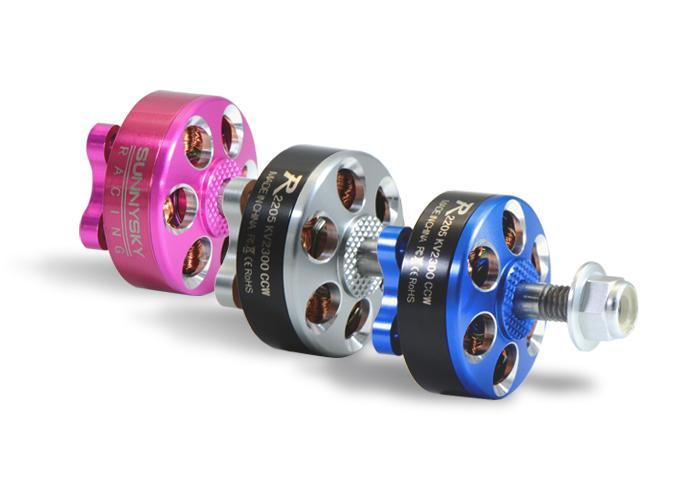

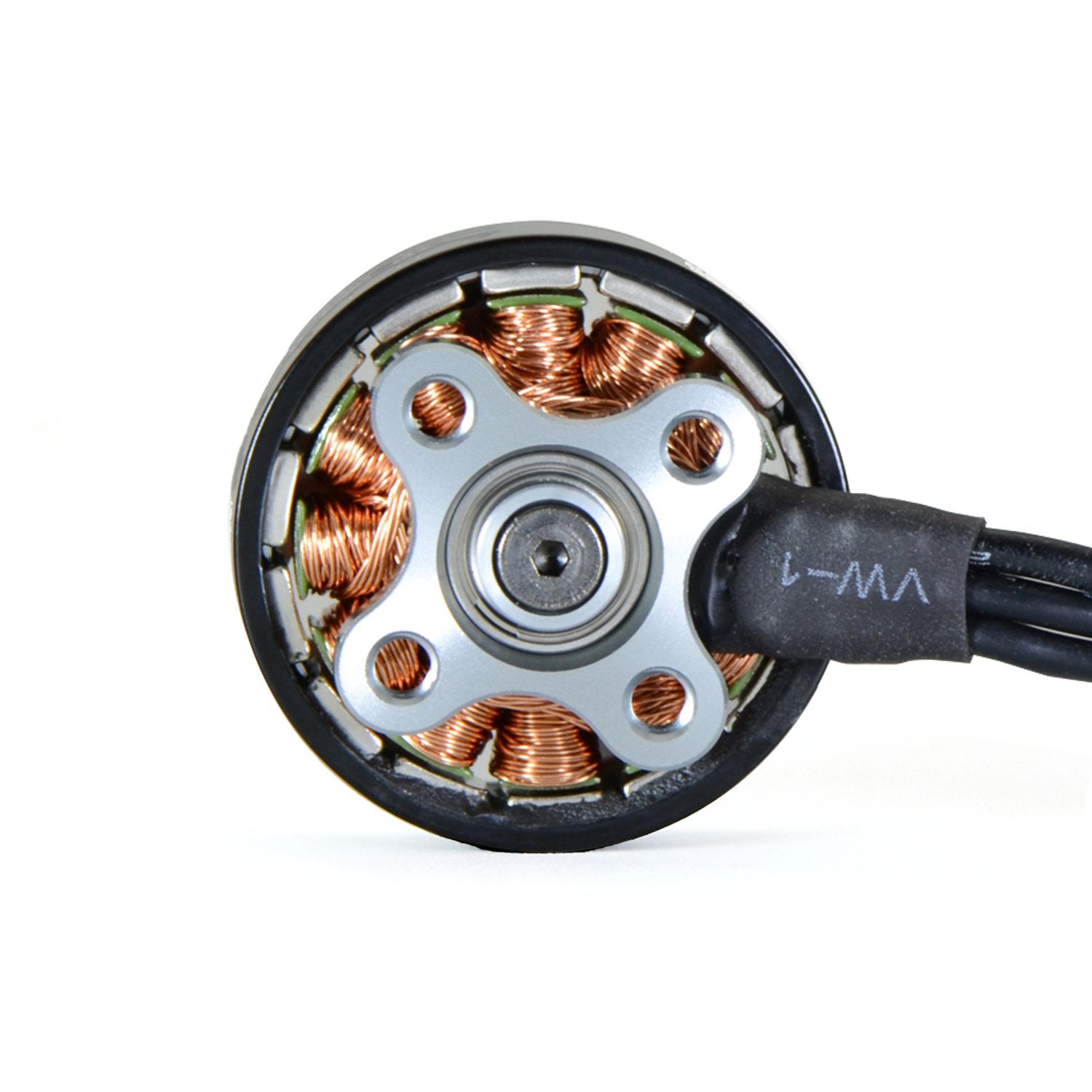

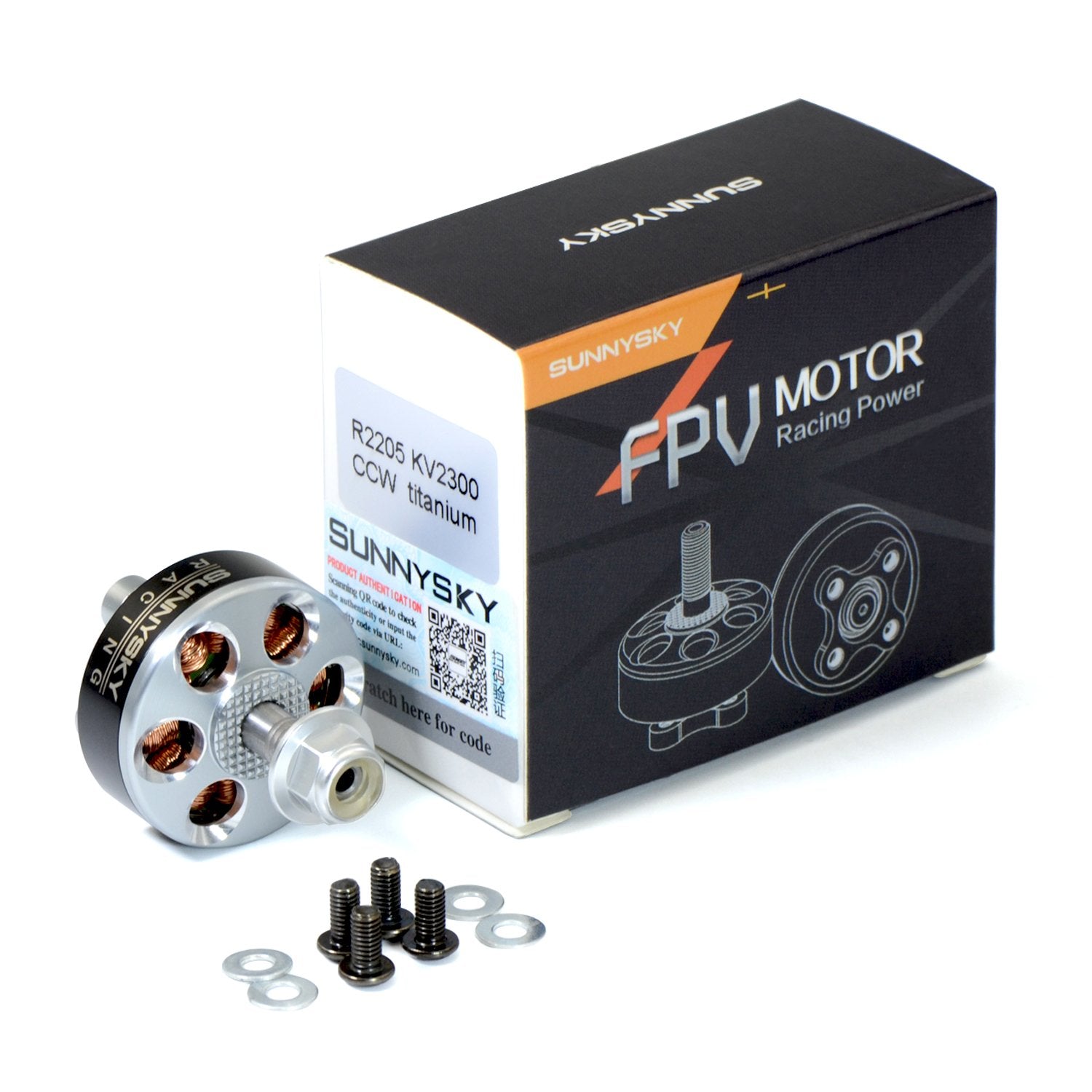

SunnySky R2205 FPV Brushless Motors
