$17.99
Availability: Out Of Stock
Sku: SS-ESC-X18A

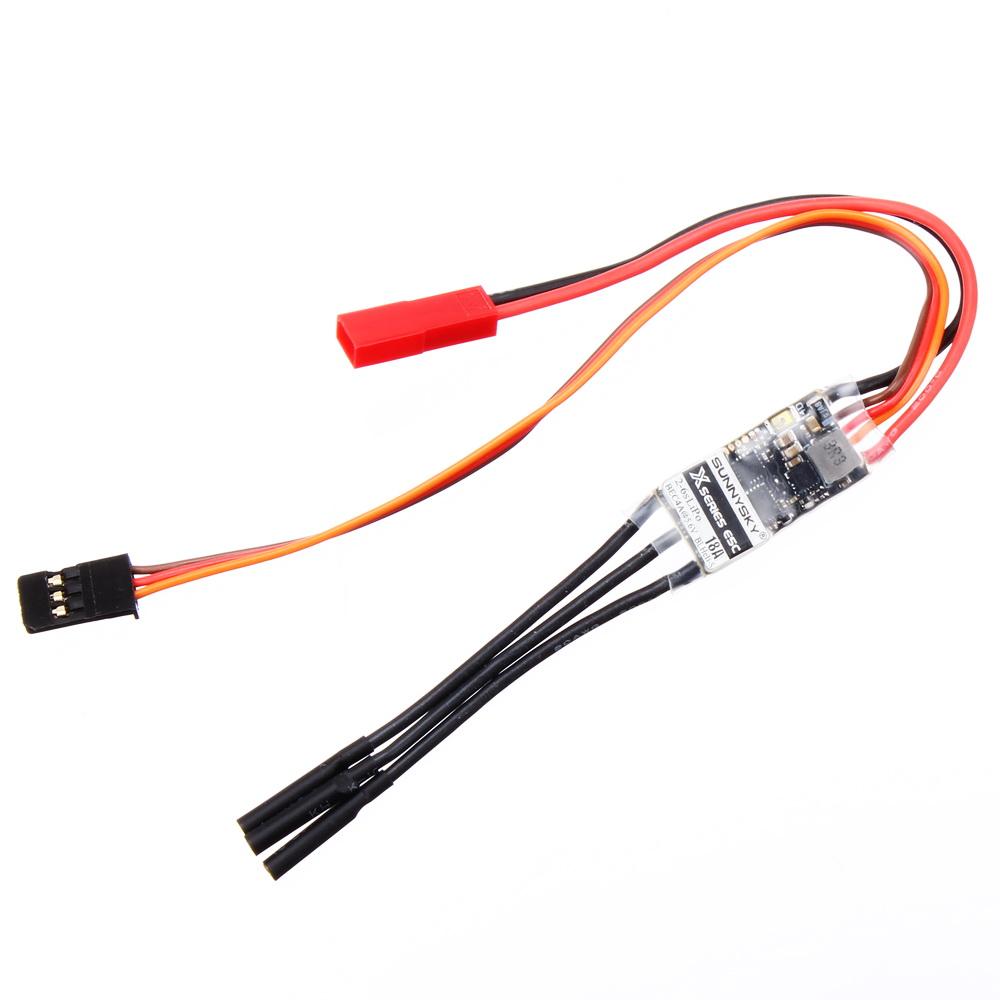

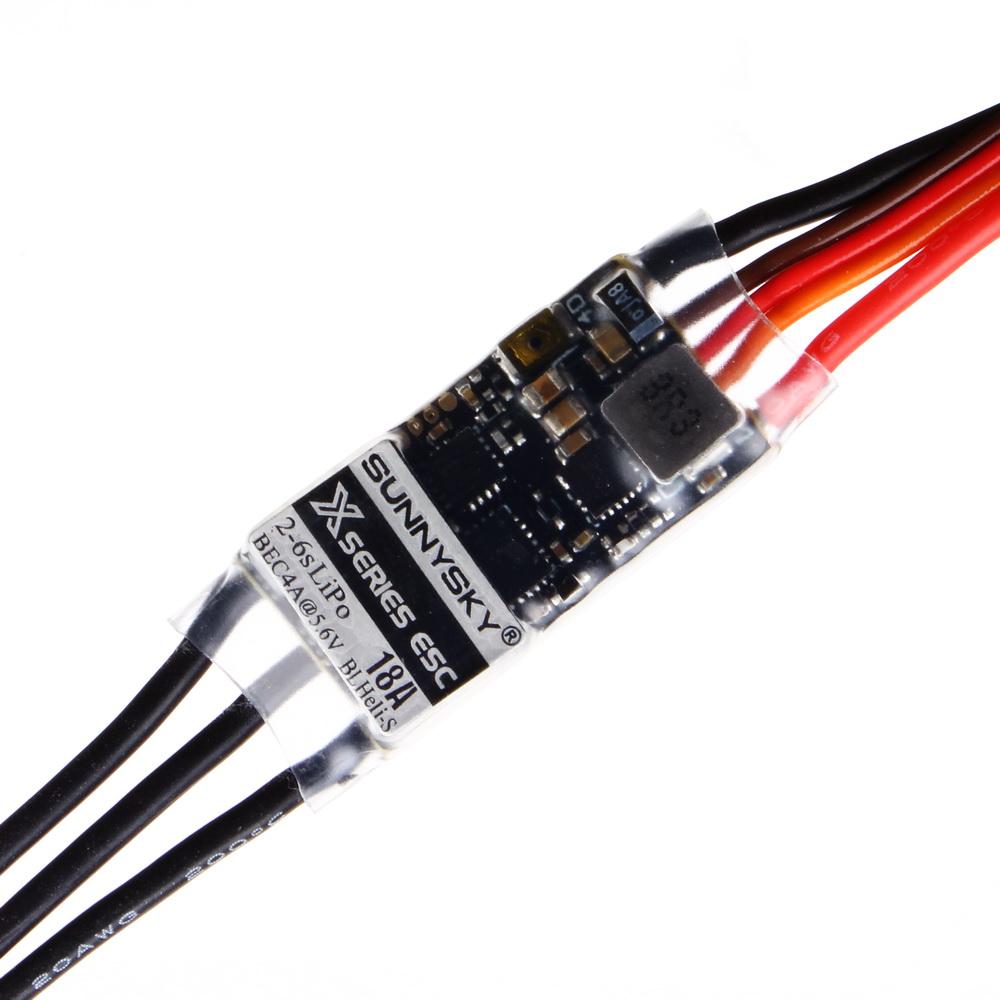

This SunnySky X series 18A airplane ESC features 2-6S LiPo input, strong 4A BEC, one key to change propeller rotation, programmable BLHeli_S firmware, fast 32bit processor, light weight, smooth operation.

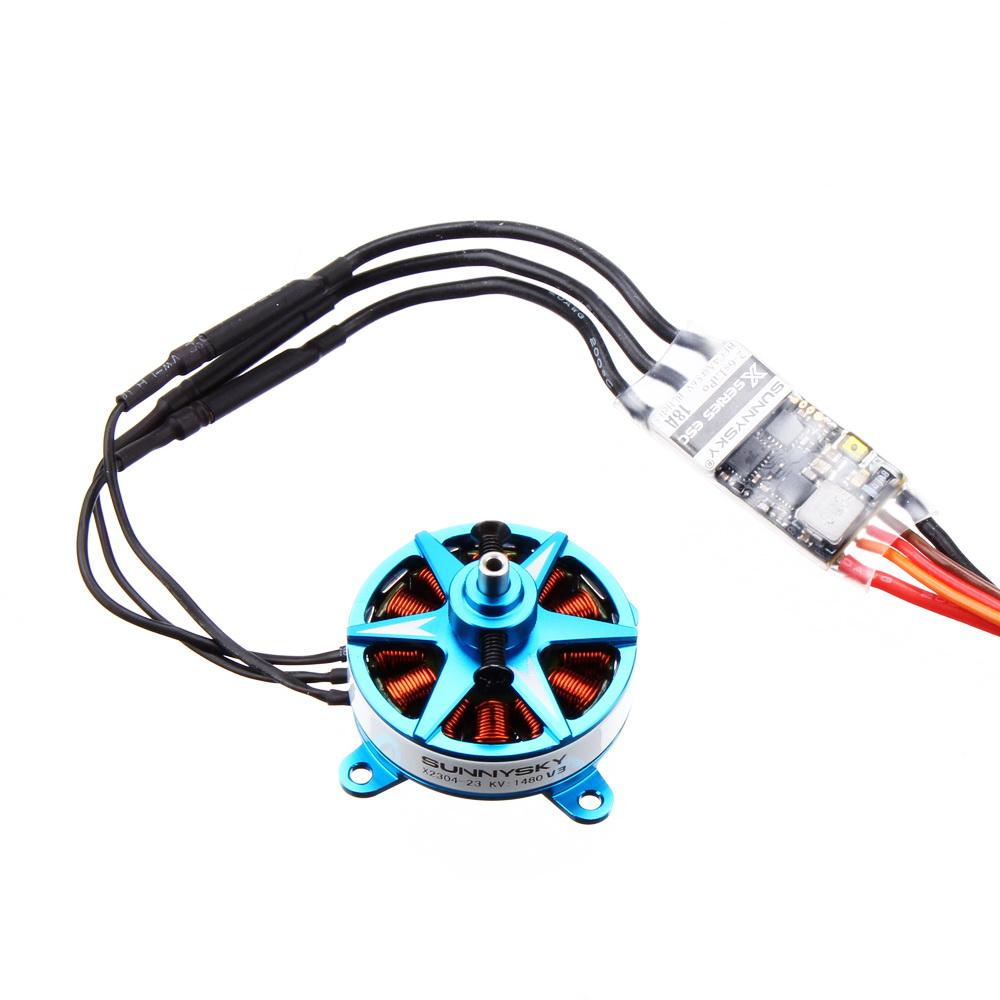

We highly recommend to use this ESC with SunnySky small X series motors, such as X2204, X2206, X2302, X2305, X2306, and those R series competition F3P airplane motors including R2304 and R2305. All these motors have 2mm bullet connectors soldered in the factory, and can be plugged into the bullet connectors of the ESC directly.

Main Features:
• New generation 32bit micro processor and official BLHeli_S firmware, quick throttle response and superb performance compared to widely used classic 8bit ESCs.
• Strong 5.6V 4A BEC to supply abundant power to new generation digital servos and electronics.
• One physical button to change the propeller rotation directions for 3D and 4D airplanes. Press and hold the button for 10 seconds to change the rotation mode.
• Small size and light weight, best for 3D and 4D indoor competition foamy airplanes.
• Open source BLHeli_S firmware can be upgraded via the throttle signal line. Parameter settings can be easily changed with BLHeli Suite program.
• Damped light mode makes motor deceleration faster when the throttle changes from high to low. The stability and swiftness are also significantly improved.
• Support common PWM throttle mode, OneShot125、OneShot42, MultiShot, and DShot150/ 300/ 600 protocols.
• Suitable for high KV brushless motors commonly used in push airplanes which many classic ESCs do not work well.

Specifications:
9 Grams without wires, 19 grams with wires
18A continuous current
23A burst current, no more than 10 seconds
Input voltage: 2-6S LiPo

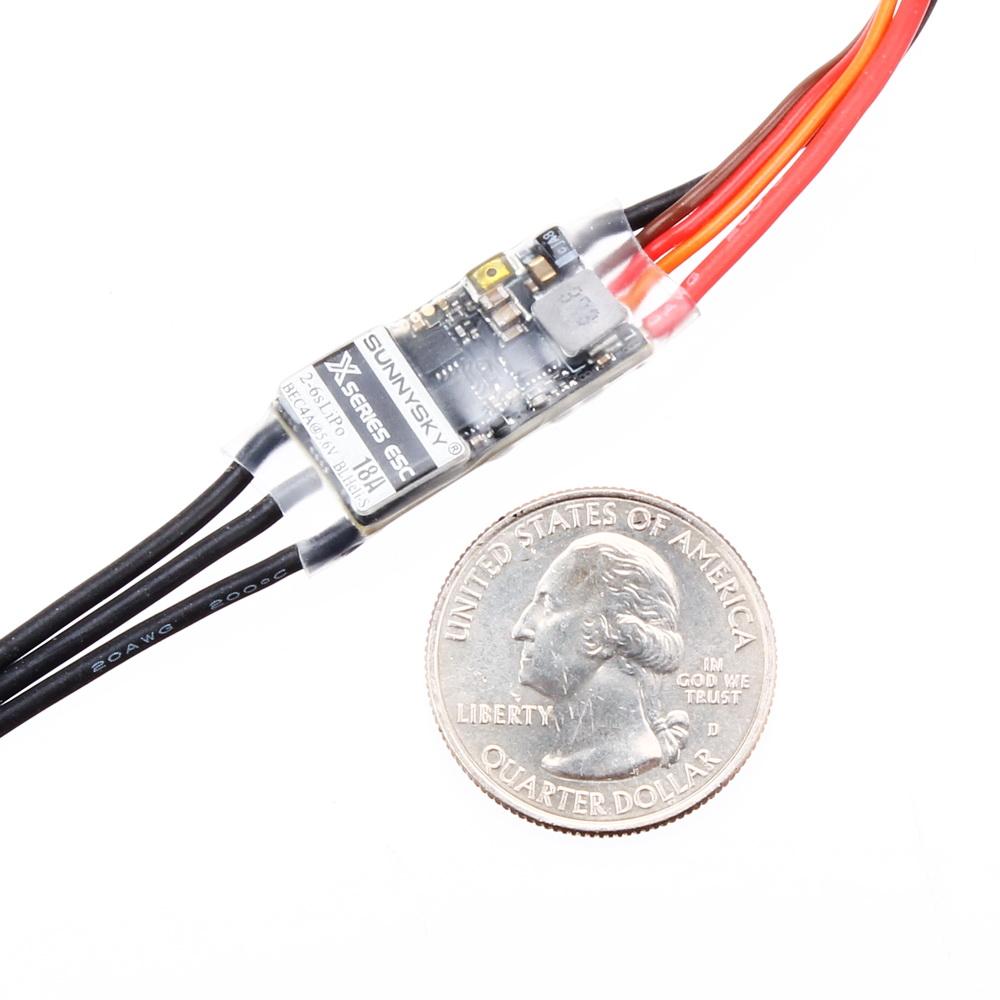

Dimensions without wires: 24x12x4.8mm

BlHeli manual and program can be downloaded in the following links:
BLHeli official files:
https://github.com/bitdump/BLHeli
BLHeli Suite official download:
https://www.mediafire.com/folder/dx6kfaasyo24l/BLHeliSuite





Orders are shipped from Columbus, the capital city of Ohio, USA.

An order placed before 2:00pm Eastern Standard Time will be shipped the same working day.

We ship on Monday-Friday by US postal service (USPS) and UPS, and Saturday morning by USPS if a local post office is open. Any order placed on Saturday morning may or may not be shipped the same day. Orders placed on Sunday and US holidays will be shipped the next working day.

Domestic:

Retail orders above $80 may be eligible for free shipping, including contiguous United States, Alaska, Guam, Hawaii, Puerto Rico, and APO addresses. We will use either USPS or UPS that most packages can be delivered in 3-5 working days, but not guaranteed. However, for packages contain large and heavy items, such as power supply, we may use parcel post service or UPS Surepost that may take up to 7 working days to be delivered.

USPS First Class Mail and Priority Mail, Express Mail, and UPS services can be used for domestic addresses. Tracking number and delivery confirmation will be provided to the customer when they are available. If you have not received a tracking information E-mail, please log into your account and click the "view order" link, then click "Track your order" link to find out the tracking number and ship method.

USPS Priority Mail is typically delivered in 3 working days. But very occasionally a priority mail package may be delayed for several days in the mailing system. If delivery time is extremely critical to your order, we would recommend Priority Mail Express or other couriers.

Domestic First Class Mail is only 1-2 days slower than Priority Mail in delivery. We suggest domestic customers choose First Class Mail for an order under 15 oz to save shipping cost.

Real shipping cost is calculated according to package weight and distance, and can be found in the checkout page after delivery address is specified in the fields.

Any order of $200 and above requires addressee's signature confirmation upon receipt of the package. Please contact us in advance or leave a comment in the message box if you want to waive signature confirmation.

We always check the legality of potential fraudulent orders. This procedure may lead to 1-2 working days delay in shipping in some rare cases.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

International:

DHL, DHL Express, US Postal Service (USPS) First Class Mail, Priority Mail, and Express Mail (EMS), and UPS services can be selected for international addresses. Shipping cost is calculated according to package weight and distance, and can be found in the check out process. A package usually takes around 7-10 days to be delivered, or occasionally up to 45 days depending on the processing speed in your country, especially in some countries such as Brazil and Russia.

USPS First Class Mail is a budget shipping method. As soon as a First Class Mail package left USPS Chicago hub there will be no tracking information available. If you need detailed tracking information and timely delivery please do not use this shipping method.

Presently we cannot ship lithium batteries internationally by US Post Service or any other air shipping method. Please select UPS Ground if your order contains LiPo or LiFe battery.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

SunnySky X 18A Airplane ESC 2-6S 4A BEC BLHeli_S Program 32Bit 3D 4D F3P
