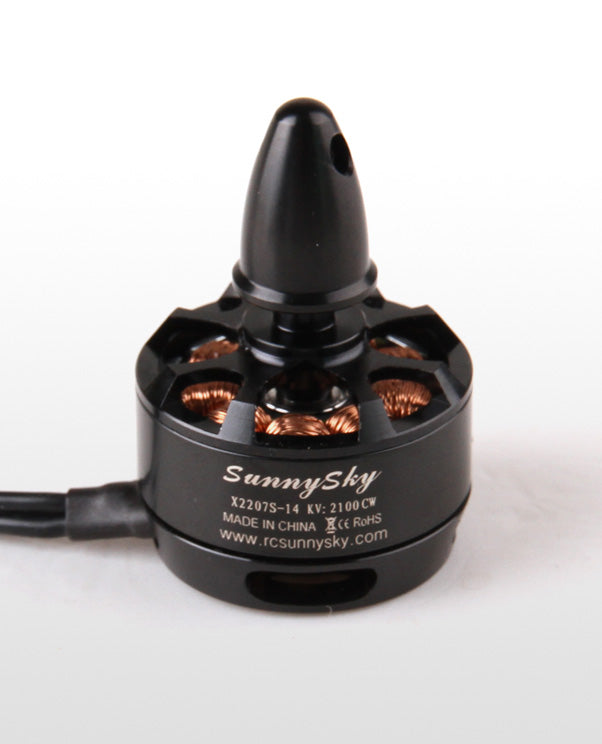

Description
Motor comes with 6mm long screws. Please make sure your mount plate is thick enough not touching the stator of motor. Motor damage caused by extruded screws will not be covered by warranty.
This motor supports 3S-4S LiPo battery and 5-6 inch propellers. It can be used up to 350 size or 250 size racing multirotors.
Each motor weighs around 36 grams.
Specifications:
- KV: 2100
- Thread: CCW
- Stator diameter: 22mm
- Stator thickness: 7mm
- No.of stator arms: 9
- No.of stator poles: 12
- No-load current: 0.9A@10V
- Motor resistance: 77mΩ
- Max.continuous current: 18A/30S
- Max.continuous power: 350W
- Weight: 35g
- Outside diameter: 27.5mm
- Shaft diameter: M5
- Body length: 20mm
- Overall shaft length: 33mm
- Max.lipo cell: 2-4S
