$15.00
Availability: 74 In Stock
Sku: SS-X2208-1500
Specifications

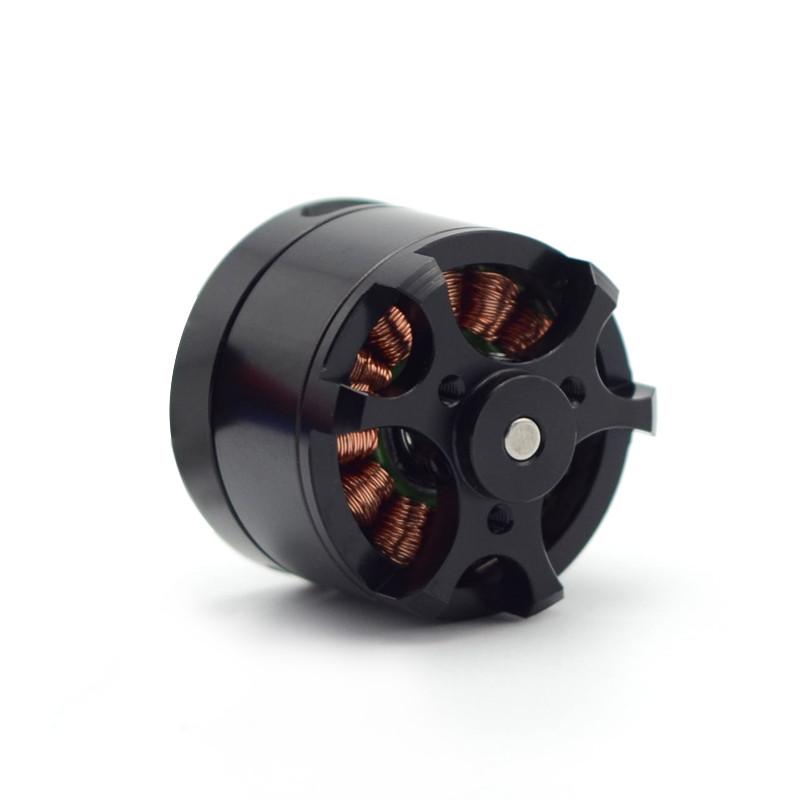

series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.

Stainless steel solid shaft
The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.

6061-T6 Aviation aluminum alloy
Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.

Imported NMB bearings
X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.

Hand wound
The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.

[TABS]OVERVIEW

KV1100
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 8mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length  (Without Shaft) 25mm
No.of Rotor Poles 14 Body Length 27.2mm
Motor Kv 1100 Max Lipo Cell 2-4S
No-load current 0.3A/10V ESC 18A
Motor Resistance 191mΩ Recommended Prop(inch) APC9047/GWS9047/GWS9050/APC8038/GWS8043
Max Continuous Current 14A/15s Weight for training airplane 440g (3S-4S 9047\9050\8043)
Max Continuous Power 205W Weight for aerobatics airplane 400g (3S-4S 9047\9050\8043)
Weight 46g Weight for 3D airplane 350g (3S 9047\9050)



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC8038 11.1 0.8 100 8.88 11.26126126 45°
2.2 200 24.42 8.19000819
3.8 300 42.18 7.112375533
5.7 400 63.27 6.322111585
7.9 515 87.69 5.872961569
14.8 0.6 100 8.88 11.26126126
1.7 200 25.16 7.949125596
3 300 44.4 6.756756757
4.5 400 66.6 6.006006006
6.3 500 93.24 5.362505363
8.2 600 121.36 4.943968359
10.7 700 158.36 4.420308159
12.5 800 185 4.324324324
APC9047 11.1 0.7 100 7.77 12.87001287 56°
1.9 200 21.09 9.483167378
3.3 300 36.63 8.19000819
5 400 55.5 7.207207207
7.2 500 79.92 6.256256256
9 600 99.9 6.006006006
14.8 0.5 100 7.4 13.51351351
1.5 200 22.2 9.009009009
2.7 300 39.96 7.507507508
4.2 400 62.16 6.435006435
5.8 500 85.84 5.824790308
7.6 600 112.48 5.33428165
9.7 700 143.56 4.876010031
11.7 800 173.16 4.62000462
13 880 192.4 4.573804574
GWS8043 11.1 0.8 100 8.88 11.26126126 45°
2.1 200 23.31 8.58000858
3.5 300 38.85 7.722007722
5.3 400 58.83 6.799252082
6.8 470 75.48 6.22681505
14.8 0.6 100 8.88 11.26126126
1.6 200 23.68 8.445945946
3 300 44.4 6.756756757
4.3 400 63.64 6.285355123
6 500 88.8 5.630630631
7.5 600 111 5.405405405
9.6 700 142.08 4.926801802
10.2 740 150.96 4.901960784



KV1260
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 8mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length  (Without Shaft) 25mm
No.of Rotor Poles 14 Body Length 27.2mm
Motor Kv 1260 Max Lipo Cell 2-4S
No-load current 0.4A/10V ESC 18A
Motor Resistance 122mΩ Recommended Prop(inch) APC8038/GWS8043/APC9047/GWS8040/GWS9050
Max Continuous Current 15A/30s Weight for training airplane 500g (3S 8038\8043\8040)
Max Continuous Power 168W Weight for aerobatics airplane 420g (3S 9047\9050)
Weight 46g Weight for 3D airplane 350g (3S 9047\9050)



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC8038 11.1 1 100 11.1 9.009009009 48°
2.3 200 25.53 7.833920877
3.9 300 43.29 6.93000693
5.7 400 63.27 6.322111585
7.9 500 87.69 5.701904436
10.8 600 119.88 5.005005005
11.4 630 126.54 4.978662873
GWS8043 11.1 0.9 100 9.99 10.01001001 45°
2.2 200 24.42 8.19000819
3.8 300 42.18 7.112375533
5.7 400 63.27 6.322111585
7.7 500 85.47 5.85000585
9.6 600 106.56 5.630630631
APC1047 7.4 1.1 100 8.14 12.28501229 45°
2.7 200 19.98 10.01001001
4.4 300 32.56 9.213759214
7 400 51.8 7.722007722
9.9 500 73.26 6.825006825
11.7 570 86.58 6.583506584
APC9047 7.4 1.2 100 8.88 11.26126126 52°
2.9 200 21.46 9.319664492
5 300 37 8.108108108
8 420 59.2 7.094594595
11.1 0.8 100 8.88 11.26126126
2 200 22.2 9.009009009
3.6 300 39.96 7.507507508
5.4 400 59.94 6.673340007
7.2 500 79.92 6.256256256
9.4 600 104.34 5.750431282
12 700 133.2 5.255255255
13.9 780 154.29 5.055415127



KV1500
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 8mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length  (Without Shaft) 25mm
No.of Rotor Poles 14 Body Length 27.2mm
Motor Kv 1500 Max Lipo Cell 2-4S
No-load current 0.7A/10V ESC 20A
Motor Resistance 95mΩ Recommended Prop(inch) APC8038/GWS8043/GWS8040/GWS9047/GWS9050/APC1047/APC9047
Max Continuous Current 16A/30s Weight for training airplane 450g (2S 9047\9050\1047)
Max Continuous Power 240W Weight for aerobatics airplane 400g (3S 8038\8040\8043)
Weight 46g Weight for 3D airplane 320g (3S 8038\8040\8043)



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC8038 11.1 1 100 11.1 9.009009009 52°
2.4 200 26.64 7.507507508
4.4 300 48.84 6.142506143
6.5 400 72.15 5.544005544
9.1 500 101.01 4.95000495
11.7 600 129.87 4.62000462
17.5 760 194.25 3.912483912
GWS8043 11.1 0.9 100 9.99 10.01001001 42°
2.2 200 24.42 8.19000819
4 300 44.4 6.756756757
5.9 400 65.49 6.107802718
8.3 500 92.13 5.427113861
10.5 600 116.55 5.148005148
15.3 780 169.83 4.592828122
APC9047 11.1 0.9 100 9.99 10.01001001 61°
2.1 200 23.31 8.58000858
3.9 300 43.29 6.93000693
5.9 400 65.49 6.107802718
8.4 500 93.24 5.362505363
10.9 600 120.99 4.959087528
13.5 700 149.85 4.671338005
21 960 233.1 4.118404118
7.4 1.2 100 8.88 11.26126126
3.2 200 23.68 8.445945946
5.4 300 39.96 7.507507508
8.1 400 59.94 6.673340007
12.7 550 93.98 5.852309002
APC1047 7.4 1.2 100 8.88 11.26126126 42°
2.9 200 21.46 9.319664492
5 300 37 8.108108108
7.6 400 56.24 7.112375533
10.8 500 79.92 6.256256256
16 680 118.4 5.743243243



KV2600
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 8mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length   (Without Shaft) 25mm
No.of Rotor Poles 14 Body Length 27.2mm
Motor Kv 2600 Max Lipo Cell 2-3S
No-load current 1.2A/10V ESC 40A
Motor Resistance 34mΩ Recommended Prop(inch) 5030/5040/APC6040
Max Continuous Current 30A/15s Weight for tail-pushed Aerobatics 450g (3S 5040\6030\6040)
Max Continuous Power 330W
Weight 40g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
APC6X4 11.1 1.8 100 19.98 5.005005005 52°
4.2 200 46.62 4.29000429
6.8 300 75.48 3.974562798
9.7 400 107.67 3.715055261
13.4 500 148.74 3.361570526
16.7 600 185.37 3.236769704
21 700 233.1 3.003003003
27.5 800 305.25 2.620802621



[/TABS]

Orders are shipped from Columbus, the capital city of Ohio, USA.

An order placed before 2:00pm Eastern Standard Time will be shipped the same working day.

We ship on Monday-Friday by US postal service (USPS) and UPS, and Saturday morning by USPS if a local post office is open. Any order placed on Saturday morning may or may not be shipped the same day. Orders placed on Sunday and US holidays will be shipped the next working day.

Domestic:

Retail orders above $80 may be eligible for free shipping, including contiguous United States, Alaska, Guam, Hawaii, Puerto Rico, and APO addresses. We will use either USPS or UPS that most packages can be delivered in 3-5 working days, but not guaranteed. However, for packages contain large and heavy items, such as power supply, we may use parcel post service or UPS Surepost that may take up to 7 working days to be delivered.

USPS First Class Mail and Priority Mail, Express Mail, and UPS services can be used for domestic addresses. Tracking number and delivery confirmation will be provided to the customer when they are available. If you have not received a tracking information E-mail, please log into your account and click the "view order" link, then click "Track your order" link to find out the tracking number and ship method.

USPS Priority Mail is typically delivered in 3 working days. But very occasionally a priority mail package may be delayed for several days in the mailing system. If delivery time is extremely critical to your order, we would recommend Priority Mail Express or other couriers.

Domestic First Class Mail is only 1-2 days slower than Priority Mail in delivery. We suggest domestic customers choose First Class Mail for an order under 15 oz to save shipping cost.

Real shipping cost is calculated according to package weight and distance, and can be found in the checkout page after delivery address is specified in the fields.

Any order of $200 and above requires addressee's signature confirmation upon receipt of the package. Please contact us in advance or leave a comment in the message box if you want to waive signature confirmation.

We always check the legality of potential fraudulent orders. This procedure may lead to 1-2 working days delay in shipping in some rare cases.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

International:

DHL, DHL Express, US Postal Service (USPS) First Class Mail, Priority Mail, and Express Mail (EMS), and UPS services can be selected for international addresses. Shipping cost is calculated according to package weight and distance, and can be found in the check out process. A package usually takes around 7-10 days to be delivered, or occasionally up to 45 days depending on the processing speed in your country, especially in some countries such as Brazil and Russia.

USPS First Class Mail is a budget shipping method. As soon as a First Class Mail package left USPS Chicago hub there will be no tracking information available. If you need detailed tracking information and timely delivery please do not use this shipping method.

Presently we cannot ship lithium batteries internationally by US Post Service or any other air shipping method. Please select UPS Ground if your order contains LiPo or LiFe battery.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

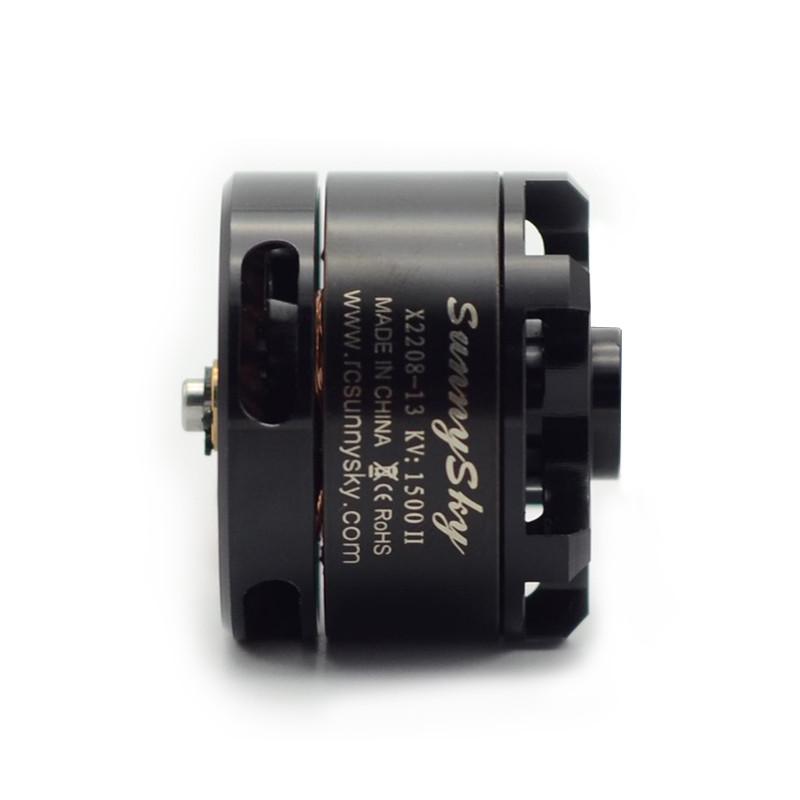

SunnySky X2208 Brushless Motors
