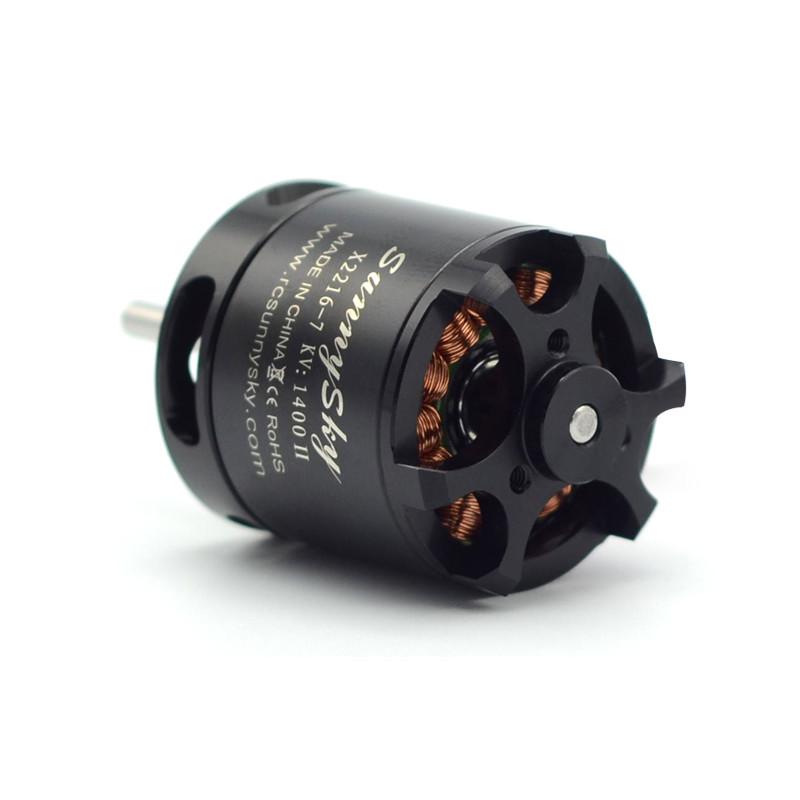

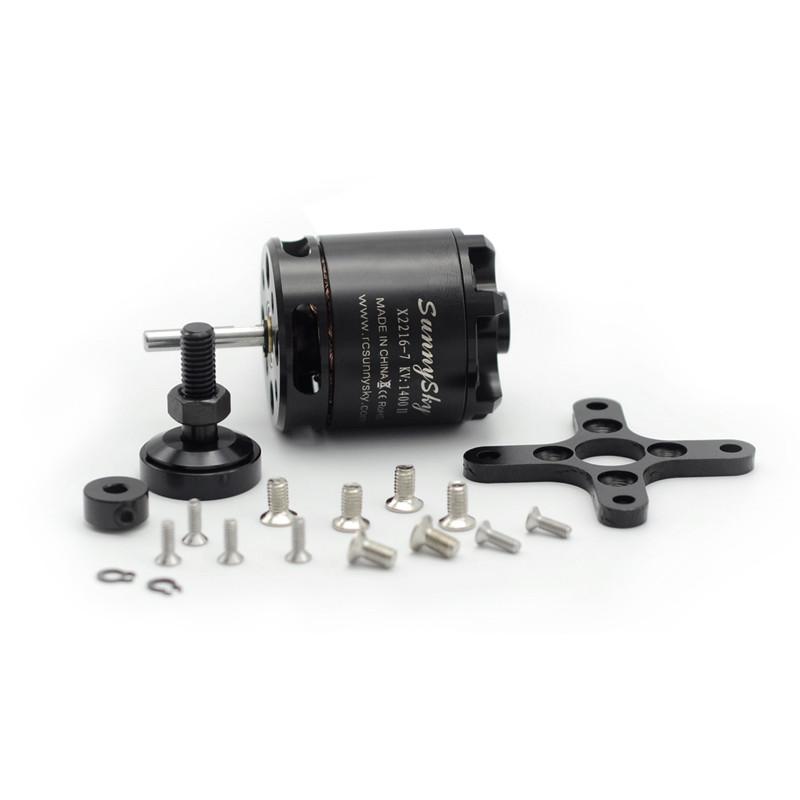

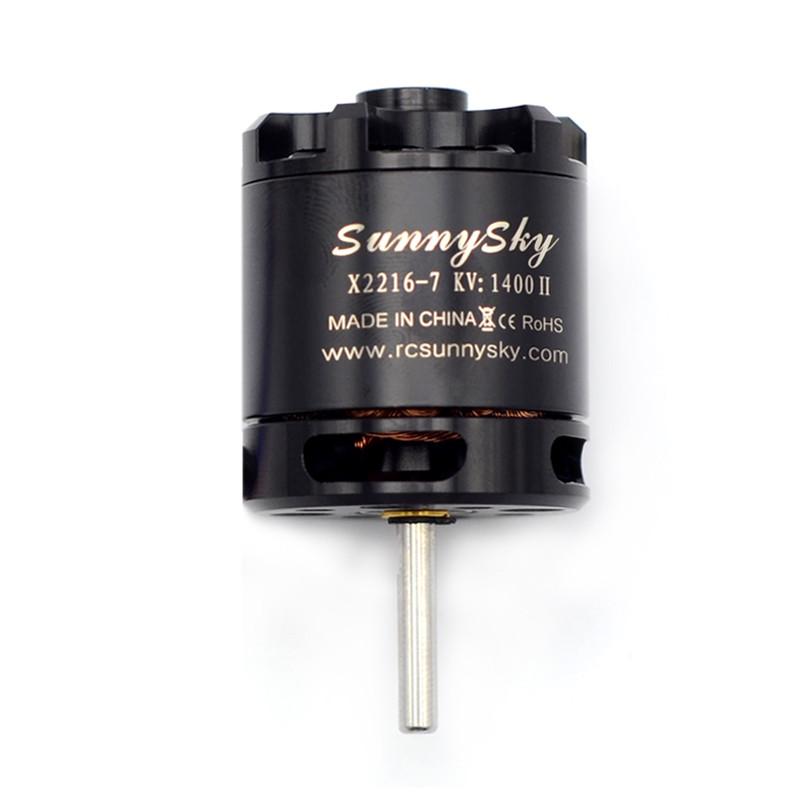

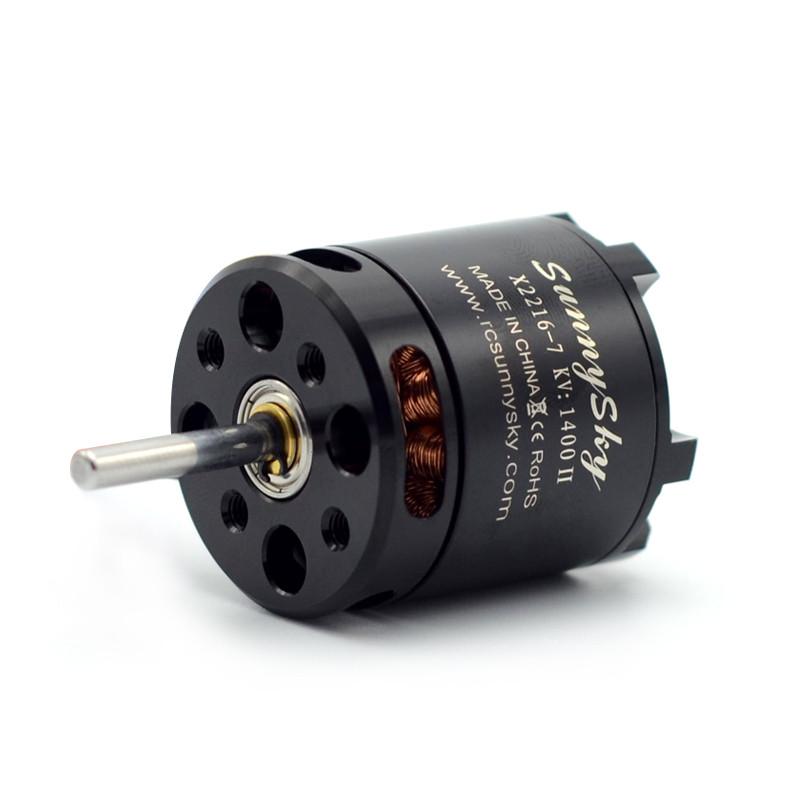

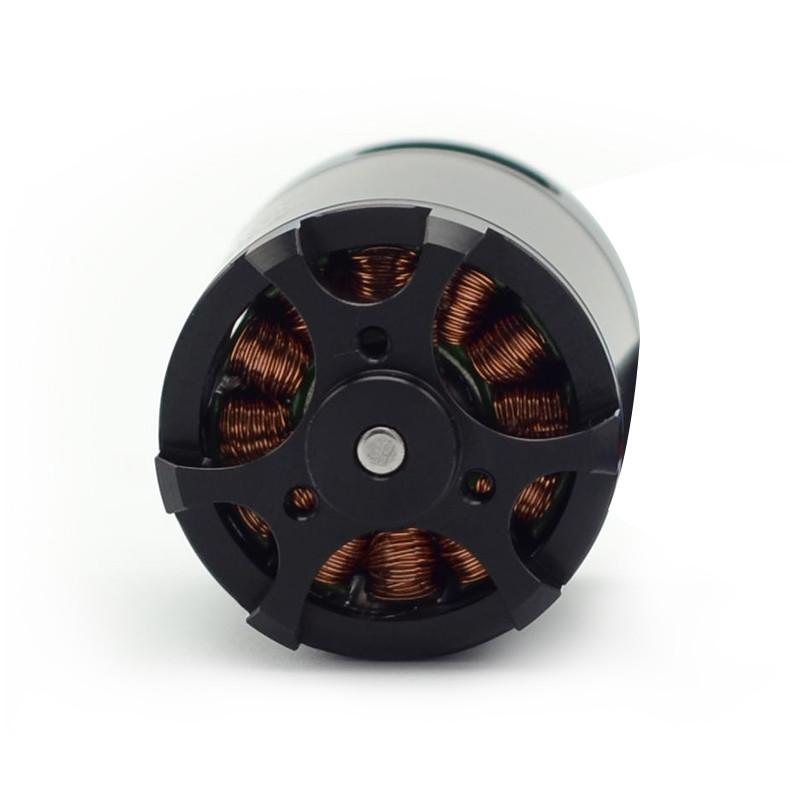

The X series of motors undergoes CNC milling, giving them a hollow design that provides effective heat dissipation and significantly reduces their weight. Additionally, the motors' appearance is strengthened and made more visually appealing.
The motor shaft is crafted from 420 stainless steel, imported from Japan and treated with heat to increase its strength, ductility, and resistance to bending and breaking.
Both the top and bottom caps are made of 6061-T6 aviation aluminum alloy, renowned for its high strength, hardness, and extension, ensuring reliable motor performance.
To ensure longer life, quiet operation, and stability, the X series uses customized NMB mini bearings imported from Japan.
The coils of X motors are all hand wound, a more labor-intensive manufacturing process that results in tight, neat coils and better coil space factor, increasing the motors' continuous power output.
[TABS]OVERVIEW
KV880
Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
---|---|---|---|
Stator Thickness | 16mm | Shaft Diameter | 3.175mm |
No.of Stator Slots | 12 | Body Length (Without Shaft) | 34mm |
No.of Rotor Poles | 14 | Body Length | 36.5mm |
Motor Kv | 880 | Max Lipo Cell | 2-4S |
No-load current | 0.5A/10V | ESC | 30A |
Motor Resistance | 117mΩ | Recommended Prop(inch) | APC1047/APC1070/APC1147/APC11*5.5 |
Max Continuous Current | 20A/30s |
Weight for aerobatics airplane
|
720g (4S 9060\1047\1050) |
Max Continuous Power | 320W |
Weight for aerobatics airplane
|
400g (3S 1038\1047) |
Weight |
72g |
Weight for aerobatics airplane
|
450g (4S 8038\8043\8045\9047) |
|
Weight for aerobatics airplane
|
600g (3S 1147) |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC11x4.7 | 11.1 | 0.7 | 100 | 7.77 | 12.87001287 | 54° |
1.8 | 200 | 19.98 | 10.01001001 | |||
3.1 | 300 | 34.41 | 8.718395815 | |||
4.4 | 400 | 48.84 | 8.19000819 | |||
5.9 | 500 | 65.49 | 7.634753397 | |||
7.7 | 600 | 85.47 | 7.02000702 | |||
9.7 | 700 | 107.67 | 6.501346708 | |||
11.7 | 800 | 129.87 | 6.16000616 | |||
14.7 | 900 | 163.17 | 5.515719801 | |||
16.8 | 1000 | 186.48 | 5.362505363 | |||
17.4 | 1030 | 193.14 | 5.332919126 | |||
APC9060 | 14.8 | 0.8 | 100 | 11.84 | 8.445945946 | 45° |
1.8 | 200 | 26.64 | 7.507507508 | |||
3 | 300 | 44.4 | 6.756756757 | |||
4.3 | 400 | 63.64 | 6.285355123 | |||
5.9 | 500 | 87.32 | 5.726065048 | |||
7.7 | 600 | 113.96 | 5.265005265 | |||
9.4 | 700 | 139.12 | 5.031627372 | |||
11.4 | 800 | 168.72 | 4.741583689 | |||
13.6 | 900 | 201.28 | 4.471383148 | |||
15.2 | 1000 | 224.96 | 4.445234708 | |||
APC1047 | 11.1 | 0.7 | 100 | 7.77 | 12.87001287 | 62° |
1.9 | 200 | 21.09 | 9.483167378 | |||
3.2 | 300 | 35.52 | 8.445945946 | |||
4.6 | 400 | 51.06 | 7.833920877 | |||
6.4 | 500 | 71.04 | 7.038288288 | |||
8.2 | 600 | 91.02 | 6.591957811 | |||
10.4 | 700 | 115.44 | 6.063756064 | |||
12.6 | 800 | 139.86 | 5.72000572 | |||
14.4 | 890 | 159.84 | 5.568068068 | |||
14.8 | 0.6 | 100 | 8.88 | 11.26126126 | ||
1.5 | 200 | 22.2 | 9.009009009 | |||
2.5 | 300 | 37 | 8.108108108 | |||
3.7 | 400 | 54.76 | 7.304601899 | |||
5.2 | 500 | 76.96 | 6.496881497 | |||
6.8 | 600 | 100.64 | 5.961844197 | |||
8.4 | 700 | 124.32 | 5.630630631 | |||
10.1 | 800 | 149.48 | 5.35188654 | |||
12.3 | 900 | 182.04 | 4.943968359 | |||
14.2 | 1000 | 210.16 | 4.758279406 | |||
16.2 | 1100 | 239.76 | 4.587921255 | |||
21.4 | 1360 | 316.72 | 4.29401364 | |||
APC9x4.5 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 43° |
2.1 | 200 | 23.31 | 8.58000858 | |||
3.4 | 300 | 37.74 | 7.949125596 | |||
5 | 400 | 55.5 | 7.207207207 | |||
6.9 | 500 | 76.59 | 6.528267398 | |||
7.9 | 540 | 87.69 | 6.158056791 | |||
8.4 | 570 | 93.24 | 6.113256113 | |||
14.8 | 0.7 | 100 | 10.36 | 9.652509653 | ||
1.6 | 200 | 23.68 | 8.445945946 | |||
2.7 | 300 | 39.96 | 7.507507508 | |||
4 | 400 | 59.2 | 6.756756757 | |||
5.6 | 500 | 82.88 | 6.032818533 | |||
6.9 | 600 | 102.12 | 5.875440658 | |||
8.6 | 700 | 127.28 | 5.499685732 | |||
10.1 | 800 | 149.48 | 5.35188654 | |||
12.2 | 900 | 180.56 | 4.984492689 | |||
13 | 950 | 192.4 | 4.937629938 |
KV1100
Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
---|---|---|---|
Stator Thickness | 16mm | Shaft Diameter | 3.175mm |
No.of Stator Slots | 12 | Body Length (Without Shaft) | 34mm |
No.of Rotor Poles | 14 | Body Length | 36.5mm |
Motor Kv | 1100 | Max Lipo Cell | 2-4S |
No-load current | 0.9A/10V | ESC | 30A |
Motor Resistance | 73mΩ | Recommended Prop(inch) | APC9047/APC9045/APC9060/APC8060/APC1047 |
Max Continuous Current | 24A/30s | Weight for training airplane | 800g (3S 1047\1050) |
Max Continuous Power | 385W | Weight for 3D airplane | 650g (3S 1047\1050) |
Weight |
72g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC1047 | 11.1 | 0.8 | 100 | 8.88 | 11.26126126 | 57° |
1.9 | 200 | 21.09 | 9.483167378 | |||
3.1 | 300 | 34.41 | 8.718395815 | |||
4.6 | 400 | 51.06 | 7.833920877 | |||
6.2 | 500 | 68.82 | 7.265329846 | |||
8.3 | 600 | 92.13 | 6.512536633 | |||
10.2 | 700 | 113.22 | 6.182653241 | |||
12.8 | 800 | 142.08 | 5.630630631 | |||
14.7 | 900 | 163.17 | 5.515719801 | |||
17.8 | 1000 | 197.58 | 5.061241016 | |||
21.9 | 1180 | 243.09 | 4.854169238 | |||
APC8060 | 14.8 | 1 | 100 | 14.8 | 6.756756757 | 56° |
2.3 | 200 | 34.04 | 5.875440658 | |||
3.9 | 300 | 57.72 | 5.197505198 | |||
5.6 | 400 | 82.88 | 4.826254826 | |||
7.6 | 500 | 112.48 | 4.445234708 | |||
9.8 | 600 | 145.04 | 4.136789851 | |||
12.1 | 700 | 179.08 | 3.908867545 | |||
14.8 | 800 | 219.04 | 3.65230095 | |||
18.1 | 900 | 267.88 | 3.359713304 | |||
20.5 | 1010 | 303.4 | 3.328938695 | |||
APC9047 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 48° |
2 | 200 | 22.2 | 9.009009009 | |||
3.5 | 300 | 38.85 | 7.722007722 | |||
5.2 | 400 | 57.72 | 6.93000693 | |||
7 | 500 | 77.7 | 6.435006435 | |||
8.9 | 600 | 98.79 | 6.07348922 | |||
11.1 | 700 | 123.21 | 5.681357033 | |||
12.4 | 780 | 137.64 | 5.66695728 | |||
14.8 | 0.7 | 100 | 10.36 | 9.652509653 | ||
1.6 | 200 | 23.68 | 8.445945946 | |||
2.7 | 300 | 39.96 | 7.507507508 | |||
4.2 | 400 | 62.16 | 6.435006435 | |||
5.4 | 500 | 79.92 | 6.256256256 | |||
7.2 | 600 | 106.56 | 5.630630631 | |||
8.7 | 700 | 128.76 | 5.436470954 | |||
10.6 | 800 | 156.88 | 5.099439062 | |||
12.4 | 900 | 183.52 | 4.904097646 | |||
14.2 | 1000 | 210.16 | 4.758279406 | |||
18.6 | 1230 | 275.28 | 4.468177855 | |||
APC9060 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 58° |
2.3 | 200 | 25.53 | 7.833920877 | |||
3.7 | 300 | 41.07 | 7.304601899 | |||
5.4 | 400 | 59.94 | 6.673340007 | |||
7.4 | 500 | 82.14 | 6.087168249 | |||
9.6 | 600 | 106.56 | 5.630630631 | |||
12 | 700 | 133.2 | 5.255255255 | |||
14.6 | 800 | 162.06 | 4.936443293 | |||
16 | 870 | 177.6 | 4.898648649 | |||
14.8 | 0.7 | 100 | 10.36 | 9.652509653 | ||
1.8 | 200 | 26.64 | 7.507507508 | |||
3 | 300 | 44.4 | 6.756756757 | |||
4.4 | 400 | 65.12 | 6.142506143 | |||
5.9 | 500 | 87.32 | 5.726065048 | |||
7.7 | 600 | 113.96 | 5.265005265 | |||
9.7 | 700 | 143.56 | 4.876010031 | |||
11.6 | 800 | 171.68 | 4.659832246 | |||
13.6 | 900 | 201.28 | 4.471383148 | |||
16 | 1000 | 236.8 | 4.222972973 | |||
18.4 | 1100 | 272.32 | 4.039365452 | |||
21.3 | 1200 | 315.24 | 3.806623525 | |||
24.6 | 1360 | 364.08 | 3.73544276 | |||
APC9045 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 54° |
2 | 200 | 22.2 | 9.009009009 | |||
3.6 | 300 | 39.96 | 7.507507508 | |||
5.2 | 400 | 57.72 | 6.93000693 | |||
7.1 | 500 | 78.81 | 6.344372542 | |||
8.8 | 600 | 97.68 | 6.142506143 | |||
11 | 700 | 122.1 | 5.733005733 | |||
13.3 | 810 | 147.63 | 5.486689697 | |||
14.8 | 0.7 | 100 | 10.36 | 9.652509653 | ||
1.7 | 200 | 25.16 | 7.949125596 | |||
2.7 | 300 | 39.96 | 7.507507508 | |||
4.2 | 400 | 62.16 | 6.435006435 | |||
5.7 | 500 | 84.36 | 5.926979611 | |||
7.3 | 600 | 108.04 | 5.553498704 | |||
9 | 700 | 133.2 | 5.255255255 | |||
10.6 | 800 | 156.88 | 5.099439062 | |||
12.5 | 900 | 185 | 4.864864865 | |||
14.6 | 1000 | 216.08 | 4.627915587 | |||
16.4 | 1100 | 242.72 | 4.531970995 | |||
21 | 1320 | 310.8 | 4.247104247 |
KV1250
Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
---|---|---|---|
Stator Thickness | 16mm | Shaft Diameter | 3.175mm |
No.of Stator Slots | 12 | Body Length (Without Shaft) | 34mm |
No.of Rotor Poles | 14 | Body Length | 36.5mm |
Motor Kv | 1250 | Max Lipo Cell | 2-4S |
No-load current | 1.1A/10V | ESC | 40A |
Motor Resistance | 63mΩ | Recommended Prop(inch) | APC9047/APC9045/APC9060/APC8060/APC1047 |
Max Continuous Current | 28A/30s | Weight for aerobatics airplane | 720g (3S 9060\9047\9045) (4S 8060) |
Max Continuous Power | 392W | Weight for aerobatics airplane | 650g (3S 9047\1047) |
Weight |
72g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC1047 | 11.1 | 0.7 | 100 | 7.77 | 12.87001287 | 58° |
1.8 | 200 | 19.98 | 10.01001001 | |||
3.1 | 300 | 34.41 | 8.718395815 | |||
4.5 | 400 | 49.95 | 8.008008008 | |||
6.5 | 500 | 72.15 | 6.93000693 | |||
8.3 | 600 | 92.13 | 6.512536633 | |||
10.5 | 700 | 116.55 | 6.006006006 | |||
12.7 | 800 | 140.97 | 5.674966305 | |||
15.6 | 900 | 173.16 | 5.197505198 | |||
18.1 | 1000 | 200.91 | 4.977353044 | |||
20.8 | 1100 | 230.88 | 4.764379764 | |||
27 | 1270 | 299.7 | 4.237570904 | |||
29 | 1350 | 321.9 | 4.193849021 | |||
APC9060 | 11.1 | 1 | 100 | 11.1 | 9.009009009 | 42° |
2.3 | 200 | 25.53 | 7.833920877 | |||
3.7 | 300 | 41.07 | 7.304601899 | |||
5.5 | 400 | 61.05 | 6.552006552 | |||
7.5 | 500 | 83.25 | 6.006006006 | |||
9.6 | 600 | 106.56 | 5.630630631 | |||
11.6 | 700 | 128.76 | 5.436470954 | |||
14.2 | 800 | 157.62 | 5.075498033 | |||
16.7 | 900 | 185.37 | 4.855154556 | |||
20.8 | 1040 | 230.88 | 4.504504505 | |||
APC9045 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 42° |
2.1 | 200 | 23.31 | 8.58000858 | |||
3.7 | 300 | 41.07 | 7.304601899 | |||
5.3 | 400 | 58.83 | 6.799252082 | |||
7 | 500 | 77.7 | 6.435006435 | |||
9 | 600 | 99.9 | 6.006006006 | |||
10.9 | 700 | 120.99 | 5.785602116 | |||
13.3 | 800 | 147.63 | 5.418952787 | |||
17.5 | 980 | 194.25 | 5.045045045 | |||
APC8060 | 11.1 | 1.1 | 100 | 12.21 | 8.19000819 | 57° |
2.9 | 200 | 32.19 | 6.213109661 | |||
4.8 | 300 | 53.28 | 5.630630631 | |||
7 | 400 | 77.7 | 5.148005148 | |||
9.3 | 500 | 103.23 | 4.843553231 | |||
11.8 | 600 | 130.98 | 4.580852038 | |||
14.7 | 700 | 163.17 | 4.29000429 | |||
17 | 780 | 188.7 | 4.13354531 | |||
14.8 | 0.9 | 100 | 13.32 | 7.507507508 | ||
2.2 | 200 | 32.56 | 6.142506143 | |||
3.9 | 300 | 57.72 | 5.197505198 | |||
5.6 | 400 | 82.88 | 4.826254826 | |||
7.5 | 500 | 111 | 4.504504505 | |||
9.6 | 600 | 142.08 | 4.222972973 | |||
12.3 | 700 | 182.04 | 3.845308723 | |||
14.7 | 800 | 217.56 | 3.677146534 | |||
17.2 | 900 | 254.56 | 3.535512256 | |||
20.3 | 1000 | 300.44 | 3.328451604 | |||
26.5 | 1210 | 392.2 | 3.085160632 | |||
APC9047 | 11.1 | 0.8 | 100 | 8.88 | 11.26126126 | 45° |
2.1 | 200 | 23.31 | 8.58000858 | |||
3.5 | 300 | 38.85 | 7.722007722 | |||
5.1 | 400 | 56.61 | 7.065889419 | |||
6.9 | 500 | 76.59 | 6.528267398 | |||
8.8 | 600 | 97.68 | 6.142506143 | |||
10.7 | 700 | 118.77 | 5.893744212 | |||
13.3 | 800 | 147.63 | 5.418952787 | |||
16.1 | 950 | 178.71 | 5.315874881 |
KV1400
Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
---|---|---|---|
Stator Thickness | 16mm | Shaft Diameter | 3.175mm |
No.of Stator Slots | 12 | Body Length (Without Shaft) | 34mm |
No.of Rotor Poles | 14 | Body Length | 36.5mm |
Motor Kv | 1400 | Max Lipo Cell | 2-4S |
No-load current | 1.3A/10V | ESC | 40A |
Motor Resistance | 55mΩ | Recommended Prop(inch) | APC9047/APC9045/APC9060/APC8060/APC7060 |
Max Continuous Current | 33A/30s | Weight for aerobatics airplane | 760g (3S 9060\9047\9045) (4S 8060) |
Max Continuous Power | 540W | Weight for 3D airplane | 650g (3S 9047) |
Weight |
72g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC9060 | 11.1 | 1 | 100 | 11.1 | 9.009009009 | 48° |
2.3 | 200 | 25.53 | 7.833920877 | |||
4.1 | 300 | 45.51 | 6.591957811 | |||
6 | 400 | 66.6 | 6.006006006 | |||
8.1 | 500 | 89.91 | 5.561116672 | |||
10.3 | 600 | 114.33 | 5.247966413 | |||
13.3 | 700 | 147.63 | 4.741583689 | |||
15.6 | 800 | 173.16 | 4.62000462 | |||
18.5 | 900 | 205.35 | 4.38276114 | |||
21.4 | 1000 | 237.54 | 4.209817294 | |||
24.7 | 1100 | 274.17 | 4.012109275 | |||
28.2 | 1230 | 313.02 | 3.929461376 | |||
APC9047 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 50° |
2.1 | 200 | 23.31 | 8.58000858 | |||
3.6 | 300 | 39.96 | 7.507507508 | |||
5.4 | 400 | 59.94 | 6.673340007 | |||
7.4 | 500 | 82.14 | 6.087168249 | |||
9.5 | 600 | 105.45 | 5.689900427 | |||
11.6 | 700 | 128.76 | 5.436470954 | |||
14.2 | 800 | 157.62 | 5.075498033 | |||
16.5 | 900 | 183.15 | 4.914004914 | |||
19 | 1000 | 210.9 | 4.741583689 | |||
21.8 | 1100 | 241.98 | 4.545830234 | |||
24.6 | 1220 | 273.06 | 4.467882517 | |||
APC9045 | 11.1 | 0.8 | 100 | 8.88 | 11.26126126 | 44° |
2.1 | 200 | 23.31 | 8.58000858 | |||
3.7 | 300 | 41.07 | 7.304601899 | |||
5.4 | 400 | 59.94 | 6.673340007 | |||
7.5 | 500 | 83.25 | 6.006006006 | |||
9.4 | 600 | 104.34 | 5.750431282 | |||
11.8 | 700 | 130.98 | 5.344327378 | |||
13.9 | 800 | 154.29 | 5.185041156 | |||
16.9 | 900 | 187.59 | 4.797697105 | |||
19 | 1000 | 210.9 | 4.741583689 | |||
23.9 | 1190 | 265.29 | 4.485657205 | |||
APC7060 | 14.8 | 1.3 | 100 | 19.24 | 5.197505198 | 50° |
2.9 | 200 | 42.92 | 4.659832246 | |||
4.8 | 300 | 71.04 | 4.222972973 | |||
7.3 | 400 | 108.04 | 3.702332469 | |||
10 | 500 | 148 | 3.378378378 | |||
13.1 | 600 | 193.88 | 3.094697751 | |||
16.5 | 700 | 244.2 | 2.866502867 | |||
19.8 | 800 | 293.04 | 2.73000273 | |||
23.6 | 900 | 349.28 | 2.576729272 | |||
25.9 | 980 | 383.32 | 2.556610665 | |||
APC8060 | 11.1 | 1.3 | 100 | 14.43 | 6.93000693 | 62° |
3.2 | 200 | 35.52 | 5.630630631 | |||
5.4 | 300 | 59.94 | 5.005005005 | |||
7.6 | 400 | 84.36 | 4.741583689 | |||
10.2 | 500 | 113.22 | 4.416180887 | |||
13 | 600 | 144.3 | 4.158004158 | |||
16 | 700 | 177.6 | 3.941441441 | |||
20 | 800 | 222 | 3.603603604 | |||
23.5 | 890 | 260.85 | 3.411922561 | |||
14.8 | 1 | 100 | 14.8 | 6.756756757 | ||
2.4 | 200 | 35.52 | 5.630630631 | |||
4.1 | 300 | 60.68 | 4.943968359 | |||
5.8 | 400 | 85.84 | 4.659832246 | |||
8 | 500 | 118.4 | 4.222972973 | |||
10.8 | 600 | 159.84 | 3.753753754 | |||
13.4 | 700 | 198.32 | 3.529649052 | |||
16.4 | 800 | 242.72 | 3.295978906 | |||
19.4 | 900 | 287.12 | 3.134577877 | |||
22.8 | 1000 | 337.44 | 2.963489806 | |||
31.5 | 1200 | 466.2 | 2.574002574 | |||
36.5 | 1380 | 540.2 | 2.554609404 |
KV1800
Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
---|---|---|---|
Stator Thickness | 16mm | Shaft Diameter | 3.175mm |
No.of Stator Slots | 12 | Body Length (Without Shaft) | 34mm |
No.of Rotor Poles | 14 | Body Length | 36.5mm |
Motor Kv | 1800 | Max Lipo Cell | 2-4S |
No-load current | 1.6A/10V | ESC | 40A |
Motor Resistance | 29mΩ | Recommended Prop(inch) | APC7050/APC7060/APC6040 |
Max Continuous Current | 35A/30s |
Weight for aerobatics airplane
|
680g (3S APC7060\7050) (4S APC6040) |
Max Continuous Power | 350W | ||
Weight |
70g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC6040 | 14.8 | 1.9 | 100 | 28.12 | 3.556187767 | 43° |
3.7 | 200 | 54.76 | 3.65230095 | |||
5.6 | 300 | 82.88 | 3.61969112 | |||
8.2 | 400 | 121.36 | 3.295978906 | |||
11.1 | 500 | 164.28 | 3.043584125 | |||
14 | 600 | 207.2 | 2.895752896 | |||
16.6 | 700 | 245.68 | 2.849234777 | |||
20 | 800 | 296 | 2.702702703 | |||
23.5 | 890 | 347.8 | 2.558941921 | |||
APC7050 | 11.1 | 1.7 | 100 | 18.87 | 5.299417064 | 53° |
4.1 | 200 | 45.51 | 4.394638541 | |||
6.8 | 300 | 75.48 | 3.974562798 | |||
10.2 | 400 | 113.22 | 3.532944709 | |||
13.8 | 500 | 153.18 | 3.264133699 | |||
18 | 600 | 199.8 | 3.003003003 | |||
22.9 | 700 | 254.19 | 2.753845549 | |||
27.6 | 800 | 306.36 | 2.611306959 | |||
34.4 | 930 | 381.84 | 2.43557511 | |||
APC7060 | 11.1 | 1.9 | 100 | 21.09 | 4.741583689 | 56° |
4.3 | 200 | 47.73 | 4.190236748 | |||
7.1 | 300 | 78.81 | 3.806623525 | |||
10.8 | 400 | 119.88 | 3.336670003 | |||
14.7 | 500 | 163.17 | 3.064288779 | |||
18.9 | 600 | 209.79 | 2.86000286 | |||
23.8 | 700 | 264.18 | 2.649708532 | |||
28.7 | 800 | 318.57 | 2.511222023 | |||
37.4 | 960 | 415.14 | 2.312472901 |
KV2400
Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
---|---|---|---|
Stator Thickness | 16mm | Shaft Diameter | 3.175mm |
No.of Stator Slots | 12 | Body Length (Without Shaft) | 34mm |
No.of Rotor Poles | 10 | Body Length | 36.5mm |
Motor Kv | 2400 | Max Lipo Cell | 3-4S |
No-load current | 1.7A/10V | ESC | 60A |
Motor Resistance | 29mΩ | Recommended Prop(inch) | APC6040 |
Max Continuous Current | 40A/30s | Weight for tail-pushed Aerobatics | 650g (4S APC6040) |
Max Continuous Power | 710W | ||
Weight |
67g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
APC6040 | 11.1 | 2.3 | 100 | 25.53 | 3.916960439 | 43° |
4.7 | 200 | 52.17 | 3.833620855 | |||
7.4 | 300 | 82.14 | 3.65230095 | |||
10.6 | 400 | 117.66 | 3.399626041 | |||
14.3 | 500 | 158.73 | 3.15000315 | |||
17.8 | 600 | 197.58 | 3.03674461 | |||
22.5 | 700 | 249.75 | 2.802802803 | |||
25.4 | 790 | 281.94 | 2.802014613 | |||
14.8 | 1.6 | 100 | 23.68 | 4.222972973 | 69° | |
4 | 200 | 59.2 | 3.378378378 | |||
6.2 | 300 | 91.76 | 3.269398431 | |||
8.2 | 400 | 121.36 | 3.295978906 | |||
11.2 | 500 | 165.76 | 3.016409266 | |||
14.4 | 600 | 213.12 | 2.815315315 | |||
17.8 | 700 | 263.44 | 2.657151534 | |||
21.3 | 800 | 315.24 | 2.537749017 | |||
25.3 | 900 | 374.44 | 2.40358936 | |||
30 | 1000 | 444 | 2.252252252 | |||
34.8 | 1100 | 515.04 | 2.135756446 | |||
39.6 | 1200 | 586.08 | 2.047502048 | |||
48 | 1360 | 710.4 | 1.914414414 |
[/TABS]
