$24.95
Availability: 11 In Stock
Sku: SS-XV3-X2220-980
[TABS]OVERVIEW

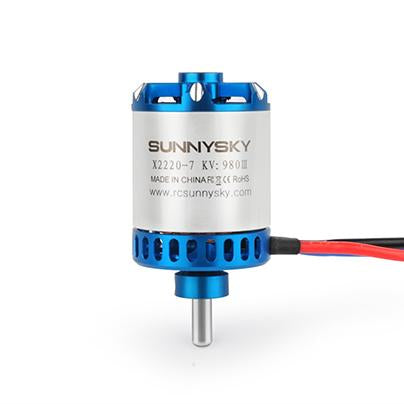

KV980
Stator Diameter 22mm Rotor Diameter 27.7mm
Stator Thickness 20mm Body Length 38mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 40A
Motor Kv 980 Recommended Prop(inch) APC9047/APC9045/APC9060/APC1047/APC1147
No-load current 0.7A/10V Weight for aerobatics airplane 1100g (4S APC9060\APC1047\APC1050)
Motor Resistance 51mΩ Single weight for multirotors 600g (3S APC1038\APC1047) (4S APC8038\APC8043\APC8045\APC9047)
Max Continuous Current 38A/30s Weight for 3D airplane 800-900g (3-4S APC1047\APC1147)
Max Continuous Power 638W
Weight 85g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC9060 11.1 1 100 11.1 9.01 3146 85℃ 2min
2.5 200 27.75 7.21 4388
4.1 300 45.51 6.59 5265
5.5 400 61.05 6.55 6060
7.2 500 79.92 6.26 6710
9.1 600 101.01 5.94 7229
10.9 700 120.99 5.79 7843
13.7 800 152.07 5.26 8442
16.5 900 183.15 4.91 8886
18.7 1020 207.57 4.91 9583
14.8 0.8 100 11.84 8.45 3108
1.8 200 26.64 7.51 4296
2.9 300 42.92 6.99 5210
4.2 400 62.16 6.44 5949
5.6 500 82.88 6.03 6823
7.1 600 105.08 5.71 7303
8.6 700 127.28 5.50 7801
10.8 800 159.84 5.01 8398
12.6 900 186.48 4.83 8827
14.3 1000 211.64 4.73 9338
17.4 1100 257.52 4.27 9692
20.1 1200 297.48 4.03 10167
22.8 1300 337.44 3.85 10690
25.8 1400 381.84 3.67 10900
28.6 1536 423.28 3.63 11702
16.8 0.8 100 13.44 7.44 3120
1.6 200 26.88 7.44 4462
2.6 300 43.68 6.87 5250
3.7 400 62.16 6.44 6006
5 500 84 5.95 6715
6.6 600 110.88 5.41 7276
7.9 700 132.72 5.27 7856
9.5 800 159.6 5.01 8451
11 900 184.8 4.87 8827
12.9 1000 216.72 4.61 9303
15.1 1100 253.68 4.34 9743
17.7 1200 297.36 4.04 10226
20.3 1300 341.04 3.81 10532
22.6 1400 379.68 3.69 10949
25.8 1500 433.44 3.46 11186
28.2 1600 473.76 3.38 11580
32.3 1700 542.64 3.13 11906
35.8 1850 601.44 3.08 12822
APC1047 11.1 0.8 100 8.88 11.26 2520 90℃ 1min
1.8 200 19.98 10.01 3490
3.3 300 36.63 8.19 4256
4.8 400 53.28 7.51 4755
6.6 500 73.26 6.83 5305
7.8 600 86.58 6.93 5791
9.9 700 109.89 6.37 6167
11.6 800 128.76 6.21 6608
14.2 900 157.62 5.71 6924
16.3 1000 180.93 5.53 7332
18.5 1100 205.35 5.36 7657
21 1200 233.1 5.15 7993
24 1300 266.4 4.88 8319
27 1454 299.7 4.85 8620
14.8 0.6 100 8.88 11.26 2527
1.4 200 20.72 9.65 3517
2.3 300 34.04 8.81 4236
3.5 400 51.8 7.72 4784
4.8 500 71.04 7.04 5310
6 600 88.8 6.76 5757
7.9 700 116.92 5.99 6200
9.4 800 139.12 5.75 6621
11.1 900 164.28 5.48 7020
13 1000 192.4 5.20 7318
14.6 1100 216.08 5.09 7625
17.1 1200 253.08 4.74 7990
19 1300 281.2 4.62 8287
21.2 1400 313.76 4.46 8505
23.2 1500 343.36 4.37 8860
26.1 1600 386.28 4.14 9120
29.3 1700 433.64 3.92 9405
35 1900 518 3.67 10082
38.4 2130 568.32 3.75 10476
APC9045 11.1 1.2 100 13.32 7.51 3476 75℃ 10min
2.5 200 27.75 7.21 4870
3.9 300 43.29 6.93 5722
5.2 400 57.72 6.93 6572
6.9 500 76.59 6.53 7300
8.6 600 95.46 6.29 8000
10.6 700 117.66 5.95 8600
12.7 800 140.97 5.67 9135
15.8 960 175.38 5.47 9800
14.8 0.9 100 13.32 7.51 3488
1.8 200 26.64 7.51 4890
3 300 44.4 6.76 5710
4.3 400 63.64 6.29 6571
5.4 500 79.92 6.26 7298
6.8 600 100.64 5.96 7995
8.1 700 119.88 5.84 8600
9.8 800 145.04 5.52 9124
11.4 900 168.72 5.33 9570
13.3 1000 196.84 5.08 10231
15.5 1100 229.4 4.80 10606
17.3 1200 256.04 4.69 11075
19.3 1300 285.64 4.55 11407
21.4 1400 316.72 4.42 11787
23.6 1506 349.28 4.31 12305
16.8 0.8 100 13.44 7.44 3482
1.6 200 26.88 7.44 4808
2.6 300 43.68 6.87 5777
3.7 400 62.16 6.44 6656
5.1 500 85.68 5.84 7378
6.1 600 102.48 5.85 8083
7.6 700 127.68 5.48 8618
8.8 800 147.84 5.41 9165
10.5 900 176.4 5.10 9577
12.2 1000 204.96 4.88 10237
13.8 1100 231.84 4.74 10682
15.5 1200 260.4 4.61 11085
17.5 1300 294 4.42 11404
19.7 1400 330.96 4.23 11795
21.3 1500 357.84 4.19 12160
24 1600 403.2 3.97 12605
28.5 1835 478.8 3.83 13409
APC9047 11.1 1 100 11.1 9.01 3426 67℃ 10min
2.2 200 24.42 8.19 4217
3.6 300 39.96 7.51 5588
4.9 400 54.39 7.35 6520
6.5 500 72.15 6.93 7280
8.2 600 91.02 6.59 8000
10.2 700 113.22 6.18 8730
12.3 800 136.53 5.86 9350
16.4 945 182.04 5.19 10050
14.8 0.8 100 11.84 8.45 3146
1.6 200 23.68 8.45 4527
2.7 300 39.96 7.51 5592
4 400 59.2 6.76 6521
5.3 500 78.44 6.37 7243
6.5 600 96.2 6.24 7994
8.2 700 121.36 5.77 8698
9.6 800 142.08 5.63 9338
11.2 900 165.76 5.43 9890
13 1000 192.4 5.20 10416
15.2 1100 224.96 4.89 11031
17.2 1200 254.56 4.71 11606
18.9 1300 279.72 4.65 11985
22.1 1450 327.08 4.43 12622
16.8 0.8 100 13.44 7.44 3276
1.5 200 25.2 7.94 4592
2.6 300 43.68 6.87 5603
3.6 400 60.48 6.61 6523
4.8 500 80.64 6.20 7291
6.1 600 102.48 5.85 8070
7.4 700 124.32 5.63 8753
8.9 800 149.52 5.35 9328
10.5 900 176.4 5.10 9986
11.8 1000 198.24 5.04 10550
13.6 1100 228.48 4.81 11054
15.6 1200 262.08 4.58 11617
17 1300 285.6 4.55 12095
18.9 1400 317.52 4.41 12629
21.4 1500 359.52 4.17 13164
23.3 1600 391.44 4.09 13464
25.2 1720 423.36 4.06 13965



KV1400
Stator Diameter 22mm Rotor Diameter 27.7mm
Stator Thickness 20mm Body Length 38mm
No.of Stator Slots 12 Max Lipo Cell 3S
No.of Rotor Poles 14 ESC 40-60A
Motor Kv 1400 ESC APC9045/APC9047/APC9060/APC8060
No-load current 1.5A/10V
 Weight for aerobatics airplane
1000g (3S APC9060\APC9047\APC9045) (4S APC8060)
Motor Resistance 29mΩ Weight for 3D airplane 750-850g (3S APC9047\APC9060)
Max Continuous Current 45A/30s
Max Continuous Power 745W
Weight 85g
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
APC9045 11.1 1.2 100 13.32 7.51 3343 59℃ 10min
2.6 200 28.86 6.93 4698
4.4 300 48.84 6.14 5640
6.1 400 67.71 5.91 6606
7.9 500 87.69 5.70 7347
9.7 600 107.67 5.57 8017
12 700 133.2 5.26 8581
14.3 800 158.73 5.04 9005
16.5 900 183.15 4.91 9618
19 1000 210.9 4.74 10146
21.8 1100 241.98 4.55 10668
25.1 1200 278.61 4.31 11082
28.3 1300 314.13 4.14 11580
31.8 1400 352.98 3.97 11778
36 1500 399.6 3.75 12354
APC9047 11.1 1.1 100 12.21 8.19 3279 54℃ 10min
2.3 200 25.53 7.83 4604
4.1 300 45.51 6.59 5712
5.8 400 64.38 6.21 6517
7.5 500 83.25 6.01 7282
9.4 600 104.34 5.75 8017
11.7 700 129.87 5.39 8710
13.8 800 153.18 5.22 9401
16 900 177.6 5.07 9940
18.5 1000 205.35 4.87 10541
20.7 1100 229.77 4.79 10958
23.7 1200 263.07 4.56 11507
26.7 1300 296.37 4.39 12060
30.4 1430 337.44 4.24 12680
APC9060 11.1 1.2 100 13.32 7.51 3122 67℃ 10min
2.5 200 27.75 7.21 4370
4.2 300 46.62 6.44 5272
6.3 400 69.93 5.72 6002
8.5 500 94.35 5.30 6736
10.4 600 115.44 5.20 7406
12.5 700 138.75 5.05 8006
15.1 800 167.61 4.77 8407
18.5 900 205.35 4.38 8882
20.8 1000 230.88 4.33 9333
24.1 1100 267.51 4.11 9776
27.8 1200 308.58 3.89 10158
31.4 1300 348.54 3.73 10604
36.6 1400 406.26 3.45 10873
40.9 1549 453.99 3.41 11679



[/TABS]

Orders are shipped from Columbus, the capital city of Ohio, USA.

An order placed before 2:00pm Eastern Standard Time will be shipped the same working day.

We ship on Monday-Friday by US postal service (USPS) and UPS, and Saturday morning by USPS if a local post office is open. Any order placed on Saturday morning may or may not be shipped the same day. Orders placed on Sunday and US holidays will be shipped the next working day.

Domestic:

Retail orders above $80 may be eligible for free shipping, including contiguous United States, Alaska, Guam, Hawaii, Puerto Rico, and APO addresses. We will use either USPS or UPS that most packages can be delivered in 3-5 working days, but not guaranteed. However, for packages contain large and heavy items, such as power supply, we may use parcel post service or UPS Surepost that may take up to 7 working days to be delivered.

USPS First Class Mail and Priority Mail, Express Mail, and UPS services can be used for domestic addresses. Tracking number and delivery confirmation will be provided to the customer when they are available. If you have not received a tracking information E-mail, please log into your account and click the "view order" link, then click "Track your order" link to find out the tracking number and ship method.

USPS Priority Mail is typically delivered in 3 working days. But very occasionally a priority mail package may be delayed for several days in the mailing system. If delivery time is extremely critical to your order, we would recommend Priority Mail Express or other couriers.

Domestic First Class Mail is only 1-2 days slower than Priority Mail in delivery. We suggest domestic customers choose First Class Mail for an order under 15 oz to save shipping cost.

Real shipping cost is calculated according to package weight and distance, and can be found in the checkout page after delivery address is specified in the fields.

Any order of $200 and above requires addressee's signature confirmation upon receipt of the package. Please contact us in advance or leave a comment in the message box if you want to waive signature confirmation.

We always check the legality of potential fraudulent orders. This procedure may lead to 1-2 working days delay in shipping in some rare cases.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

International:

DHL, DHL Express, US Postal Service (USPS) First Class Mail, Priority Mail, and Express Mail (EMS), and UPS services can be selected for international addresses. Shipping cost is calculated according to package weight and distance, and can be found in the check out process. A package usually takes around 7-10 days to be delivered, or occasionally up to 45 days depending on the processing speed in your country, especially in some countries such as Brazil and Russia.

USPS First Class Mail is a budget shipping method. As soon as a First Class Mail package left USPS Chicago hub there will be no tracking information available. If you need detailed tracking information and timely delivery please do not use this shipping method.

Presently we cannot ship lithium batteries internationally by US Post Service or any other air shipping method. Please select UPS Ground if your order contains LiPo or LiFe battery.

We do not ship products to shipping forwarding companies. Any order shows this kind of address will be cancelled and refunded without notification.

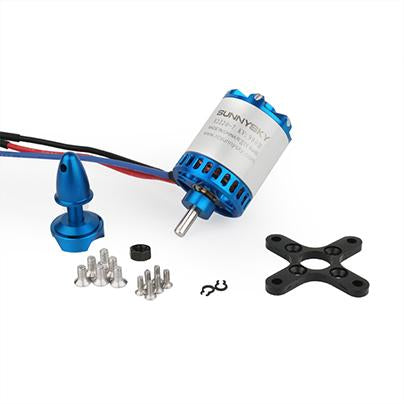

SunnySky X Series V3 X2220 V3 Brushless Motors
