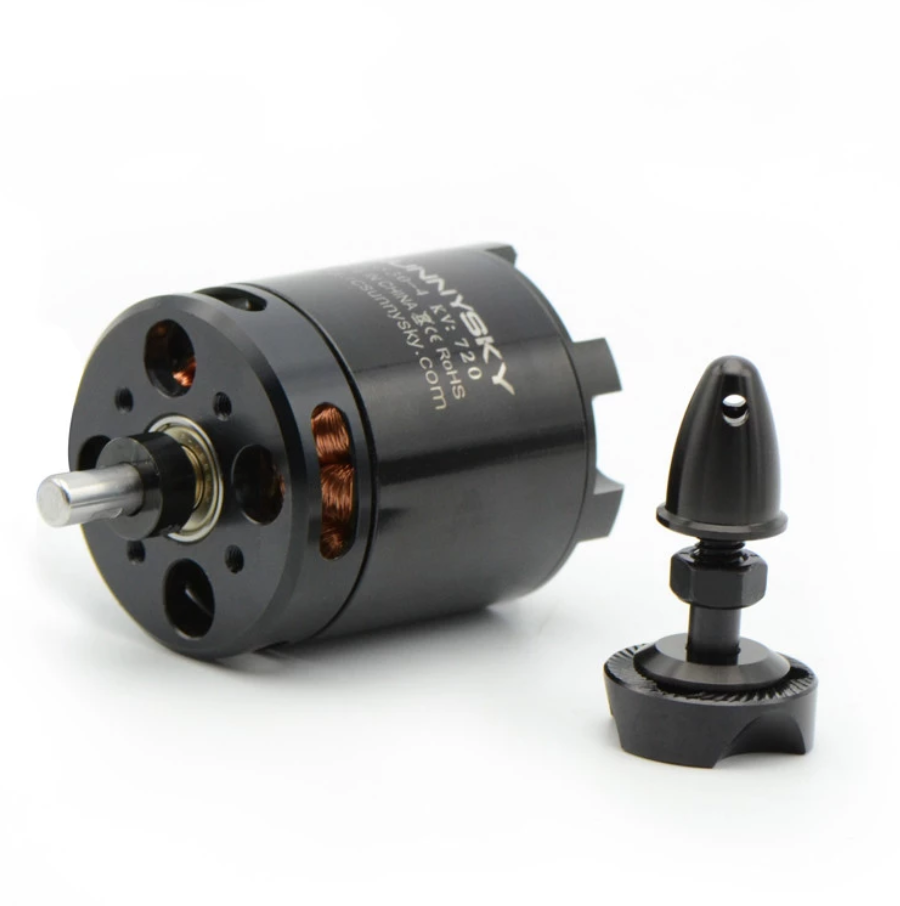

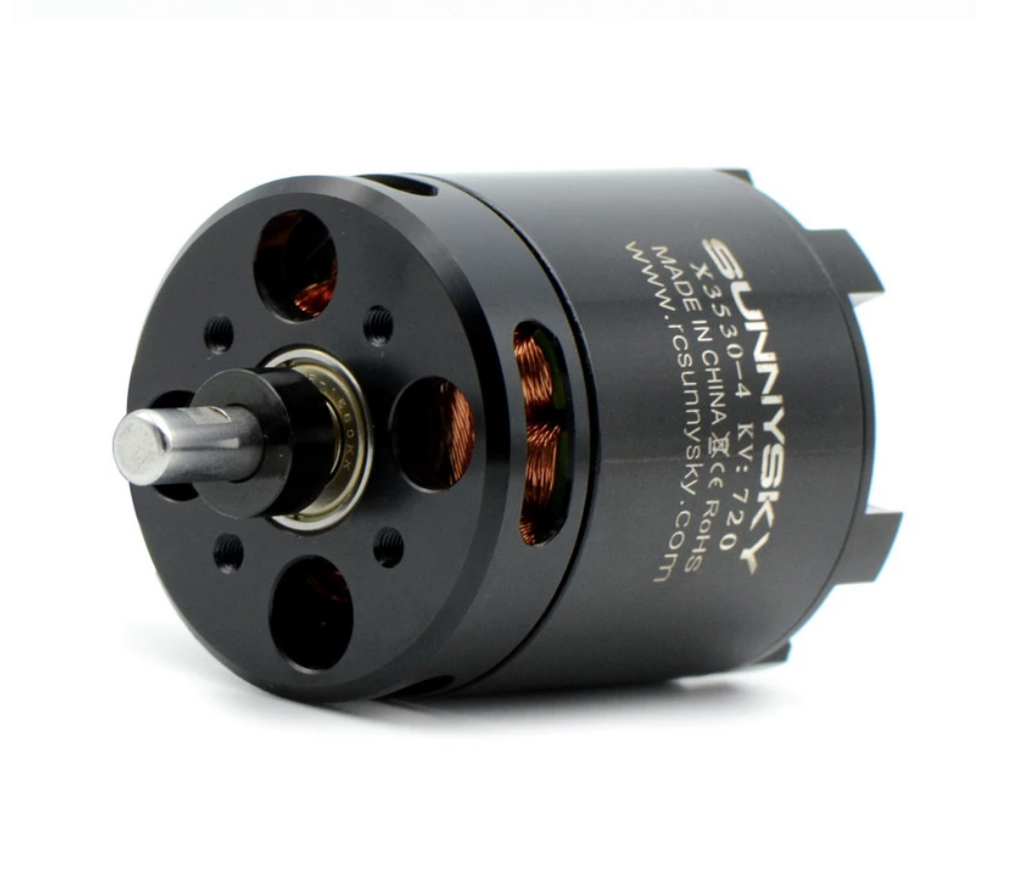

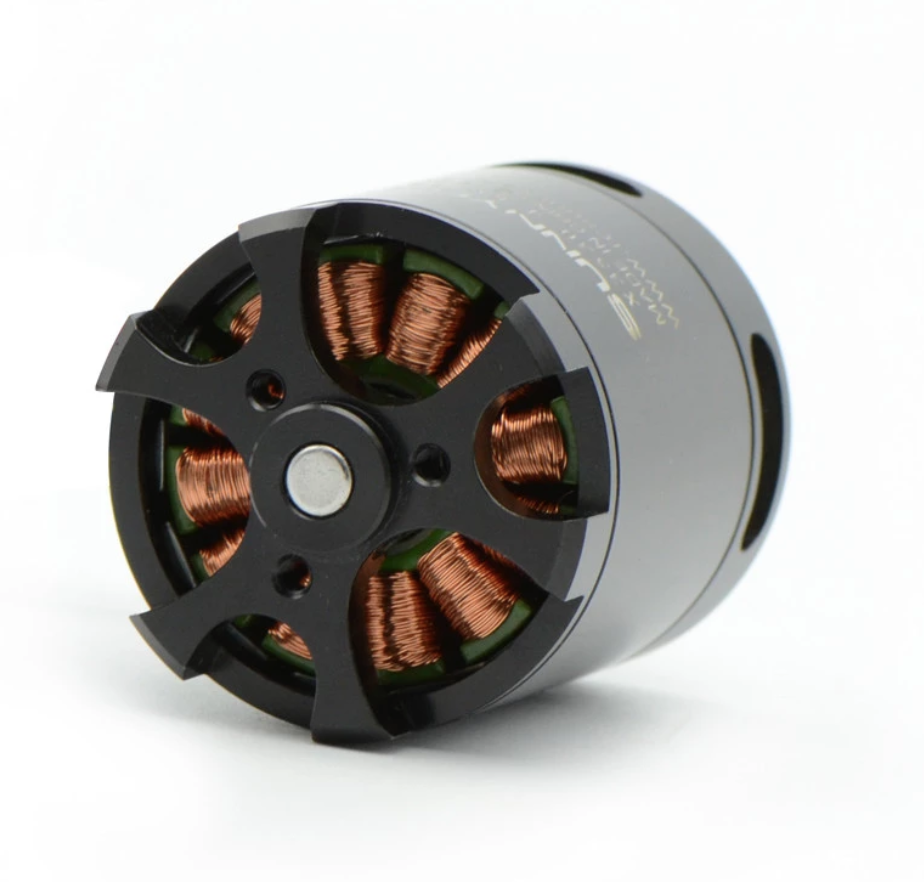

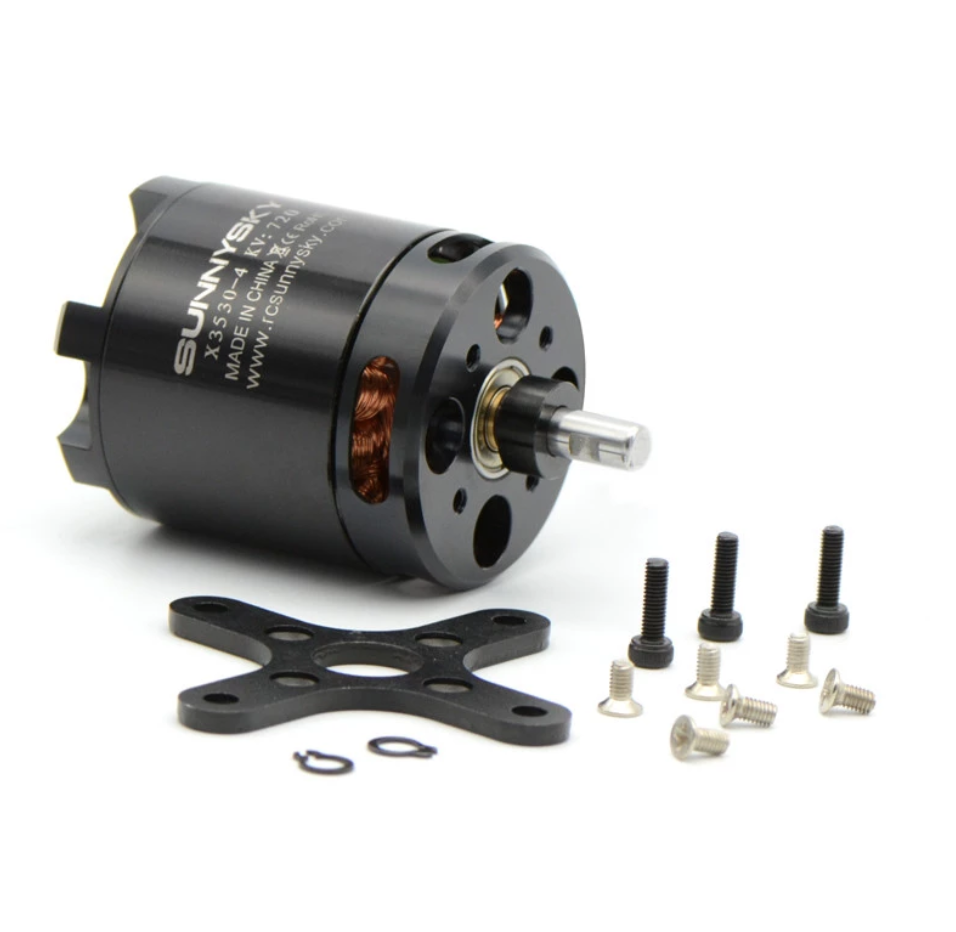

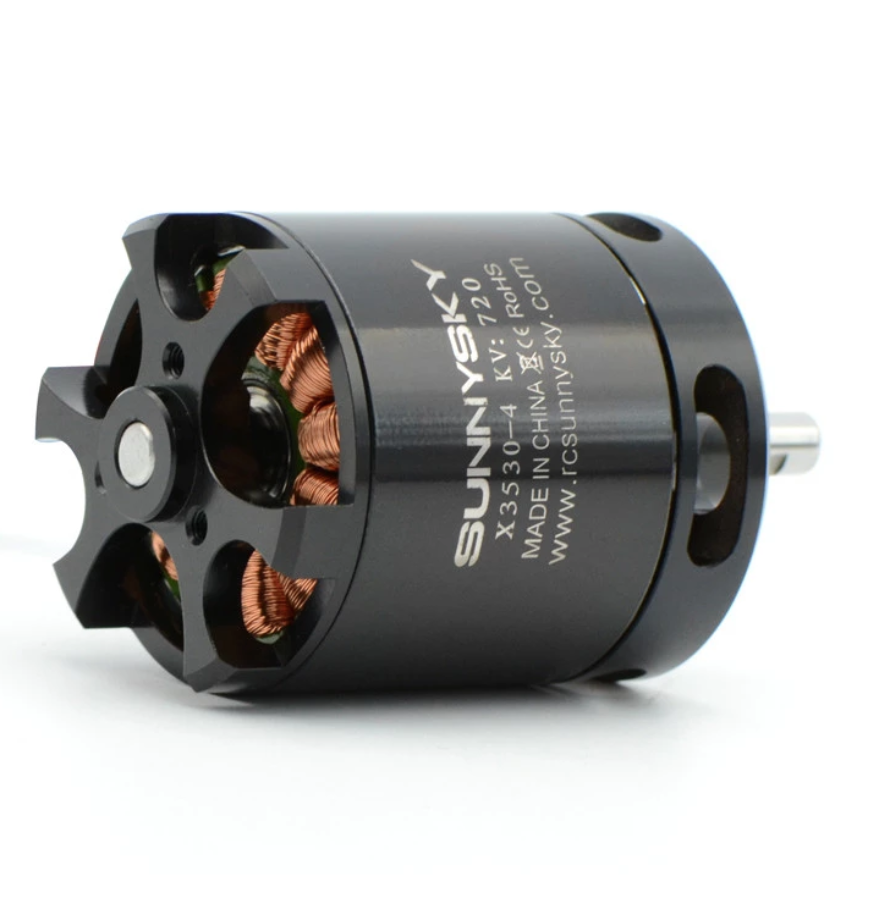

SunnySky X3530 KV720 Brushless Motor

SunnySkySKU: SNS-X3530-KV720

Sale price$75.00
Download Manual


Recommended propellers for the motor are as follows:

  • 4S LiPo with 15x8 or 15x10
  • 6S LiPo with 13x6 or 13x6.5

Motor specifications:

  • KV: 720
  • Configuration: 12N14P
  • Stator Diameter: 35mm
  • Stator Length: 30mm
  • Shaft Diameter: 6mm
  • Motor Dimension (Dia. x length): Φ43×55mm
  • Weight: 287g
  • Idle current (10)@10v(A): 1.5
  • No. of Cells (LiPo): 3-6S
  • Max Continuous current (A) 180 Second: 68A
  • Max Continuous Power (W) 180 Second: 1350W
  • Max. efficiency current (17-42A): >78%
  • Internal resistance: 23mΩ
