Description

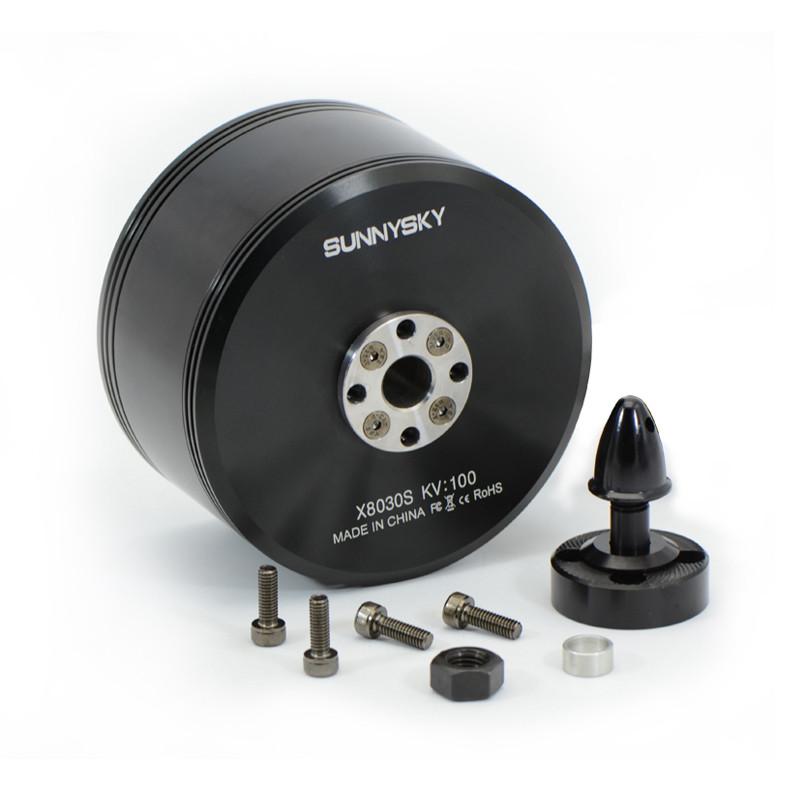

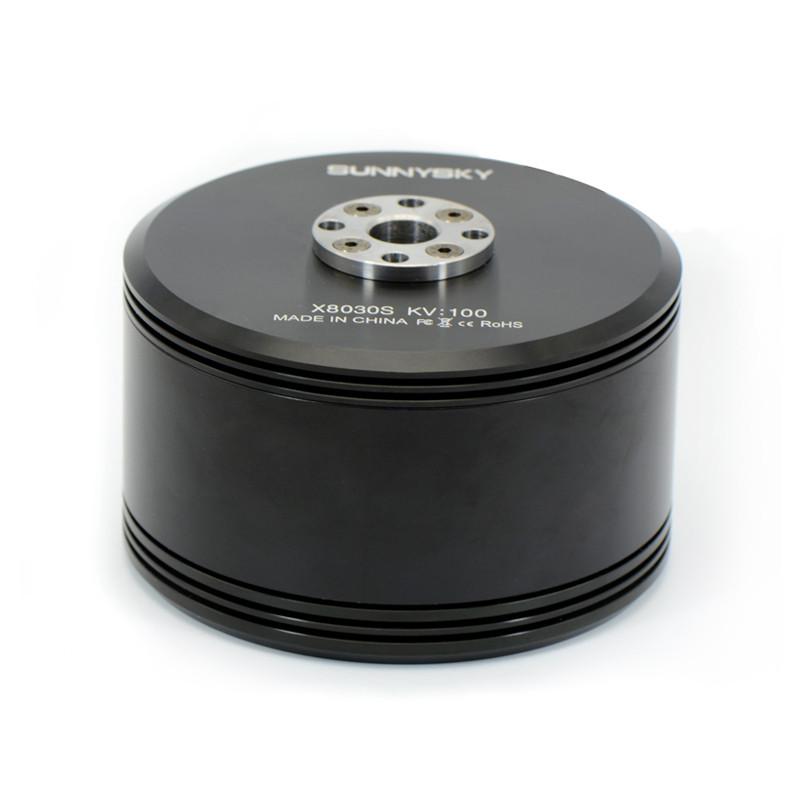

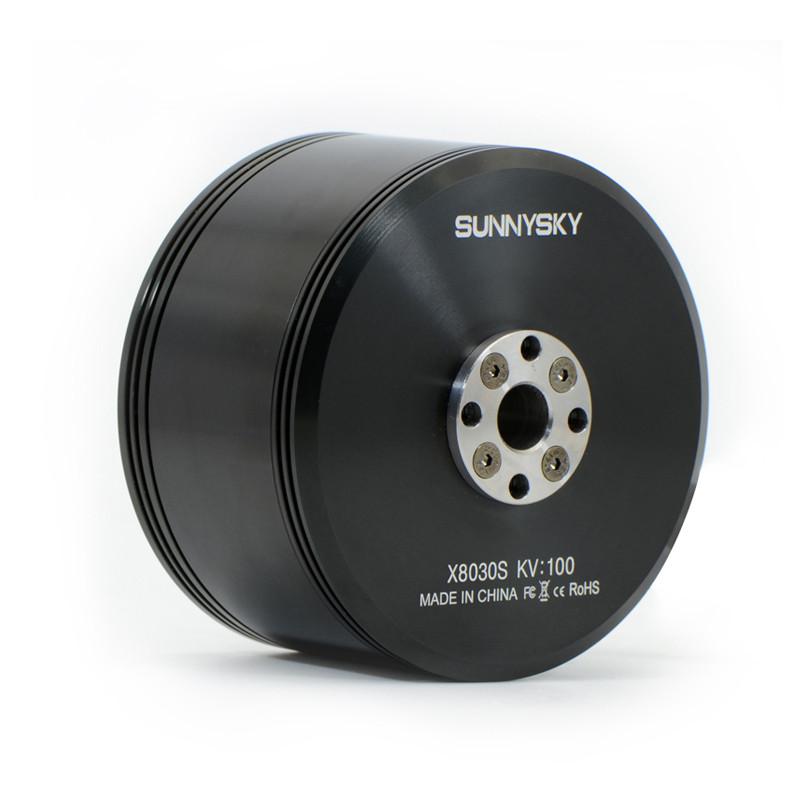

Powerful Multirotor Motors The XS motor boasts a new patented appearance designed with an excellent industrial vision. Its semi-enclosed structure effectively prevents sand and debris from entering the motor while also providing better ventilation and heat dissipation.
Advanced Large-Diameter EZO Bearings Each XS motor features advanced Japanese EZO bearings with large diameters, ensuring stable, quiet, and long-lasting performance.

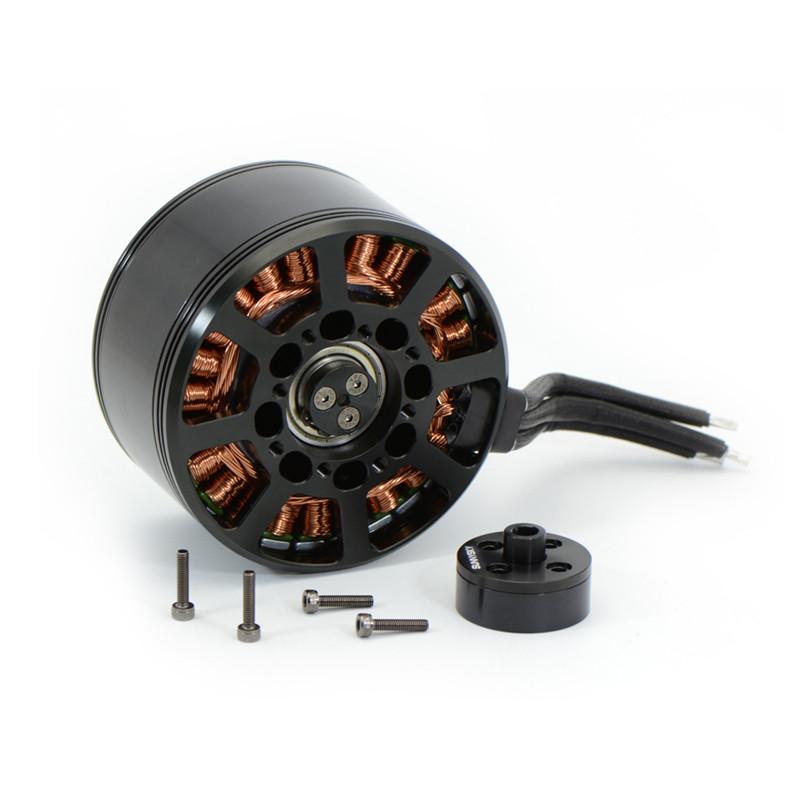

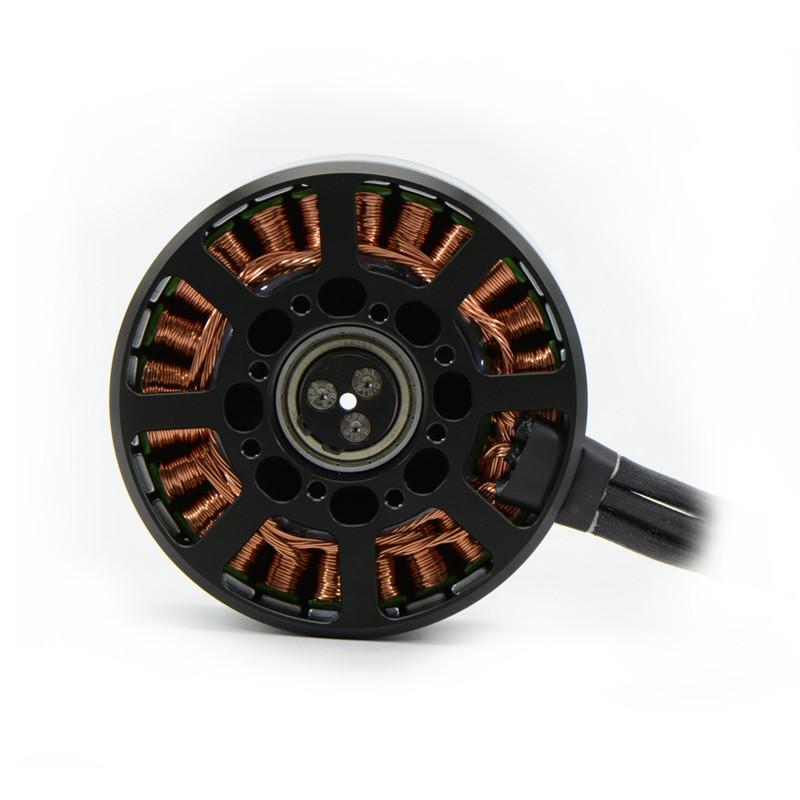

Hand-Wound The XS motor utilizes ultimate manual winding techniques, resulting in compact and neat coils with low internal resistance, high efficiency, and up to 90% coil space factor. This significantly increases the maximum continuous power of each XS motor.
Sunnysky Ultimate Manufacturing Technology The XS motor is manufactured using Sunnysky's ultimate manufacturing and assembly technology, resulting in excellent workmanship, precise dimensions, and minimal shaft and radial runouts. All of these factors ensure the motor runs smoothly and reliably in the air.
[TABS]OVERVIEW
KV100
Stator Diameter | 80mm | Rotor Diameter | 89.3mm |
---|---|---|---|
Stator Thickness | 20mm | Shaft Diameter | 10mm |
No.of Stator Slots | 24 | Body Length(without shaft) | 43mm |
No.of Rotor Poles | 28 | Body Length | 62.5mm |
Motor Kv | 100 | Max Lipo Cell | 12S |
No-load current | 1.8A/10V | ESC | 100A |
Motor Resistance | 57mΩ | Recommended Prop(inch) | 28*9.2/29*9.5/30*10.5 |
Max Continuous Current | 62A/30s | Recommended single take-off Weight | ≤8000g |
Max Continuous Power | 3100W | ||
Weight |
895g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
28*9.2 | 44.4 | 1.8 | 1000 | 79.92 | 12.51251251 | 58℃ |
4.2 | 2000 | 186.48 | 10.72501073 | |||
7.1 | 3000 | 315.24 | 9.516558812 | |||
10.5 | 4000 | 466.2 | 8.58000858 | |||
13.6 | 5000 | 603.84 | 8.280339163 | |||
18 | 6000 | 799.2 | 7.507507508 | |||
22 | 7000 | 976.8 | 7.166257166 | |||
26.3 | 8000 | 1167.72 | 6.850957421 | |||
32.4 | 9000 | 1438.56 | 6.256256256 | |||
37.5 | 10200 | 1665 | 6.126126126 | |||
50 | 1.5 | 1000 | 75 | 13.33333333 | 70℃ | |
3.5 | 2000 | 175 | 11.42857143 | |||
6.1 | 3000 | 305 | 9.836065574 | |||
9 | 4000 | 450 | 8.888888889 | |||
11.7 | 5000 | 585 | 8.547008547 | |||
15 | 6000 | 750 | 8 | |||
19 | 7000 | 950 | 7.368421053 | |||
23.1 | 8000 | 1155 | 6.926406926 | |||
27.3 | 9000 | 1365 | 6.593406593 | |||
31.5 | 10000 | 1575 | 6.349206349 | |||
46.5 | 12700 | 2325 | 5.462365591 | |||
29*9.5 | 44.4 | 1.8 | 1000 | 79.92 | 12.51251251 | 62℃ |
4 | 2000 | 177.6 | 11.26126126 | |||
6.8 | 3000 | 301.92 | 9.936406995 | |||
9.8 | 4000 | 435.12 | 9.192866336 | |||
12.9 | 5000 | 572.76 | 8.729659892 | |||
16.9 | 6000 | 750.36 | 7.996161842 | |||
21 | 7000 | 932.4 | 7.507507508 | |||
25.3 | 8000 | 1123.32 | 7.121746252 | |||
30 | 9000 | 1332 | 6.756756757 | |||
35.2 | 10000 | 1562.88 | 6.398443898 | |||
40.3 | 11000 | 1789.32 | 6.147586793 | |||
50 | 1.5 | 1000 | 75 | 13.33333333 | 84℃ | |
3.4 | 2000 | 170 | 11.76470588 | |||
5.8 | 3000 | 290 | 10.34482759 | |||
8.8 | 4000 | 440 | 9.090909091 | |||
11.7 | 5000 | 585 | 8.547008547 | |||
15 | 6000 | 750 | 8 | |||
18.5 | 7000 | 925 | 7.567567568 | |||
2.3 | 8000 | 115 | 69.56521739 | |||
26.9 | 9000 | 1345 | 6.691449814 | |||
31.3 | 10000 | 1565 | 6.389776358 | |||
40.9 | 12000 | 2045 | 5.86797066 | |||
50.1 | 13900 | 2505 | 5.548902196 | |||
30*10.5 | 44.4 | 1.5 | 1000 | 66.6 | 15.01501502 | 62℃ |
3.6 | 2000 | 159.84 | 12.51251251 | |||
6.2 | 3000 | 275.28 | 10.89799477 | |||
9.1 | 4000 | 404.04 | 9.9000099 | |||
12.6 | 5000 | 559.44 | 8.937508938 | |||
16 | 6000 | 710.4 | 8.445945946 | |||
20 | 7000 | 888 | 7.882882883 | |||
24.6 | 8000 | 1092.24 | 7.324397568 | |||
28.9 | 9000 | 1283.16 | 7.01393435 | |||
34.2 | 10000 | 1518.48 | 6.585532901 | |||
44.7 | 12000 | 1984.68 | 6.046314771 | |||
50 | 13100 | 2220 | 5.900900901 | |||
50 | 1.4 | 1000 | 70 | 14.28571429 | 110℃ | |
3.2 | 2000 | 160 | 12.5 | |||
5.5 | 3000 | 275 | 10.90909091 | |||
8.3 | 4000 | 415 | 9.638554217 | |||
11.1 | 5000 | 555 | 9.009009009 | |||
14.3 | 6000 | 715 | 8.391608392 | |||
18.2 | 7000 | 910 | 7.692307692 | |||
21.7 | 8000 | 1085 | 7.373271889 | |||
25.8 | 9000 | 1290 | 6.976744186 | |||
30 | 10000 | 1500 | 6.666666667 | |||
40 | 12000 | 2000 | 6 | |||
50.9 | 14000 | 2545 | 5.500982318 | |||
62.3 | 16400 | 3115 | 5.264847512 |
KV120
Stator Diameter | 80mm | Rotor Diameter | 89.3mm |
---|---|---|---|
Stator Thickness | 20mm | Shaft Diameter | 10mm |
No.of Stator Slots | 24 | Body Length(without shaft) | 43mm |
No.of Rotor Poles | 28 | Body Length | 62.5mm |
Motor Kv | 120 | Max Lipo Cell | 12S |
No-load current | 1.8A/10V | ESC | 100A |
Motor Resistance | 50mΩ | Recommended Prop(inch) | 28*9.2/29*9.5/30*10.5 |
Max Continuous Current | 84A/12s | Recommended single take-off Weight | ≤8000g |
Max Continuous Power | 4200W | ||
Weight |
895g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
28*9.2 | 44.4 | 1.8 | 1000 | 79.92 | 12.51251251 | 64℃ |
4.2 | 2000 | 186.48 | 10.72501073 | |||
7.1 | 3000 | 315.24 | 9.516558812 | |||
10.5 | 4000 | 466.2 | 8.58000858 | |||
13.6 | 5000 | 603.84 | 8.280339163 | |||
18 | 6000 | 799.2 | 7.507507508 | |||
22 | 7000 | 976.8 | 7.166257166 | |||
26.3 | 8000 | 1167.72 | 6.850957421 | |||
32.4 | 9000 | 1438.56 | 6.256256256 | |||
37.5 | 10000 | 1665 | 6.006006006 | |||
48.6 | 12000 | 2157.84 | 5.561116672 | |||
51.8 | 12700 | 2299.92 | 5.521931198 | |||
50 | 1.6 | 1000 | 80 | 12.5 | 5 min 105℃ | |
3.8 | 2000 | 190 | 10.52631579 | |||
6.3 | 3000 | 315 | 9.523809524 | |||
9 | 4000 | 450 | 8.888888889 | |||
12.1 | 5000 | 605 | 8.26446281 | |||
15.6 | 6000 | 780 | 7.692307692 | |||
19.2 | 7000 | 960 | 7.291666667 | |||
23.6 | 8000 | 1180 | 6.779661017 | |||
27.7 | 9000 | 1385 | 6.498194946 | |||
32.3 | 10000 | 1615 | 6.191950464 | |||
42.9 | 12000 | 2145 | 5.594405594 | |||
55.5 | 14000 | 2775 | 5.045045045 | |||
63.8 | 15800 | 3190 | 4.952978056 | |||
29*9.5 | 44.4 | 1.9 | 1000 | 84.36 | 11.85395922 | 68℃ |
4.1 | 2000 | 182.04 | 10.98659635 | |||
6.9 | 3000 | 306.36 | 9.792401097 | |||
10.1 | 4000 | 448.44 | 8.9198109 | |||
13.4 | 5000 | 594.96 | 8.403926314 | |||
17.5 | 6000 | 777 | 7.722007722 | |||
21.4 | 7000 | 950.16 | 7.367180264 | |||
26.5 | 8000 | 1176.6 | 6.799252082 | |||
31.7 | 9000 | 1407.48 | 6.394407025 | |||
36 | 10000 | 1598.4 | 6.256256256 | |||
47.9 | 12000 | 2126.76 | 5.642385601 | |||
56.2 | 13600 | 2495.28 | 5.450290148 | |||
50 | 1.6 | 1000 | 80 | 12.5 | 5 min 120℃ | |
3.7 | 2000 | 185 | 10.81081081 | |||
6.2 | 3000 | 310 | 9.677419355 | |||
8.9 | 4000 | 445 | 8.988764045 | |||
12.1 | 5000 | 605 | 8.26446281 | |||
15.6 | 6000 | 780 | 7.692307692 | |||
19.2 | 7000 | 960 | 7.291666667 | |||
23.3 | 8000 | 1165 | 6.86695279 | |||
27.6 | 9000 | 1380 | 6.52173913 | |||
32.3 | 10000 | 1615 | 6.191950464 | |||
42.6 | 12000 | 2130 | 5.633802817 | |||
53.2 | 14000 | 2660 | 5.263157895 | |||
68 | 16500 | 3400 | 4.852941176 | |||
30*10.5 | 44.4 | 1.6 | 1000 | 71.04 | 14.07657658 | 82℃ |
3.8 | 2000 | 168.72 | 11.85395922 | |||
6.4 | 3000 | 284.16 | 10.55743243 | |||
9.5 | 4000 | 421.8 | 9.483167378 | |||
12.7 | 5000 | 563.88 | 8.867134851 | |||
16.4 | 6000 | 728.16 | 8.239947264 | |||
20.5 | 7000 | 910.2 | 7.690617447 | |||
25 | 8000 | 1110 | 7.207207207 | |||
29.8 | 9000 | 1323.12 | 6.802104118 | |||
35 | 10000 | 1554 | 6.435006435 | |||
46 | 12000 | 2042.4 | 5.875440658 | |||
58.3 | 14000 | 2588.52 | 5.408495975 | |||
70 | 15900 | 3108 | 5.115830116 | |||
50 | 1.5 | 1000 | 75 | 13.33333333 | 3 min 120℃ | |
3.4 | 2000 | 170 | 11.76470588 | |||
5.7 | 3000 | 285 | 10.52631579 | |||
8.6 | 4000 | 430 | 9.302325581 | |||
11.5 | 5000 | 575 | 8.695652174 | |||
14.7 | 6000 | 735 | 8.163265306 | |||
18.6 | 7000 | 930 | 7.52688172 | |||
22 | 8000 | 1100 | 7.272727273 | |||
26.3 | 9000 | 1315 | 6.844106464 | |||
21.2 | 10000 | 1060 | 9.433962264 | |||
40.6 | 12000 | 2030 | 5.911330049 | |||
51.9 | 14000 | 2595 | 5.394990366 | |||
63.8 | 16000 | 3190 | 5.015673981 | |||
78.5 | 18000 | 3925 | 4.585987261 | |||
84 | 19000 | 4200 | 4.523809524 |
