Description
Vanquish Products H10 Optic Kit
EACH KIT INCLUDES 1 BODY SET, SELECTED AT RANDOM
KIT INCLUDES 1 OF 6 LIVERIES
The H10 Optic kit is packaged and shipped with a color and graphic livery that is selected at random. You do not get to select the version you receive. The box has no indication as to what option is included inside. Open your kit to reveal yours! Wheels, tires, and electronics are not included. See disclaimer at bottom.
1 OF 6 LIVERIES
TRAIL
PURPOSE BUILT BUGGY
H10 AXLES
HYDRO STEERING*
OPTIC BODY
MOLDED ABS HARDBODY
ONE OF SIX
UNIQUE LIVERIES

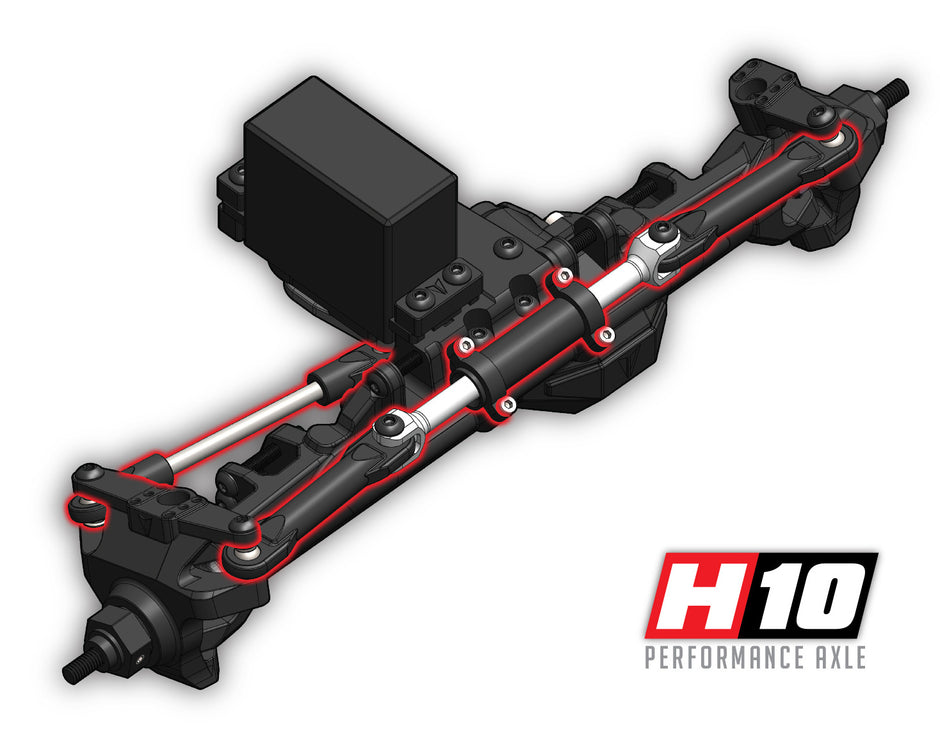

H10 HYDRO FRONT AXLE
Scale appearance meets performance with the new H10 Hydro Front Axle steering system. Developed to simulate a double ended hydraulic ram steering system used in off-road rigs. Utilizing a standard steering servo hidden behind the axle, the steering system is isolated from the chassis. The H10 Hydro front axle uses a 3pc ram that is protected and moved away from obstacles. The width of the H10 axle is increased by 0.600" compared to the F10 for even greater stability.
H10 HYDRO STEERING HIGHLIGHTS
4-LINK WITH AXLE MOUNTED SERVO
The Hyrdo ram replaces a traditional tie rod and the steering servo is hidden behind the axle. All new H10 steering knuckles allow for the steering drag link to be protected and out of sight. The Hydro front axle includes VDI universal axle shafts for 47° of steering angle.
HARD ANODIZED 90MM S8E SHOCKS
Incision S8E shocks feature a large 8mm bore with adjustable preload and a bleeder style cap. The lower cartridge features dual X-Rings and a compact design to maximize travel. The aluminum body is hard anodized for a smoother and longer lasting product.
DETAILED MOLDED TUBE CHASSIS
H10 CHASSIS DETAILS
The styling of the H10 chassis is derived from Trail Buggy’s built to tackle the world's toughest terrain in comfort and style. The 2-seat symmetrical design preserves a narrow overall width for easy navigation around obstacles. Short front and rear overhangs optimize approach and departure, allowing tires to hit obstacles first.
Battery Compartment Size: 93mm x 36mm x 42mm

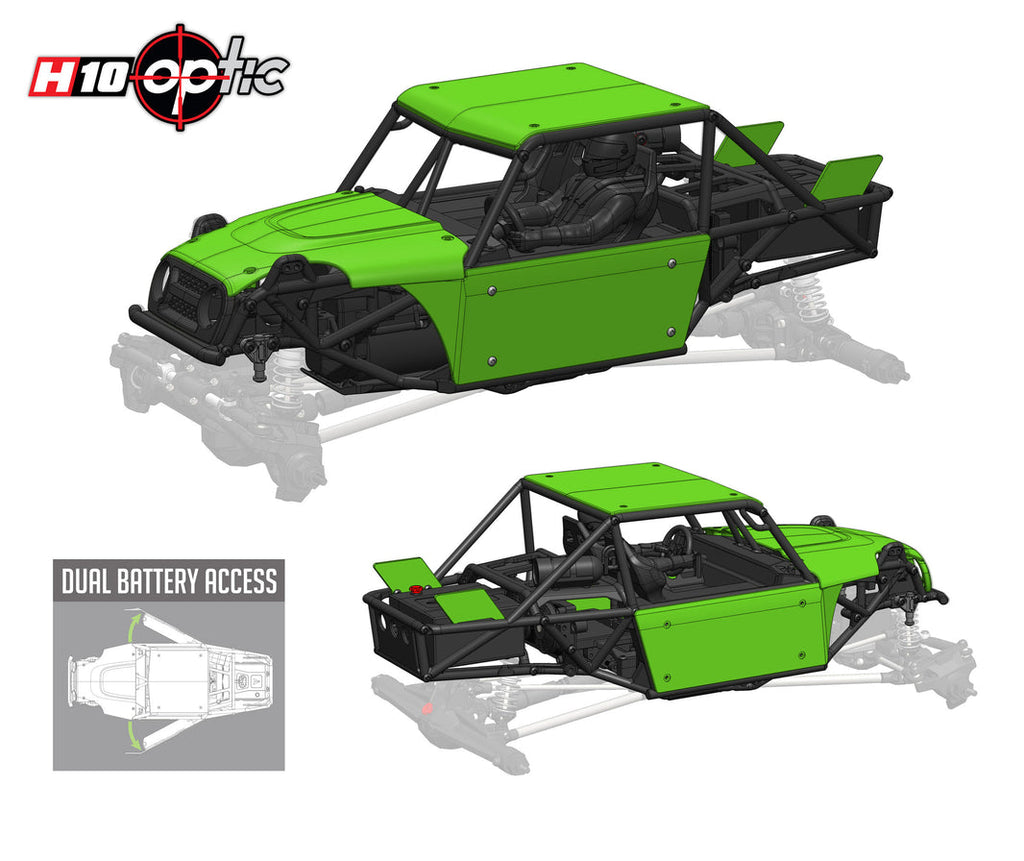

SECURE BATTERY ACCESS
The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.
High Pinion Design
Machined Gears in the Axles
The front and rear axles of the H10 Optic Kit get machined hypoid gears and chromoly spools. Made to hold up to whatever power you decide to run in your kit!
H10 MOLDED CAGE AND OPTIC ABS HARD BODY

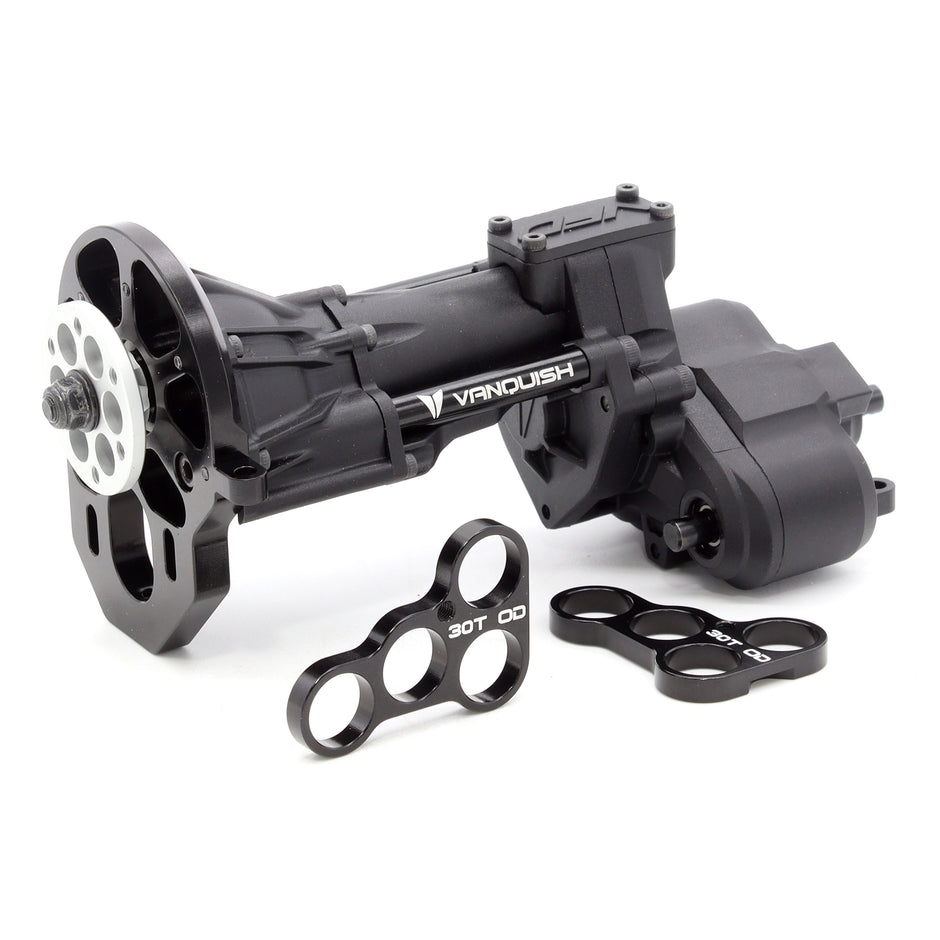

H10 OPTIC VFD KIT SPEC TRANSMISSION
VFD TRANSMISSION
The VFD transmission in the H10 Optic Kit comes spec'd with Machined aluminum Motor Plate, Bearing Plates, Standoffs and spur gear adapter.
LICENSED SPARCO RACING INTERIOR
HIGHLY DETAILED 3D INTERIOR
Molded ABS Interior with scale driver and uses several Licensed Sparco designs
Air Pro RF-5W Helmet
Land+ Gloves
EVO L QRT
Competition Race Suit
Racing Harness
SPECS
1/10th Scale
Axle Ratio 3.75:1
Pinion 13T 32P
Spur 56T 32P
Overall Width Hex to Hex - 206mm (8.11”)
Wheelbase - 337mm (13.26”)
Overall Height (w/4.75" Tires) - 198mm (7.80”)
Overall Front Ratio 41.3:1
Overall Rear Ratio 44.0:1
Final Overdrive 6%
Battery Compartment Size: 93mm x 36mm x 42mm
REQUIRED ITEMS
ESC
540 Motor
Servo
Radio and Receiver
2-3S LiPo Battery (Compartment Size: 93MM X 36MM X 42MM)
Battery Charger
1.9 Wheels with SLW Hubs (Recommended)
4.75" Tall 1.9 Tires (Recommended)
DISCLAIMER
The H10 Optic Kit is a special release featuring 6 unique liveries, with a chance to receive an exclusive secret variant that cannot be found elsewhere. The livery you receive is selected completely at random, making each purchase a unique and exciting experience.
Please note: This is an unassembled kit, and wheels, tires, and electronics are not included. Some product photos may show completed builds with wheels, tires, and electronics for demonstration purposes only.
Please note: Due to the randomized nature of the product, specific livery requests cannot be accommodated. We aim to create a fun and unexpected experience for all buyers. All sales are final.
If you encounter any issues with missing or damaged parts, please reach out to Directly to Vanquish Products customer service team for assistance.
