Vanquish Products VS4-10 Phoenix RTR- Red

Vanquish ProductsSKU: VPS-09011A

Price:
Sale price$479.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

The VS4-10 Phoenix RTR represents a groundbreaking offering by Vanquish Products, marking their debut in the Ready-to-Run (RTR) platform arena. This remarkable vehicle boasts the VFD Twin transmission and F10 Straight Axles as its core components. It comes complete with a versatile digital 4 Channel VT-1 Transmitter that offers multiple model memory and endpoint adjustment. This means the VS4-10 Phoenix RTR is adaptable for a fully functional Dig and Selectable OD configuration right out of the box. Alternatively, you can run it as-is, with a 6% OD powered by a 35T VM-1 Motor and a VE-1 3S-capable ESC. Enhancing the quality of this RTR model are the large-diameter Stainless Steel links, showcasing Vanquish Products' premium kit quality.

The drivetrain of the VS4-10 Phoenix RTR is built to endure tough conditions. It features precision-machined ring and pinion gears, chromoly universal axle shafts, and robust chromoly 6-bolt spools, ensuring unparalleled durability. With full ball bearings, metal transmission gears, and a 32P spur/pinion gear setup, it delivers a seamless and dependable performance when tackling challenging terrains.

What sets the VS4-10 Phoenix RTR apart is the inclusion of features never before seen in an RTR of its kind. The VFD Twin incorporates Selectable Overdrive Shifting and a 3-position dig-ready setup (note that servos are not included), all within a compact design. The molded F10 Straight Axles provide a high clearance design, minimizing the size of the pumpkin and maximizing clearance around the C-hub and knuckle. The ISD10 driveshafts connect the VFD Twin to the F10 Axles, featuring machined CV-style joints at each end and molded splined shafts in between for smooth, quiet, and efficient performance.

The vehicle is equipped with large 8mm bore S8E shocks, which come with dual X-Ring cartridges, scale-threaded caps, and a sealed upper bleeder screw. Adjusting S8E preload is straightforward, thanks to the threaded shock bodies and collars.

Key Features:

  • VFD Twin Transmission with Selectable Overdrive and Dig Ready capabilities
  • F10 Straight Axles with Offset Front Axle Pumpkin and Centered Rear Axle Pumpkin
  • Machined Ring and Pinion gears with Chromoly 6-bolt spools
  • Universal-style front axle shafts
  • High-quality Stainless Steel Links
  • 25T 20MM Metal Servo Horn
  • Machined Aluminum Panhard Mount
  • Double Shear Shock Mounts
  • Aluminum machined 12mm Hexes
  • ISD10 Driveshafts
  • S8E Shocks featuring a Bleeder cap and clamping spring cup retainers
  • Hidden body clip system

FEATURES

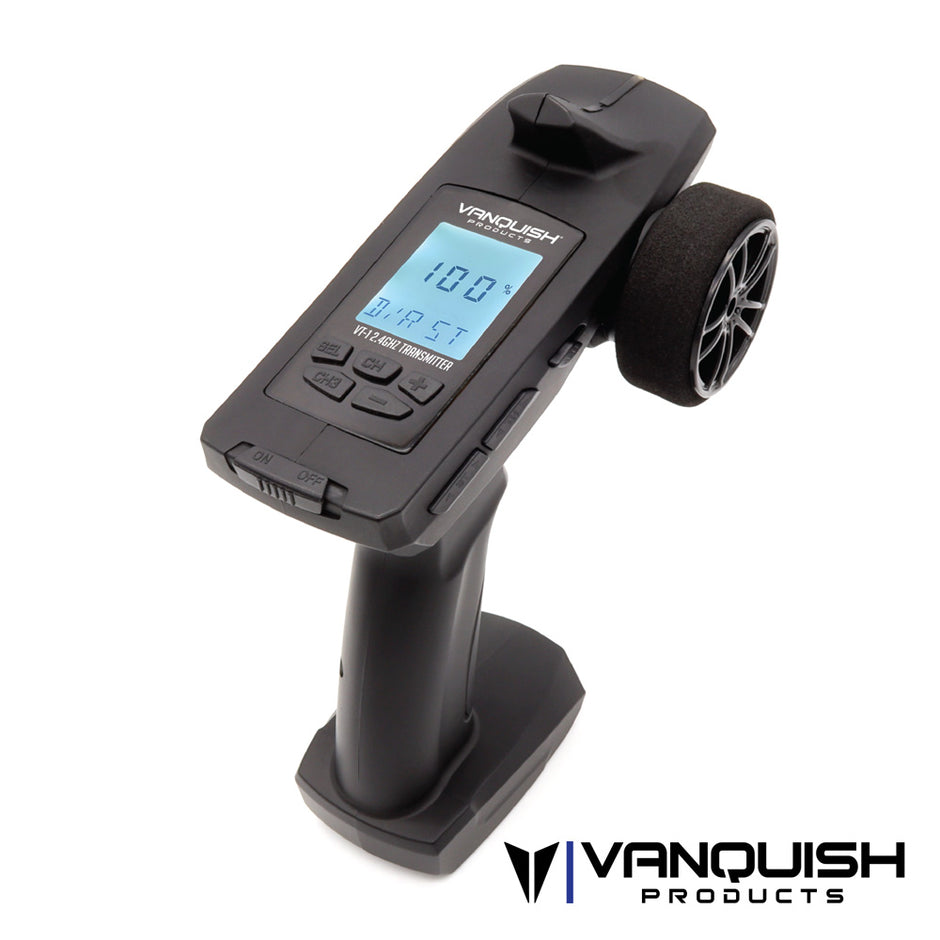

VT-1 Digital 4 Channel Transmitter provides industry leading features and tuning capabilities in an RTR.  15 model memory, multi-channel end point and rate adjustment, digital screen and multi-position switches for the 3rd and 4th channel.  Your VFD Twin equipped VS4-10 Phoenix RTR is ready for your additional servos to utilize dig and selectable overdrive using the VT-1 Transmitter.

VE-1 ESC is 3S LiPo capable and includes a strong BEC to power servo functions.  The built-in jumpers can be moved to adjust LiPo cut-off and drag brake strength.  Factory tuned for your VS4-10 Phoenix RTR.  The VE-1 ESC is our version of the Hobbywing 1060, one of the most trusted RTR ESC’s on the market.

VM-1 35T Brushed motor is a closed endbell design tuned for the VS4-10 Phoenix RTR to provide trail torque with plenty of speed to conquer the roughest terrain with confidence.

VS-1 Metal Gear Servo tackles the steering duty on the VS4-10 Phoenix with 200oz-in of torque.  Ready for all elements the VS-1 Servo is water resistant and durable with its metal gears and 25T output spline for industry standard servo horns.  ­

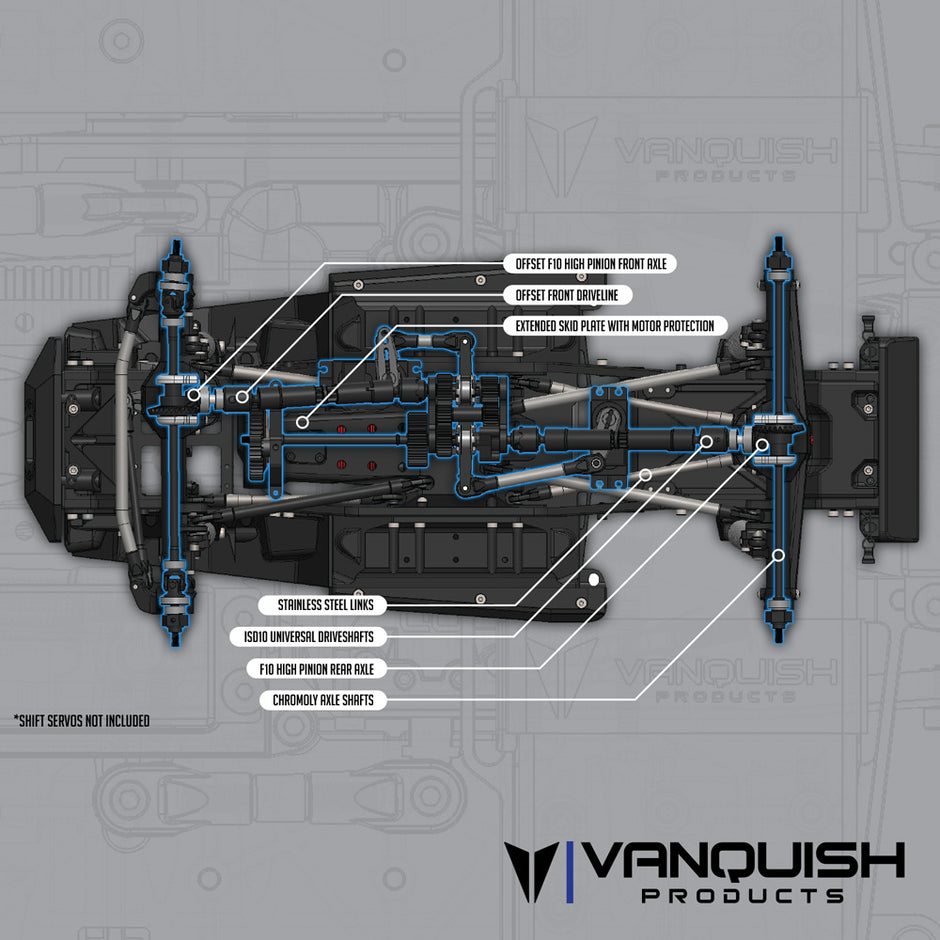

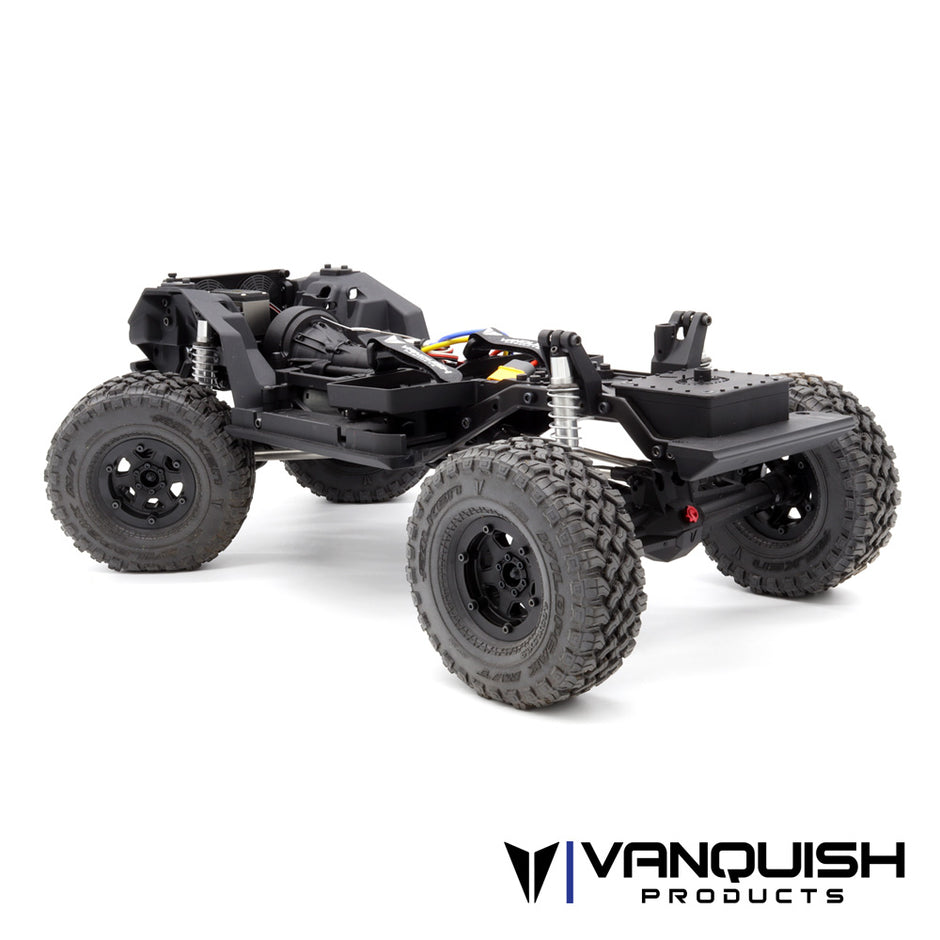

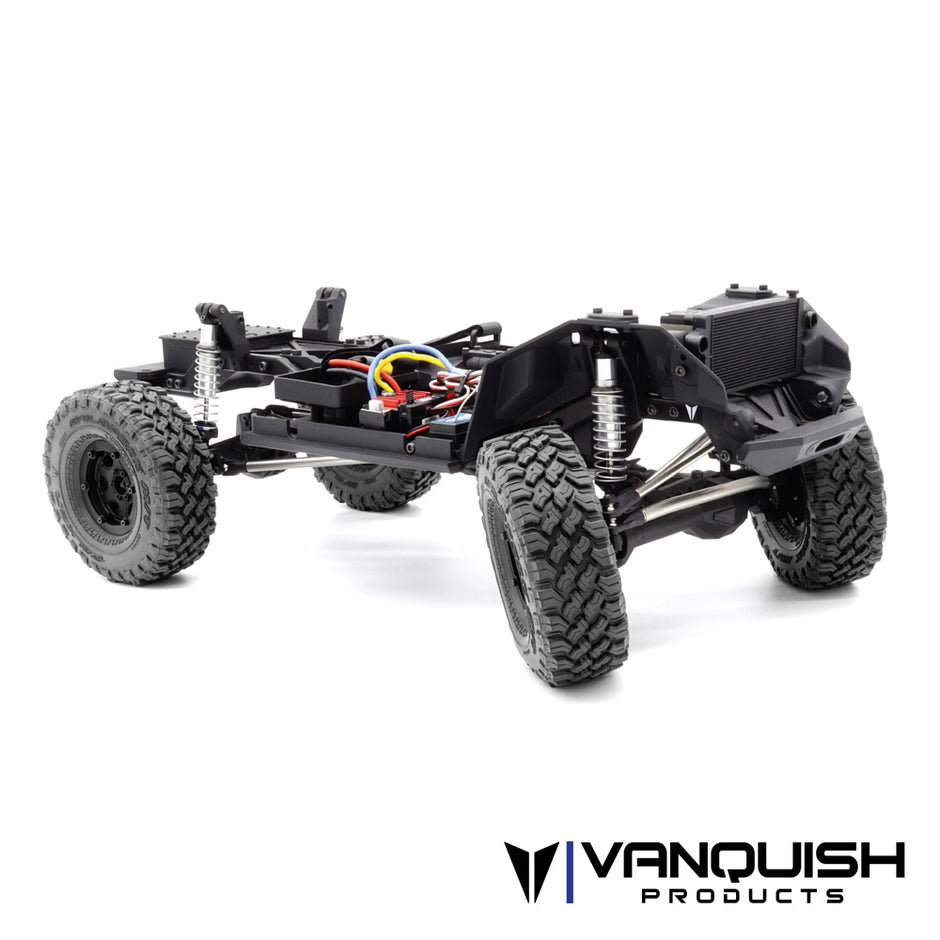

VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable tapered outer portion that perfectly fits the Phoenix body. The VS4-10 chassis is developed to work with the VFD Twin transmission to keep the overdrive and dig servo low on the platform. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 90mm Incision S8E Shocks in double shear for maximum support. Narrow molded front and rear bumpers maximize clearances while improving approach and departure angles.

  • Heavy Duty High Clearance Steel C-Channel Frame Rails
  • Molded Front Inner Fenders with integrated LED mounts
  • Phoenix Molded Rock sliders
  • Phoenix High Clearance Bumpers
  • Integrated battery tray and electronic mounting positions
  • VFD Twin Overdrive and Dig servo mounts
  • Stainless Steel links
  • Molded inner fenders with front body hinge and scale radiator mount

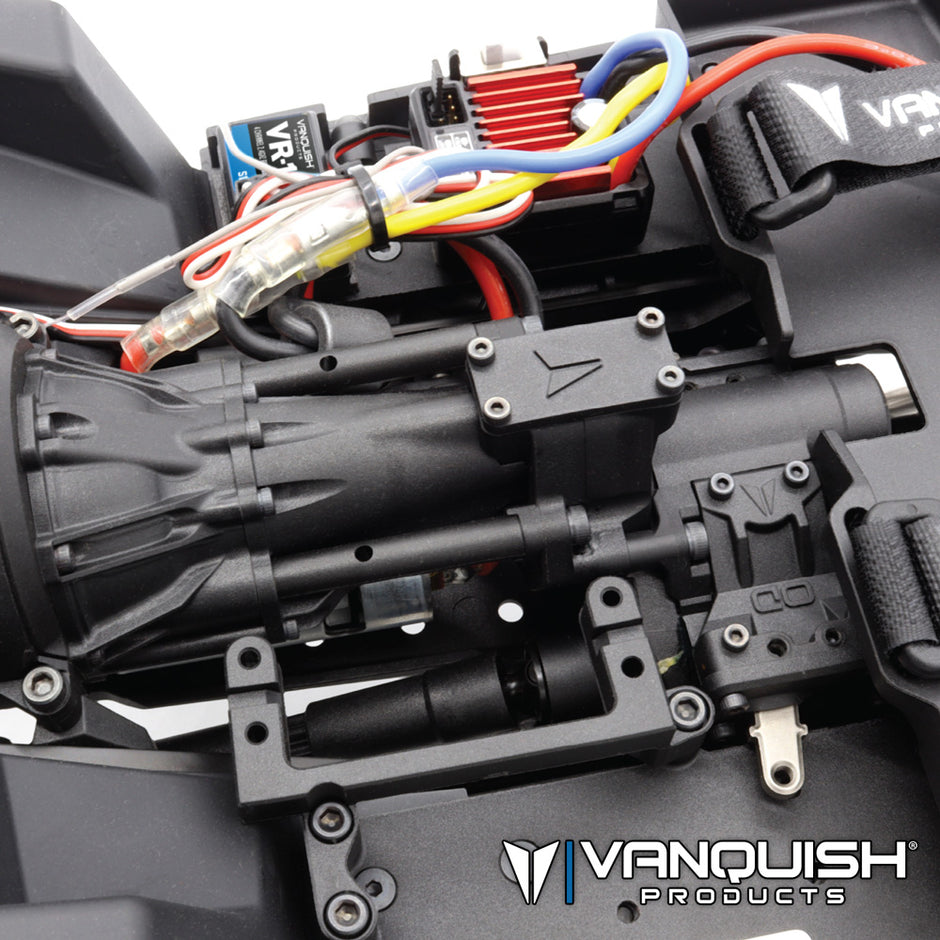

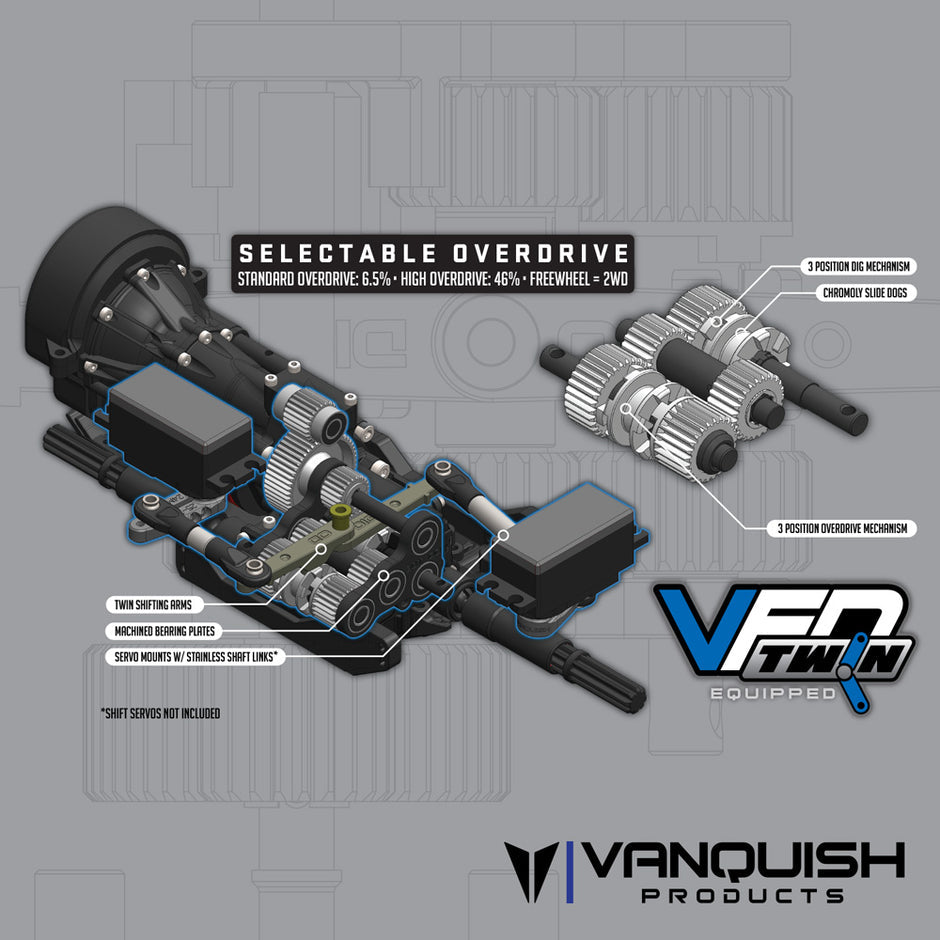

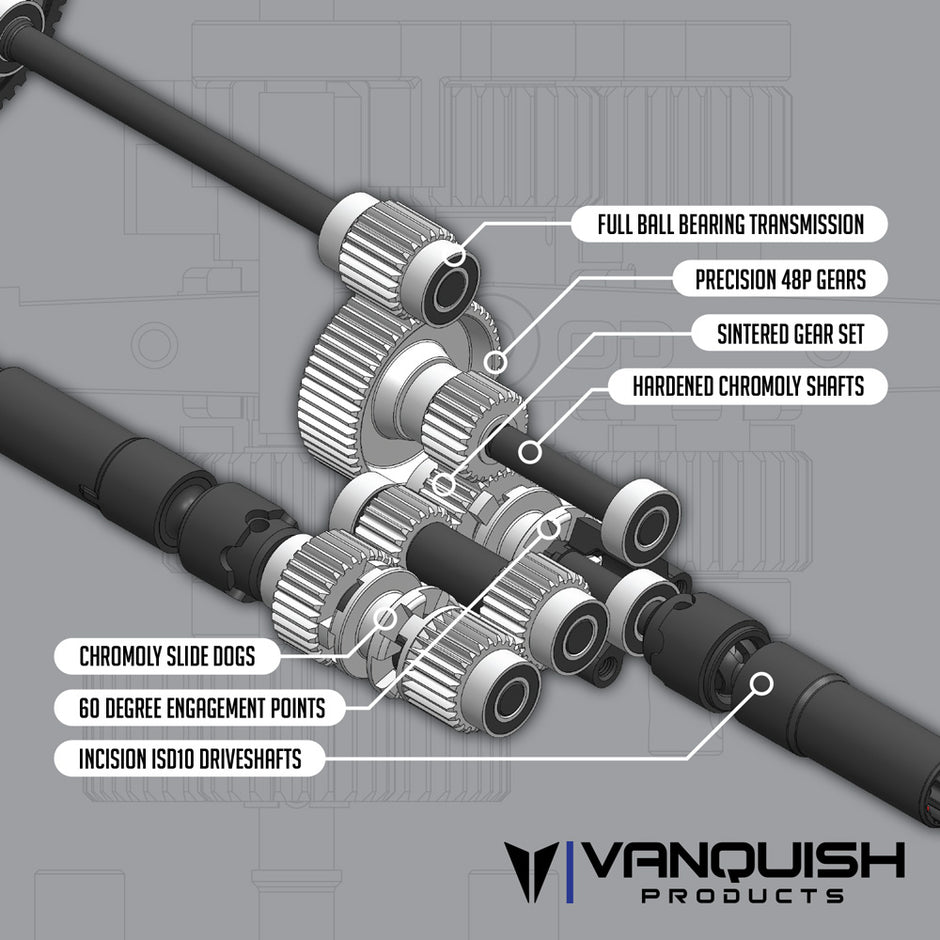

VFD Twin Transmission is an evolution of the original VFD.  Taking the same balance of performance, scale appearance, strength, and adding industry first features.  The VFD Twin comes equipped with selectable overdrive and rear dig.  Twin shifting transfer case utilizes replaceable bearing plates, a brass pivot for the shift arms, and chromoly shift slides.  Borrowing from our proven Hurtz dig, the VFD twin shifting is smooth and reliable.  On the fly overdrive shifting from 6.5% to 46% makes an immediate change to the driving characteristics and tuning options.  The VFD Twin transmission places the motor forward and as low as possible.  Compatible with 540 brushed and brushless motors*



  • On the fly Selectable Overdrive
  • Standard Overdrive 6.5%
  • Selectable High Overdrive 46%
  • Use Overdrive neutral position for 2WD (disengage front output)
  • Dig with 3 Positions
  • Slipper Clutch
  • Sintered Internal Gears
  • Hardened Chromoly Shafts
  • Molded VFD Twin Extended Skid Plate for Motor Protection
  • Molded Battery and Electronic trays
  • Full ball bearing transmission
  • Sintered Shift arms with Brass pivot shift bushing
  • Chromoly slide dogs for Overdrive and Dig shifting
  • Scale Molded Transmission Housing
  • Machined Aluminum Bearing Plates
  • Molded 6mm motor plate
  • Molded Spur Gear Cover
  • 32P 52T Spur and 15T Steel Pinion
  • Silicone dust shields for shift arms***

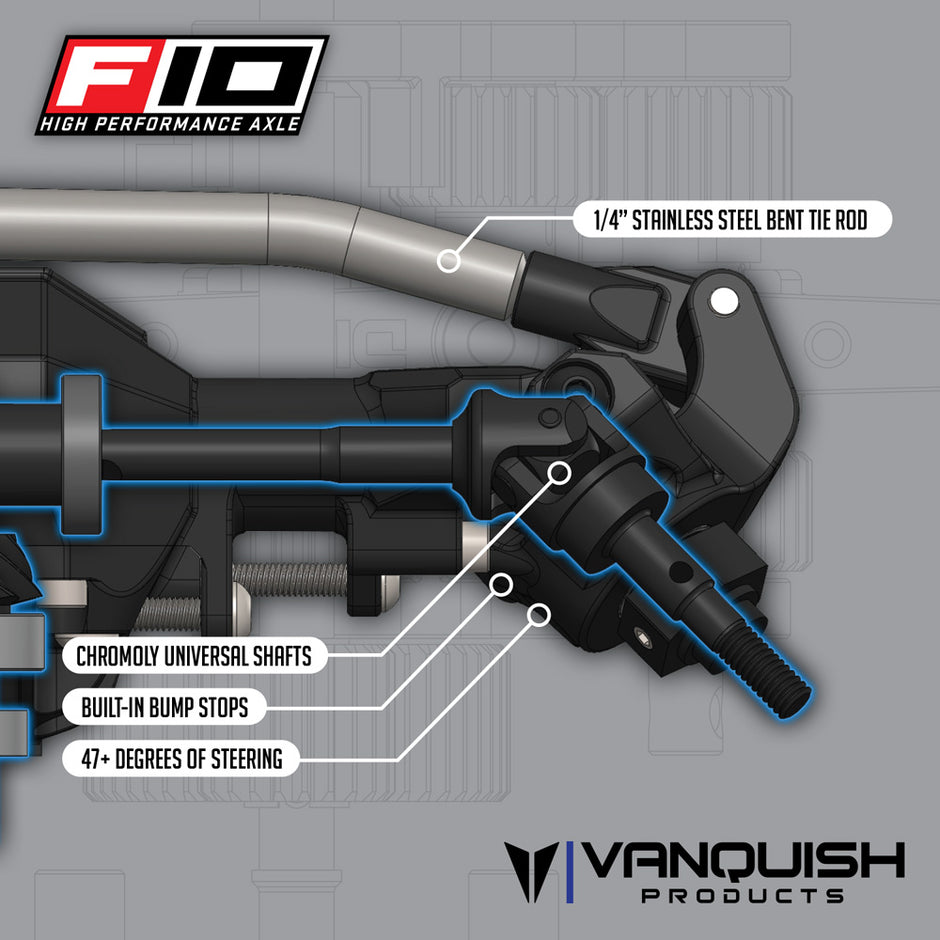

F10 Straight Axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The molded plastic F10 Straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, and oversized C's with an integrated panhard mount.

  • Molded Plastic Axle housings
  • Universal Style Axle Shafts
  • 49 Degrees of Steering
  • High Caster reinforced C-Hub
  • High-Pinion Hypoid Machined Axle Gears (30/8)
  • 6-Bolt Ring Gear and Spool
  • 5mm Output shafts with M4 wheel nut
  • One-Piece Molded Bearing Retainers
  • Adjustable Lower Shock Mounting Position
  • Scale removable third member
  • Machined aluminum red anodized rear fill cap with molded install tool

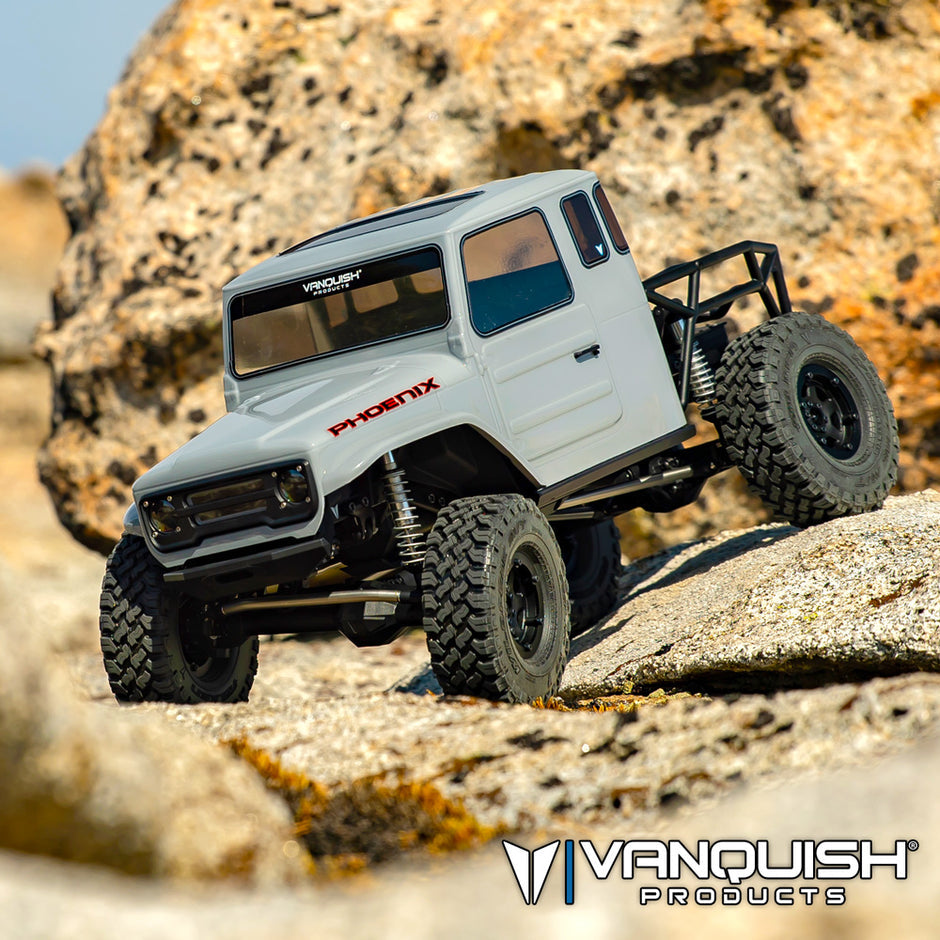

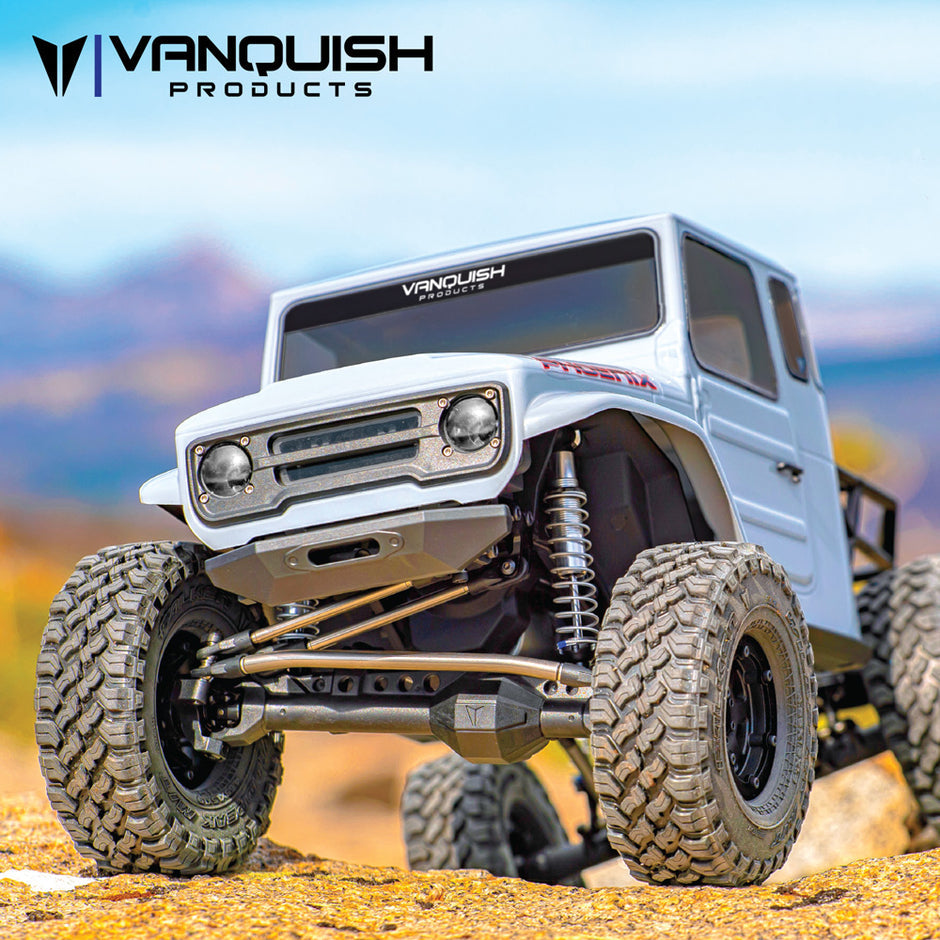

Phoenix Body with VRD1 Cage

  • VRD1 Rear Cage
  • 3-Piece Body Design
  • Headlight and Tail Light buckets
  • Molded Grill
  • Hinged Design
  • Hidden body clips with quick release front pivot pin

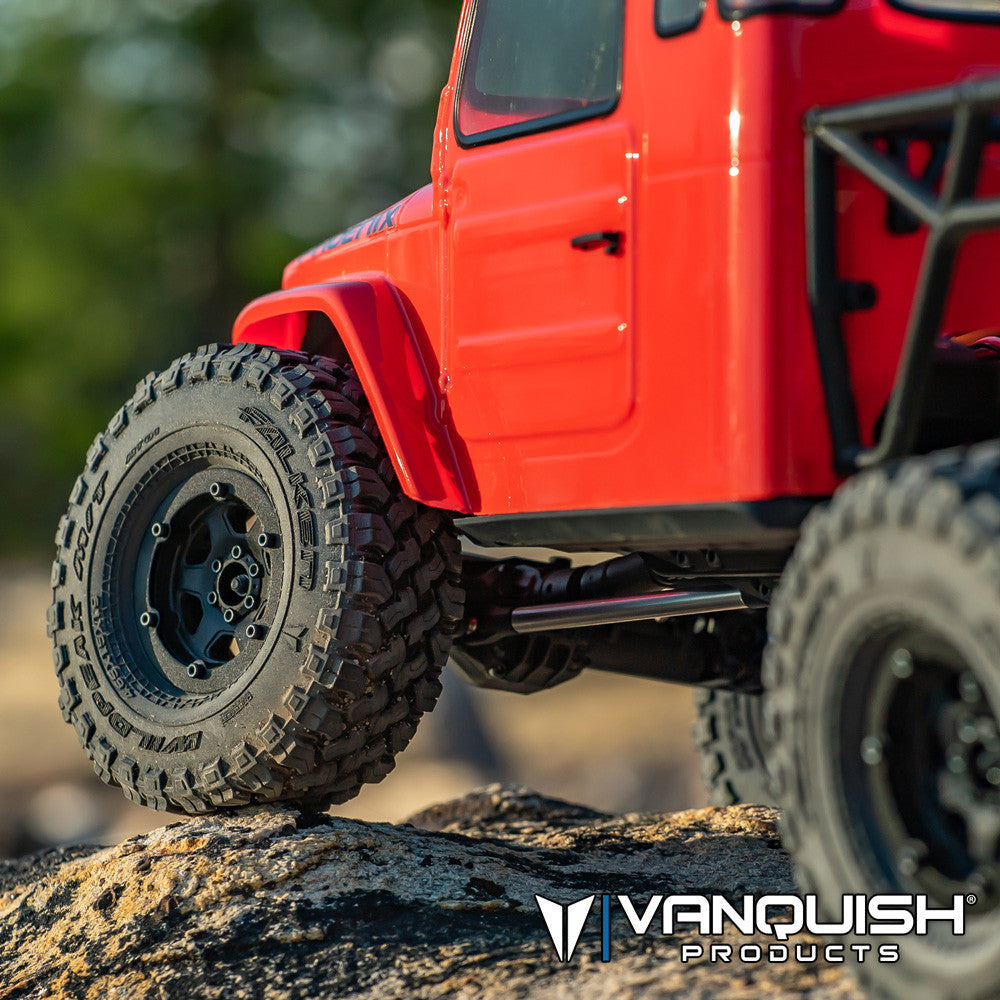

Wheels and Tires

  • 1.9 Falken Wildpeak M/T - RED Compound Tires
  • 1.9 Incision KMC KM233 Hex Beadlock Wheels



VS4-10 PHOENIX RTR SPECIFICATIONS

  • 1/10th Scale
  • Falken Wildpeak RED Compound 4.65”x 1.9” tires
  • 3.75:1 Axle Gear Ratio
  • 13T/56T Pinion/Spur
  • Overall Width: 242mm (9.53")
  • Overall height: 242mm (9.53")
  • Wheelbase: 313mm (12.3")
  • Overall Front Ratio (Standard 6.5% OD): 47.6:1
  • Overall Front Ratio (Optional High 46% OD): 31.8:1
  • Overall Rear Ratio: 50.8:1
  • RTR weight (without battery): 5.9lbs (2.7kg)
  • Front and Rear axle width pin to pin: 182mm (7.17")



REQUIRES

  • 2-3S LiPo Battery or 6 cell NiMh (XT60 Plug)
  • Compatible battery charger for selected battery (XT60 Plug)
