SunnySky XS High Power X5212S Brushless Motors

Description

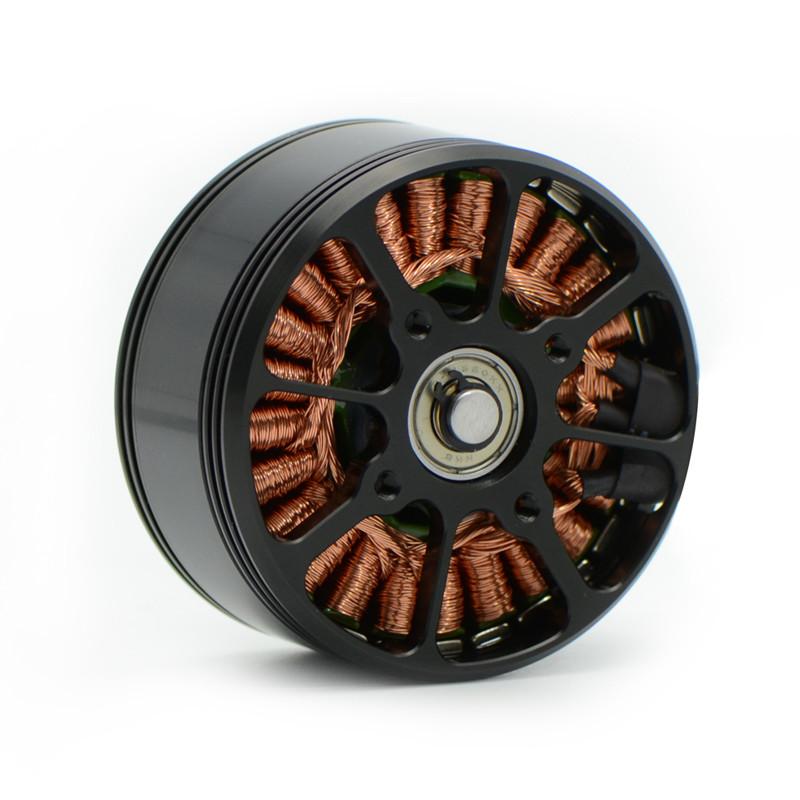

Powerful Multirotor Motors The XS motor features a new patented design with an industrial vision that's both powerful and visually impressive. The semi-enclosed structure effectively prevents sand and debris from entering the motor while improving ventilation and heat dissipation.

Advanced Large-Diameter EZO Bearings The XS motor is equipped with advanced Japanese EZO bearings that have large diameters, providing stable, quiet operation and impressive longevity.

Hand Wound for Optimal Performance Each XS motor undergoes ultimate manual winding, ensuring compact, neat winding that results in low internal resistance, high efficiency, and up to 90% coil space factor. This process effectively increases the maximum continuous power of each XS motor.

Sunnysky Manufacturing Technology The XS motor is made with Sunnysky's ultimate manufacturing and particular assembling technology, resulting in great workmanship, precise dimensions, and small shaft and radial runouts. These features enable the motor to run smoothly and reliably in the air.

[TABS]OVERVIEW

KV280

Stator Diameter	52mm	Rotor Diameter	59mm
Stator Thickness	12mm	Shaft  Diameter	4mm
No.of Stator Slots	24	Body Length(without shaft)	35mm
No.of Rotor Poles	22	Body Length	41.8mm
Motor Kv	280	Max Lipo Cell	6S
No-load current	0.9A/10V	ESC	60A
Motor Resistance	74mΩ	Recommended Prop(inch)	17*5.8/18*6.1/20*6.5/22*6.6
Max Continuous Current	36A/30s	Recommended single take-off weight	≤2000g
Max Continuous Power	800W
Weight	260g



Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
17*5.8	22.2	1	300	22	13.51	42℃
		2.2	600	49	12.29
		3.7	900	82	10.96
		5.5	1200	122	9.83
		7.4	1500	164	9.13
		9.8	1800	218	8.27
		12	2100	266	7.88
		14.2	2400	315	7.61
		17.2	2660	382	6.97
18*6.1	22.2	0.9	300	20	15.02	47℃
		2.2	600	49	12.29
		3.7	900	82	10.96
		5.4	1200	120	10.01
		7.3	1500	162	9.26
		9.5	1800	211	8.53
		11.7	2100	260	8.09
		14.4	2400	320	7.51
		16.9	2700	375	7.20
		20.1	3080	446	6.90
20*6.5	22.2	0.9	300	20	15.02	59℃
		2.1	600	47	12.87
		3.5	900	78	11.58
		5.1	1200	113	10.60
		6.9	1500	153	9.79
		8.7	1800	193	9.32
		10.8	2100	240	8.76
		13.1	2400	291	8.25
		15.8	2700	351	7.70
		18.6	3000	413	7.27
		20.9	3300	464	7.11
		24.2	3600	537	6.70
		26	3820	577	6.62
22*6.6	22.2	0.8	300	18	16.89	75℃
		1.9	600	42	14.22
		3.2	900	71	12.67
		4.8	1200	107	11.26
		6.4	1500	142	10.56
		8.2	1800	182	9.89
		10.2	2100	226	9.27
		12.5	2400	278	8.65
		14.9	2700	331	8.16
		17.4	3000	386	7.77
		20.3	3300	451	7.32
		23	3600	511	7.05
		26.2	3900	582	6.71
		29.2	4200	648	6.48
		32.6	4460	724	6.16
		34.2	4630	759	6.10
		35.8	4820	795	6.06



KV340

Stator Diameter	52mm	Rotor Diameter	59mm
Stator Thickness	12mm	Shaft Diameter	4mm
No.of Stator Slots	24	Body Length(without shaft )	32mm
No.of Rotor Poles	22	Body Length	37.5mm
Motor Kv	340	Max Lipo Cell	6S
No-load current	1.0A/10V	ESC	60A
Motor Resistance	67mΩ	Recommended Prop(inch)	17*5.8/18*6.1/20*6.5/22*6.6
Max Continuous Current	46.5A/30s	Recommended single take-off weight	≤2000g
Max Continuous Power	1032W
Weight	260g



Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
17*5.8	22.2	1	300	22	13.51	45℃
		2.3	600	51	11.75
		3.9	900	87	10.40
		5.7	1200	127	9.48
		7.7	1500	171	8.78
		9.9	1800	220	8.19
		12.2	2100	271	7.75
		14.9	2400	331	7.26
		17.5	2700	389	6.95
		20.5	3000	455	6.59
		22.5	3200	500	6.41
18*6.1	22.2	1	300	22	13.51	50℃
		2.4	600	53	11.26
		3.9	900	87	10.40
		5.7	1200	127	9.48
		7.8	1500	173	8.66
		10.1	1800	224	8.03
		12.5	2100	278	7.57
		15	2400	333	7.21
		17.8	2700	395	6.83
		21.2	3000	471	6.37
		24.1	3300	535	6.17
		27.2	3620	604	5.99
20*6.5	22.2	0.9	300	20	15.02	65℃
		2.2	600	49	12.29
		3.6	900	80	11.26
		5.2	1200	115	10.40
		7.1	1500	158	9.52
		9.1	1800	202	8.91
		11.3	2100	251	8.37
		13.6	2400	302	7.95
		16.3	2700	362	7.46
		19.1	3000	424	7.08
		22.4	3300	497	6.64
		25.5	3600	566	6.36
		28.4	3900	630	6.19
		32.4	4200	719	5.84
		34.4	4450	764	5.83
22*6.6	22.2	0.8	300	18	16.89	85℃
		2	600	44	13.51
		3.4	900	75	11.92
		4.9	1200	109	11.03
		6.7	1500	149	10.08
		8.7	1800	193	9.32
		10.8	2100	240	8.76
		12.9	2400	286	8.38
		15.5	2700	344	7.85
		18	3000	400	7.51
		20.9	3300	464	7.11
		24.2	3600	537	6.70
		28	3900	622	6.27
		31.1	4200	690	6.08
		35.4	4500	786	5.73
		38.8	4800	861	5.57
		42.8	5100	950	5.37
		46.5	5520	1032	5.35
