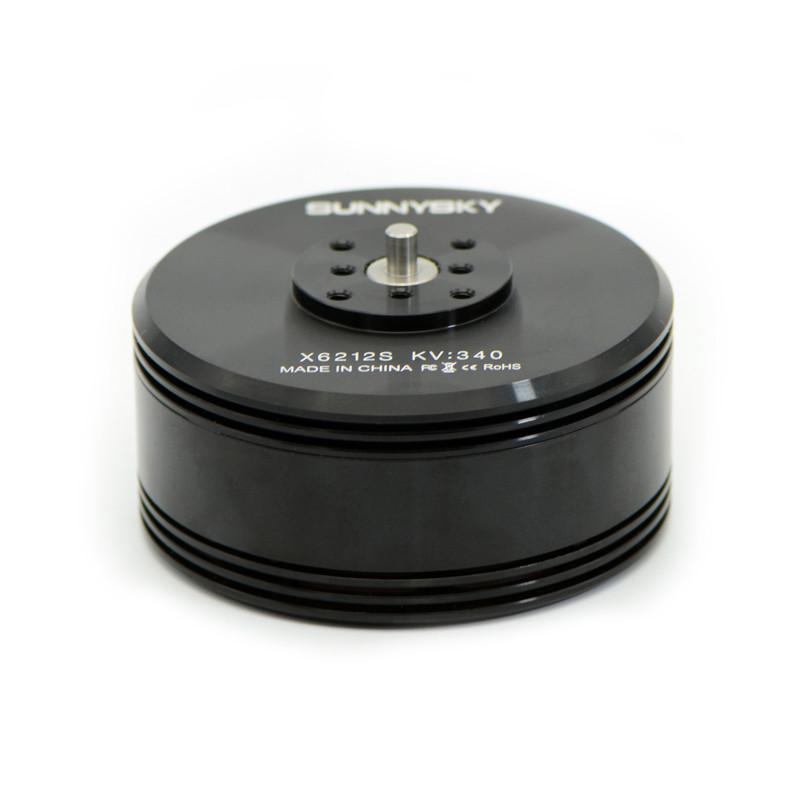

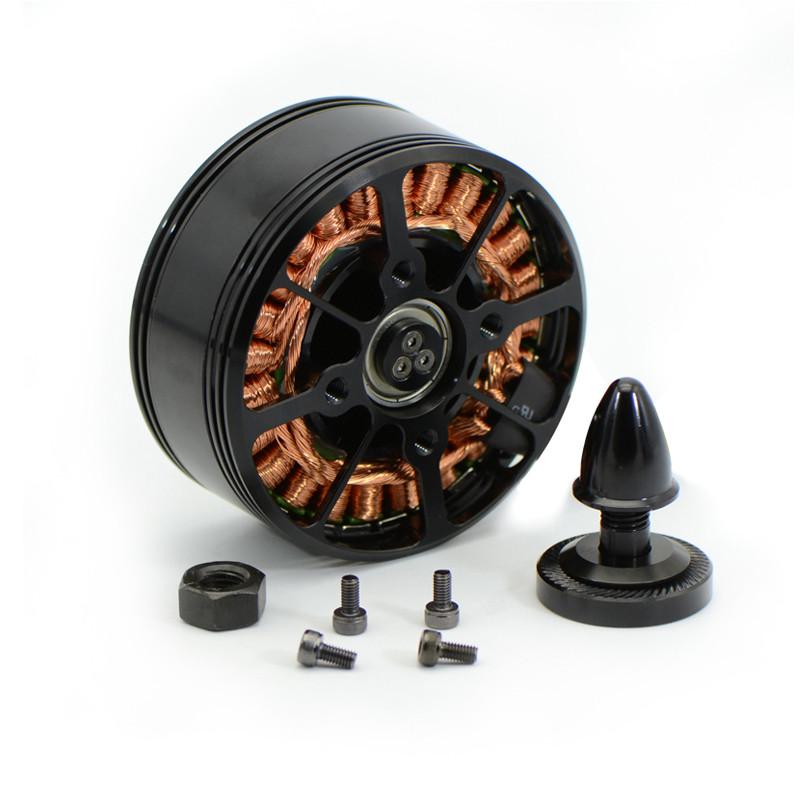

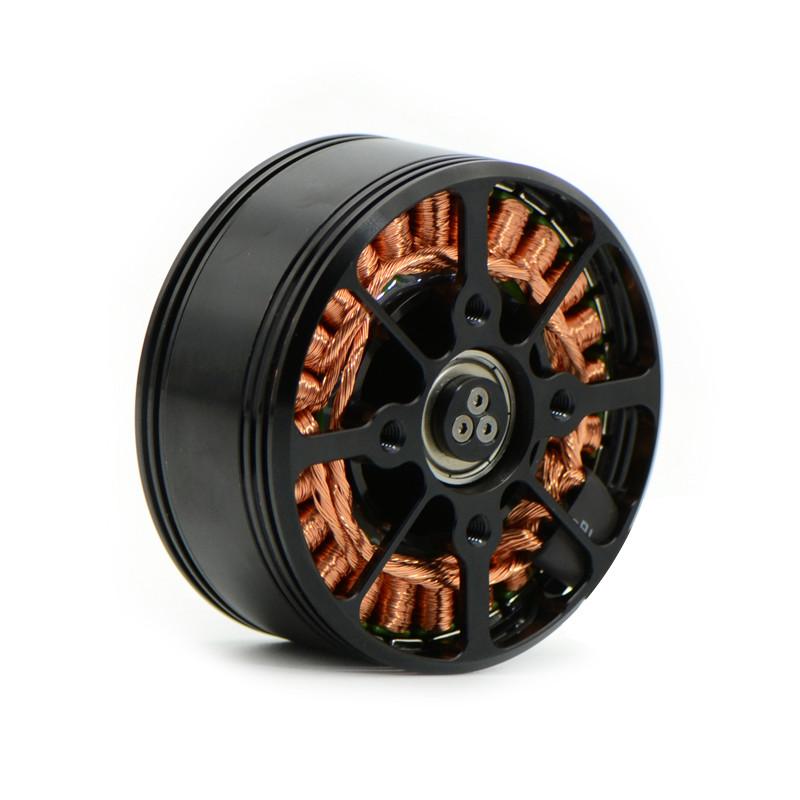

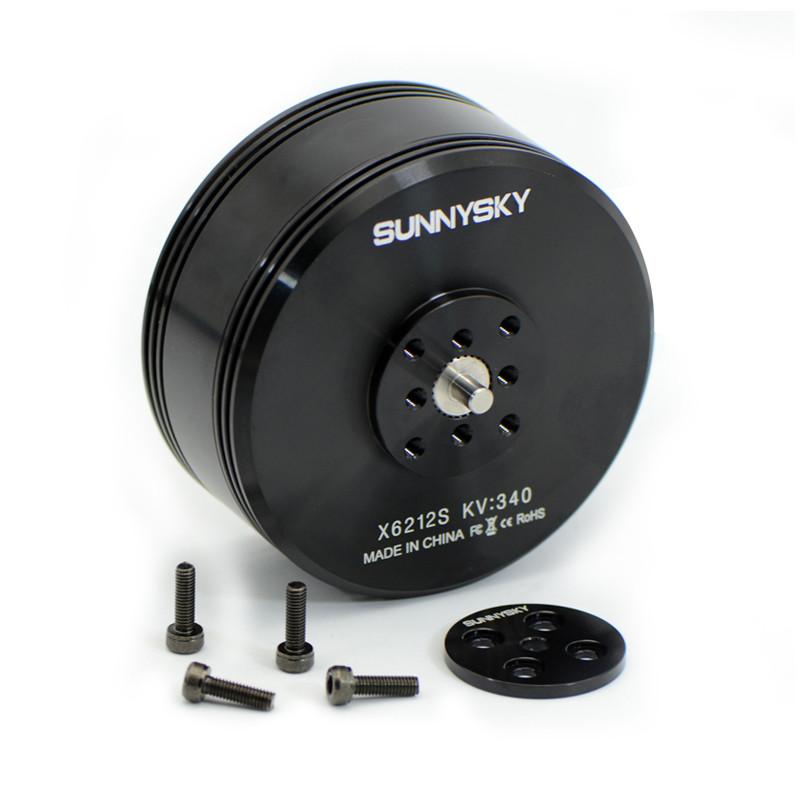

Introducing our powerful multirotor motors, featuring the new patented XS appearance designed with excellent industrial vision. The semi-enclosed structure effectively prevents sand and other debris from entering the motor while also providing better ventilation and heat dissipation.
Our advanced large-diameter EZO bearings, made in Japan, ensure stable, quiet operation and great longevity for each XS motor.
The ultimate manual winding technique used in our motors ensures low internal resistance, high efficiency, and up to 90% coil space factor, effectively increasing the maximum continuous power of each XS motor.
With Sunnysky's ultimate manufacturing and particular assembling technology, our XS motors are crafted with great workmanship, precise dimensions, and small shaft and radial runouts. These features make our motors run smoothly and reliably in the air.
[TABS]OVERVIEW
KV180
Stator Diameter | 62mm | Rotor Diameter | 69.3mm |
---|---|---|---|
Stator Thickness | 12mm | Shaft Diameter | 4mm |
No.of Stator Slots | 24 | Body Length(without shaft ) | 34.5mm |
No.of Rotor Poles | 28 | Body Length | 40mm |
Motor Kv | 180 | Max Lipo Cell | 12S |
No-load current | 1.5A/10V | ESC | 80A |
Motor Resistance | 102mΩ | Recommended Prop(inch) | 20*6.5/22*6.6 |
Max Continuous Current | 38A/30s | Recommended single take-off weight | ≤3500g |
Max Continuous Power | 1680W | ||
Weight |
323g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
20*6.5 | 44.4 | 0.9 | 500 | 40 | 12.51 | 75℃ |
1.4 | 750 | 62 | 12.07 | |||
2 | 1000 | 89 | 11.26 | |||
2.8 | 1250 | 124 | 10.05 | |||
3.5 | 1500 | 155 | 9.65 | |||
4.4 | 1750 | 195 | 8.96 | |||
5.3 | 2000 | 235 | 8.50 | |||
6.4 | 2300 | 284 | 8.09 | |||
7.6 | 2600 | 337 | 7.71 | |||
9.2 | 3000 | 408 | 7.34 | |||
11.5 | 3500 | 511 | 6.85 | |||
14.2 | 4000 | 630 | 6.34 | |||
17 | 4500 | 755 | 5.96 | |||
19.8 | 5000 | 879 | 5.69 | |||
22.3 | 5500 | 990 | 5.55 | |||
26 | 6000 | 1154 | 5.20 | |||
29.2 | 6500 | 1296 | 5.01 | |||
30.6 | 6740 | 1359 | 4.96 | |||
22*6.6 | 44.4 | 0.8 | 500 | 36 | 14.08 | 100℃ |
1.3 | 750 | 58 | 12.99 | |||
2 | 1000 | 89 | 11.26 | |||
2.6 | 1250 | 115 | 10.83 | |||
3.2 | 1500 | 142 | 10.56 | |||
4 | 1750 | 178 | 9.85 | |||
4.8 | 2000 | 213 | 9.38 | |||
6 | 2300 | 266 | 8.63 | |||
7 | 2600 | 311 | 8.37 | |||
8.6 | 3000 | 382 | 7.86 | |||
10.7 | 3500 | 475 | 7.37 | |||
13 | 4000 | 577 | 6.93 | |||
15.3 | 4500 | 679 | 6.62 | |||
18.1 | 5000 | 804 | 6.22 | |||
21 | 5500 | 932 | 5.90 | |||
24 | 6000 | 1066 | 5.63 | |||
26.9 | 6500 | 1194 | 5.44 | |||
30.6 | 7000 | 1359 | 5.15 | |||
34.8 | 7500 | 1545 | 4.85 | |||
36.3 | 7740 | 1612 | 4.80 | |||
37.6 | 8000 | 1669 | 4.79 |
KV300
Stator Diameter | 62mm | Rotor Diameter | 69.3mm |
---|---|---|---|
Stator Thickness | 12mm | Shaft Diameter | 4mm |
No.of Stator Slots | 24 | Body Length(without shaft ) | 34.5mm |
No.of Rotor Poles | 28 | Body Length | 40mm |
Motor Kv | 300 | Max Lipo Cell | 6S |
No-load current | 1.6A/10V | ESC | 60A |
Motor Resistance | 49mΩ | Recommended Prop(inch) | 20*6.5/22*6.6 |
Max Continuous Current | 49.5A/30s | Recommended single take-off weight | ≤2500g |
Max Continuous Power | 1100W | ||
Weight |
323g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
20*6.5 | 22.2 | 1.8 | 500 | 40 | 12.51 | 52℃ |
3.1 | 750 | 69 | 10.90 | |||
4.4 | 1000 | 98 | 10.24 | |||
5.8 | 1250 | 129 | 9.71 | |||
7.4 | 1500 | 164 | 9.13 | |||
9.2 | 1750 | 204 | 8.57 | |||
10.9 | 2000 | 242 | 8.27 | |||
13.3 | 2300 | 295 | 7.79 | |||
15.8 | 2600 | 351 | 7.41 | |||
19.2 | 3000 | 426 | 7.04 | |||
24.3 | 3500 | 539 | 6.49 | |||
30 | 4000 | 666 | 6.01 | |||
35 | 4530 | 777 | 5.83 | |||
22*6.6 | 22.2 | 1.7 | 500 | 38 | 13.25 | 62℃ |
2.8 | 750 | 62 | 12.07 | |||
4.1 | 1000 | 91 | 10.99 | |||
5.4 | 1250 | 120 | 10.43 | |||
6.8 | 1500 | 151 | 9.94 | |||
8.4 | 1750 | 186 | 9.38 | |||
10 | 2000 | 222 | 9.01 | |||
12.2 | 2300 | 271 | 8.49 | |||
14.6 | 2600 | 324 | 8.02 | |||
17.9 | 3000 | 397 | 7.55 | |||
22.2 | 3500 | 493 | 7.10 | |||
26.8 | 4000 | 595 | 6.72 | |||
32.3 | 4500 | 717 | 6.28 | |||
38 | 5000 | 844 | 5.93 | |||
42 | 5500 | 932 | 5.90 |
KV340
Stator Diameter | 62mm | Rotor Diameter | 69.3mm |
---|---|---|---|
Stator Thickness | 12mm | Shaft Diameter | 4mm |
No.of Stator Slots | 24 | Body Length(without shaft ) | 34.5mm |
No.of Rotor Poles | 28 | Body Length | 40mm |
Motor Kv | 340 | Max Lipo Cell | 6S |
No-load current | 1.8A/10V | ESC | 80A |
Motor Resistance | 50mΩ | Recommended Prop(inch) | 20*6.5/22*6.6 |
Max Continuous Current | 56A/30s | Recommended single take-off weight | ≤2750g |
Max Continuous Power | 1250W | ||
Weight |
323g |
Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|
20*6.5 | 22.2 | 1.9 | 500 | 42 | 11.85 | 62℃ |
3.2 | 750 | 71 | 10.56 | |||
4.7 | 1000 | 104 | 9.58 | |||
6.1 | 1250 | 135 | 9.23 | |||
7.9 | 1500 | 175 | 8.55 | |||
9.7 | 1750 | 215 | 8.13 | |||
11.7 | 2000 | 260 | 7.70 | |||
14.5 | 2300 | 322 | 7.15 | |||
17.1 | 2600 | 380 | 6.85 | |||
20.7 | 3000 | 460 | 6.53 | |||
25.9 | 3500 | 575 | 6.09 | |||
30.9 | 4000 | 686 | 5.83 | |||
37 | 4500 | 821 | 5.48 | |||
43.8 | 5000 | 972 | 5.14 | |||
46.5 | 5300 | 1032 | 5.13 | |||
22*6.6 | 22.2 | 1.9 | 500 | 42 | 11.85 | 72℃ |
2.9 | 750 | 64 | 11.65 | |||
4.4 | 1000 | 98 | 10.24 | |||
5.6 | 1250 | 124 | 10.05 | |||
7.2 | 1500 | 160 | 9.38 | |||
9 | 1750 | 200 | 8.76 | |||
10.8 | 2000 | 240 | 8.34 | |||
13.2 | 2300 | 293 | 7.85 | |||
15.6 | 2600 | 346 | 7.51 | |||
19 | 3000 | 422 | 7.11 | |||
23.5 | 3500 | 522 | 6.71 | |||
28.4 | 4000 | 630 | 6.34 | |||
33.6 | 4500 | 746 | 6.03 | |||
40.1 | 5000 | 890 | 5.62 | |||
47.2 | 5500 | 1048 | 5.25 | |||
52.2 | 6000 | 1159 | 5.18 | |||
54.5 | 6200 | 1210 | 5.12 |
