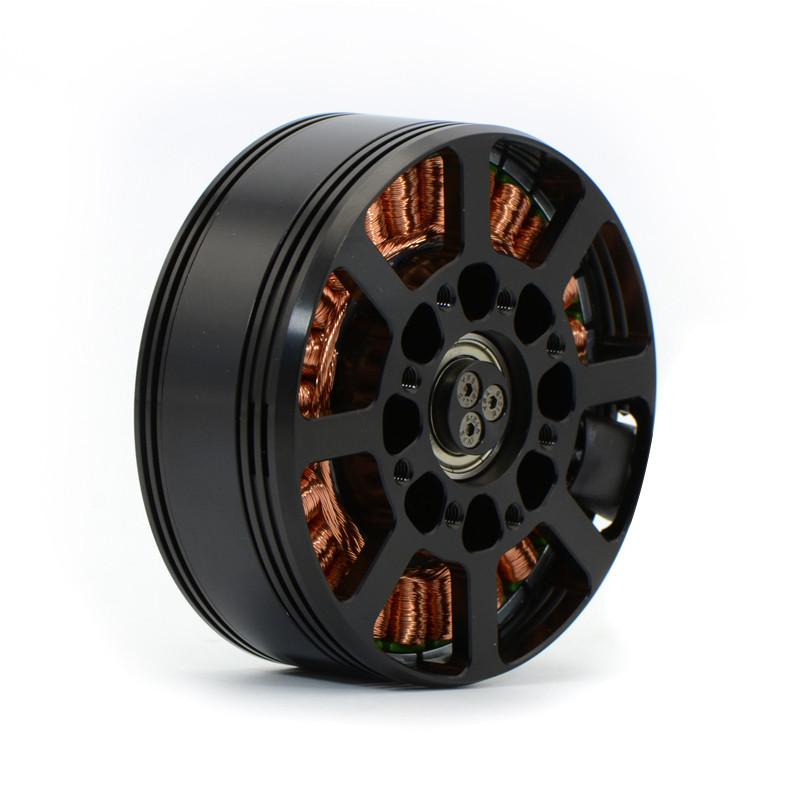

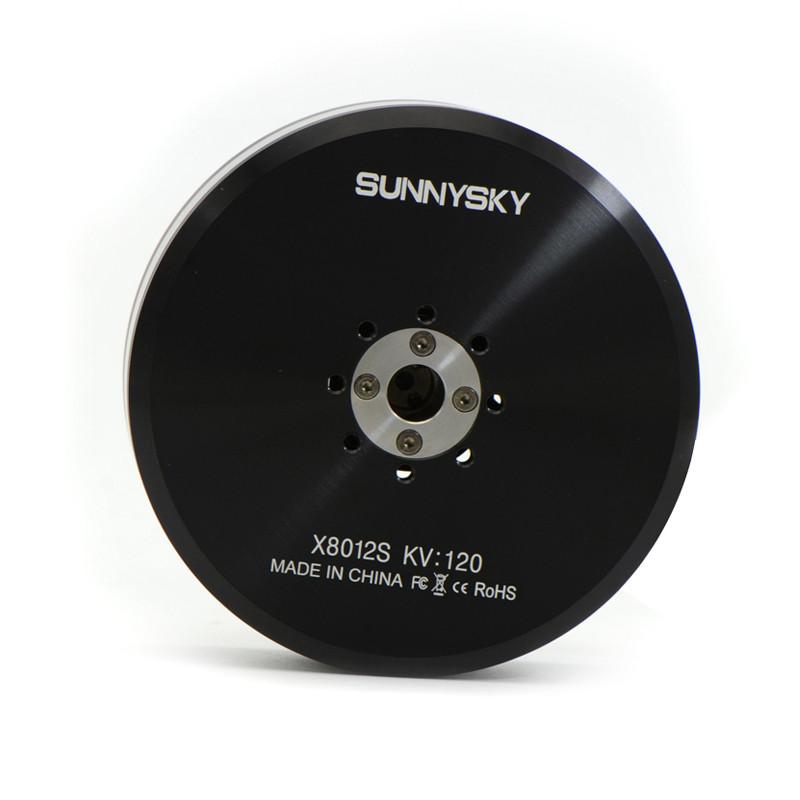

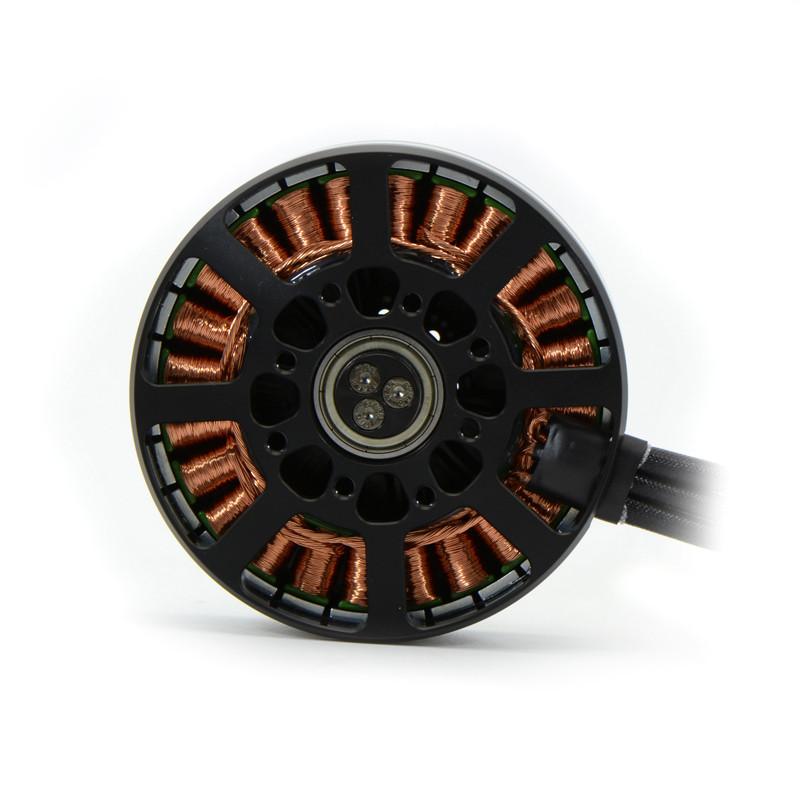

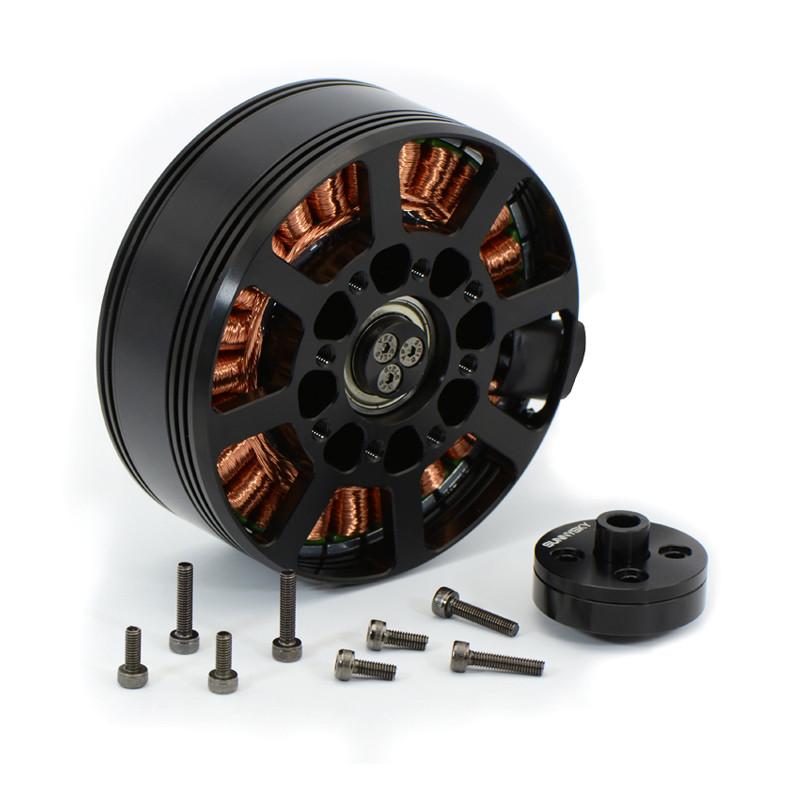

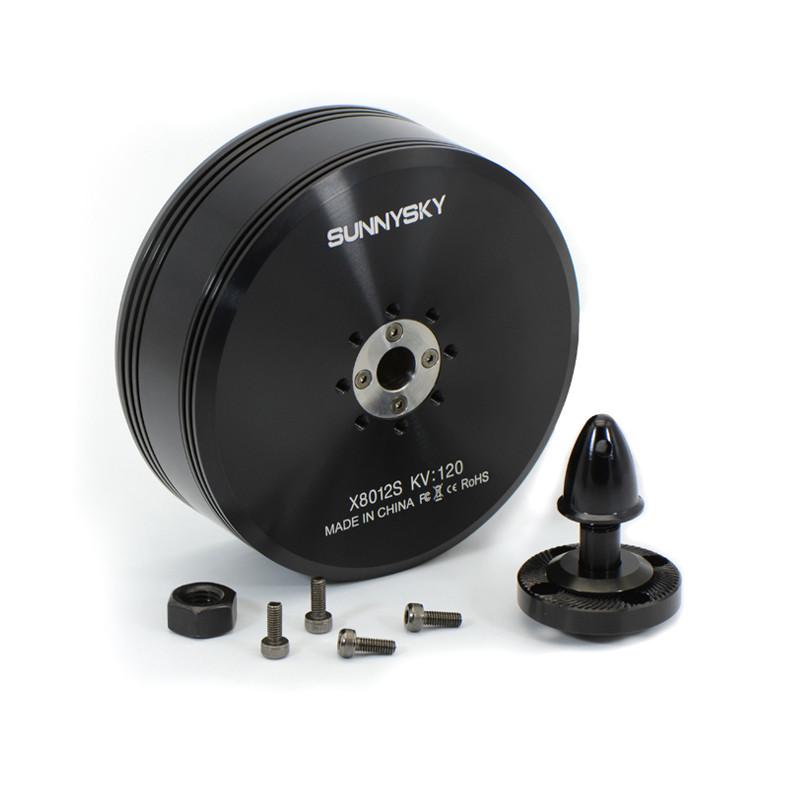

SunnySky XS High Power X8012S Brushless Motors

Save $5.65
SunnySky USASKU: SS-XS-X8012S-150

KV: 150
Price:
Sale price$135.99 Regular price$141.64

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

Description

Powerful Multirotor Motors
New patented XS appearance is design with excellent industrial vision. The semi-enclosed structure not only effectively prevent sands and sundries from getting into?motor, but also have better effects of ventilation and heat dissipation.

Advanced large-diameter EZO bearings
Advanced Japanese EZO bearings with large diameters ensure each XS motor run?stable, quiet, and have great longevity.

Hand wound
Ultimate manual winding is compact, neat, which ensure low internal resistance,?high efficiency and up to 90% coil space factor, and effectively increase maximum?continuous power of each XS motor.

Sunnysky ultimate manufacturing technology?
With Sunnysky ultimate manufacturing and particular assembling technology, XS?motors are made of great workmanship, precise dimensions, small shaft and radial?runouts. All of these make the motor run smoothly and reliably in the air.?

[TABS]OVERVIEW

KV150
 Stator Diameter 80mm Rotor Diameter 89.3mm
Stator Thickness 12mm Shaft  Diameter 15mm
No.of Stator Slots 24 Body Length(without  shaft ) 35mm
No.of Rotor Poles 28 Body Length 50.5mm
Motor Kv 150 Max Lipo Cell 12S
No-load current 1.3A/10V ESC 80A
Motor Resistance 42mΩ Recommended Prop(inch) 26*8.5
Max Continuous Current 63A/30s Recommended single take-off weight  ≤4500g
Max Continuous Power 2800W
Weight

470g



Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
26*8.5 44.4 1.7 1000 75 13.25 90℃
4.1 2000 182 10.99
7 3000 311 9.65
10.7 4000 475 8.42
14.8 5000 657 7.61
19.2 6000 852 7.04
24.3 7000 1079 6.49
29.7 8000 1319 6.07
35.8 9000 1590 5.66
41.9 10000 1860 5.38
49.3 11000 2189 5.03
55 11750 2442 4.81
55.8 11900 2478 4.80



[/TABS]
