Description

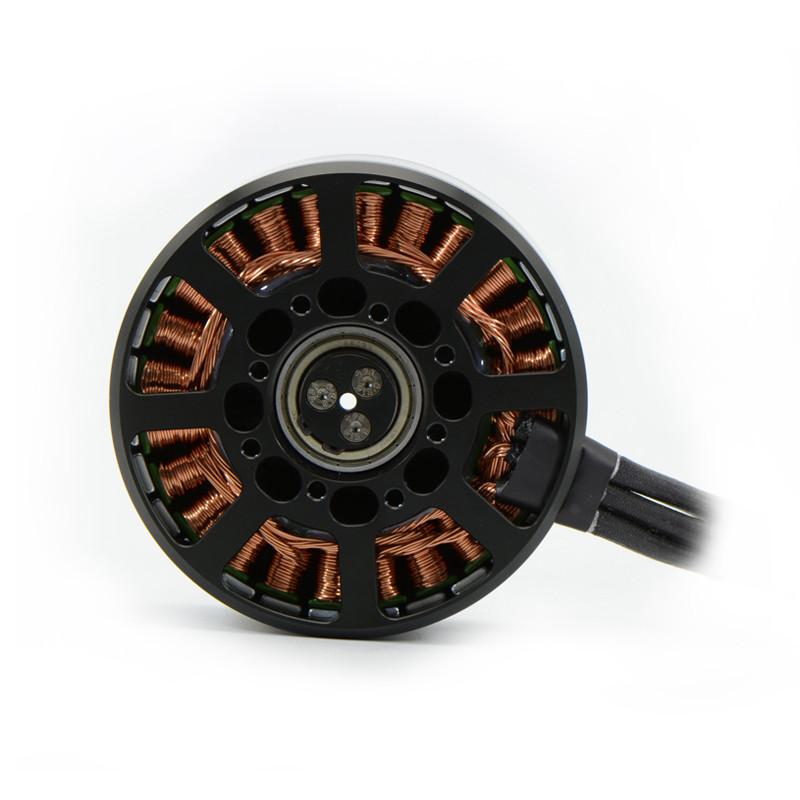

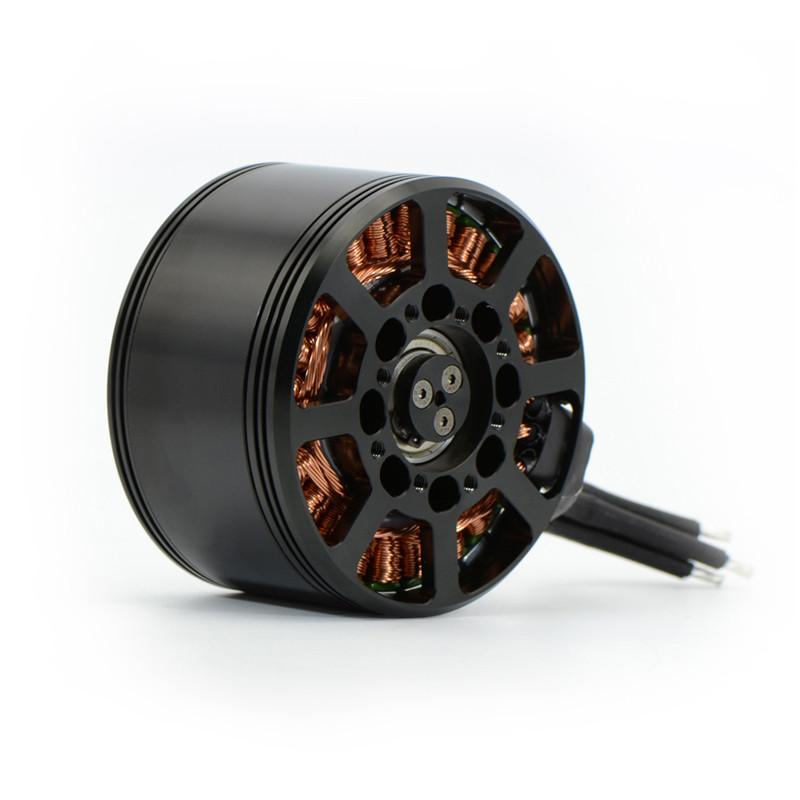

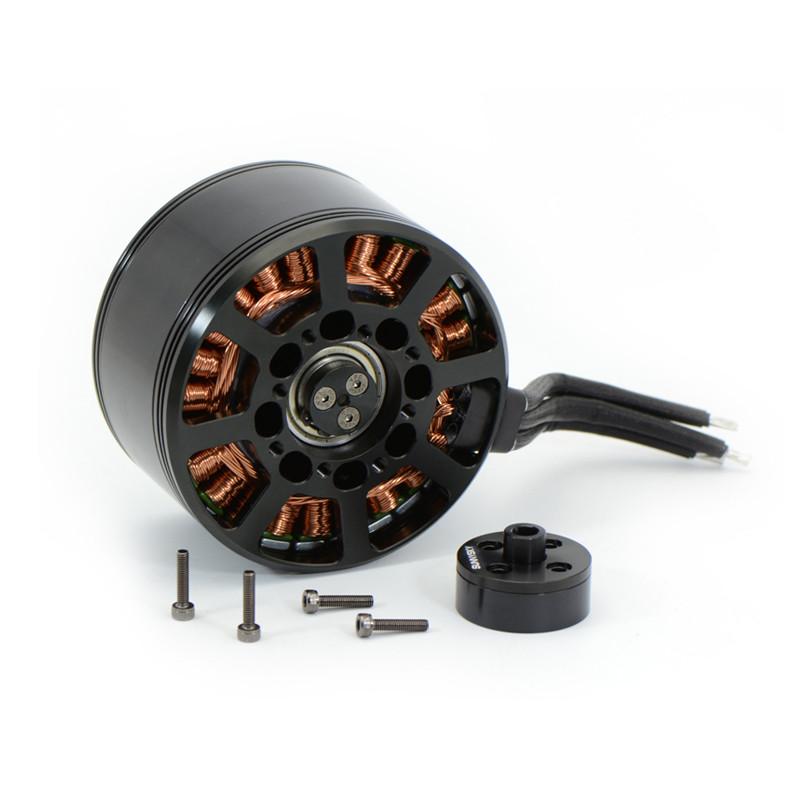

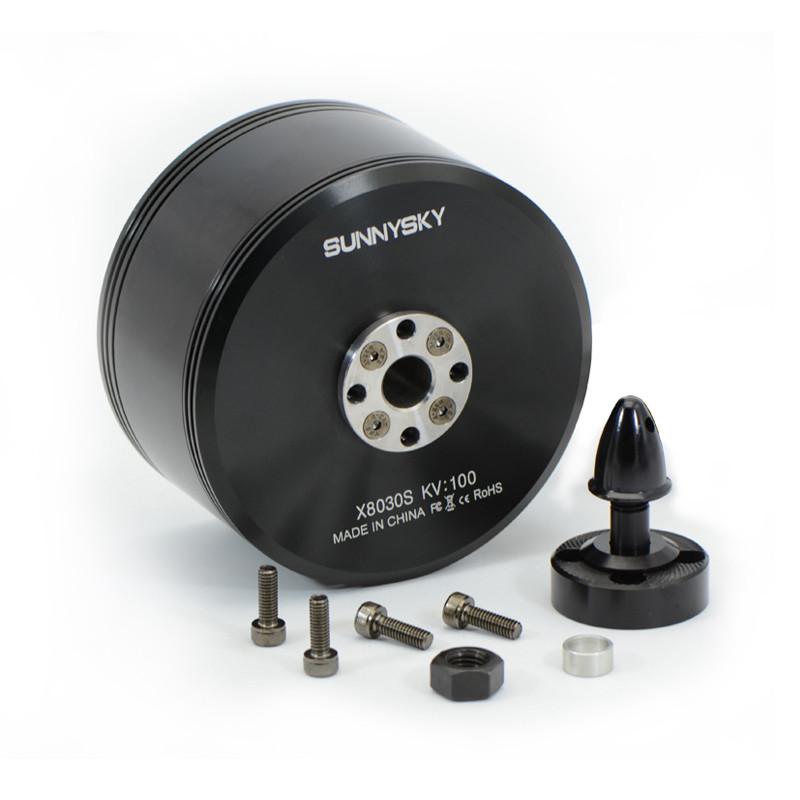

Powerful Multirotor Motors The XS motors feature a new patented design with an excellent industrial vision. The semi-enclosed structure effectively prevents sand and debris from entering the motor while promoting better ventilation and heat dissipation.
Advanced Large-Diameter EZO Bearings Each XS motor is equipped with advanced Japanese EZO bearings with large diameters that ensure stable, quiet, and long-lasting performance.
Hand Wound The XS motors are wound by hand with the ultimate manual winding process, resulting in a compact and neat coil with low internal resistance, high efficiency, and up to 90% coil space factor. This process effectively increases the maximum continuous power output of each XS motor.
Sunnysky Ultimate Manufacturing Technology Using Sunnysky's ultimate manufacturing and assembly technology, XS motors are made with great workmanship and precise dimensions, featuring small shaft and radial runouts. All of these factors contribute to smooth and reliable motor operation in the air.
[TABS]OVERVIEW
KV100
| Stator Diameter | 80mm | Rotor Diameter | 89.3mm |
|---|---|---|---|
| Stator Thickness | 30mm | Shaft Diameter | 10mm |
| No.of Stator Slots | 24 | Body Length(without shaft) | 53mm |
| No.of Rotor Poles | 28 | Body Length | 72.5mm |
| Motor Kv | 100 | Max Lipo Cell | 12S |
| No-load current | 2.0A/10V | ESC | 100A |
| Motor Resistance | 26mΩ | Recommended Prop(inch) | 30*10.5/32*11/34*11.5/36*11.5 |
| Max Continuous Current | 80A/12s | Recommended single take-off Weight | ≤10000g |
| Max Continuous Power | 4200W | ||
| Weight |
1080g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| 30*10.5 | 44.4 | 1.6 | 1000 | 71.04 | 14.07657658 | 55℃ |
| 3.7 | 2000 | 164.28 | 12.1743365 | |||
| 6.4 | 3000 | 284.16 | 10.55743243 | |||
| 9.2 | 4000 | 408.48 | 9.792401097 | |||
| 12.6 | 5000 | 559.44 | 8.937508938 | |||
| 16 | 6000 | 710.4 | 8.445945946 | |||
| 20.3 | 7000 | 901.32 | 7.766387077 | |||
| 23.8 | 8000 | 1056.72 | 7.570595806 | |||
| 28.3 | 9000 | 1256.52 | 7.162639671 | |||
| 36 | 10000 | 1598.4 | 6.256256256 | |||
| 42.8 | 11800 | 1900.32 | 6.209480509 | |||
| 50 | 1.5 | 1000 | 75 | 13.33333333 | 73℃ | |
| 3.5 | 2000 | 175 | 11.42857143 | |||
| 5.6 | 3000 | 280 | 10.71428571 | |||
| 8.2 | 4000 | 410 | 9.756097561 | |||
| 11 | 5000 | 550 | 9.090909091 | |||
| 14.3 | 6000 | 715 | 8.391608392 | |||
| 17.5 | 7000 | 875 | 8 | |||
| 21.3 | 8000 | 1065 | 7.511737089 | |||
| 25 | 9000 | 1250 | 7.2 | |||
| 29.2 | 10000 | 1460 | 6.849315068 | |||
| 38.6 | 12000 | 1930 | 6.21761658 | |||
| 48 | 14000 | 2400 | 5.833333333 | |||
| 53.3 | 15200 | 2665 | 5.703564728 | |||
| 32x11 | 44.4 | 1.7 | 1000 | 75.48 | 13.24854266 | 58℃ |
| 3.5 | 2000 | 155.4 | 12.87001287 | |||
| 6 | 3000 | 266.4 | 11.26126126 | |||
| 8.4 | 4000 | 372.96 | 10.72501073 | |||
| 11.5 | 5000 | 510.6 | 9.792401097 | |||
| 14.3 | 6000 | 634.92 | 9.45000945 | |||
| 18 | 7000 | 799.2 | 8.758758759 | |||
| 21.5 | 8000 | 954.6 | 8.380473497 | |||
| 25.7 | 9000 | 1141.08 | 7.887264697 | |||
| 29 | 10000 | 1287.6 | 7.766387077 | |||
| 38.4 | 12000 | 1704.96 | 7.038288288 | |||
| 45.6 | 13500 | 2024.64 | 6.667852063 | |||
| 50 | 1.5 | 1000 | 75 | 13.33333333 | 85℃ | |
| 3.4 | 2000 | 170 | 11.76470588 | |||
| 5.3 | 3000 | 265 | 11.32075472 | |||
| 7.8 | 4000 | 390 | 10.25641026 | |||
| 10.3 | 5000 | 515 | 9.708737864 | |||
| 13.1 | 6000 | 655 | 9.160305344 | |||
| 16.7 | 7000 | 835 | 8.383233533 | |||
| 19.5 | 8000 | 975 | 8.205128205 | |||
| 23.2 | 9000 | 1160 | 7.75862069 | |||
| 27.1 | 10000 | 1355 | 7.380073801 | |||
| 34.7 | 12000 | 1735 | 6.916426513 | |||
| 44.3 | 14000 | 2215 | 6.320541761 | |||
| 58 | 17000 | 2900 | 5.862068966 | |||
| 34*11.5 | 44.4 | 1.5 | 1000 | 66.6 | 15.01501502 | 80℃ |
| 3.4 | 2000 | 150.96 | 13.24854266 | |||
| 5.5 | 3000 | 244.2 | 12.28501229 | |||
| 7.8 | 4000 | 346.32 | 11.55001155 | |||
| 11 | 5000 | 488.4 | 10.23751024 | |||
| 14 | 6000 | 621.6 | 9.652509653 | |||
| 17.4 | 7000 | 772.56 | 9.060784923 | |||
| 21 | 8000 | 932.4 | 8.58000858 | |||
| 24.7 | 9000 | 1096.68 | 8.206587154 | |||
| 29.4 | 10000 | 1305.36 | 7.660721946 | |||
| 38.6 | 12000 | 1713.84 | 7.001820473 | |||
| 48 | 14000 | 2131.2 | 6.569069069 | |||
| 66.6 | 17000 | 2957.04 | 5.748992235 | |||
| 50 | 1.4 | 1000 | 70 | 14.28571429 | 108℃ | |
| 2 | 2000 | 100 | 20 | |||
| 4.9 | 3000 | 245 | 12.24489796 | |||
| 7.2 | 4000 | 360 | 11.11111111 | |||
| 9.6 | 5000 | 480 | 10.41666667 | |||
| 12.5 | 6000 | 625 | 9.6 | |||
| 15.2 | 7000 | 760 | 9.210526316 | |||
| 18.9 | 8000 | 945 | 8.465608466 | |||
| 22.1 | 9000 | 1105 | 8.14479638 | |||
| 25.2 | 10000 | 1260 | 7.936507937 | |||
| 33.4 | 12000 | 1670 | 7.185628743 | |||
| 42.7 | 14000 | 2135 | 6.557377049 | |||
| 51.4 | 16000 | 2570 | 6.225680934 | |||
| 61.7 | 18000 | 3085 | 5.834683955 | |||
| 71.1 | 20000 | 3555 | 5.625879044 | |||
| 81.6 | 21600 | 4080 | 5.294117647 | |||
| 36*11.5 | 44.4 | 1.4 | 1000 | 62.16 | 16.08751609 | 3 min 102℃ |
| 3.2 | 2000 | 160 | 12.5 | |||
| 5.3 | 3000 | 265 | 11.32075472 | |||
| 7.8 | 4000 | 390 | 10.25641026 | |||
| 10.6 | 5000 | 530 | 9.433962264 | |||
| 13.6 | 6000 | 680 | 8.823529412 | |||
| 17 | 7000 | 850 | 8.235294118 | |||
| 20.8 | 8000 | 1040 | 7.692307692 | |||
| 24.4 | 9000 | 1220 | 7.37704918 | |||
| 28.2 | 10000 | 1410 | 7.092198582 | |||
| 37.3 | 12000 | 1865 | 6.434316354 | |||
| 46.2 | 14000 | 2310 | 6.060606061 | |||
| 57.6 | 16000 | 2880 | 5.555555556 | |||
| 68.9 | 18000 | 3445 | 5.224963716 | |||
| 77 | 19300 | 3850 | 5.012987013 |
KV120
| Stator Diameter | 80mm | Rotor Diameter | 89.3mm |
|---|---|---|---|
| Stator Thickness | 30mm | Shaft Diameter | 10mm |
| No.of Stator Slots | 24 | Body Length(without shaft) | 53mm |
| No.of Rotor Poles | 28 | Body Length | 72.5mm |
| Motor Kv | 120 | Max Lipo Cell | 12S |
| No-load current | 2.8A/10V | ESC | 130A |
| Motor Resistance | 18mΩ | Recommended Prop(inch) | 30*10.5/32*11 |
| Max Continuous Current | 90A/30s | Recommended single take-off Weight | ≤10000g |
| Max Continuous Power | 4500W | ||
| Weight |
1080g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| 30*10.5 | 44.4 | 1.8 | 1000 | 79.92 | 12.51251251 | 64℃ |
| 4.1 | 2000 | 182.04 | 10.98659635 | |||
| 6.8 | 3000 | 301.92 | 9.936406995 | |||
| 9.8 | 4000 | 435.12 | 9.192866336 | |||
| 13 | 5000 | 577.2 | 8.662508663 | |||
| 17 | 6000 | 754.8 | 7.949125596 | |||
| 20.8 | 7000 | 923.52 | 7.57969508 | |||
| 25.7 | 8000 | 1141.08 | 7.010901953 | |||
| 29.9 | 9000 | 1327.56 | 6.779354605 | |||
| 34.5 | 10000 | 1531.8 | 6.528267398 | |||
| 46.4 | 12000 | 2060.16 | 5.824790308 | |||
| 57.4 | 14000 | 2548.56 | 5.493298176 | |||
| 63.8 | 15200 | 2832.72 | 5.365867435 | |||
| 50 | 1.6 | 1000 | 80 | 12.5 | 103℃ | |
| 3.5 | 2000 | 175 | 11.42857143 | |||
| 5.7 | 3000 | 285 | 10.52631579 | |||
| 8.5 | 4000 | 425 | 9.411764706 | |||
| 11.5 | 5000 | 575 | 8.695652174 | |||
| 14.4 | 6000 | 720 | 8.333333333 | |||
| 18.3 | 7000 | 915 | 7.650273224 | |||
| 21.7 | 8000 | 1085 | 7.373271889 | |||
| 25.5 | 9000 | 1275 | 7.058823529 | |||
| 30 | 10000 | 1500 | 6.666666667 | |||
| 38.9 | 12000 | 1945 | 6.16966581 | |||
| 49.2 | 14000 | 2460 | 5.691056911 | |||
| 60 | 16000 | 3000 | 5.333333333 | |||
| 72 | 18000 | 3600 | 5 | |||
| 84 | 20400 | 4200 | 4.857142857 | |||
| 32x11 | 44.4 | 1.7 | 1000 | 75.48 | 13.24854266 | 80℃ |
| 3.7 | 2000 | 164.28 | 12.1743365 | |||
| 6.3 | 3000 | 279.72 | 10.72501073 | |||
| 9 | 4000 | 399.6 | 10.01001001 | |||
| 12.3 | 5000 | 546.12 | 9.15549696 | |||
| 15.6 | 6000 | 692.64 | 8.662508663 | |||
| 19.4 | 7000 | 861.36 | 8.126683384 | |||
| 23.4 | 8000 | 1038.96 | 7.7000077 | |||
| 27.8 | 9000 | 1234.32 | 7.291464126 | |||
| 32.4 | 10000 | 1438.56 | 6.95139584 | |||
| 42.4 | 12000 | 1882.56 | 6.374298827 | |||
| 53 | 14000 | 2353.2 | 5.949345572 | |||
| 64.2 | 16000 | 2850.48 | 5.613089725 | |||
| 69.7 | 17000 | 3094.68 | 5.493298176 |
