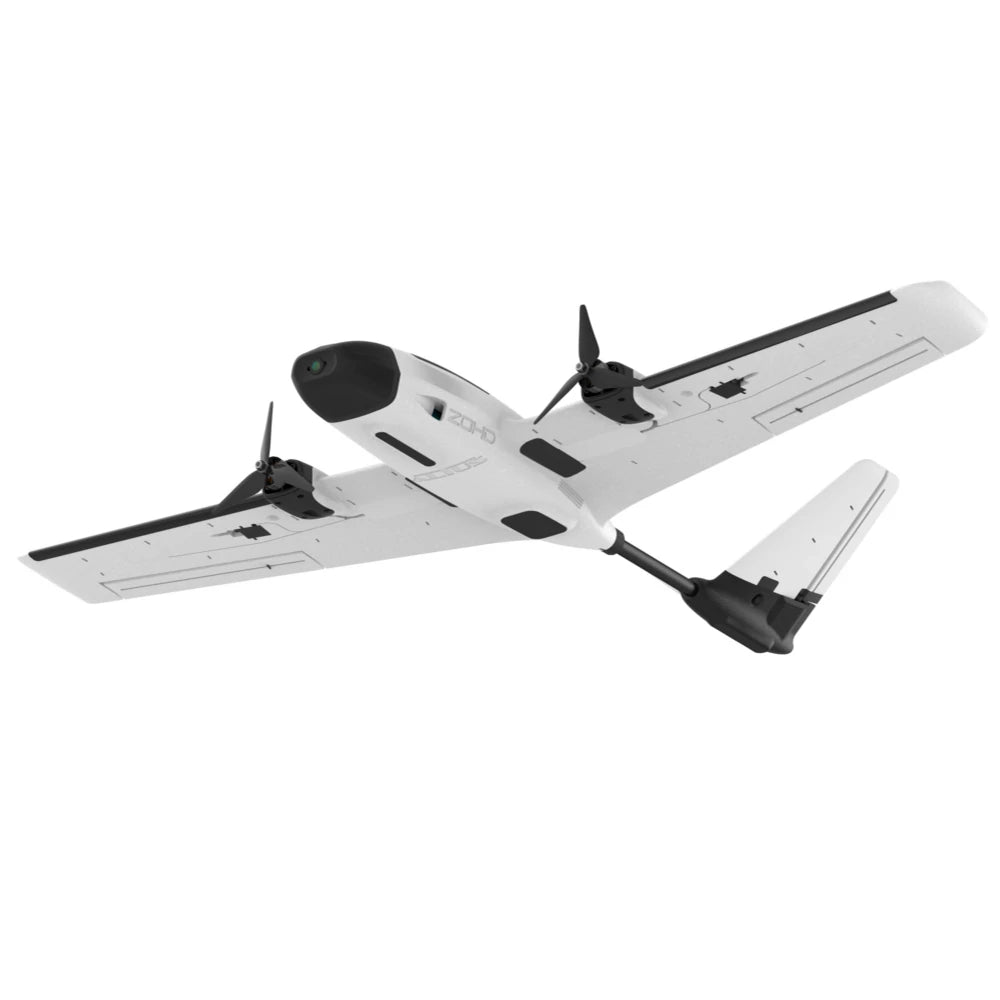

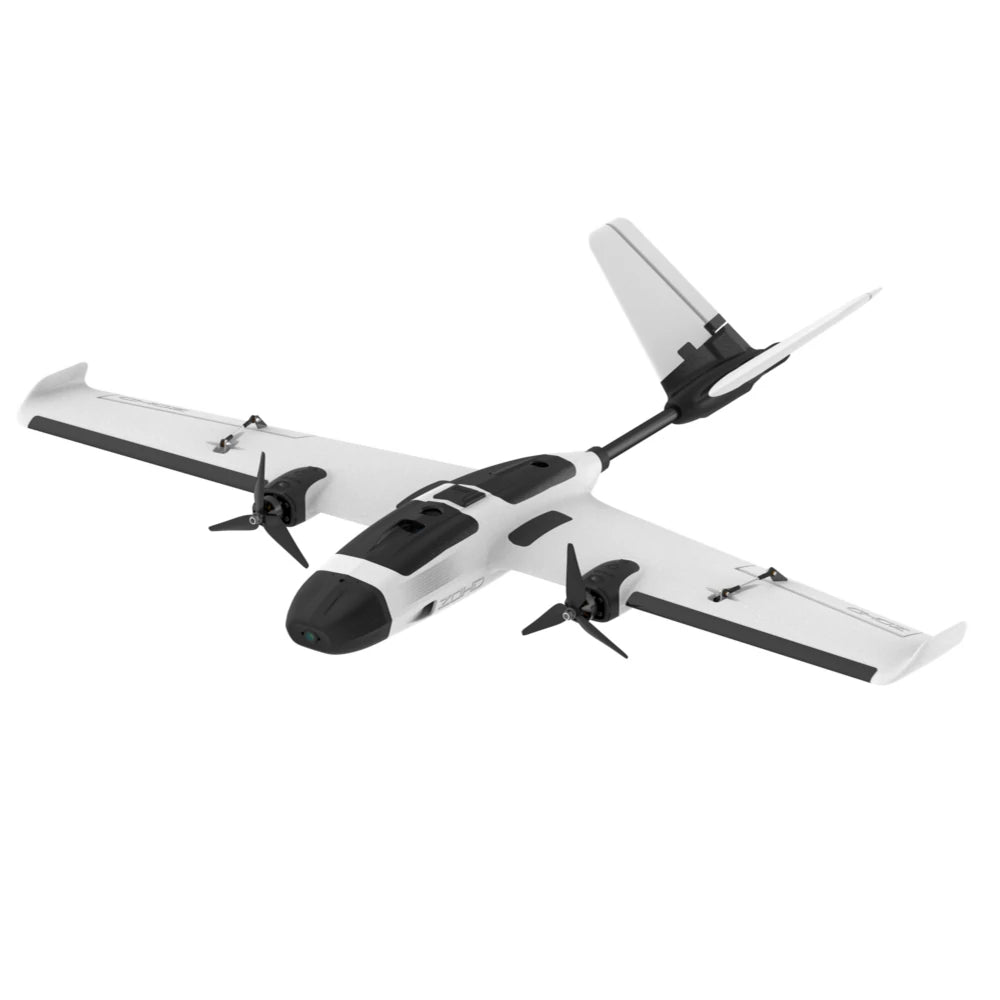

ZOHD Altus 980mm Wingspan Twin Motor V-Tail EPP FPV RC Airplane

ZOHDSKU: ZOH-10081

Style: PNP
Price:
Sale price$149.99

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Download Manual

Description

ZOHD Altus 980mm Wingspan Twin Motor V-Tail EPP FPV RC Airplane KIT/PNP Reserved VTOL Capability Compatible GoPro/DJI/Runcam HD Action Cameras

Specifications:
Brand Name: ZOHD
Item Name: Altus
Material: High-Quality EPP
Wingspan: 980mm (38.58")
Length: 770mm (30.31")
Version: KIT, PNP (optional)
KIT Empty Weight: 365g
PNP Empty Weight: 545g
Recommended ZOHD Power Combo Configuration(Not Included):
- Twin Motor: 2204-1870KV
- Twin ESC: 30A w/5V 2A BEC
- Servos: 4pcs 9g metal gear servo
- Propeller: 3 blades R42
- Recommended Battery: Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh,
- Radio System: 2.4GHz 6CH
Features:
- Versatile Power Combo: The Altus is equipped with a powerful Twin Motor (2204-1870KV and Twin ESC (30A w/5V 2A BEC), ensuring dynamic flights and impressive speeds up to 120km/h.
- Easy Assembly, Portable Design: Experience glue-free assembly and the convenience of a detachable main wing and tail wing, making the Altus a portable companion for outdoor adventures.
- HD Camera Compatibility: Capture breathtaking moments with the nose camera bay compatible with popular HD Action cameras, compatible with GoPro, DJI, and RunCam, supported by specially designed foam for a secure fit.
- Aerodynamic Excellence: Thanks to the aerodynamically designed FPV gear pockets in both wings, reducing, interference and maintaining stability during flights. The Altus features a highly efficient NACA air cooling system to keep your FPV gear performing at its best.
- Durable Construction: Molded with tough EPP material and reinforced with a built-in CF spar, the Altus promises super stable flying capabilities and. remarkable crash resistance, ensuring durability for countless flights.
- Precision Control: Enjoy precise control with the built-in CF rod in the control surface and a high-accuracy ball link control system, providing agile and quick responses to your commands.
- Extended Flight Time: The large battery bay accommodates Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh,offering extended flight times for uninterrupted aerial exploration.
- Upgrade Ready: The Altus comes with a reserved VTOL capability for future upgrades, ensuring your FPV adventures are always at the forefront of technology.
