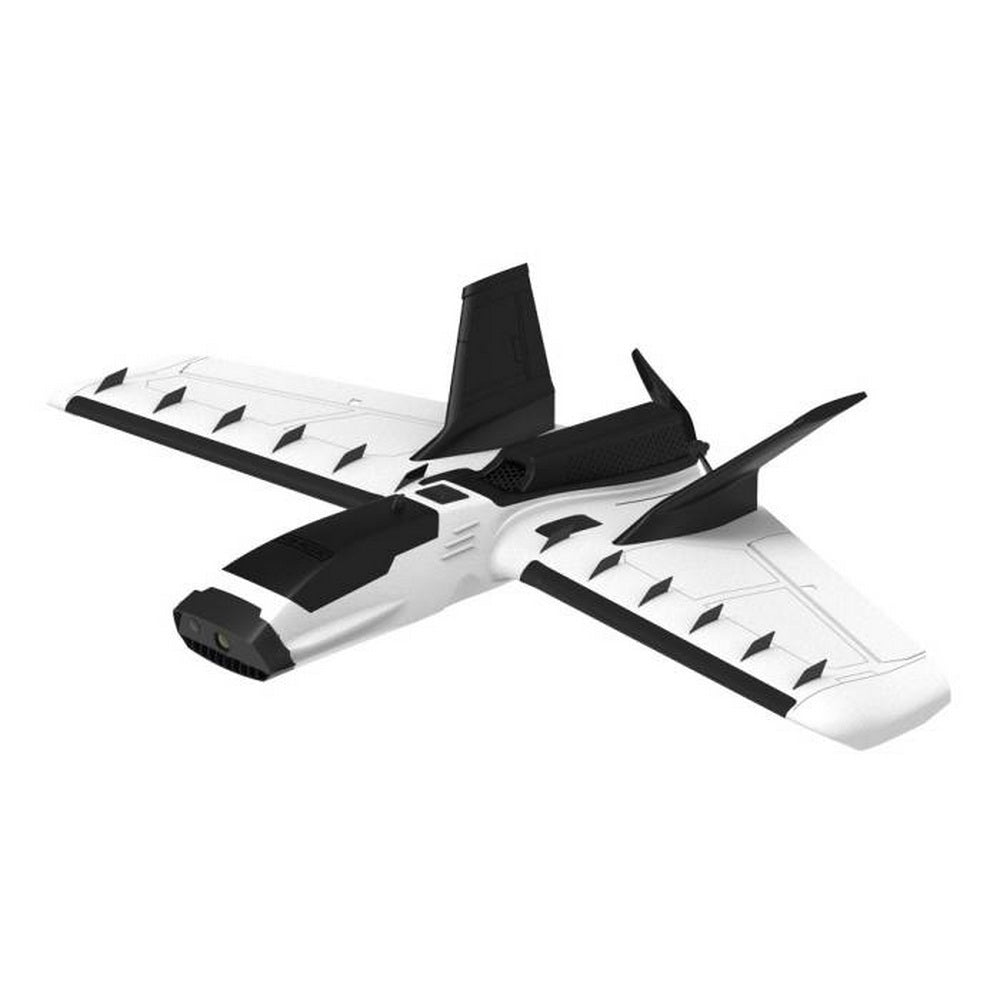

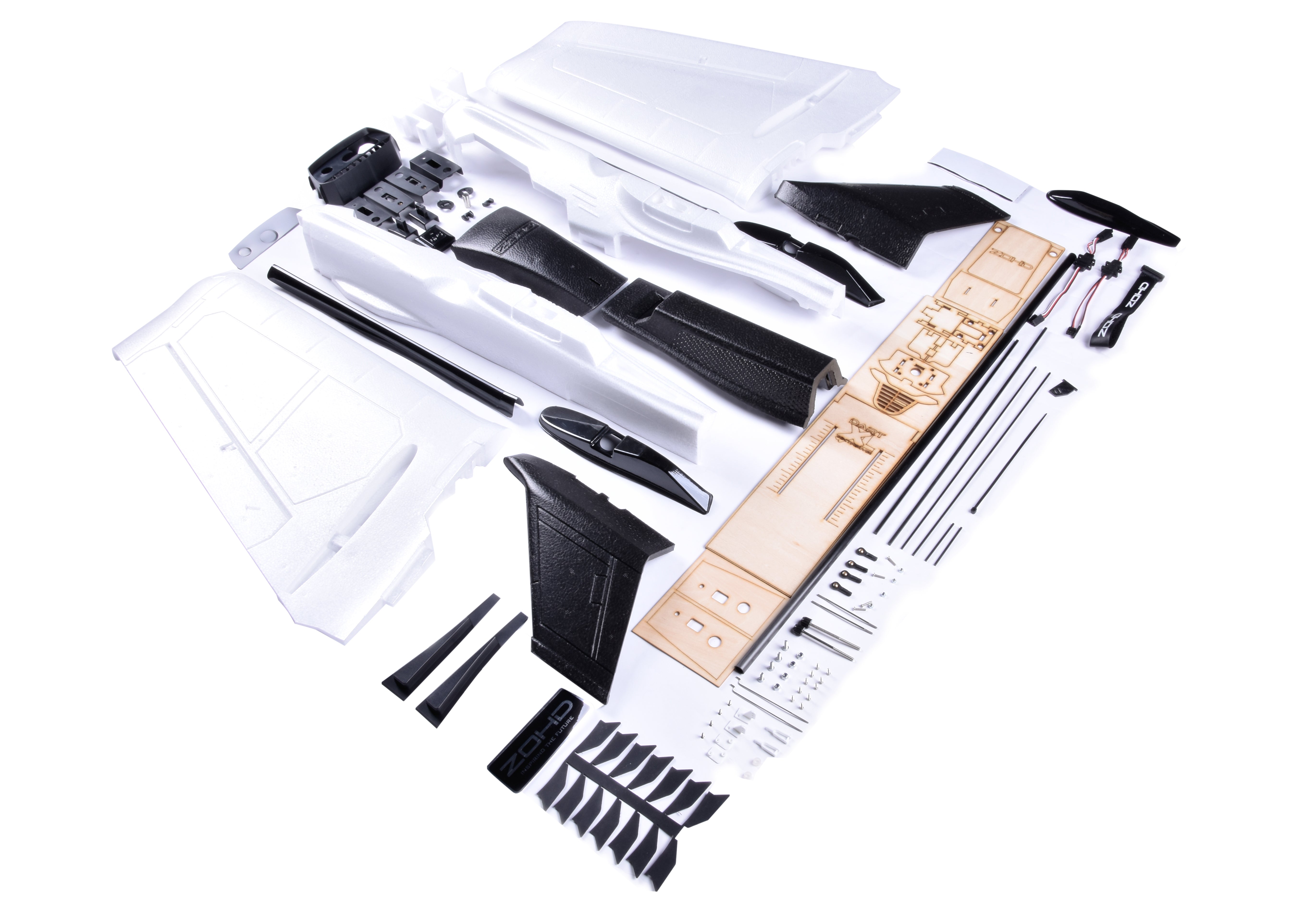

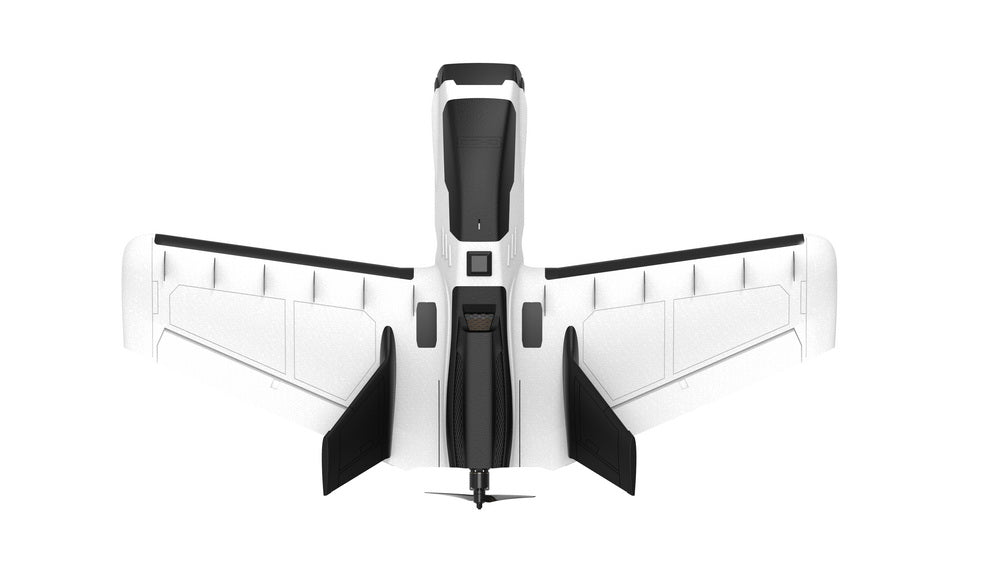

ZOHD Dart XL Extreme Enhanced Unassembled Kit


Sale price$99.99

Customer Reviews

Based on 1 review
Bill W.
Dart XL Extreme

Super nice kit, one of the nicest kits I've seen in awhile.

Download Manual


Introducing the ZOHD Dart XL Extreme Enhanced KIT - the latest addition to ZOHD's line of high-quality FPV planes! Building upon the success of the Dart V2, the Dart XL Extreme has been upgraded with new features to work seamlessly with modern flight controllers, high-power video transmitters, and long-range systems. Despite its small size and lightweight construction, the Dart XL Extreme is capable of keeping up with larger planes thanks to the top-of-the-line electronics included in the package, providing you with the ultimate FPV experience. Order your kit today and take your FPV game to the next level!


  • Lightweight airframe with detachable wings and vertical stabilizers for easy portability.
  • ZOHD's new BEPP material provides excellent crash resistance and is 100% biodegradable.
  • Composite hard nose protects your camera during flight.
  • Embedded VTX/RX bays provide excellent air flow and are isolated from RF interference.
  • Multi-camera nose compatible with a wide variety of cameras, including Runcam HD, 2, 3S, Swift, Split, GoPro H4-5-6-7, Session, and more!
  • Impact-resistant protection cover for main wings and landing skids.

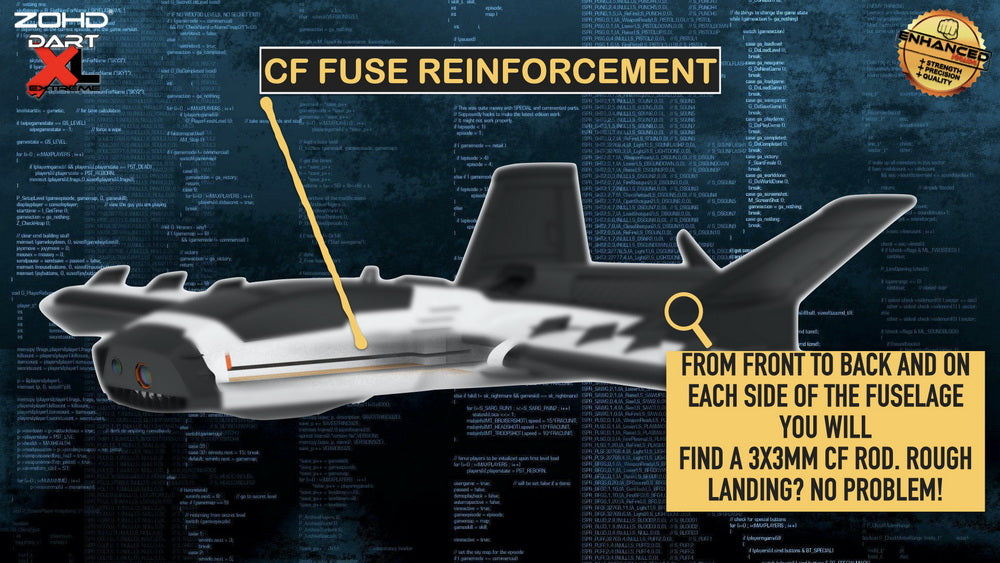

  • Enhanced version features a stronger, more durable motor mount and built-in carbon fiber rod inside the fuselage for added strength and rigidity.

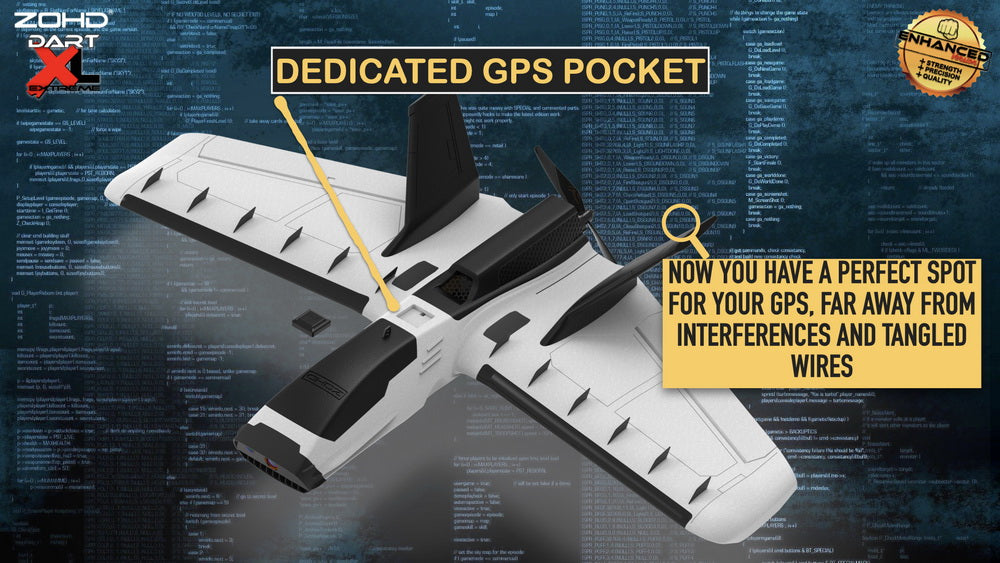

  • GPS bay and cover included for expanded functionality.

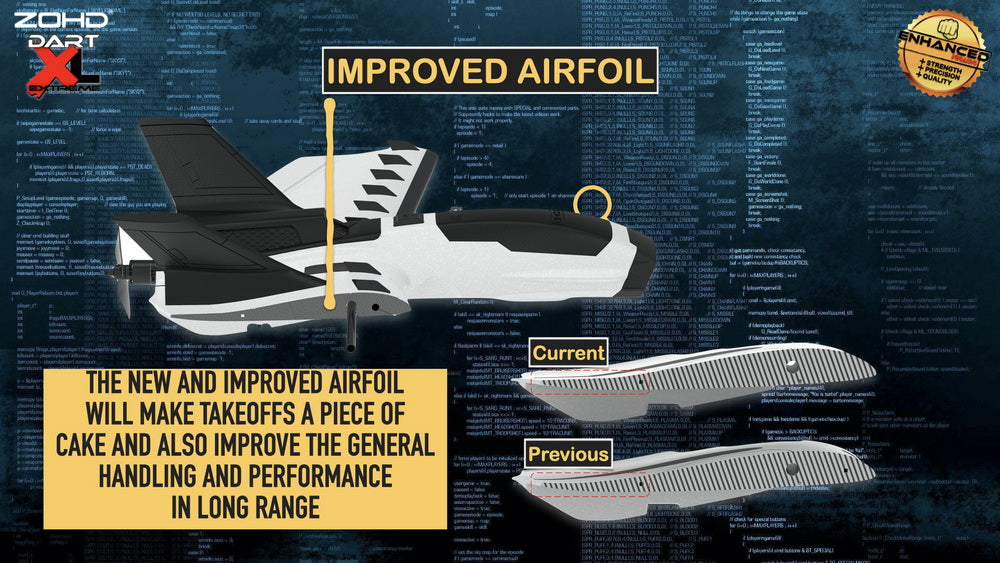

  • Optimized airfoil and extended dock for flight controller.

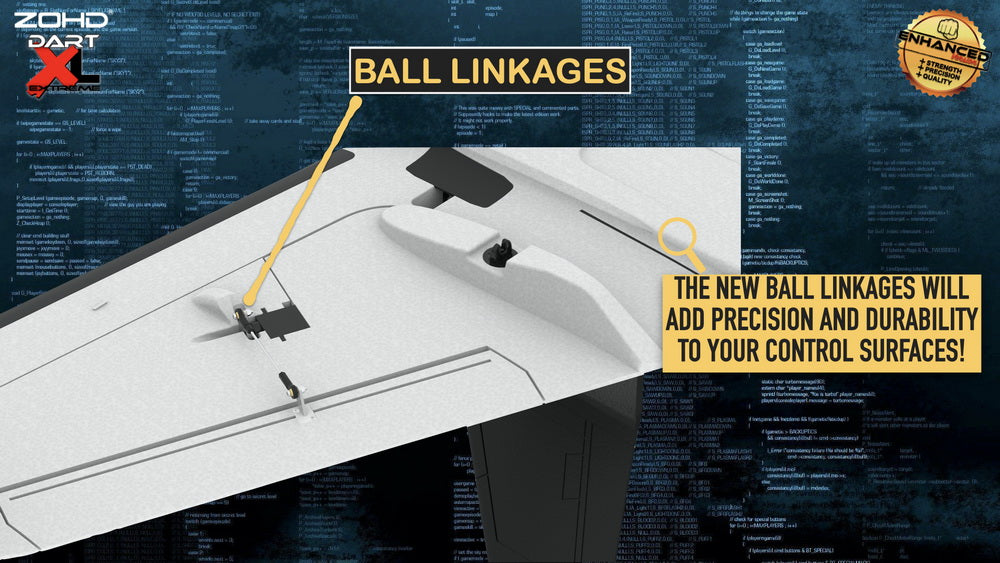

  • Extra ball linkage included in the package.

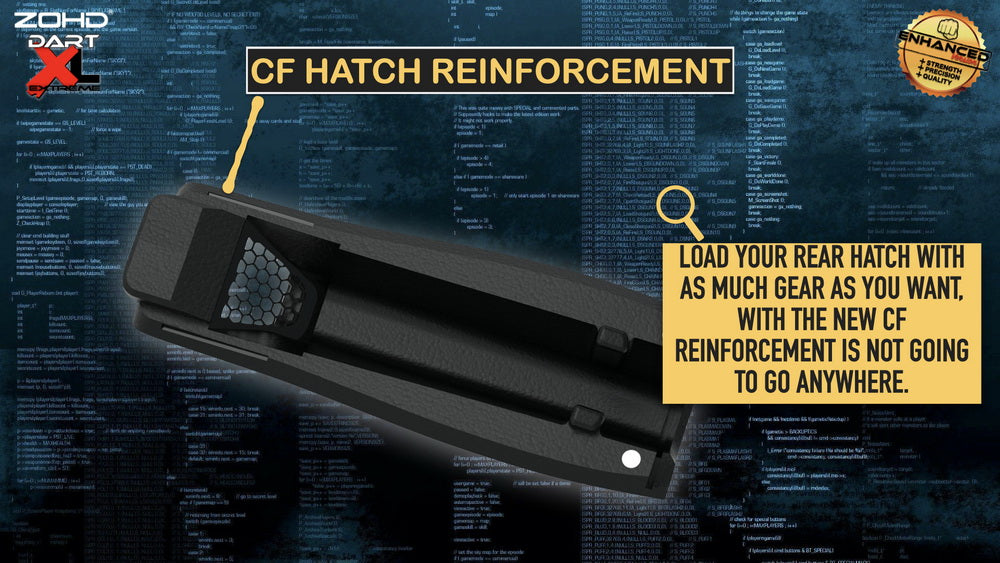

  • Built-in carbon fiber strip inside rear hatch for added reinforcement.


  • Material: Biodegradable BEPP
  • Wingspan: 1000mm (39.37'')
  • Length: 596mm (23.4'')
  • Space for Stabilizer/Gyro: Yes
  • Wing area: 19.8dm2
  • Wing load: 60.6g/dm2 (Max.)
  • Recommended Max. Flying weight: 1200g
  • Flying speed: 25-100+km/h
  • Max. Flying time: 40 minutes (with recommended battery)
  • Recommended Battery: 4S 3300mAh
  • RC Transmitter, Receiver, Motor, ESC, Servos, Battery, and FPV Gear NOT included

Recommended Electronics (Not Included):

  • Motor: 2216-1300KV
  • ESC: 30A w/5V 3A BEC
  • Servos: 9g Metal Gear
  • Prop: 9x4.5
  • Recommended Battery: 4S 3300mAh
