Description

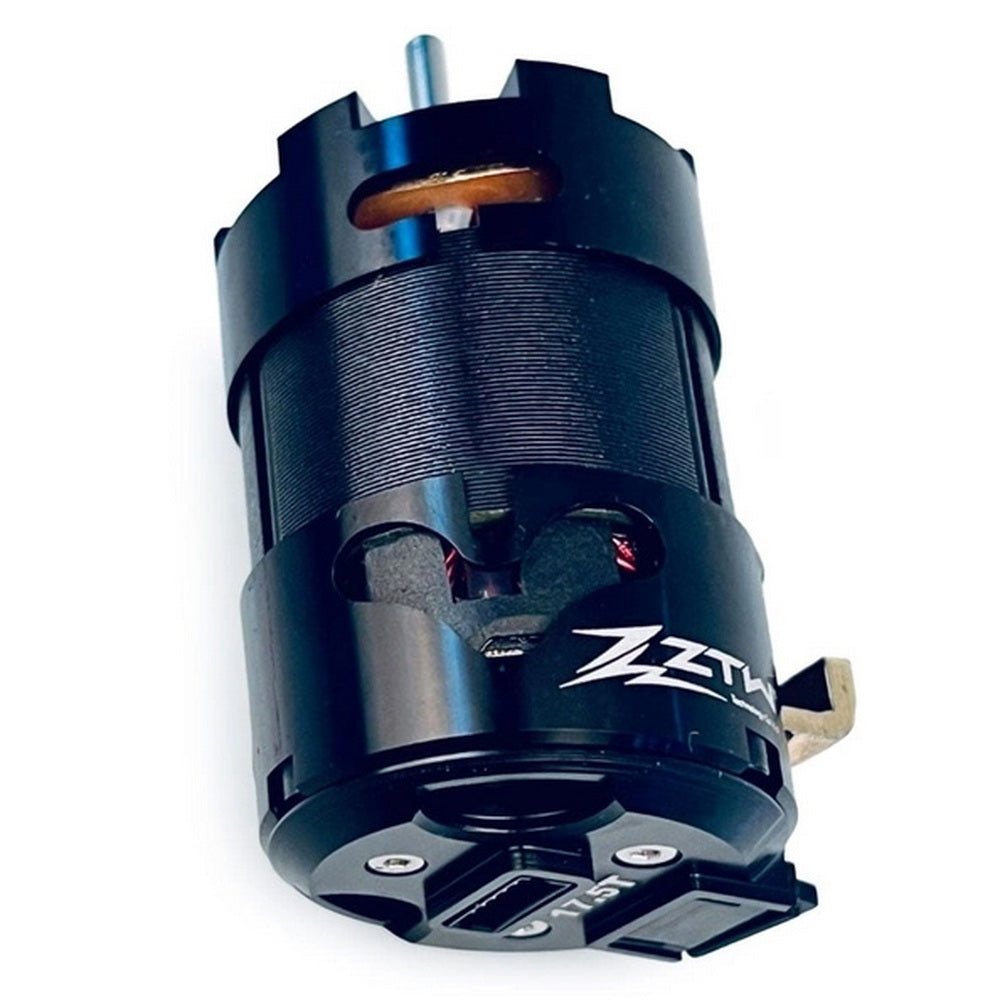

This powerful 17.5T/2246Kv motor delivers unbelievable acceleration and top speed while requiring minimal maintenance, and is the perfect upgrade for 1/10 scale cars, trucks, or buggies or for use in motor-restricted racing classes.
Features:
- Aerospace-spec ball bearings
- Sealed, dust-resistant design
- Sintered rotor for maximum torque
- 2246Kv output perfect for 1:10 scale cars, buggies, and trucks
Product Specifications:
|
Motor Type |
Inrunner |
|
Kv Rating (RPM/Volt) |
2246Kv |
|
Maximum Watts |
1300W |
|
Continuous Current |
N/A |
|
Maximum Burst Current |
450A |
|
Recommended Battery (Input Voltage) |
2S to 3S (7.4V to 11.1V) |
|
Recommended ESC |
120A |
|
Recommended Propeller / EDF |
N/A |
|
Slots, Poles |
2 |
|
Shaft Diameter (A) |
3mm |
|
Shaft Length (B) |
N/Amm |
|
Motor Length (C) |
52mm |
|
Motor Diameter (D) |
36mm |
|
Overall Length (E) |
N/A |
|
Weight |
N/A |
|
Connector Type |
Solder tabs |
