ZTW Mantis Series ESCs are designed for both beginner and advanced modelers. Their performance and stability have garnered approval by distributors and pilots around the world. Mantis ESCs feature a compact size, light weight, super smooth start up and throttle linearity, multiple protection modes, solid BEC output, and more. All these features make Mantis Series ESCs the perfect mid-level speed controller for park flyer, sport, and aerobatic pilots.
ZTW speed controllers are one of the most widely used and trusted speed controller brands available on the market today. They are sold under many different brand names, but we choose to purchase directly from the manufacturer without rebranding so that you pay less. ZTW controllers represent a new generation of brushless ESCs using advanced microprocessor technology. They are designed and manufactured with high quality components which provide exceptional reliability, low internal resistance, and a smooth, linear throttle response.
- New advanced programming software with secondary sub-menu setting for ease of use
- Advanced Governor Mode (uses B-Series design to keep the motor speed even though the load is changed)
- Supports high RPM motors, can be used with most RC motors on the market
- More optional motor timing, startup and soft acceleration settings for smoother motor operation
- Super smooth and accurate throttle linearity
- Power arming protection (prevents the motor from accidentally running when switched ON)
- Auto throttle shut down in signal loss situation
- Overheating protection: when the temperature of ESC exceeds 110 deg C, the ESC will reduce the output power to allow it to cool
- Uses new generation MOSFET to ensure ESC's low operation temperature while supporting high peak currents and reliability
Output: 155A continuous, 200A burst for 10 seconds
Input voltage: 2-6s LiPo; 5-18 cell Ni-XX
SBEC output: 5.0V / 5.5V / 6.0V adjustable @ 5A (switching)

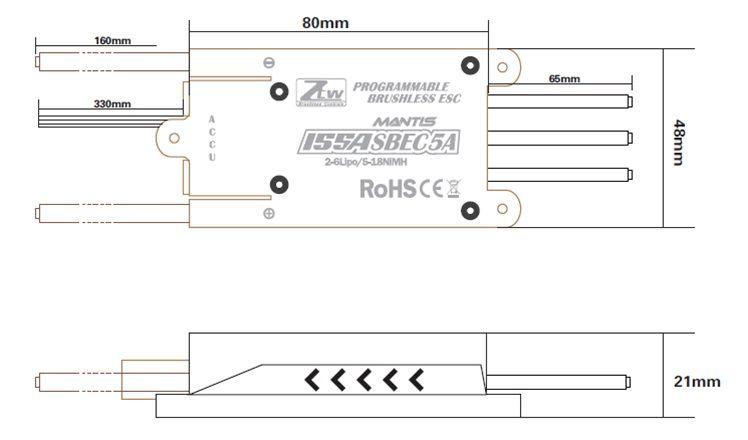

Dimensions: 80 x 48 x 21mm
- Brake setting (off/soft/mid/hard -- default: off)
- Battery type (Ni-XX/LiPo/LiFe -- default: LiPo auto detect)
- Low voltage cutoff setting (2.8V / 3.0V / 3.2V / None -- default: 3.0V)
- Factory default setup reset
- Timing settings (auto / 2° / 5° / 8° /15° / 22° /30° -- default: auto)
- SBEC output voltage (on 45A and larger models only) (5.0V / 5.5V / 6.0V -- default: 5.0V)
- Governor mode (RPM off / 1st soft start / 2nd soft start / gov mod 1 / gov mod 2 -- default: RPM off)
- Motor rotation (forward / reverse -- default: forward)
- Start-up strength (10% / 15% / 20% / 25% / 30% / 35% / 40% / 45% / 50% -- default: 30%)
- Low voltage cutoff type (reduce power / cut-off power -- default: reduce)
Parameters can be programmed using your transmitter, or by using the optional programming card sold separately.
Click here to download the ZTW Mantis Series ESC Manual.
